Pylap Details

Property	Value
Rupture Count	216
Ruptures Above Sect Min Mag	216
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.88, 7.90]
Length Range	[24, 209] km
Total Rate	1.3888833E-5 /yr
Multi-Fault Rate	1.3888833E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	24

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

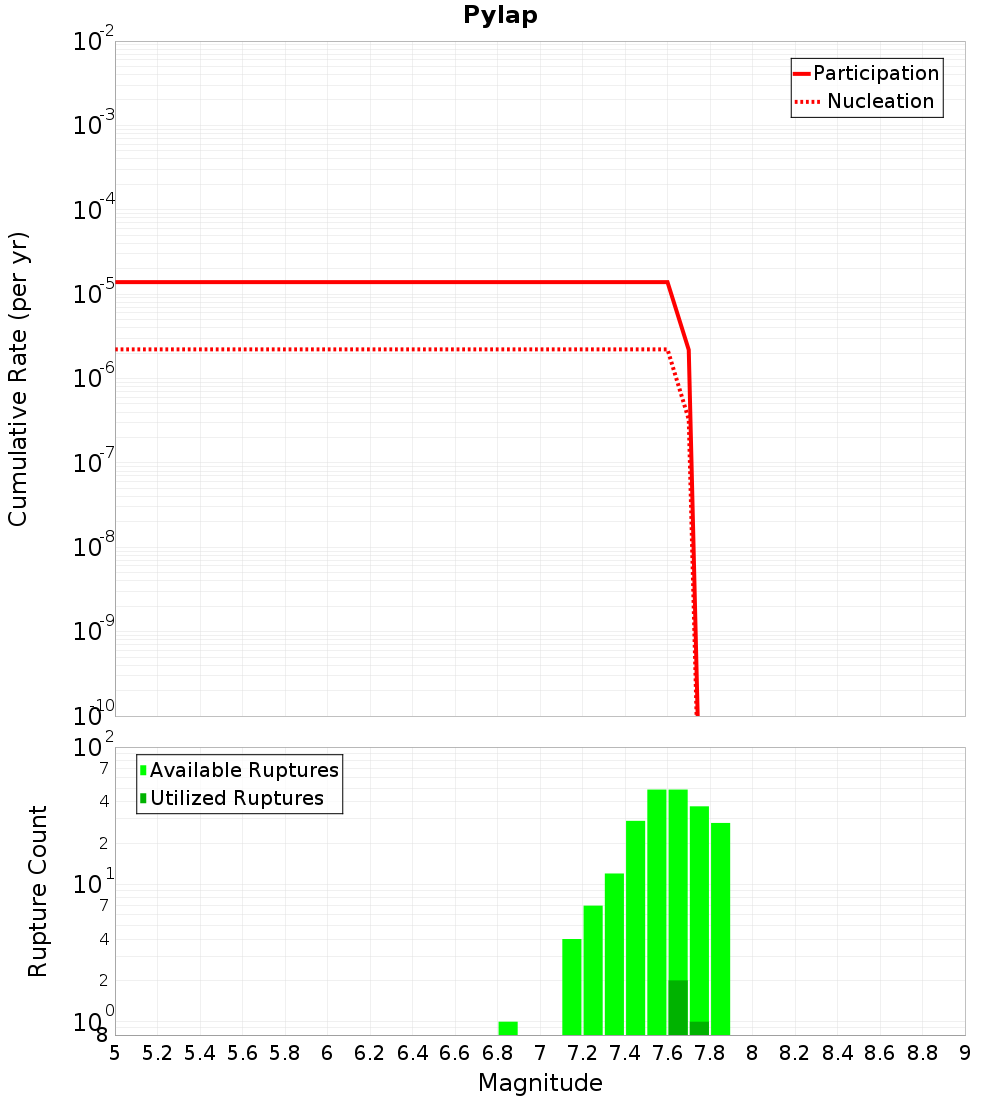

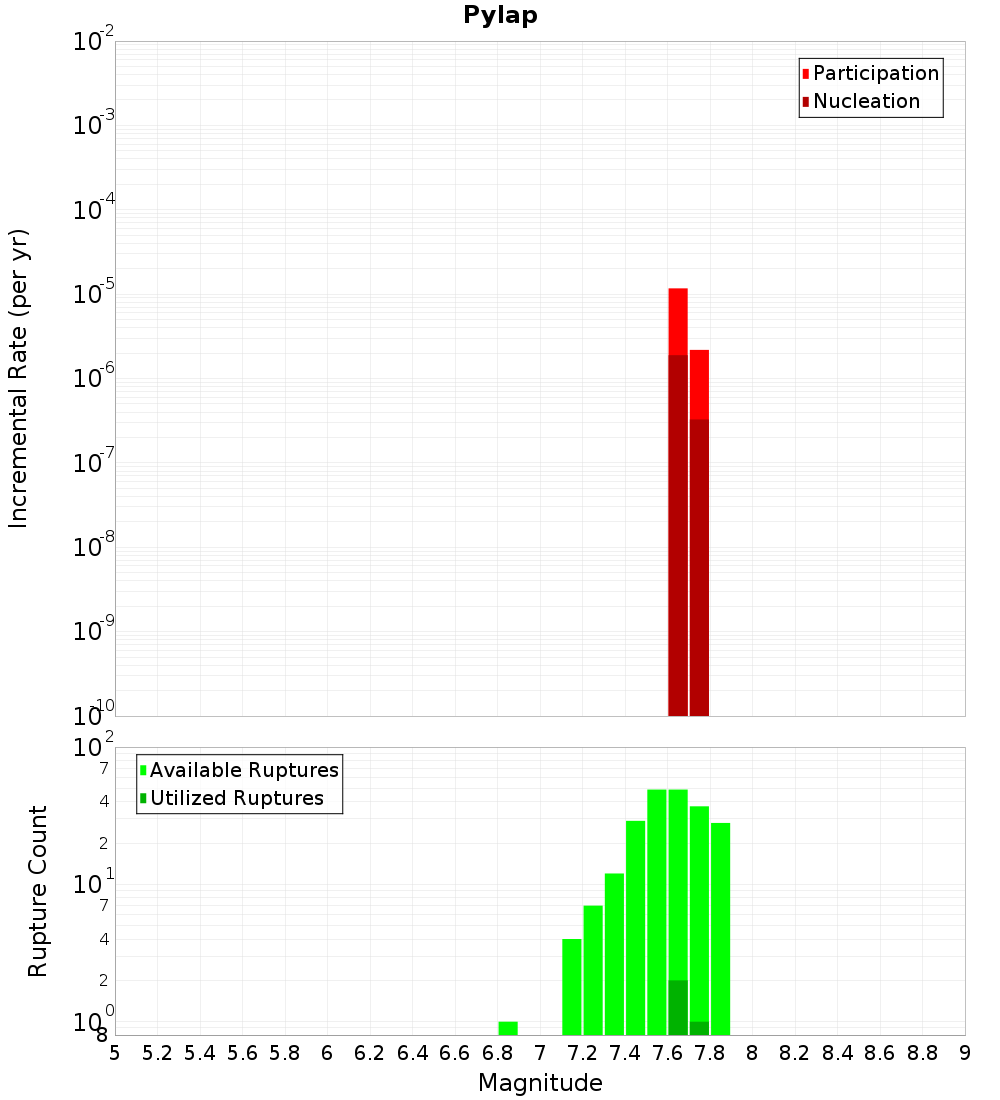

Magnitude-Frequency Distribution

Incremental	Cumulative

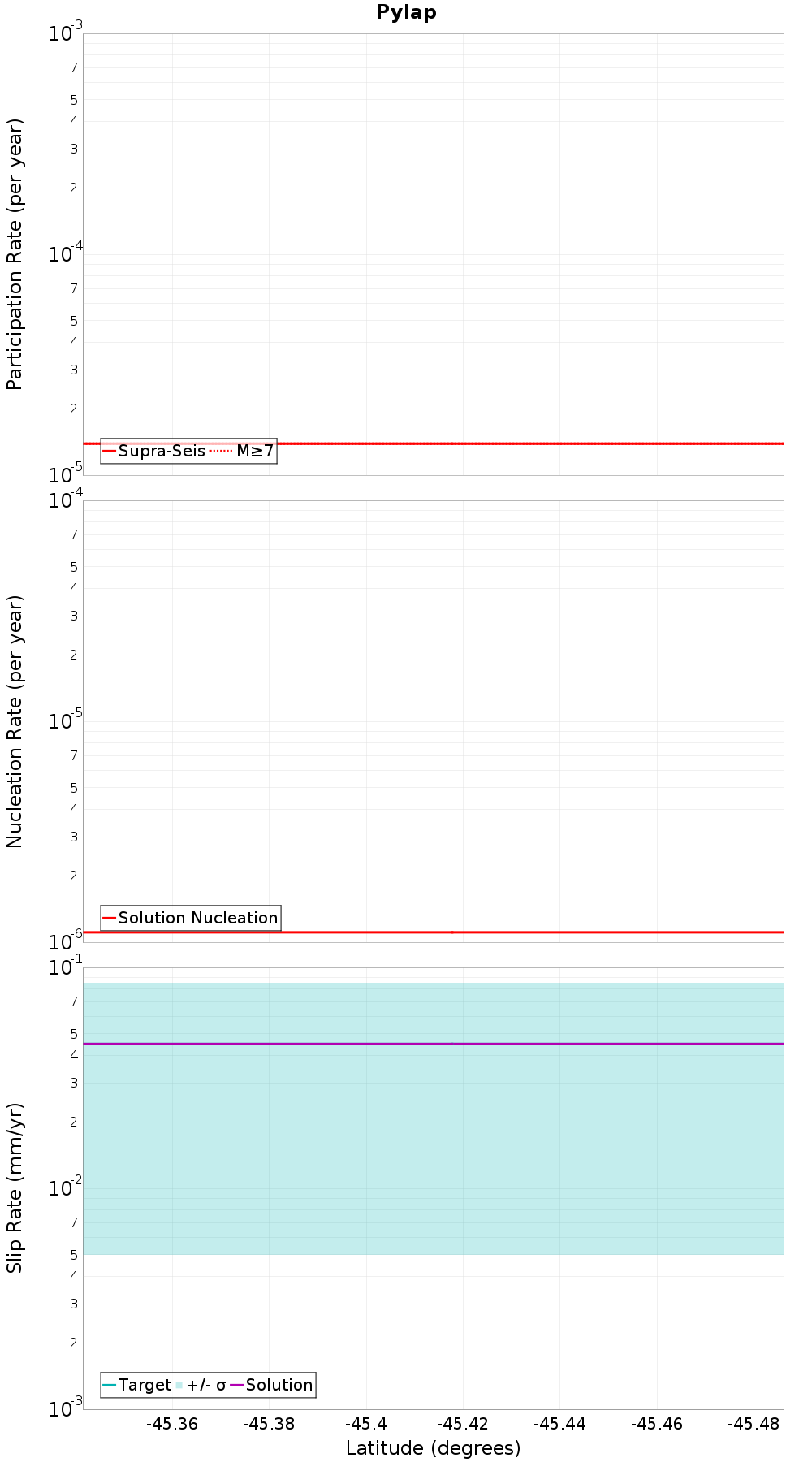

Along-Strike Values

Moment-Rates and b-Values

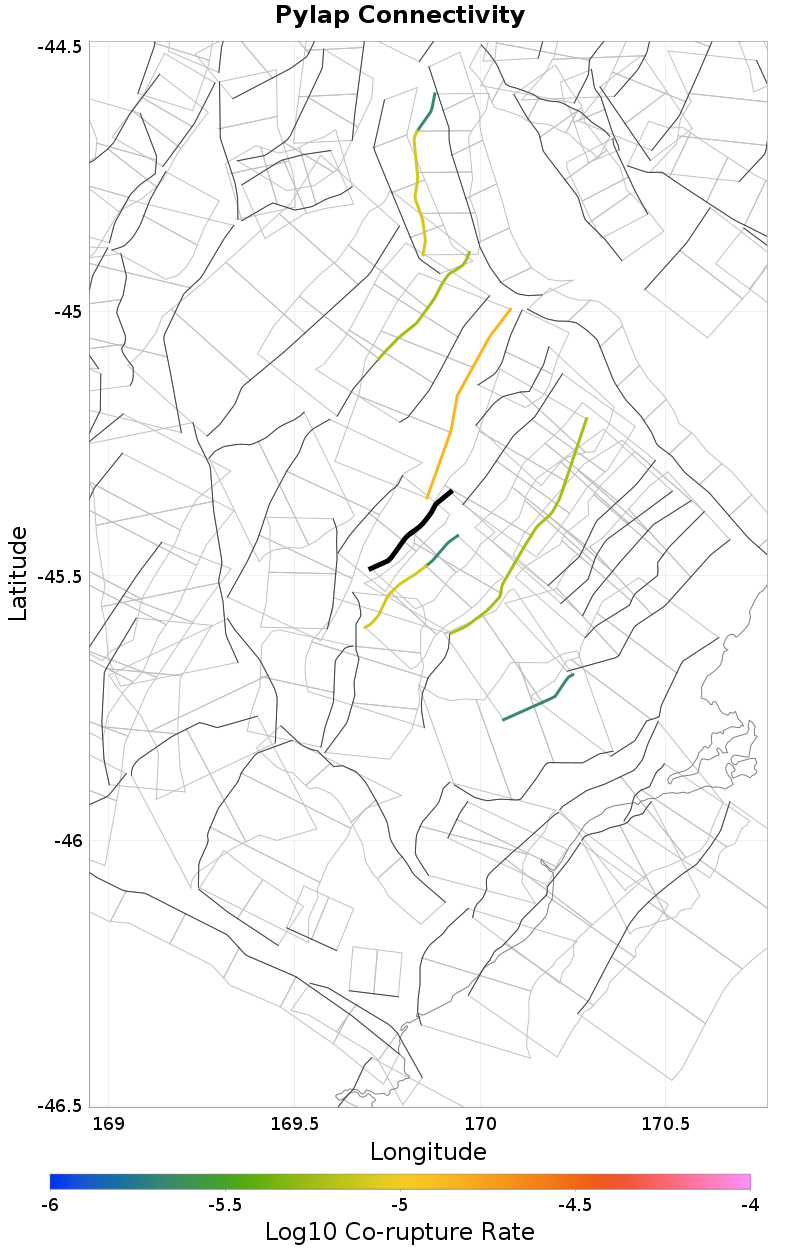

Connectivity

Nearby Sections

Fault Section	Fault Section
Hyde North, 0.13 km away	Lake Onslow, 7.26 km away
Beaumont River, 0.19 km away	Nichols Rock, 7.27 km away
Horse Flat, 0.32 km away	Dunback Hill, 9.96 km away
Billys Ridge, 2.07 km away	Flat Stream - Glenpark, 11.7 km away
Gimmerburn, 2.27 km away	Little Valley, 12.8 km away
Waipiata, 3.22 km away	Ranfurly, 13.82 km away
Logan Burn, 4.76 km away	Maungatua - North Taieri, 15.99 km away
Hyde South - The Twins, 4.96 km away	Backbone, 15.99 km away
Murphys Creek, 6.11 km away	Garibaldi, 18.09 km away
Long Valley, 6.53 km away

Hyde North, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	5.919661E-6

Beaumont River, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	true
Co-rupture Count	93
Co-rupture Rate	0.0

Horse Flat, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	true
Co-rupture Count	15
Co-rupture Rate	0.0

Billys Ridge, 2.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	0.0

Gimmerburn, 2.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	true
Co-rupture Count	133
Co-rupture Rate	1.3888833E-5

Waipiata, 3.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	true
Co-rupture Count	30
Co-rupture Rate	0.0

Logan Burn, 4.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	true
Co-rupture Count	54
Co-rupture Rate	7.969171E-6

Hyde South - The Twins, 4.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	true
Co-rupture Count	49
Co-rupture Rate	0.0

Murphys Creek, 6.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Long Valley, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	0.0

Lake Onslow, 7.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nichols Rock, 7.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	2.1837996E-6

Dunback Hill, 9.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Flat Stream - Glenpark, 11.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Little Valley, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

Ranfurly, 13.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	false
Co-rupture Count	40
Co-rupture Rate	0.0

Maungatua - North Taieri, 15.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Backbone, 15.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Garibaldi, 18.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	false
Co-rupture Count	48
Co-rupture Rate	0.0
