Skippers Details
| Property | Value |
|---|---|
| Rupture Count | 1,657 |
| Ruptures Above Sect Min Mag | 1,655 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.65, 8.33] |
| Length Range | [16, 904] km |
| Total Rate | 4.9611854E-6 /yr |
| Multi-Fault Rate | 4.9611854E-6 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 58 |
Table Of Contents

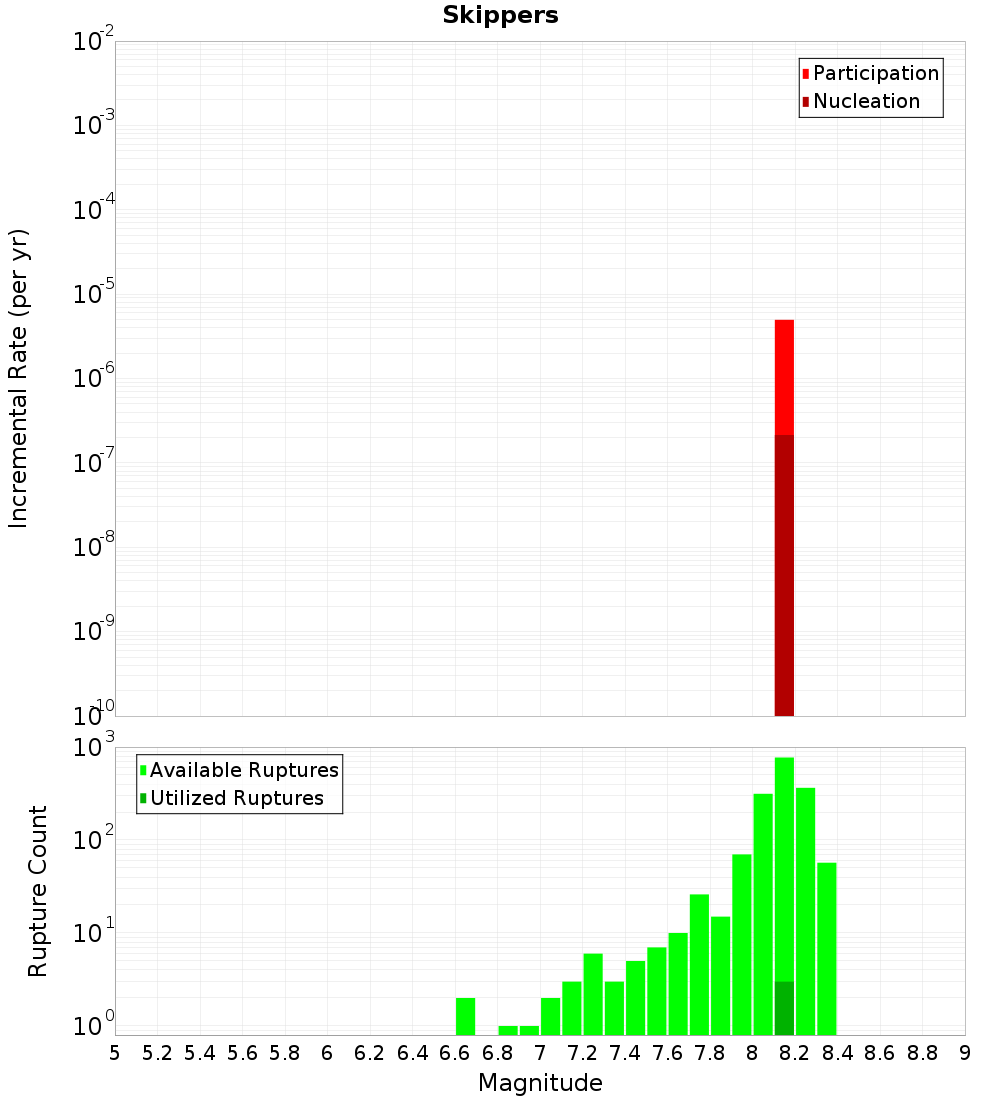

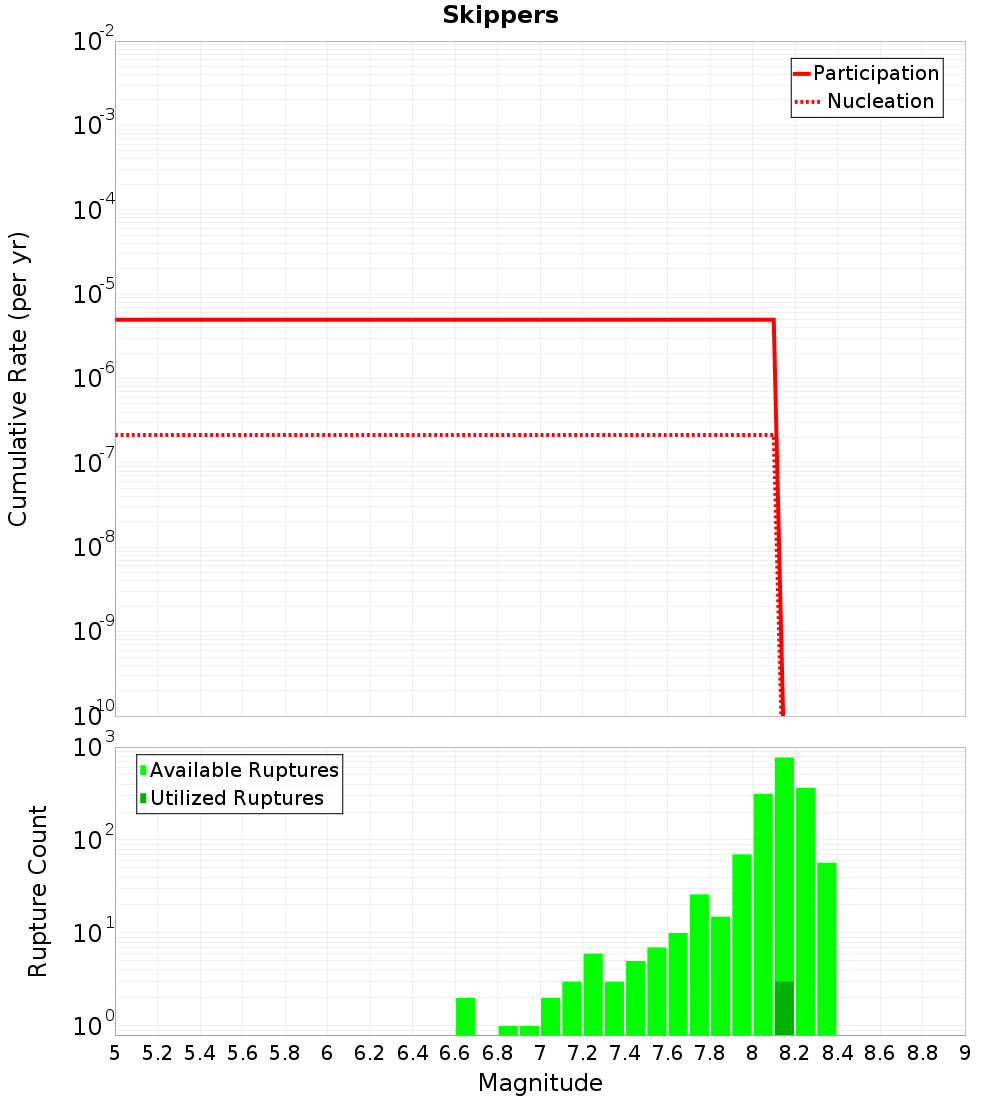

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

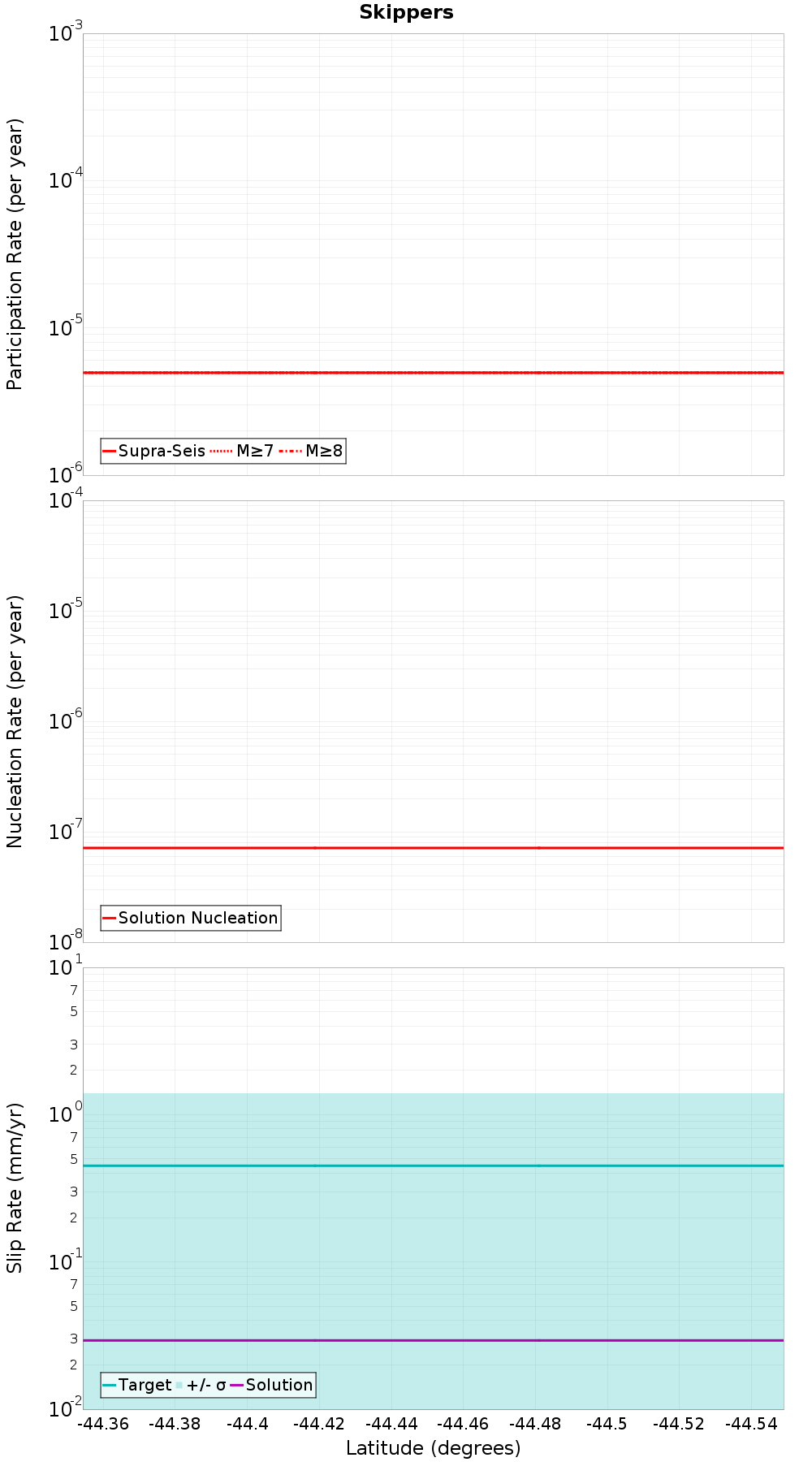

Along-Strike Values
Moment-Rates and b-Values

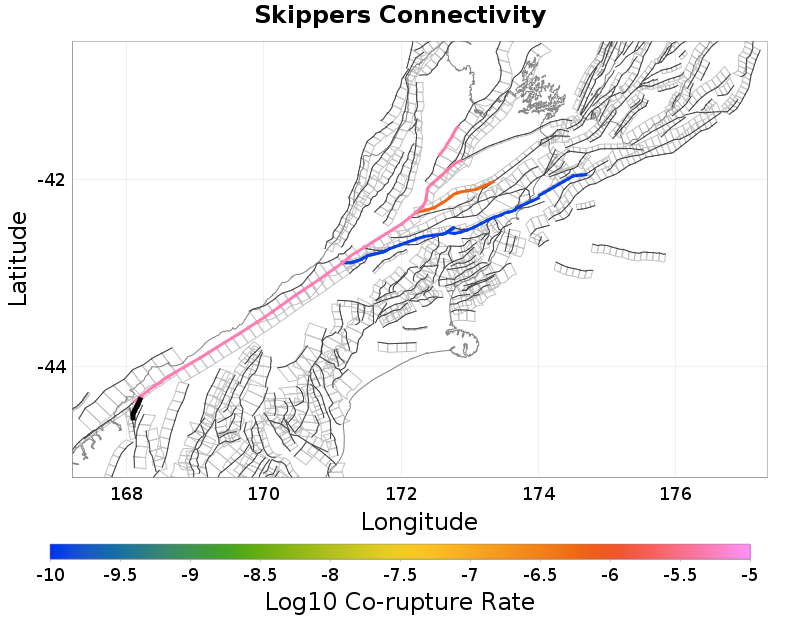

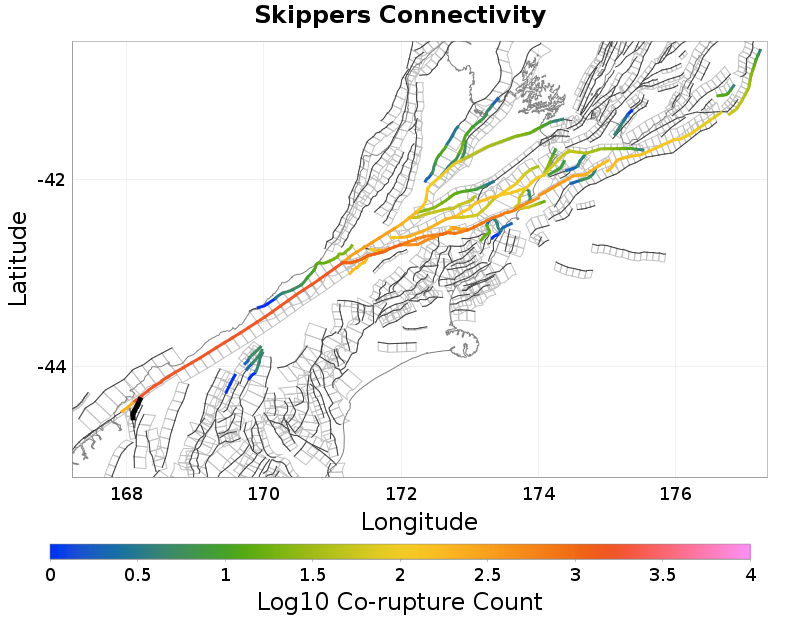

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alpine: George to Jacksons, 0.2 km away |
| Darran, 0.88 km away |
| Madagascar, 1.59 km away |
| Barn, 2.56 km away |
| Hollyford, 3.73 km away |
| Livingstone, 9.56 km away |
Alpine: George to Jacksons, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,654 |
| Co-rupture Rate | 4.9611854E-6 |
Darran, 0.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Madagascar, 1.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Barn, 2.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hollyford, 3.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Livingstone, 9.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
