Volkner 4 Details
| Property | Value |
|---|---|
| Rupture Count | 9,984 |
| Ruptures Above Sect Min Mag | 9,982 |
| Ruptures w/ Nonzero Rates | 22 |
| Magnitude Range | [6.72, 8.17] |
| Length Range | [17, 552] km |
| Total Rate | 0.0010854251 /yr |
| Multi-Fault Rate | 0.0010854251 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 71 |
Table Of Contents

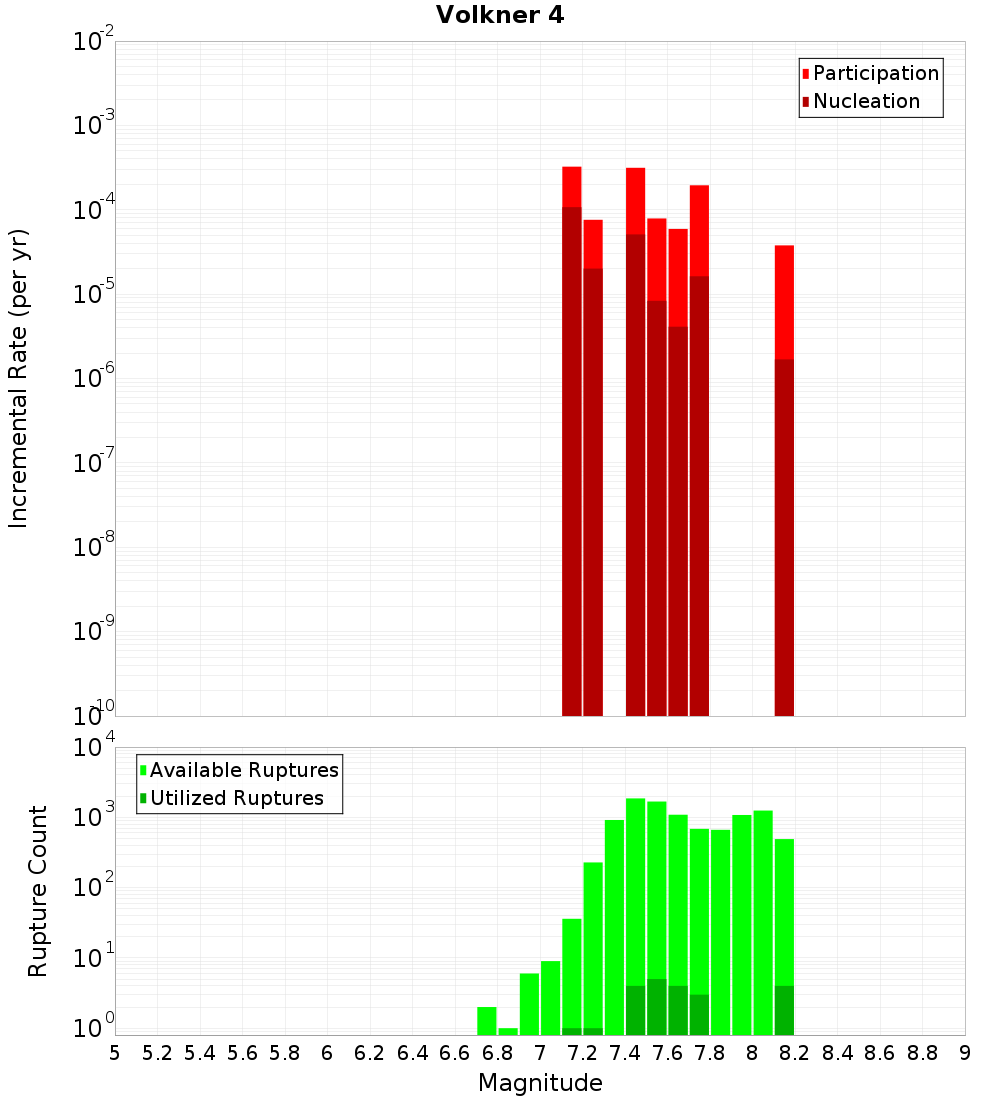

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Otara East 1, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,534 |
| Co-rupture Rate | 1.404353E-4 |
Otara West 3, 0.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,543 |
| Co-rupture Rate | 2.3244352E-4 |
Volkner 3, 1.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,038 |
| Co-rupture Rate | 1.5580302E-4 |
Otara West 1, 1.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 316 |
| Co-rupture Rate | 4.807064E-4 |
Te Arawa 3, 1.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 22 |
| Co-rupture Rate | 0.0 |
Te Arawa 2, 4.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,085 |
| Co-rupture Rate | 4.2532836E-4 |
Otara West 2, 4.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 471 |
| Co-rupture Rate | 4.807064E-4 |
Whakaari 4, 5.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9,691 |
| Co-rupture Rate | 6.709658E-4 |
Otara East 2, 5.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,887 |
| Co-rupture Rate | 2.1647227E-4 |
Tuakana 7, 5.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 273 |
| Co-rupture Rate | 1.5580302E-4 |
Te Arawa 1, 6.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 85 |
| Co-rupture Rate | 0.0 |
Tuakana 6, 8.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 408 |
| Co-rupture Rate | 1.5580302E-4 |
Tuatoru 2, 10.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 232 |
| Co-rupture Rate | 0.0 |
Tuatoru 1, 11.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 255 |
| Co-rupture Rate | 7.603698E-5 |
Calypso 2, 12.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 65 |
| Co-rupture Rate | 7.603698E-5 |
Tauranga Trough East 2, 19.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 217 |
| Co-rupture Rate | 1.5580302E-4 |
