Inangahua Details
| Property | Value |
|---|---|
| Rupture Count | 98 |
| Ruptures Above Sect Min Mag | 96 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.72, 7.86] |
| Length Range | [14, 167] km |
| Total Rate | 5.2472533E-5 /yr |
| Multi-Fault Rate | 5.2472533E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

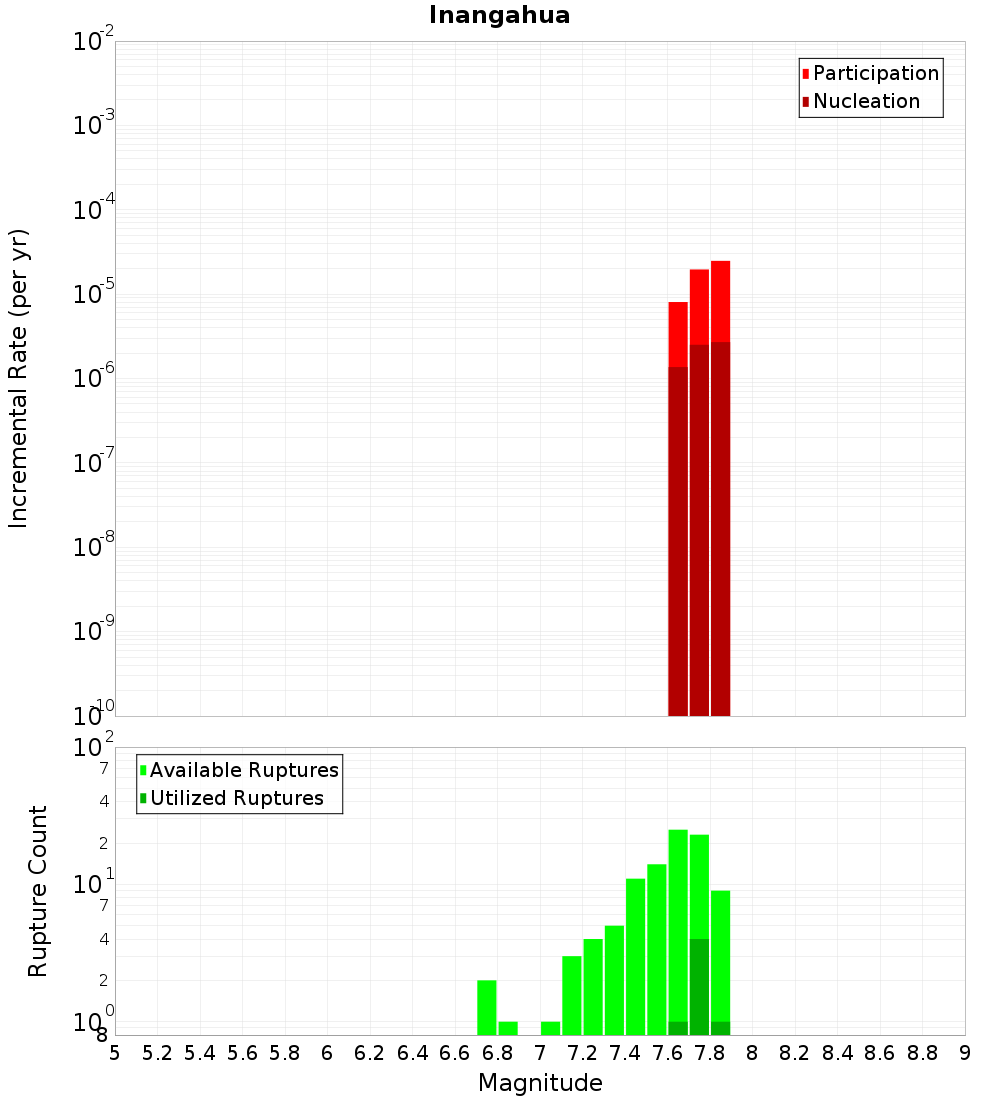

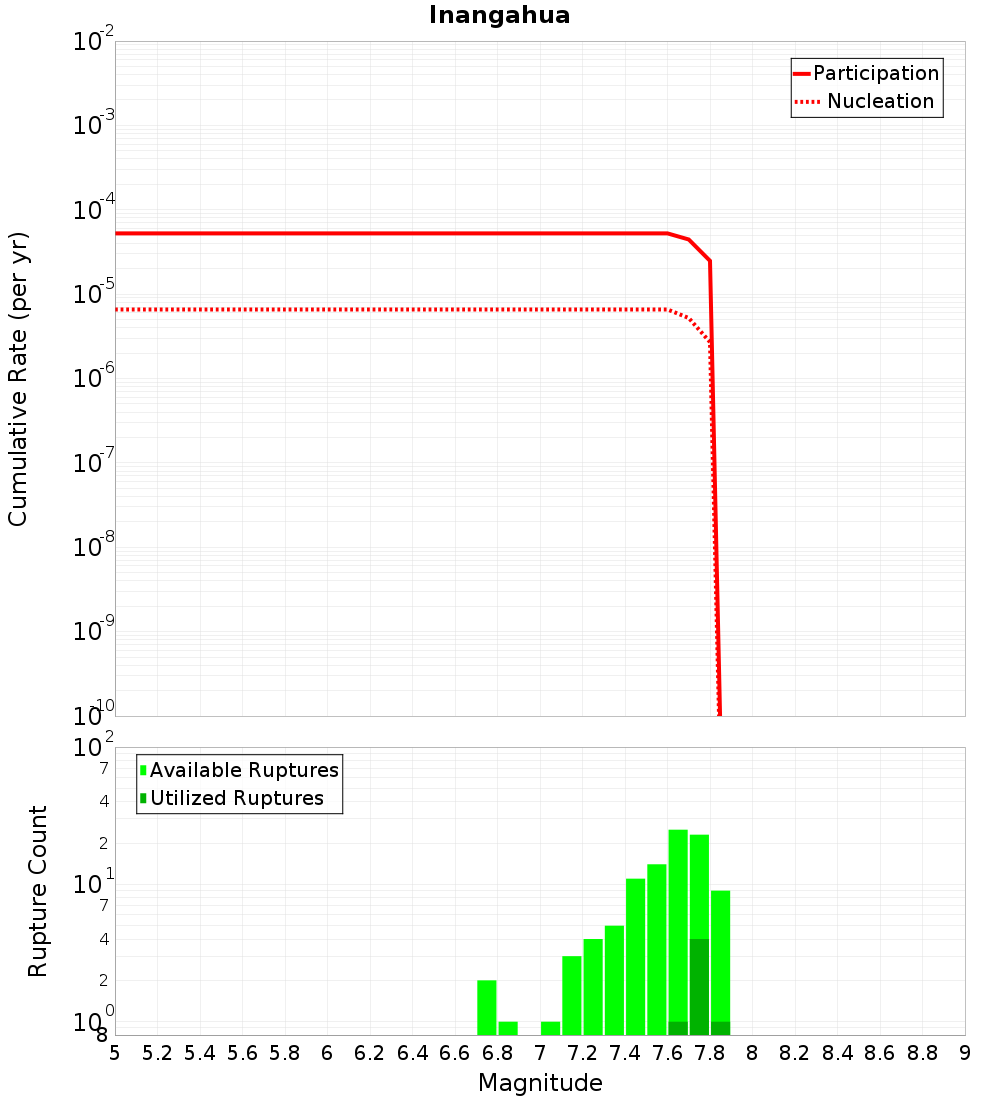

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

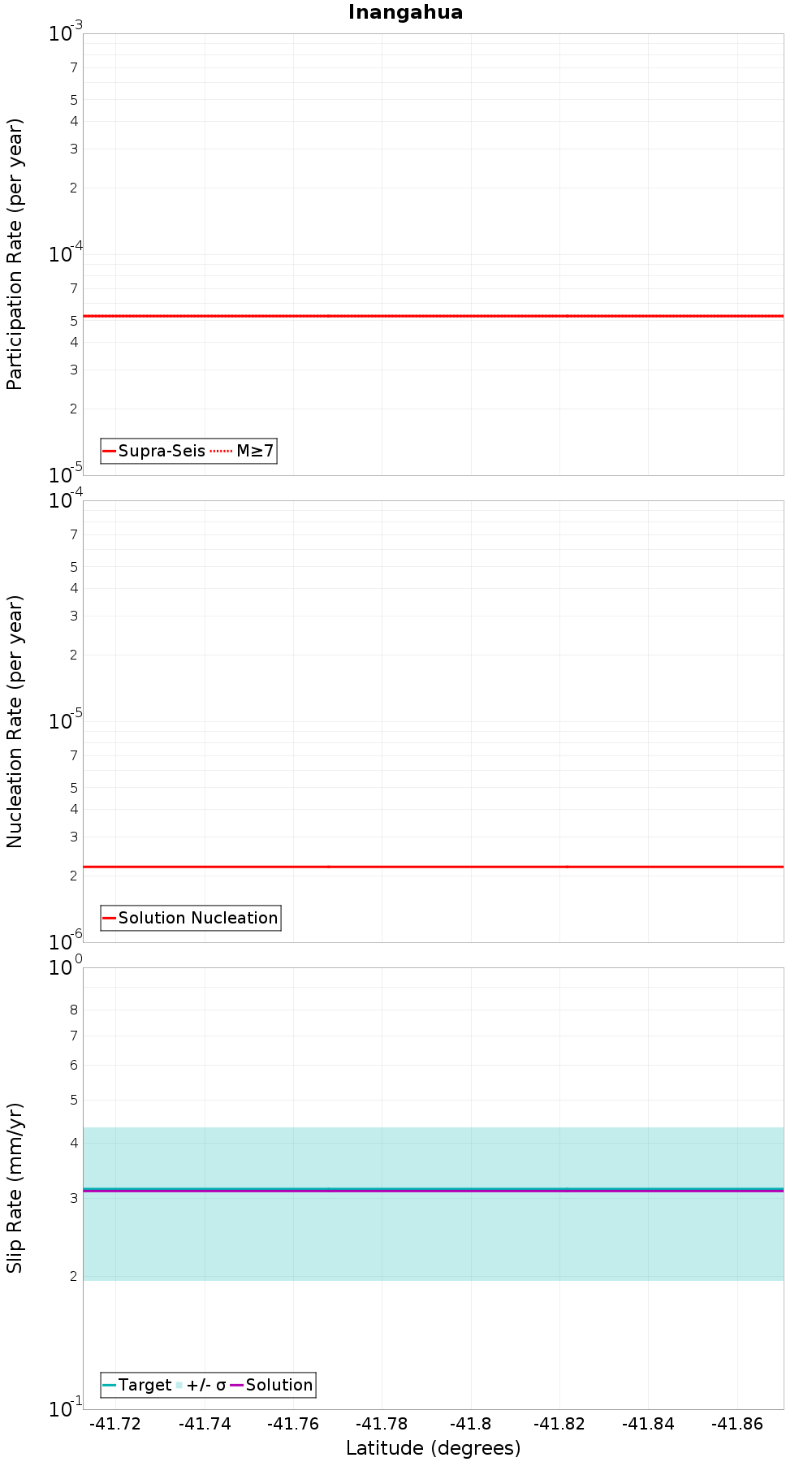

Along-Strike Values
Moment-Rates and b-Values

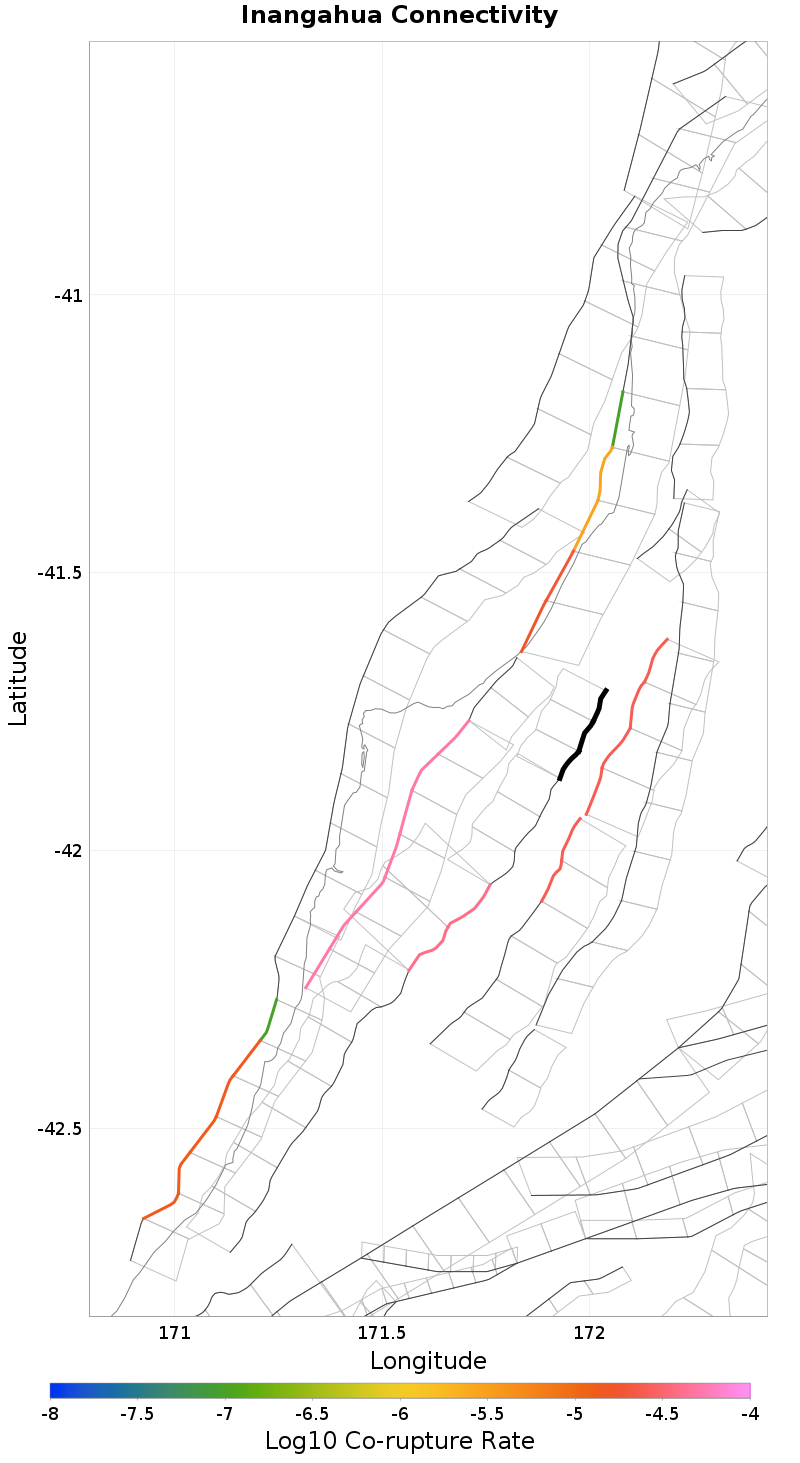

Connectivity
 |  |
|---|
Nearby Sections
Maimai: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuNWNNQVY1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Paparoa West: North, 0.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuNWNNQVY1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kongahau, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuNWNNQVY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 66 |
| Co-rupture Rate | 1.9606452E-5 |
Paparoa West, 1.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuNWNNQVY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 78 |
| Co-rupture Rate | 5.2472533E-5 |
Lyell, 5.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuNWNNQVY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 2.4804463E-5 |
Lyell South, 9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuNWNNQVY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 2.4804463E-5 |
White Creek, 13.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuNWNNQVY1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cape Foulwind 2, 18.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuNWNNQVY1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
