Elliott Details

PropertyValue
Rupture Count12,219
Ruptures Above Sect Min Mag12,217
Ruptures w/ Nonzero Rates8
Magnitude Range[7.12, 8.62]
Length Range[24, 958] km
Total Rate1.7436252E-4 /yr
Multi-Fault Rate1.7436252E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults133

Table Of Contents

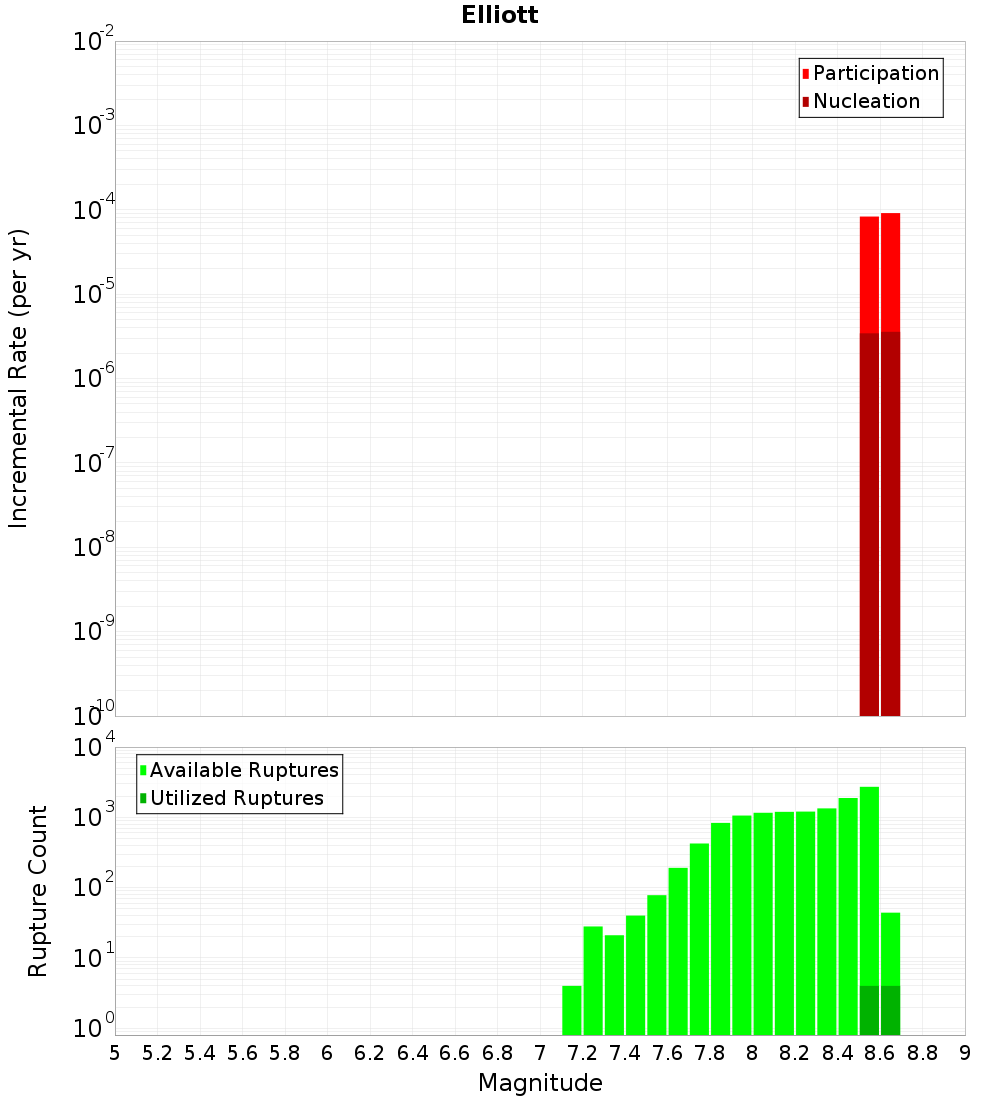

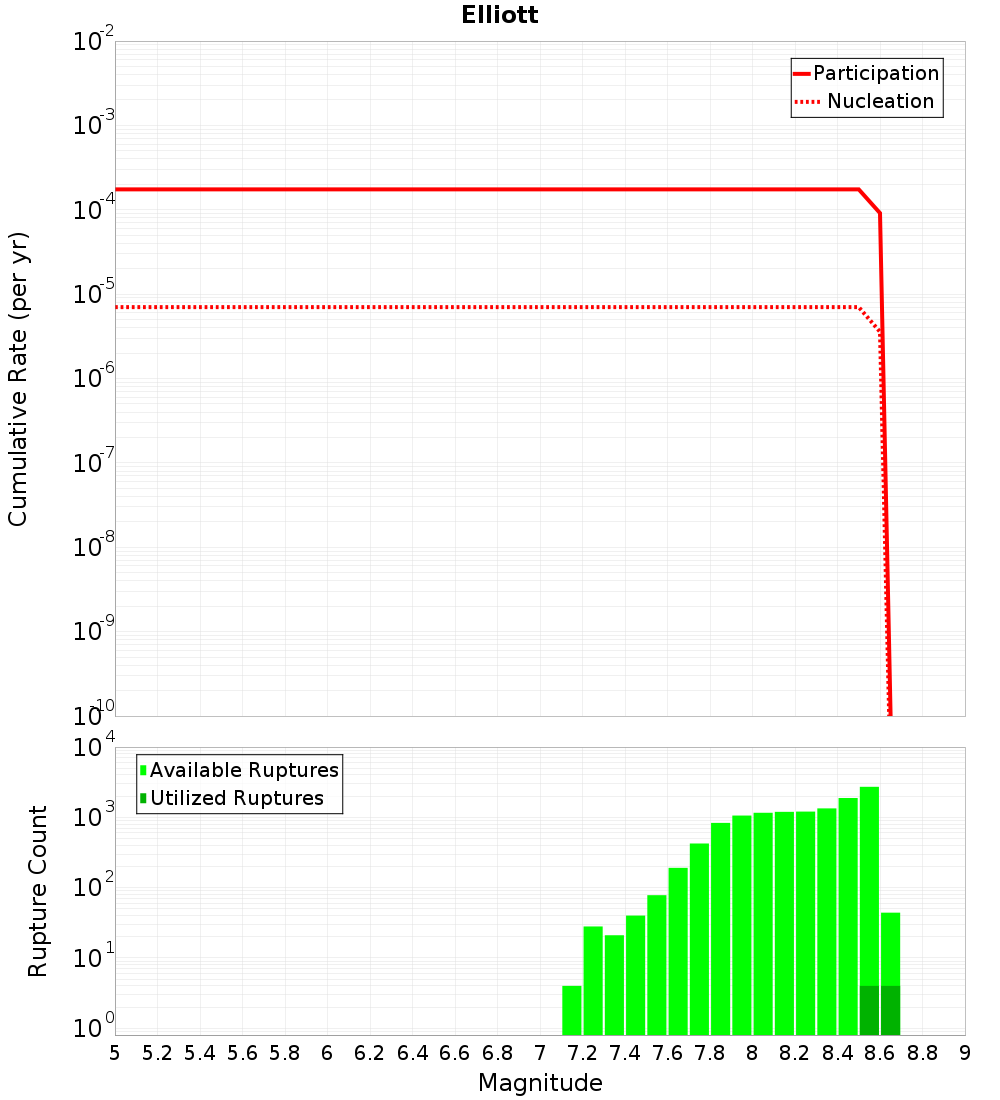

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

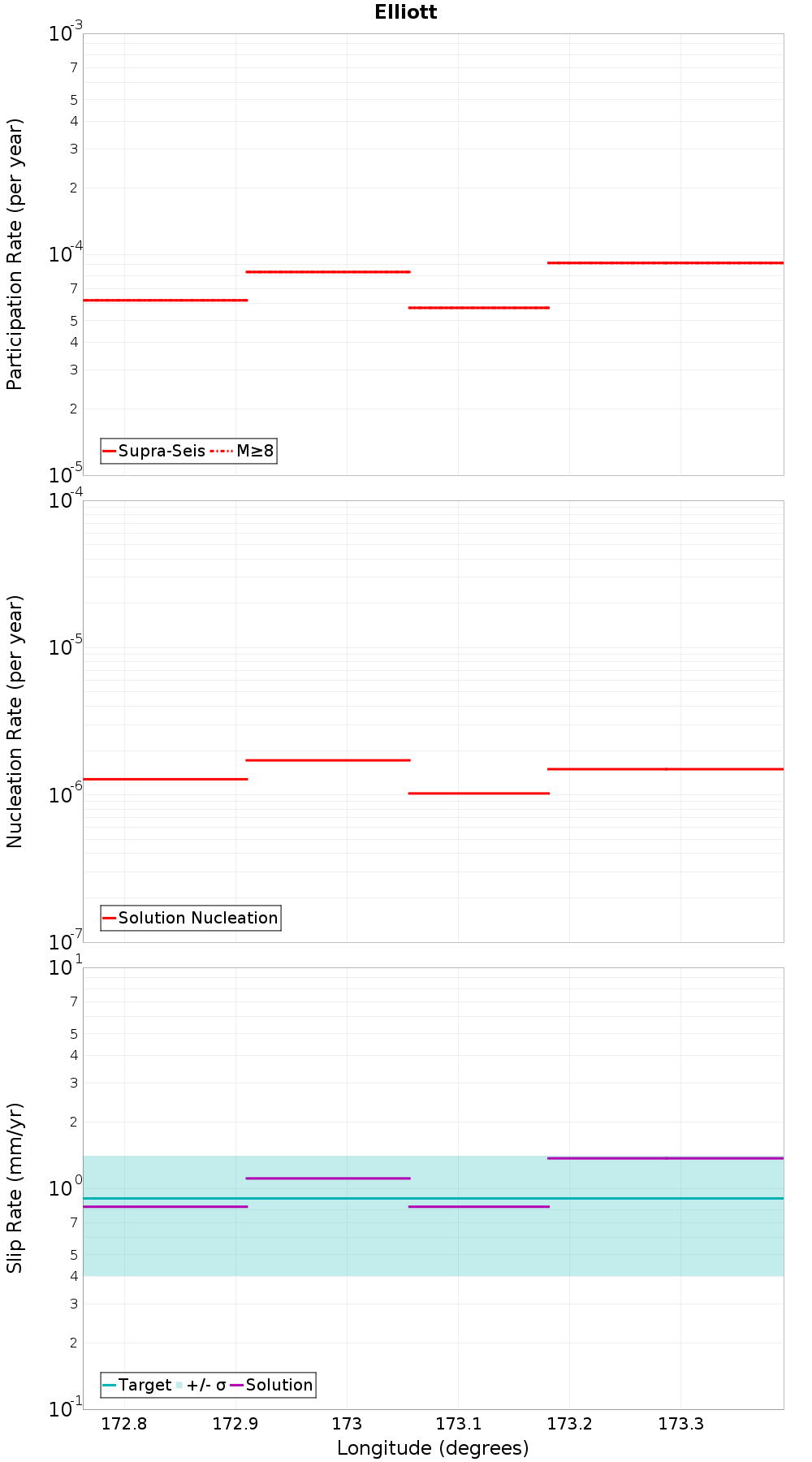

Along-Strike Values

(top)

Along-strike plot

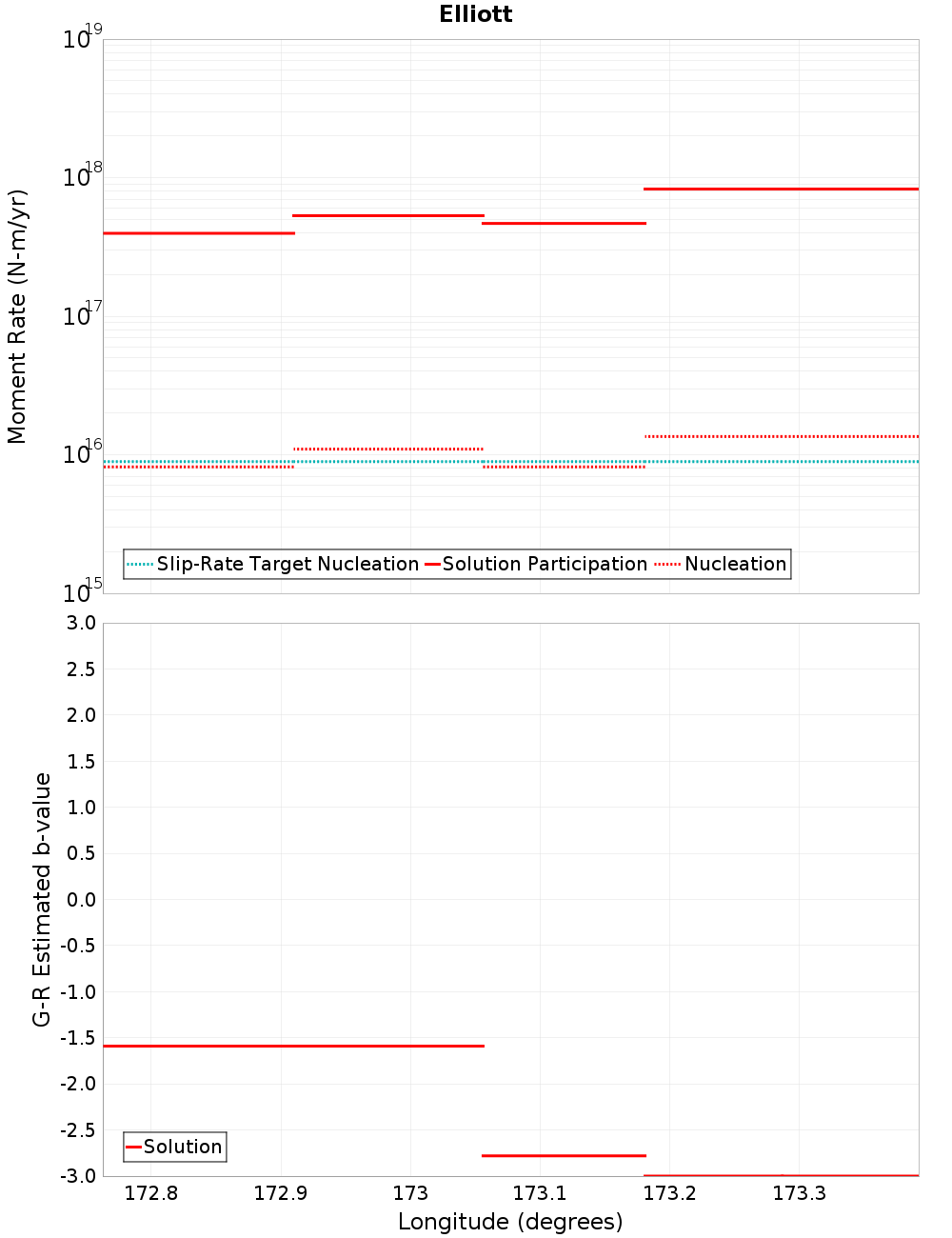

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Clarence: Central, 0 km awayLeader: North, 10.47 km away
Clarence: Northeast, 0.02 km awayHope: Conway, 11.08 km away
Fowlers, 0.12 km awayHanmer, 12.46 km away
Clarence: Southwest, 0.33 km awayHope: Hanmer NW, 12.52 km away
Fidget, 3.22 km awayStoneJug, 14.23 km away
Jordan, 5.77 km awayHope: Hanmer SE, 14.69 km away
Barefell, 8.42 km awayLeader: Central, 16.7 km away
Awatere: Northeast 1, 9.04 km awayHope: Hanmer SW, 17.88 km away
Awatere: Southwest, 10.28 km awayAlpine: Springs Junction to Tophouse, 19.5 km away

Clarence: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?true
Co-rupture Count380
Co-rupture Rate0.0

Clarence: Northeast, 0.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?true
Co-rupture Count4,884
Co-rupture Rate9.128267E-5

Fowlers, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?true
Co-rupture Count2,624
Co-rupture Rate0.0

Clarence: Southwest, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?true
Co-rupture Count5,326
Co-rupture Rate0.0

Fidget, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?true
Co-rupture Count2,413
Co-rupture Rate0.0

Jordan, 5.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count702
Co-rupture Rate9.128267E-5

Barefell, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Awatere: Northeast 1, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count134
Co-rupture Rate0.0

Awatere: Southwest, 10.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Leader: North, 10.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?true
Co-rupture Count197
Co-rupture Rate0.0

Hope: Conway, 11.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?true
Co-rupture Count3,609
Co-rupture Rate1.7436252E-4

Hanmer, 12.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count1,126
Co-rupture Rate0.0

Hope: Hanmer NW, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count879
Co-rupture Rate0.0

StoneJug, 14.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer SE, 14.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count2,059
Co-rupture Rate1.7436252E-4

Leader: Central, 16.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count95
Co-rupture Rate0.0

Hope: Hanmer SW, 17.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count2,033
Co-rupture Rate1.7436252E-4

Alpine: Springs Junction to Tophouse, 19.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0
