Ihaia Details

Property	Value
Rupture Count	226
Ruptures Above Sect Min Mag	226
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.83, 8.01]
Length Range	[14, 208] km
Total Rate	1.0202718E-4 /yr
Multi-Fault Rate	1.0202718E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	12

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

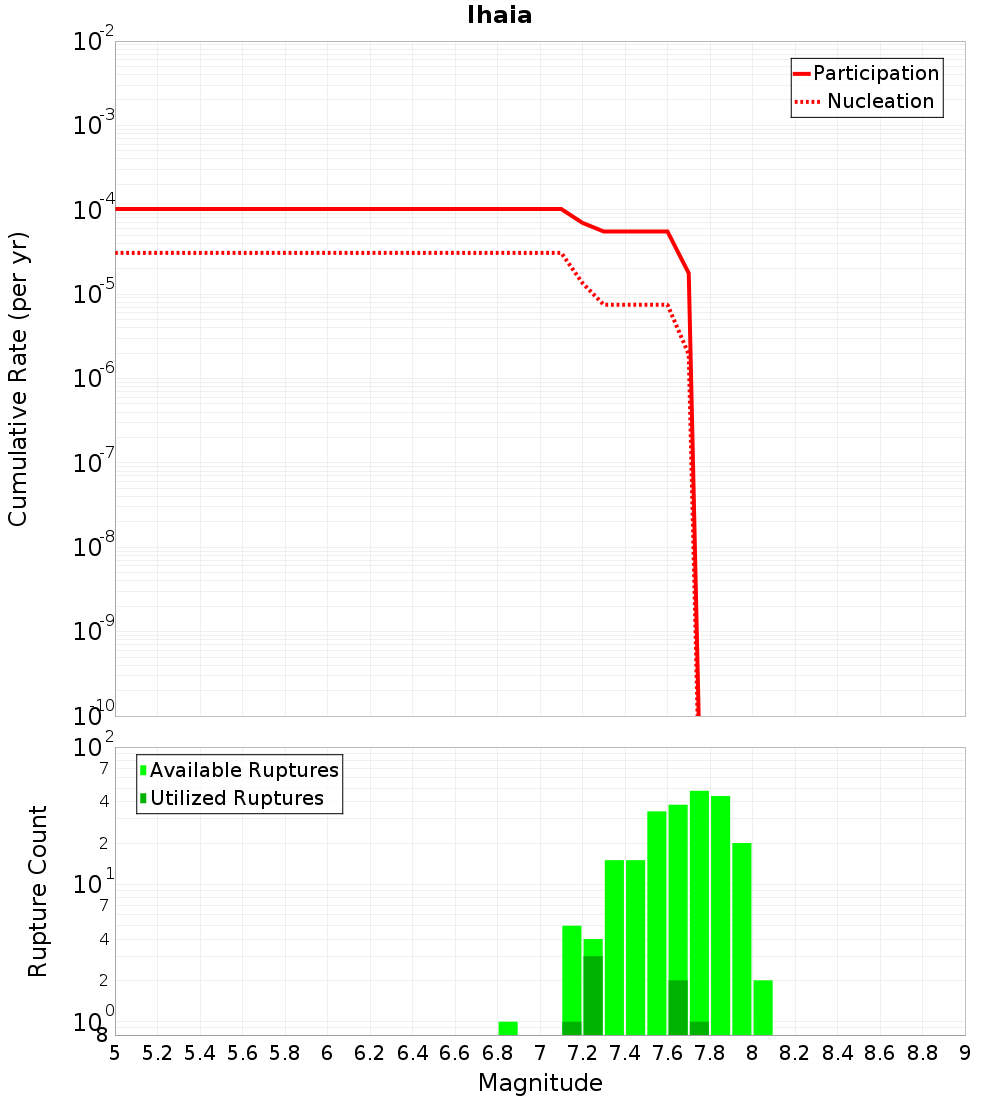

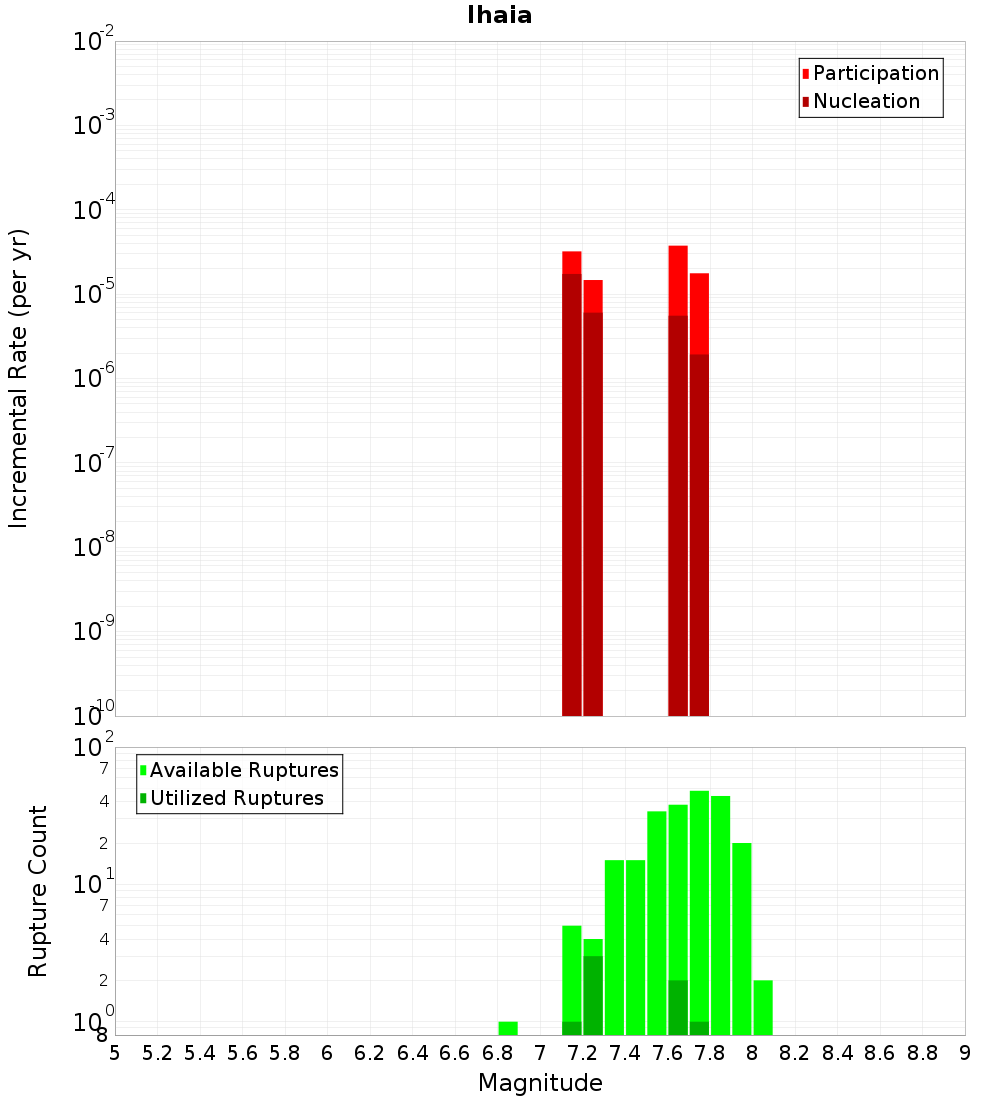

Magnitude-Frequency Distribution

Incremental	Cumulative

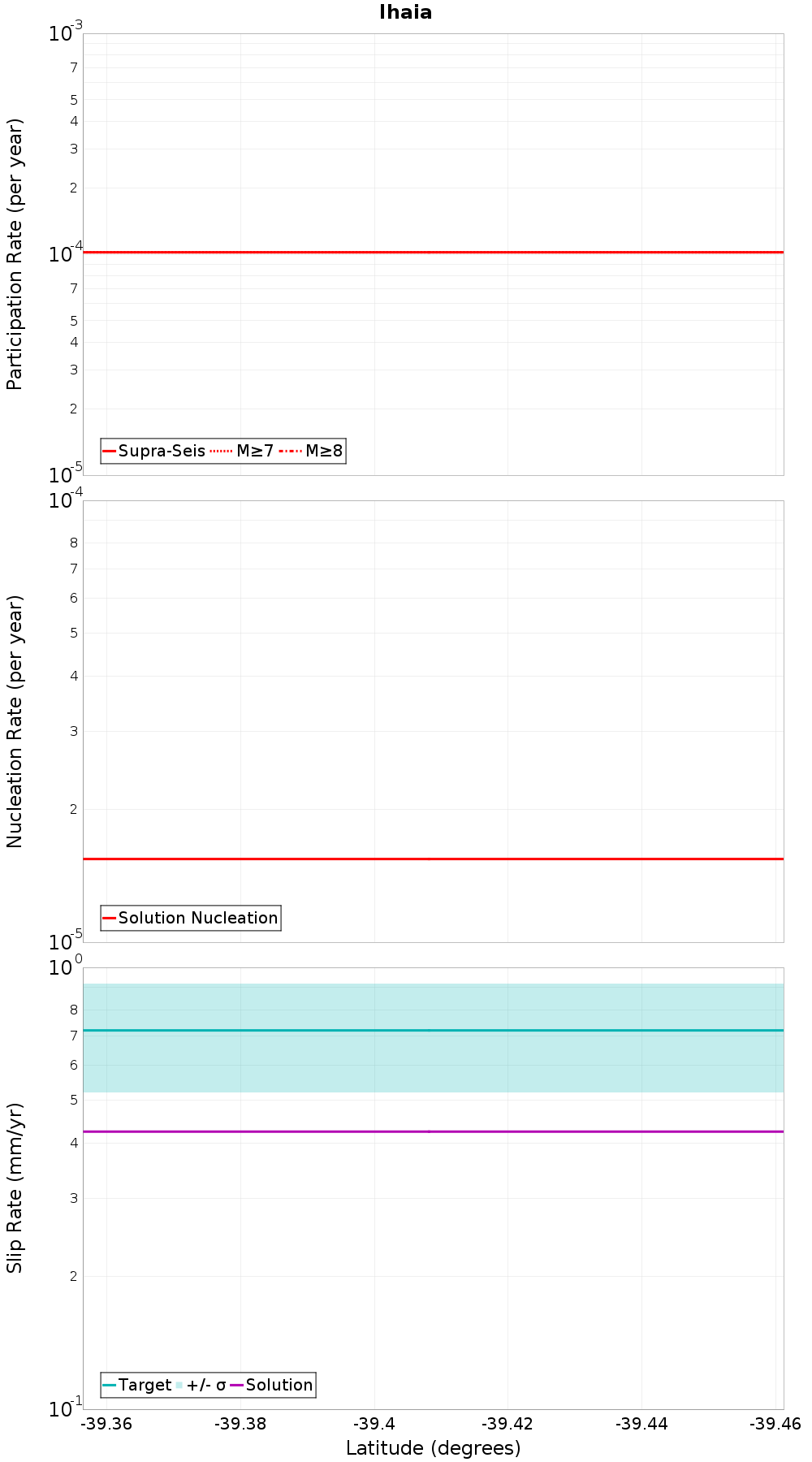

Along-Strike Values

Moment-Rates and b-Values

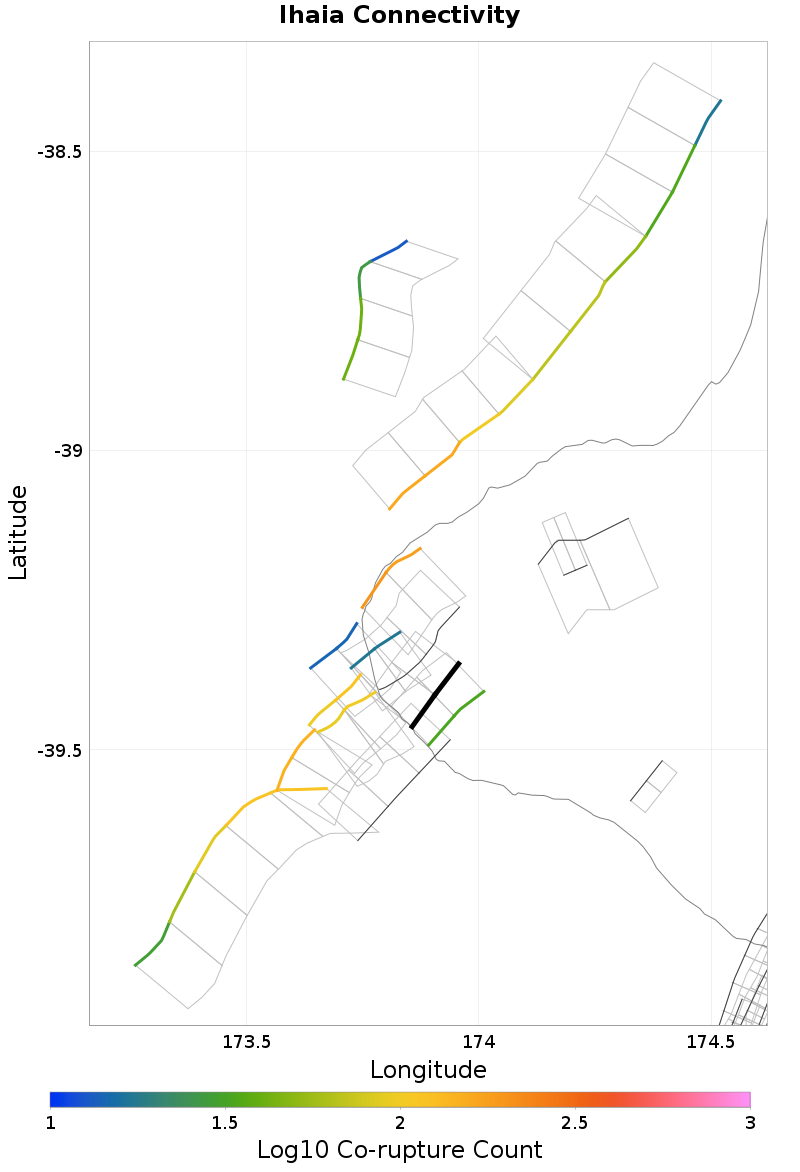

Connectivity

Nearby Sections

Fault Section
Rahotu, 0.22 km away
Manahi 2, 0.26 km away
Cape Egmont: North, 0.48 km away
Warea, 0.49 km away
Manahi 1, 0.78 km away
Kiri, 4.13 km away
Oaonui, 5.28 km away
Pihama, 6.13 km away
Cape Egmont: Central, 10.6 km away
Cape Egmont: South, 18.91 km away

Rahotu, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	3.0249332E-6

Manahi 2, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	3.211264E-5

Cape Egmont: North, 0.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?	true
Directly Connected?	true
Co-rupture Count	114
Co-rupture Rate	4.35304E-5

Warea, 0.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?	true
Directly Connected?	true
Co-rupture Count	198
Co-rupture Rate	2.0690173E-5

Manahi 1, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?	true
Directly Connected?	true
Co-rupture Count	102
Co-rupture Rate	5.6939693E-6

Kiri, 4.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?	true
Directly Connected?	false
Co-rupture Count	33
Co-rupture Rate	1.1671214E-5

Oaonui, 5.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pihama, 6.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cape Egmont: Central, 10.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?	true
Directly Connected?	false
Co-rupture Count	146
Co-rupture Rate	3.7553153E-5

Cape Egmont: South, 18.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?	true
Directly Connected?	false
Co-rupture Count	116
Co-rupture Rate	3.7553153E-5
