Rangitaiki 1 Details

PropertyValue
Rupture Count1,433
Ruptures Above Sect Min Mag1,431
Ruptures w/ Nonzero Rates4
Magnitude Range[6.57, 8.30]
Length Range[9, 464] km
Total Rate2.5159537E-4 /yr
Multi-Fault Rate2.5159537E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults52

Table Of Contents

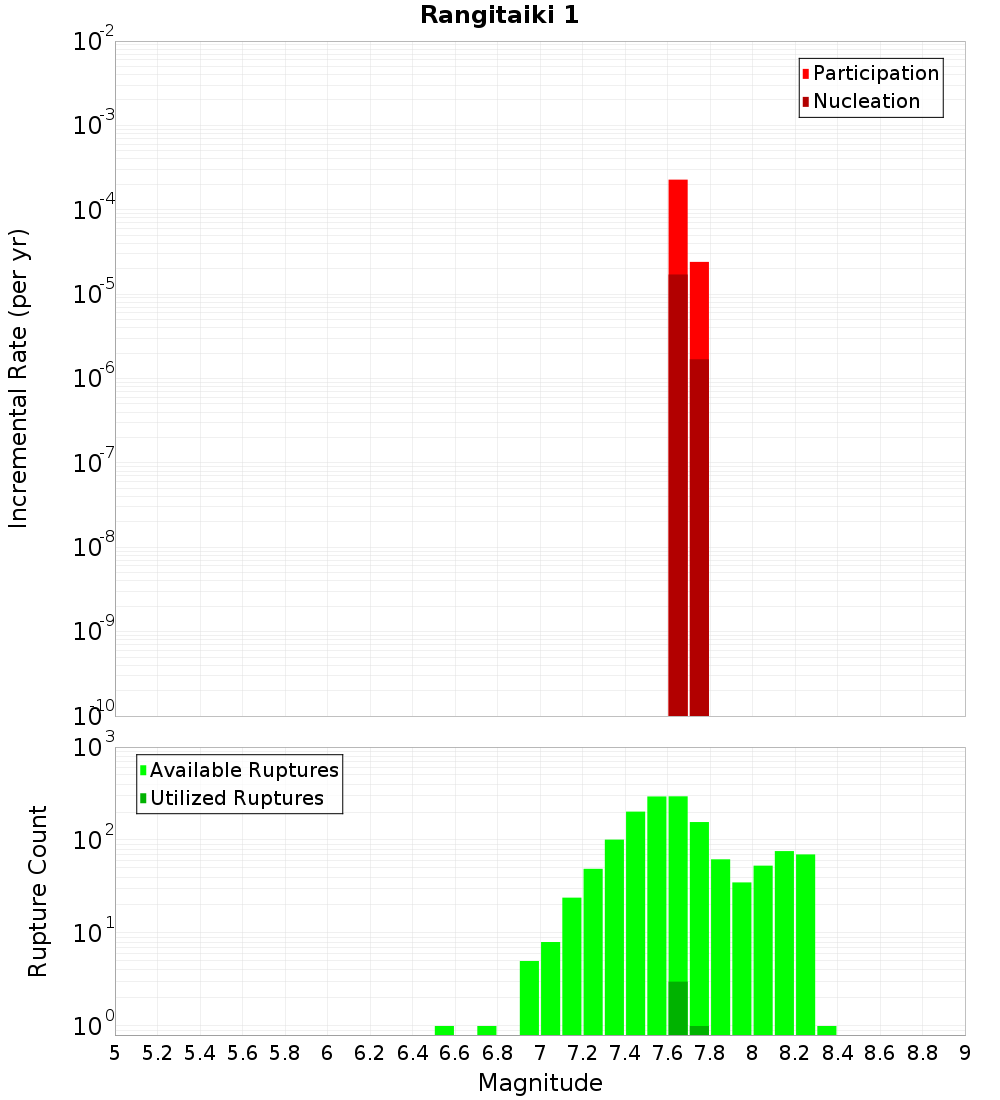

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

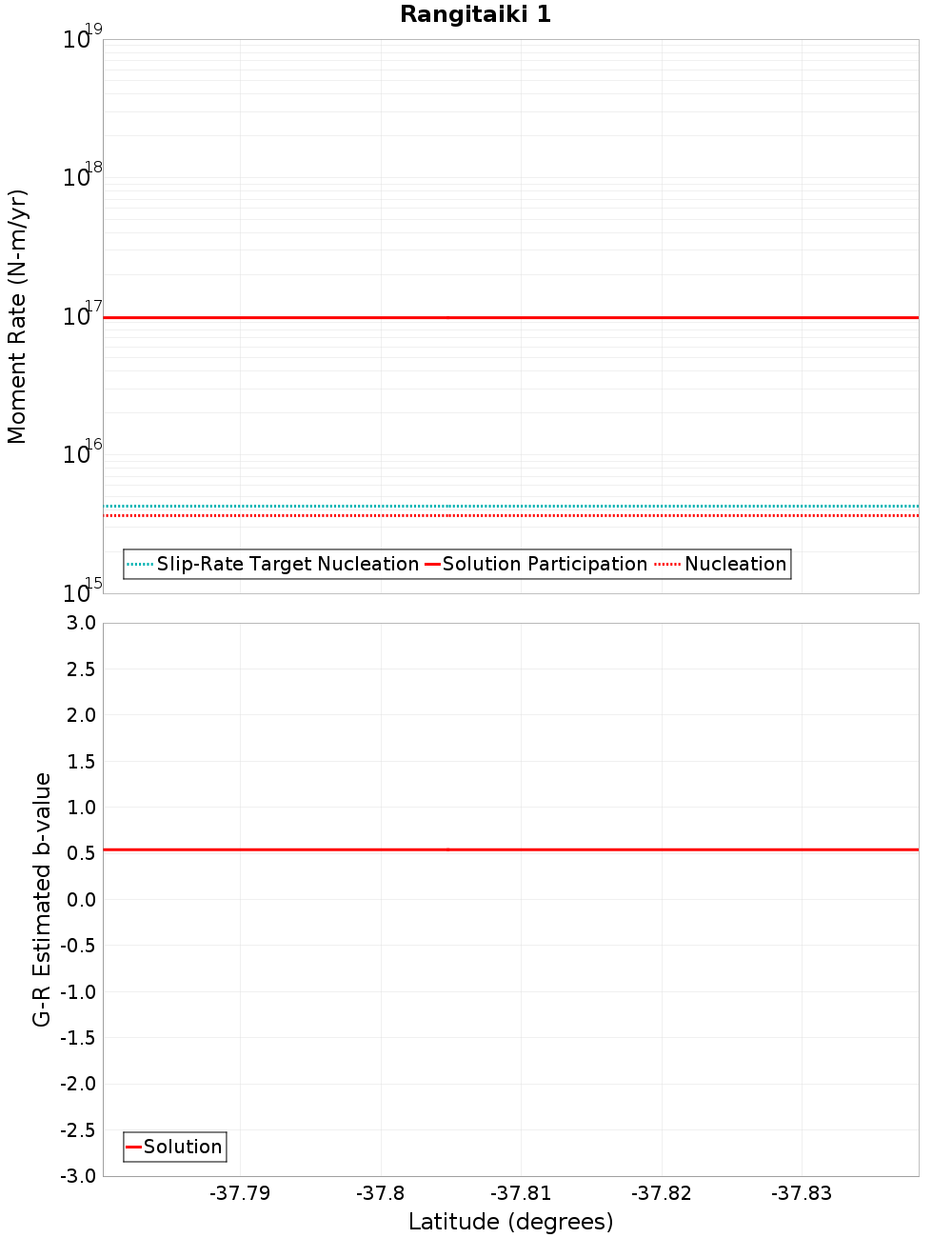

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2.05 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.8 km away
Matata, 9.11 km away
White Island 2, 9.52 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimana - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.74 km away
Edgecumbe 1987, 15.17 km away
Awakeri, 16.13 km away

Rangitaiki 2, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?true
Co-rupture Count1,292
Co-rupture Rate2.5159537E-4

White Island 1, 2.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count229
Co-rupture Rate0.0

Ohiwa 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count127
Co-rupture Rate0.0

Edgecumbe Coastal, 8.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?true
Co-rupture Count1,275
Co-rupture Rate2.5159537E-4

Matata, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

White Island 2, 9.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count278
Co-rupture Rate3.3679855E-5

Waimana: North, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count669
Co-rupture Rate2.179155E-4

Otakiri, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count153
Co-rupture Rate2.4124953E-5

Whakatane: North, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count187
Co-rupture Rate0.0

Waimana - Waikaremoana, 12.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 14.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate0.0

Edgecumbe 1987, 15.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count534
Co-rupture Rate1.9380552E-4

Awakeri, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count445
Co-rupture Rate3.3664877E-5
