Wendon Valley Details

PropertyValue
Rupture Count170
Ruptures Above Sect Min Mag169
Ruptures w/ Nonzero Rates4
Magnitude Range[7.20, 8.34]
Length Range[25, 352] km
Total Rate9.447655E-6 /yr
Multi-Fault Rate4.583938E-6 /yr (48.52%)
Directly-Connected Faults2
All Co-Rupturing Faults21

Table Of Contents

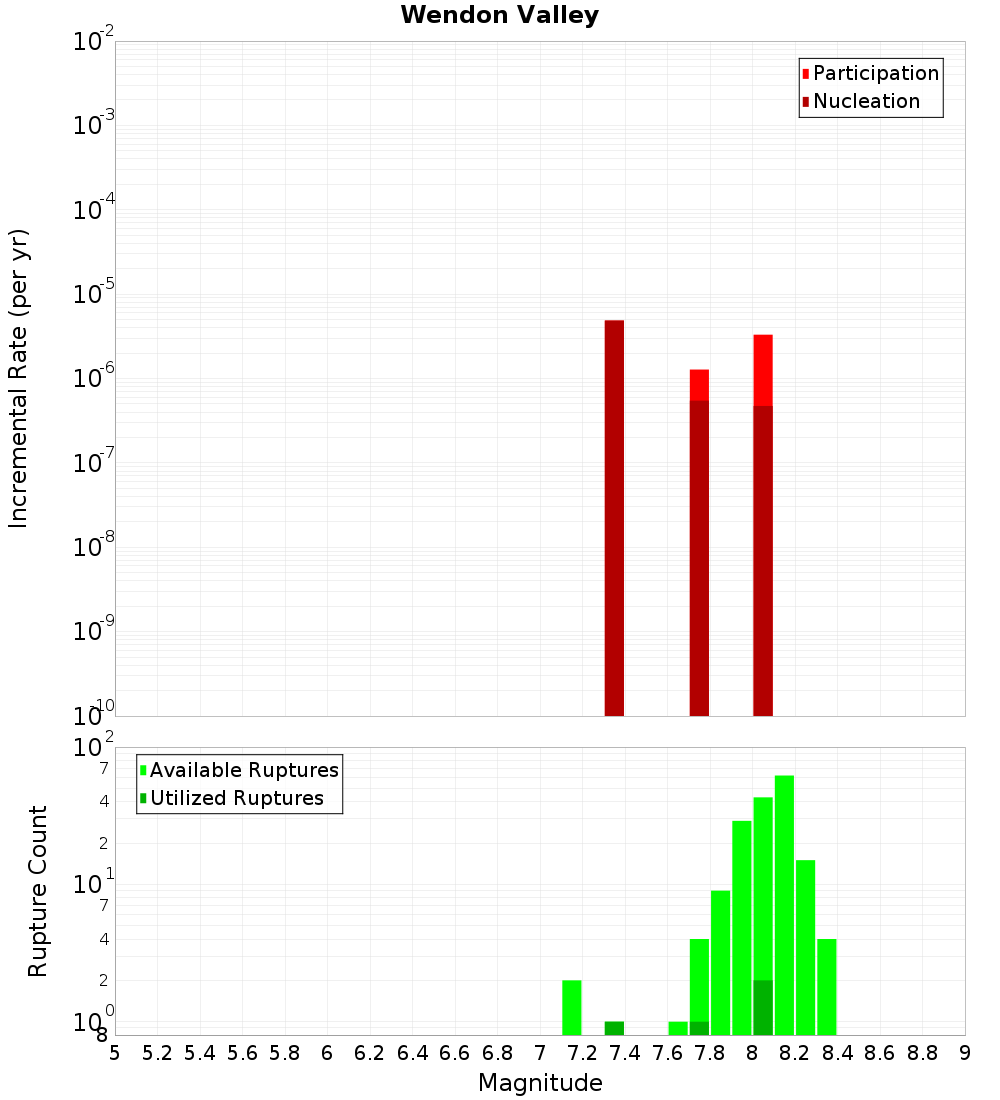

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

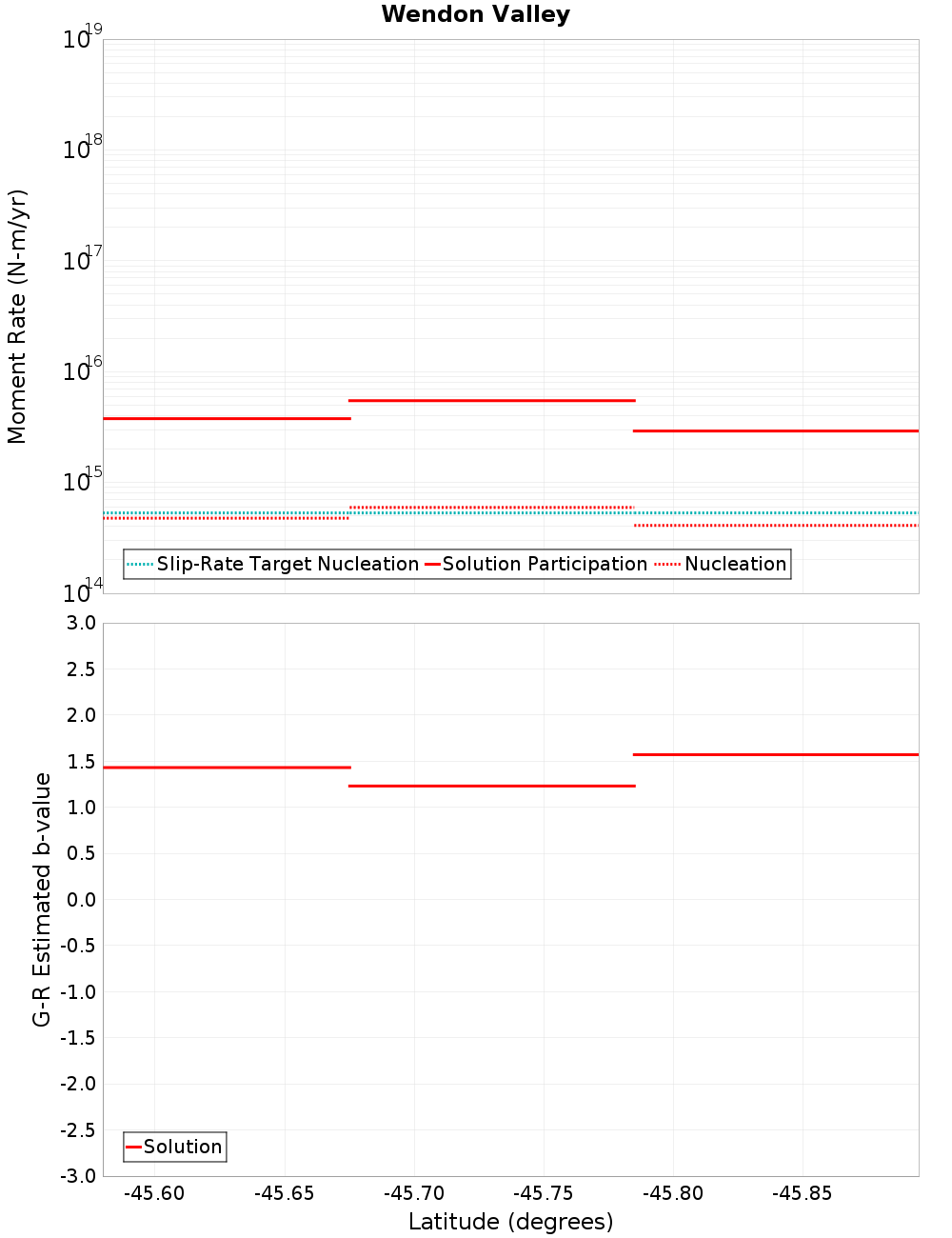

Moment-Rates and b-Values

(top)

Along-strike plot

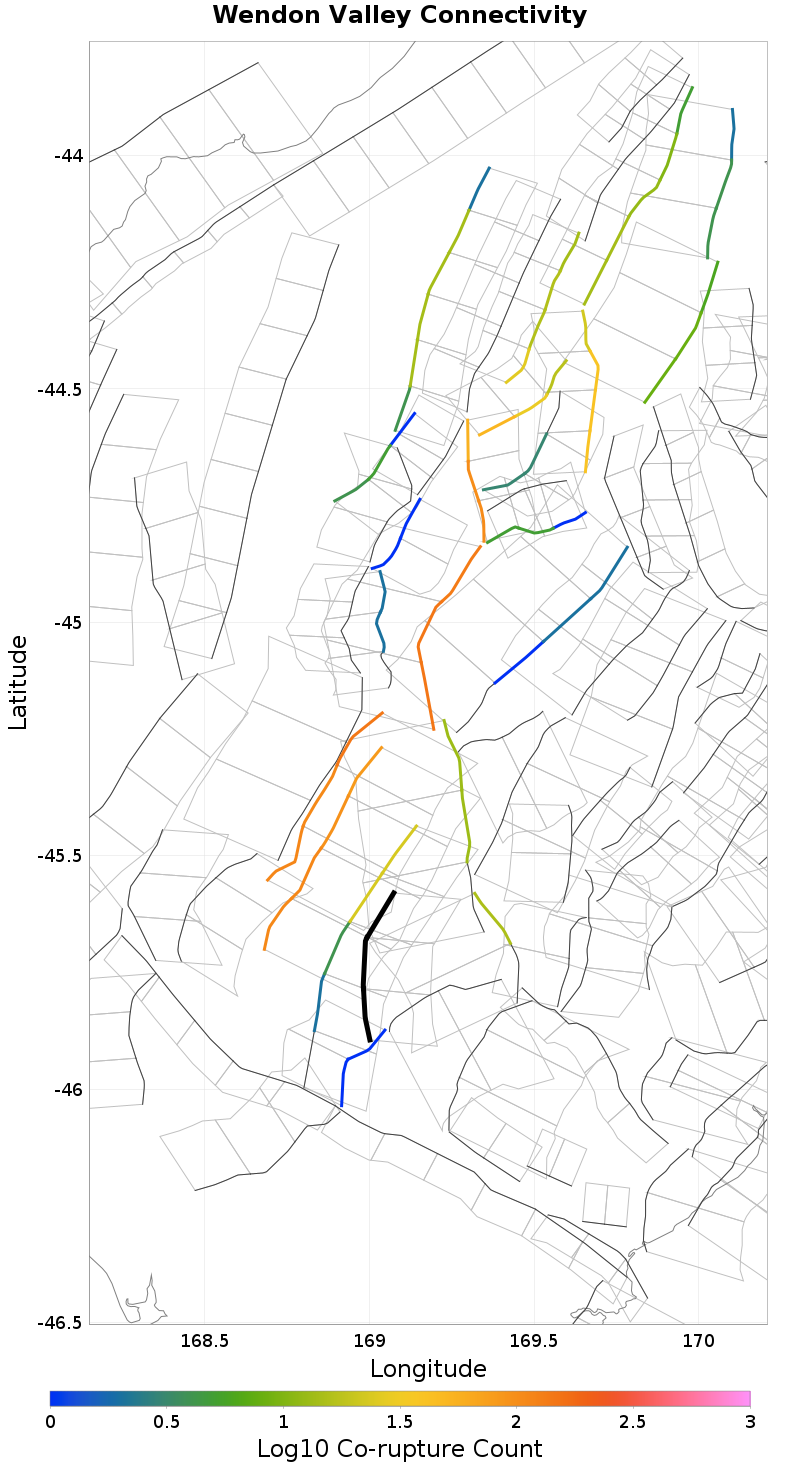

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Teviot, 0.16 km awayBackbone, 11.29 km away
Waikaka, 0.2 km awayBeacon Hill, 14.67 km away
Old Man, 0.28 km awayTuapeka, 16.25 km away
Waikaia, 3.04 km awayGalloway, 17.04 km away
Spylaw, 3.67 km awayLittle Valley, 17.29 km away
Garvie, 6.3 km awayHokonui, 17.68 km away
Roaring Lion, 10.34 km awayHillfoot, 17.68 km away
Lake Onslow, 10.69 km awayHedgehope, 17.75 km away

Teviot, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

Waikaka, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate2.0286216E-6

Old Man, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0

Waikaia, 3.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Spylaw, 3.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?true
Co-rupture Count112
Co-rupture Rate3.3056142E-6

Roaring Lion, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?true
Directly Connected?true
Co-rupture Count153
Co-rupture Rate3.3069452E-6

Lake Onslow, 10.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Backbone, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Beacon Hill, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuapeka, 16.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Galloway, 17.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Little Valley, 17.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hokonui, 17.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hillfoot, 17.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hedgehope, 17.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjMuMDNLTjhD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
