Alpine: Caswell Details

Property	Value
Rupture Count	110,172
Ruptures Above Sect Min Mag	110,171
Ruptures w/ Nonzero Rates	212
Magnitude Range	[6.80, 8.64]
Length Range	[15, 1,156] km
Total Rate	0.0022035157 /yr
Multi-Fault Rate	0.0022035157 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	91

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

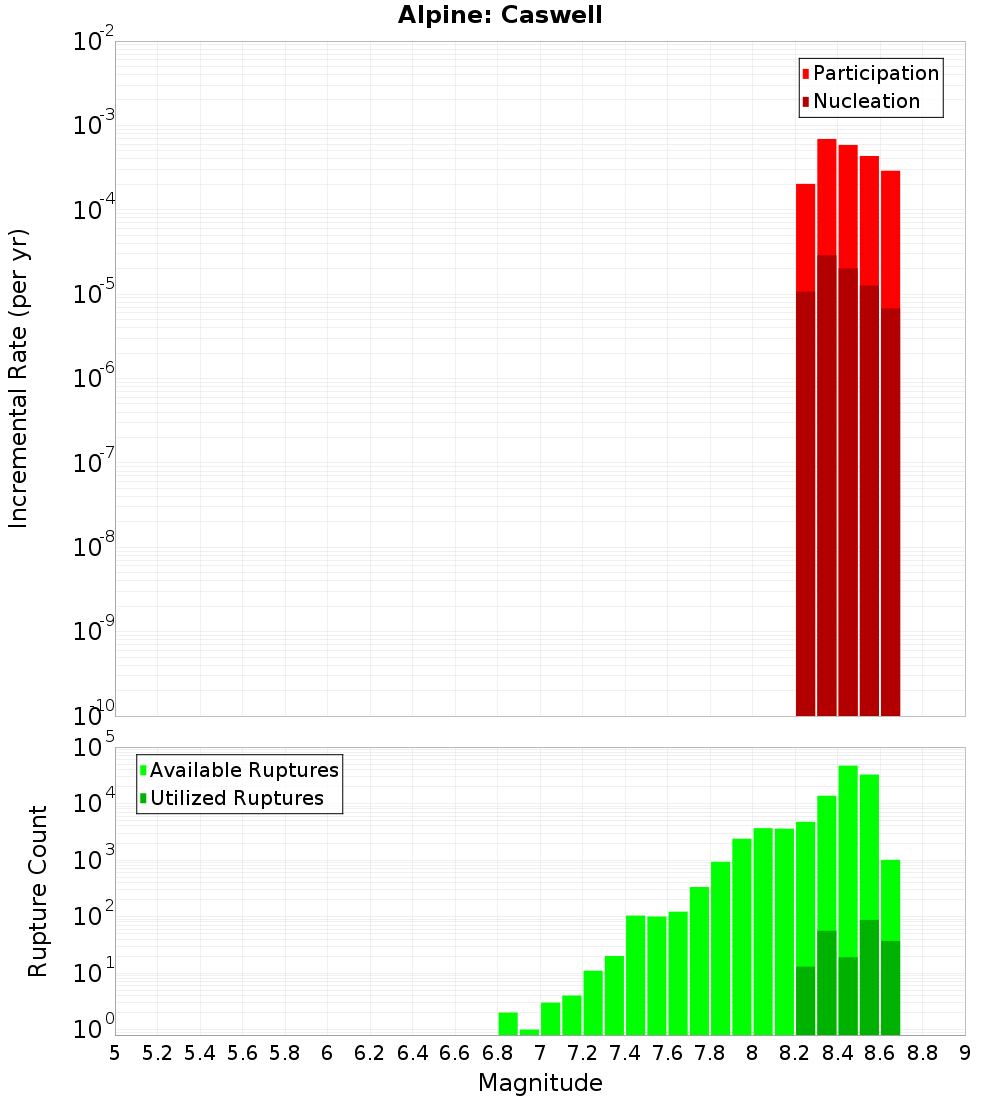

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

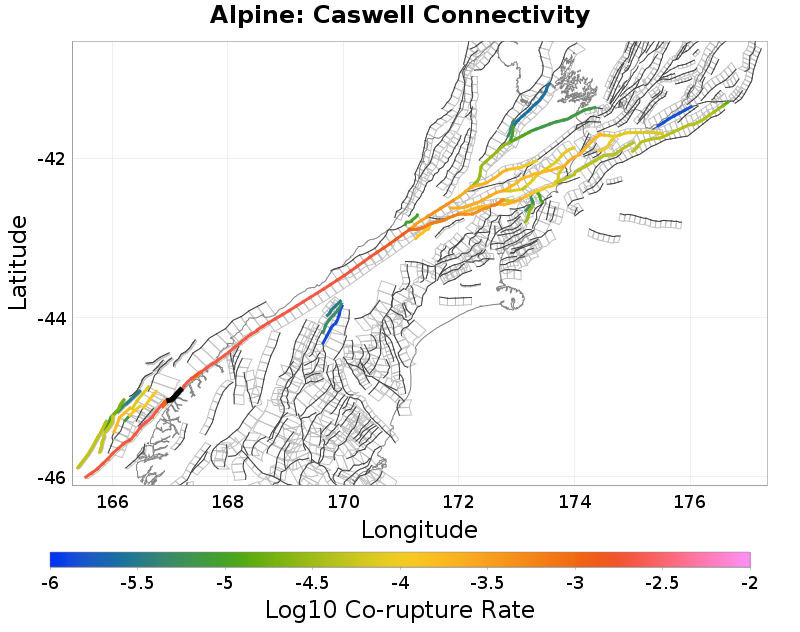

Connectivity

Nearby Sections

Fault Section
Alpine: Caswell - South George, 0 km away
Alpine: Nancy, 0 km away
Alpine: Resolution - Charles, 3.34 km away
Central Wedge 1 & 2 & 3, 3.43 km away
South Wedge 2, 8.13 km away
Central Wedge 4 - South Wedge 411, 9.7 km away
Alpine: Resolution - Dagg, 11.24 km away

Alpine: Caswell - South George, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	109,721
Co-rupture Rate	0.0022035157

Alpine: Nancy, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	63,014
Co-rupture Rate	0.0010499797

Alpine: Resolution - Charles, 3.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	43,482
Co-rupture Rate	0.0011535361

Central Wedge 1 & 2 & 3, 3.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	693
Co-rupture Rate	0.0

South Wedge 2, 8.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,212
Co-rupture Rate	1.0500999E-4

Central Wedge 4 - South Wedge 411, 9.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,355
Co-rupture Rate	6.806872E-5

Alpine: Resolution - Dagg, 11.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	103,000
Co-rupture Rate	0.0022035157
