AmberBlyth Details

Property	Value
Rupture Count	709
Ruptures Above Sect Min Mag	706
Ruptures w/ Nonzero Rates	27
Magnitude Range	[7.11, 8.29]
Length Range	[24, 525] km
Total Rate	1.7448886E-4 /yr
Multi-Fault Rate	1.7448886E-4 /yr (100.00%)
Directly-Connected Faults	10
All Co-Rupturing Faults	44

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

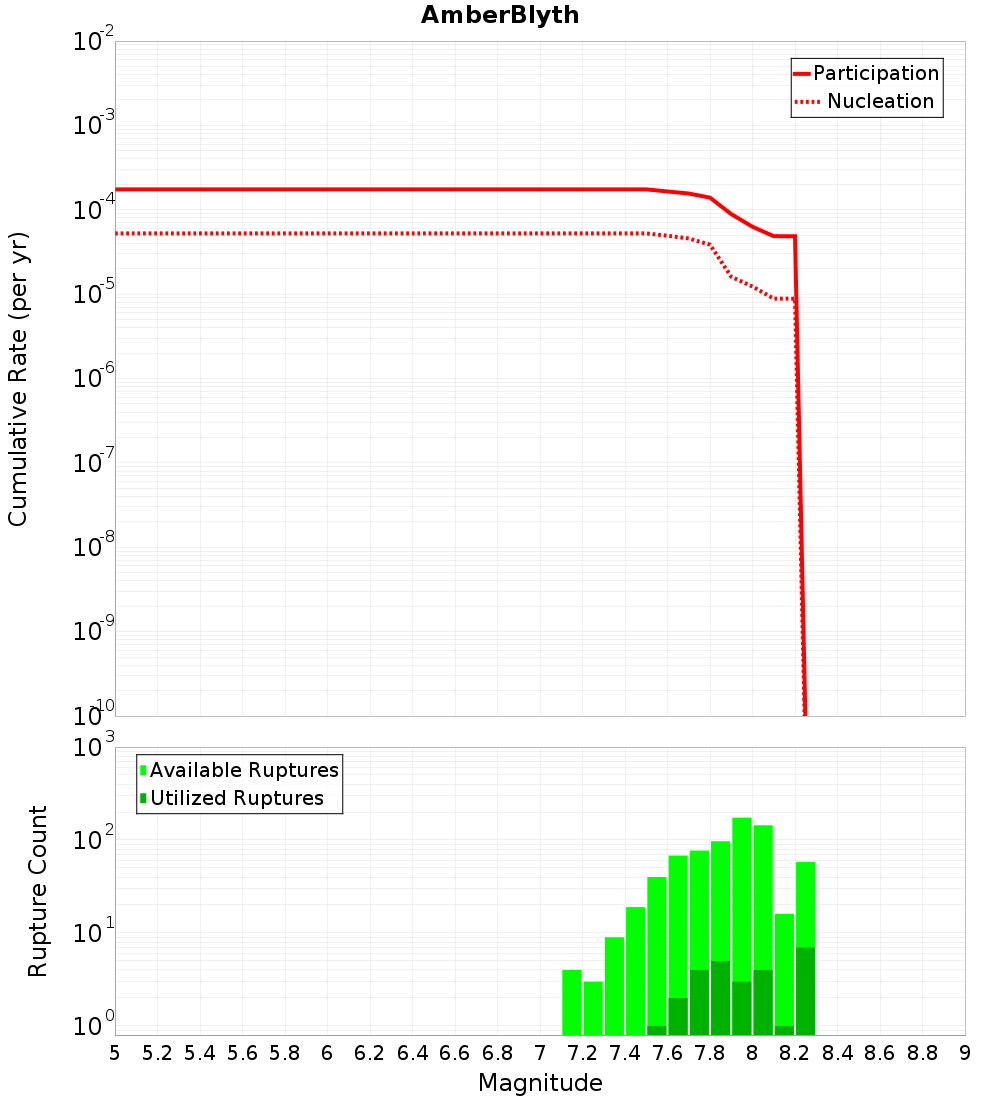

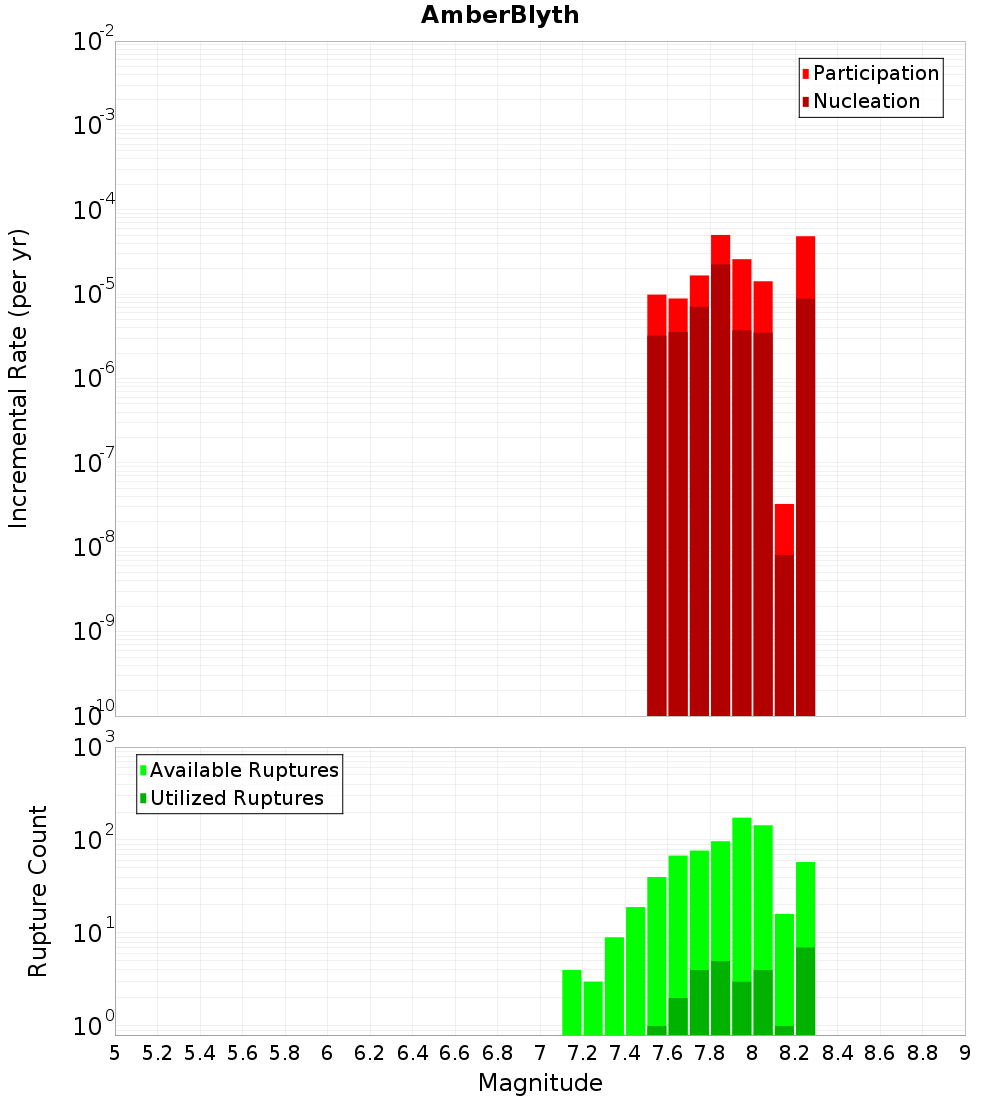

Magnitude-Frequency Distribution

Incremental	Cumulative

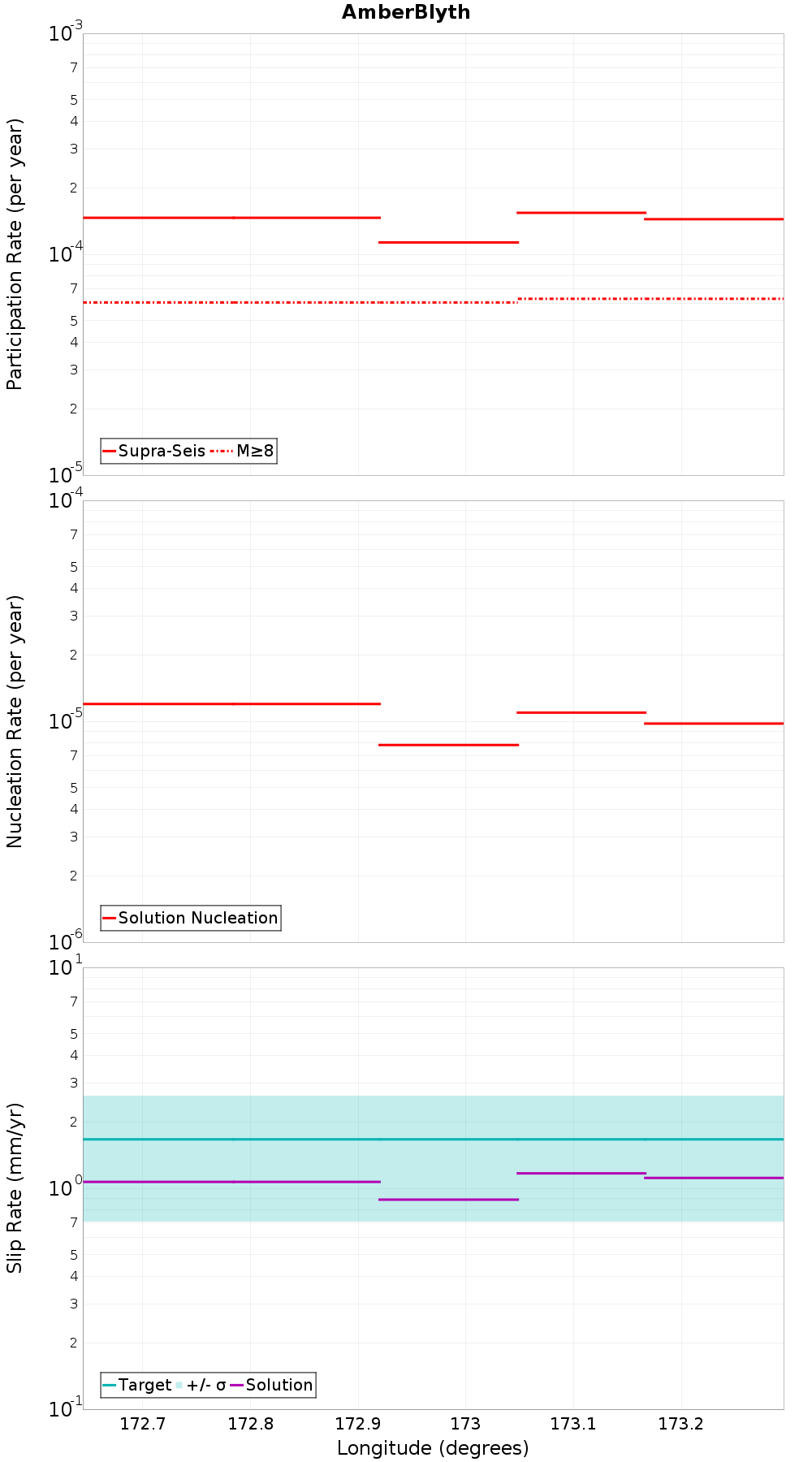

Along-Strike Values

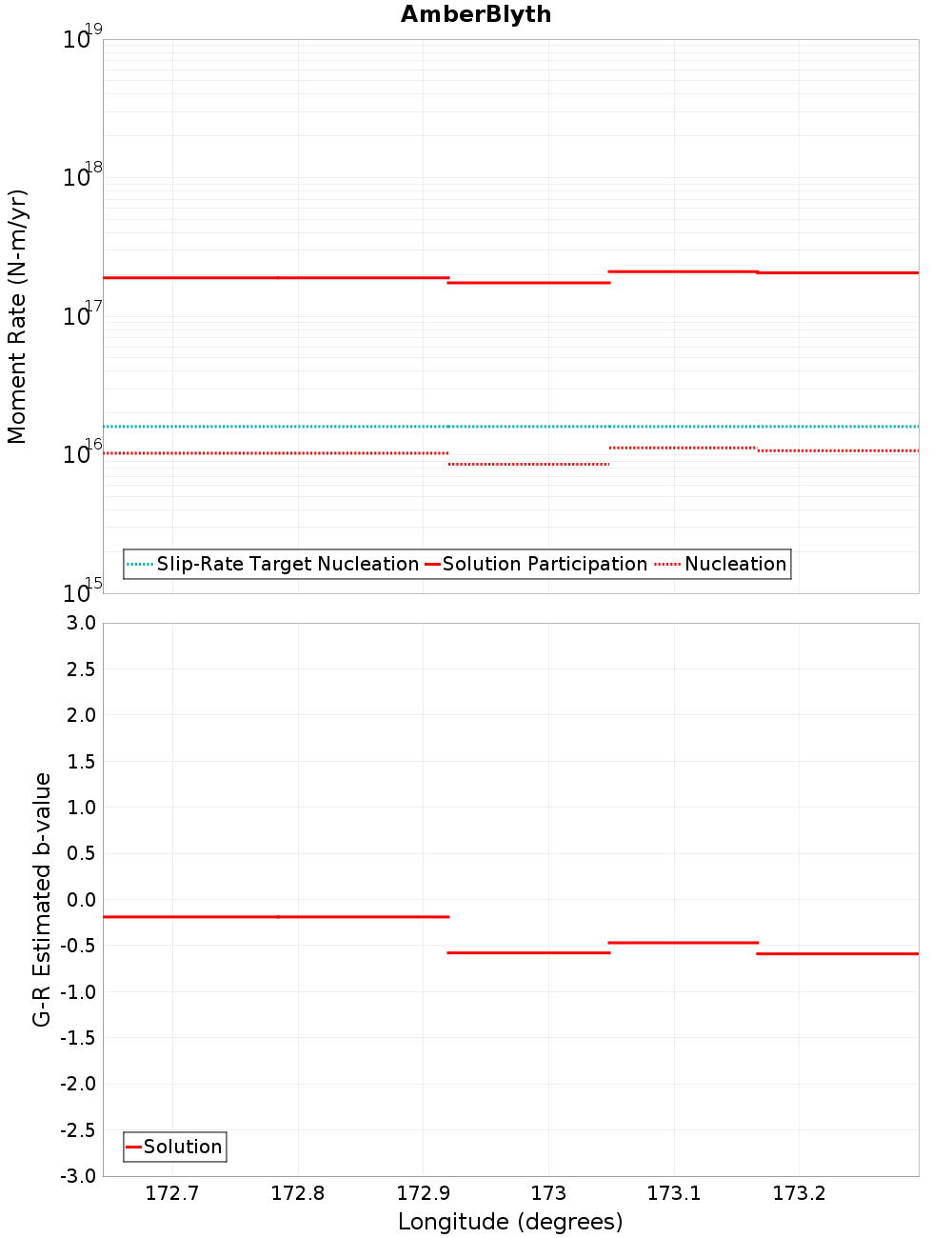

Moment-Rates and b-Values

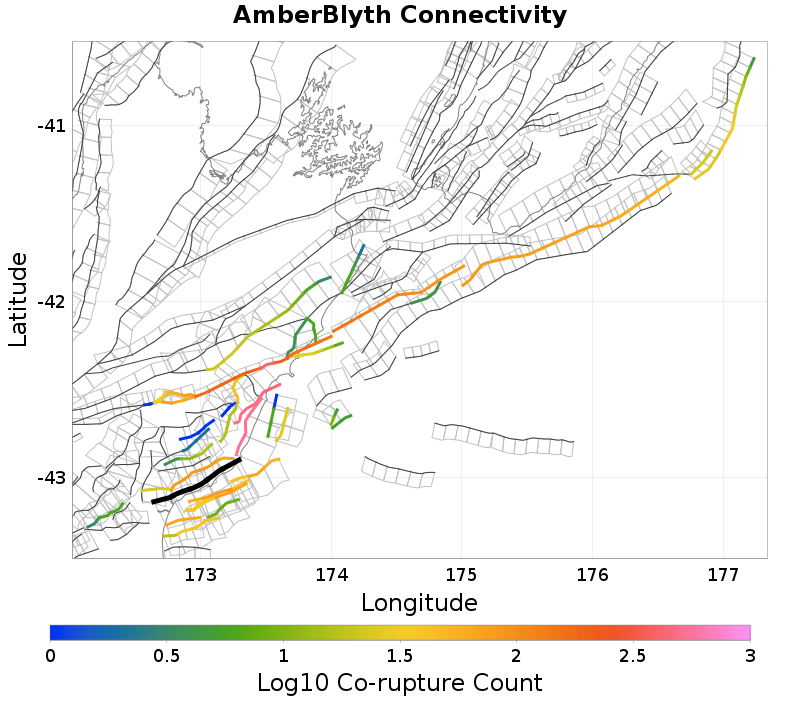

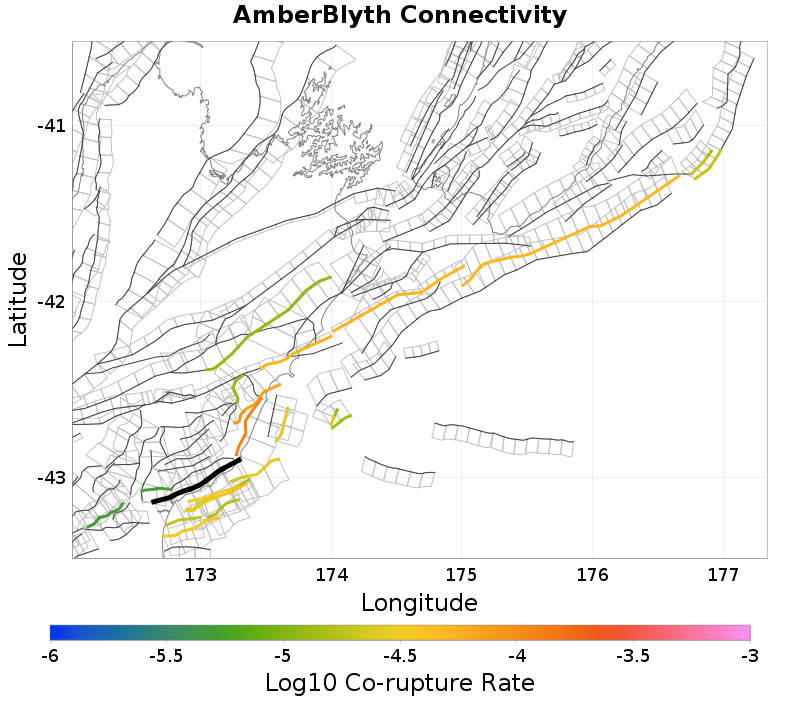

Connectivity

Nearby Sections

Fault Section	Fault Section
Motunau, 1.43 km away	Kaiwara South, 8.44 km away
OmihiLwrHuru, 1.99 km away	North Canterbury Shelf 4, 11.17 km away
Hawkswood, 3.15 km away	Alexander, 11.86 km away
Point Gibson, 3.19 km away	Pegasus Bay, 13.58 km away
North Canterbury Shelf 2, 3.77 km away	Mt Lawry, 14.29 km away
Boby Stream, 4.06 km away	Springbank, 15.08 km away
Leithfield - NCVI - NCVII, 4.61 km away	Mt Arden, 15.14 km away
Doctors, 5.77 km away	Kaiwara North, 15.9 km away
North Canterbury Shelf 11, 6.61 km away	Lowry, 16.84 km away
Starvation - Ashley, 7.86 km away	Knowles Top, 19.54 km away
Waikuku, 8.12 km away

Motunau, 1.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	94
Co-rupture Rate	3.335217E-5

OmihiLwrHuru, 1.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	87
Co-rupture Rate	0.0

Hawkswood, 3.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	540
Co-rupture Rate	1.1818015E-4

Point Gibson, 3.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	67
Co-rupture Rate	2.593402E-5

North Canterbury Shelf 2, 3.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	32
Co-rupture Rate	2.0097035E-5

Boby Stream, 4.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	5.024347E-6

Leithfield - NCVI - NCVII, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	79
Co-rupture Rate	4.8939273E-5

Doctors, 5.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

North Canterbury Shelf 11, 6.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	39
Co-rupture Rate	2.4047917E-5

Starvation - Ashley, 7.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waikuku, 8.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	66
Co-rupture Rate	1.8185327E-5

Kaiwara South, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

North Canterbury Shelf 4, 11.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	1.6469263E-5

Alexander, 11.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	0.0

Pegasus Bay, 13.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	41
Co-rupture Rate	3.2557808E-5

Mt Lawry, 14.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Springbank, 15.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Arden, 15.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaiwara North, 15.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	16
Co-rupture Rate	0.0

Lowry, 16.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Knowles Top, 19.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	5.024347E-6
