Fern Gully Details

PropertyValue
Rupture Count17
Ruptures Above Sect Min Mag15
Ruptures w/ Nonzero Rates6
Magnitude Range[6.86, 7.49]
Length Range[18, 64] km
Total Rate1.6133198E-4 /yr
Multi-Fault Rate1.8317454E-5 /yr (11.35%)
Directly-Connected Faults4
All Co-Rupturing Faults4

Table Of Contents

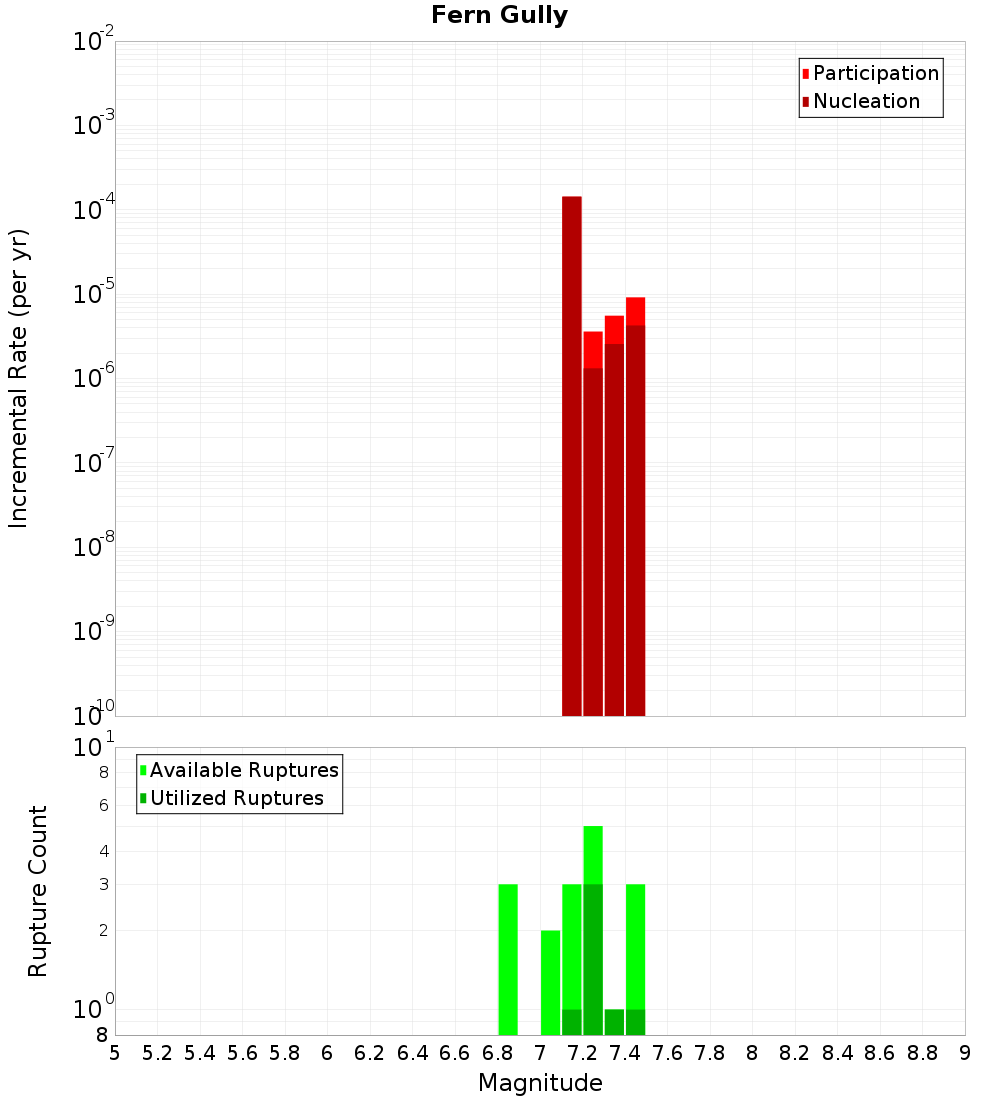

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

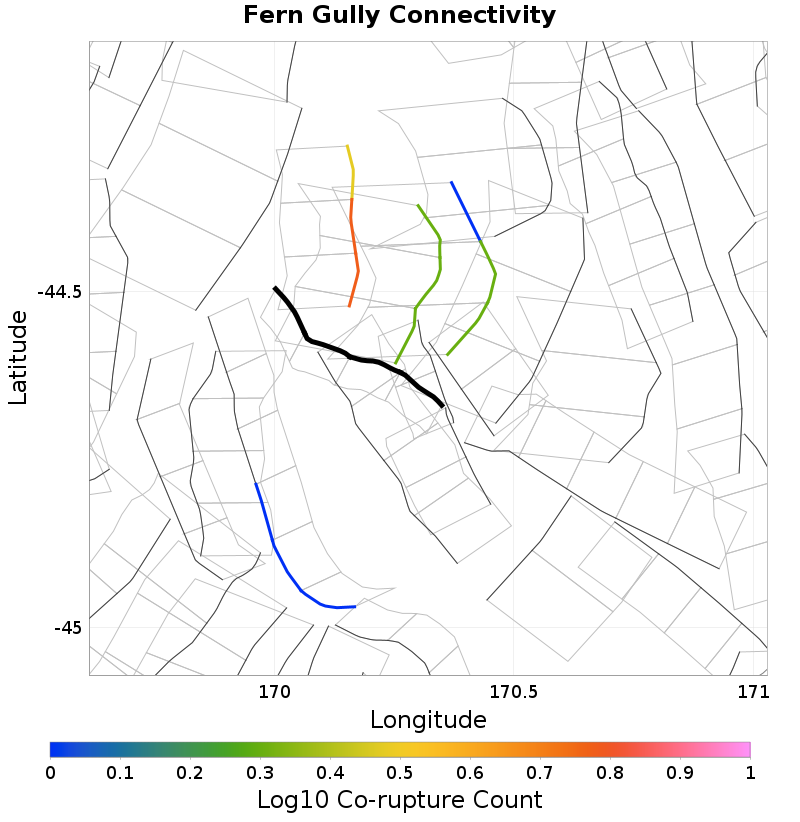

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Middle Range, 0.14 km away
Waitangi, 0.19 km away
Gibson, 0.31 km away
Omarama Saddle, 0.42 km away
Awahokomo, 0.47 km away
Hawkdun, 1 km away
Falstone, 3.04 km away
Mt Sutton, 3.17 km away
Kirkliston, 3.19 km away
Dryburgh, 4.21 km away
Stonewall, 6.14 km away
Ostler South, 8.7 km away
Campbell Hills, 11.39 km away
Blue Lake, 11.92 km away

Middle Range, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitangi, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate9.157619E-6

Omarama Saddle, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awahokomo, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate1.7939524E-9

Falstone, 3.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate8.004624E-6

Mt Sutton, 3.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate1.1534172E-6

Kirkliston, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dryburgh, 4.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 6.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler South, 8.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Hills, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Lake, 11.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
