Hauroko: South Details
| Property | Value |
|---|---|
| Rupture Count | 41 |
| Ruptures Above Sect Min Mag | 37 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [7.04, 7.89] |
| Length Range | [22, 154] km |
| Total Rate | 5.5249075E-5 /yr |
| Multi-Fault Rate | 1.6394255E-5 /yr (29.67%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

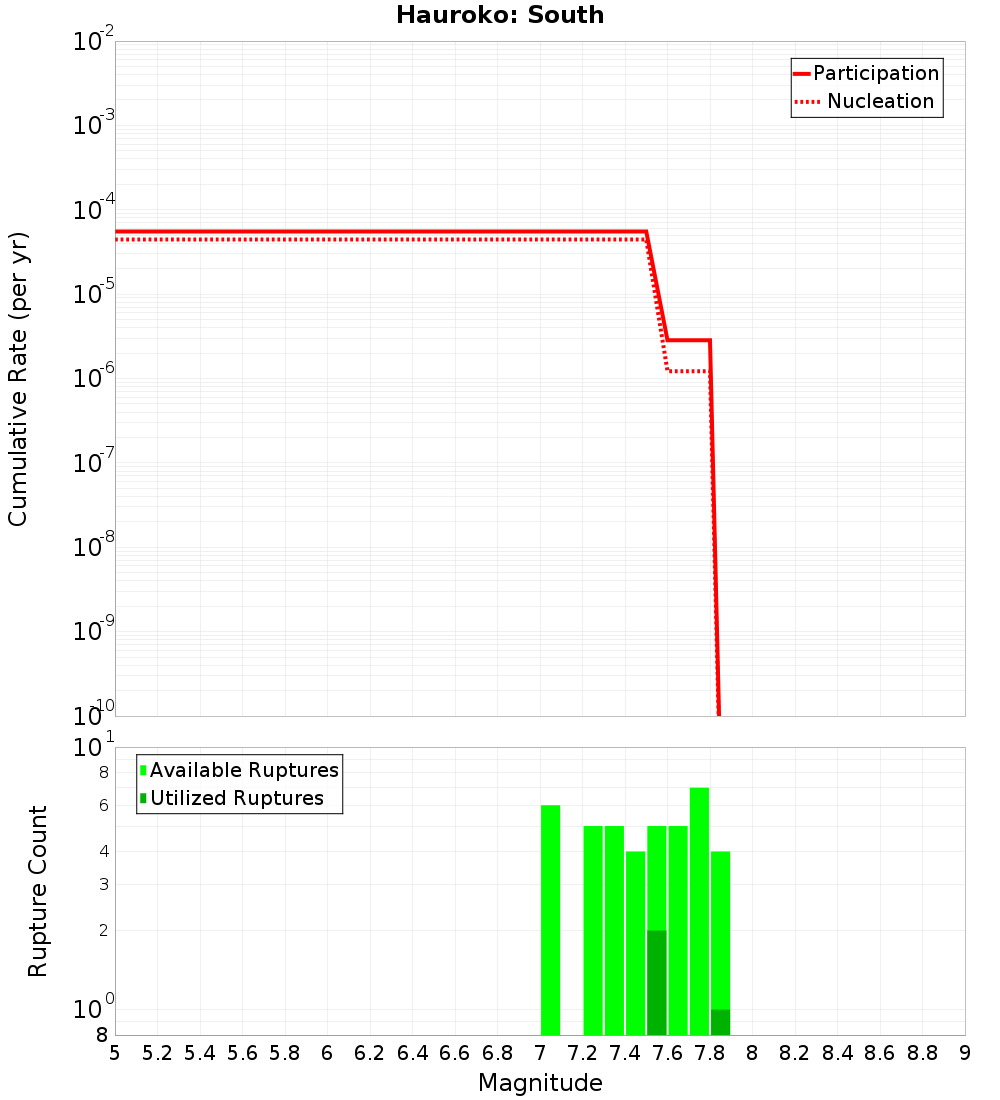

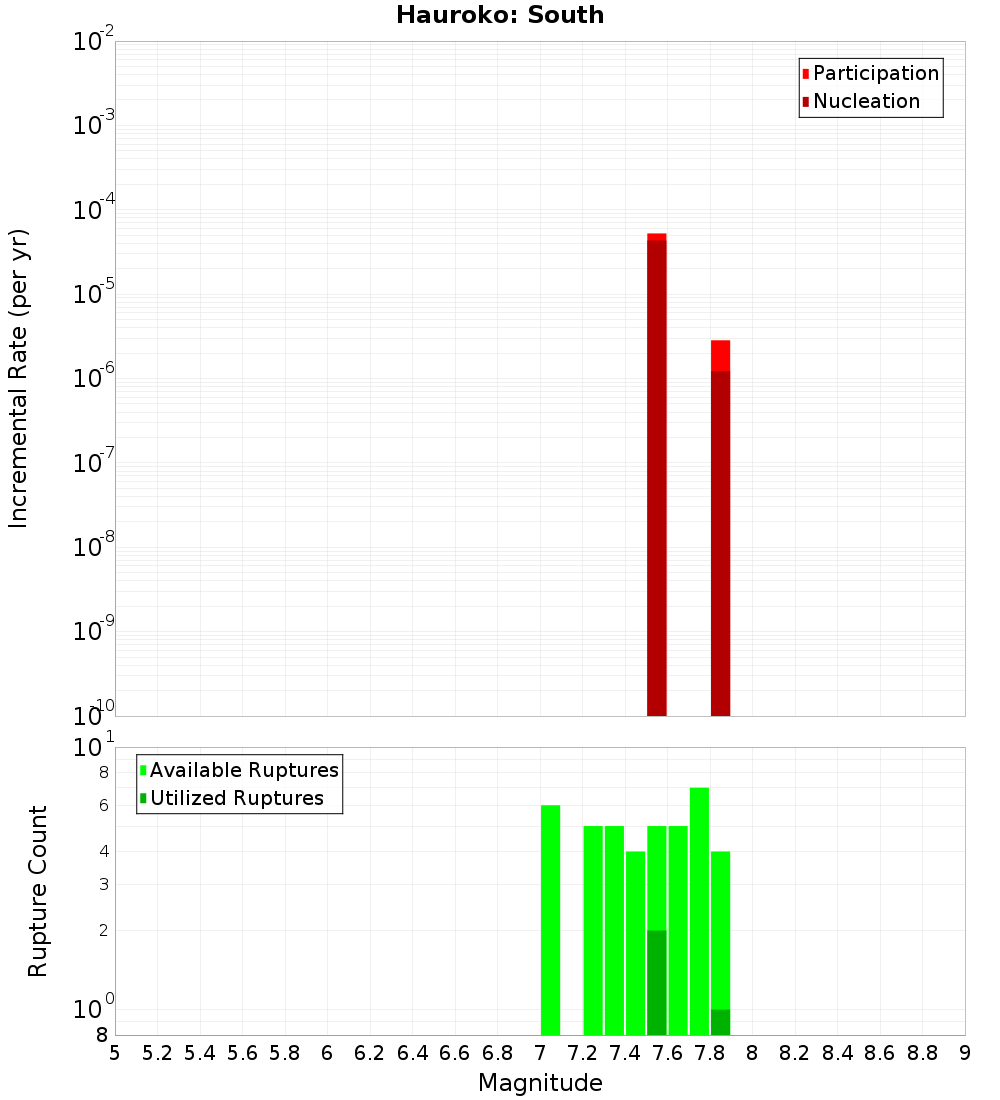

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

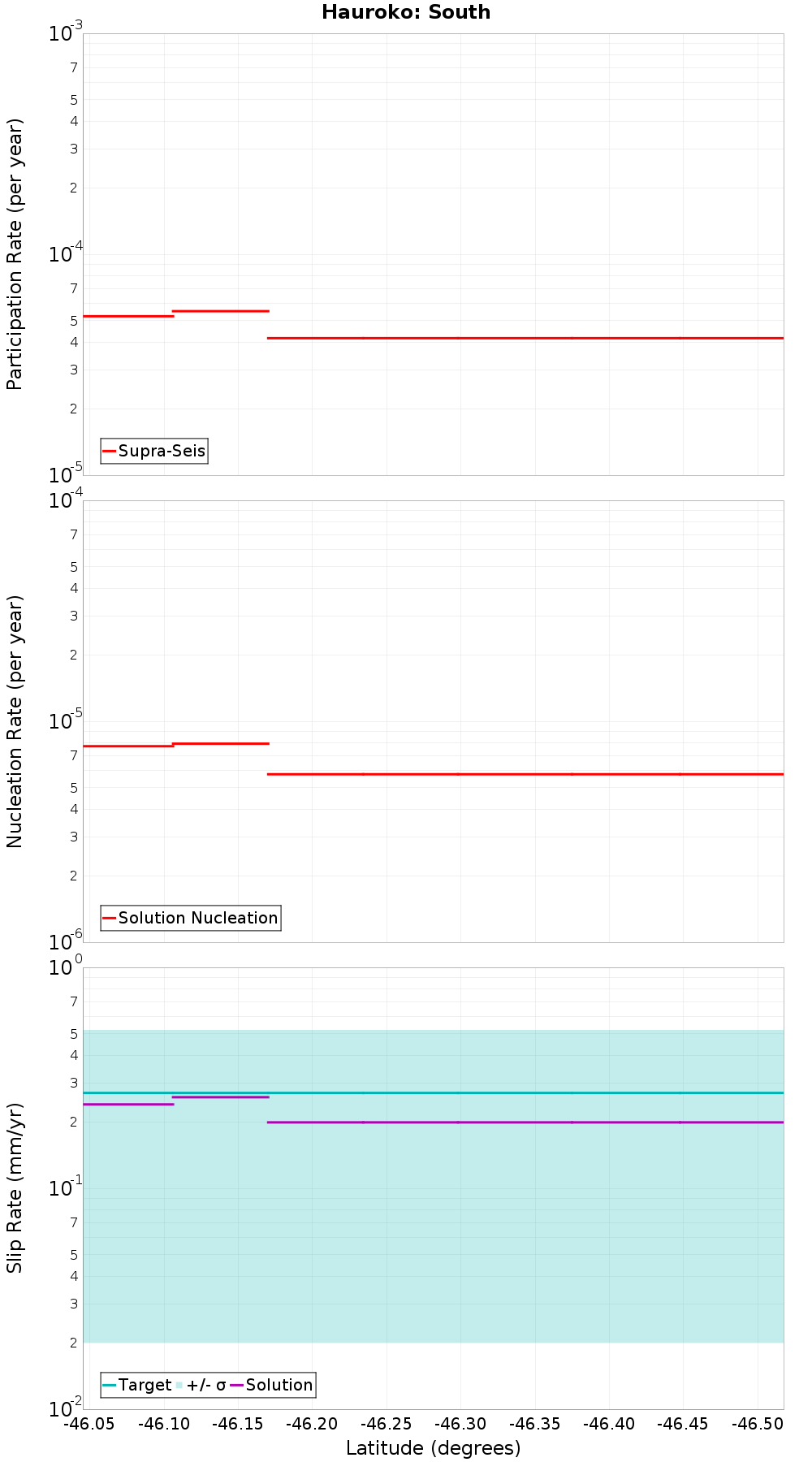

Along-Strike Values
Moment-Rates and b-Values

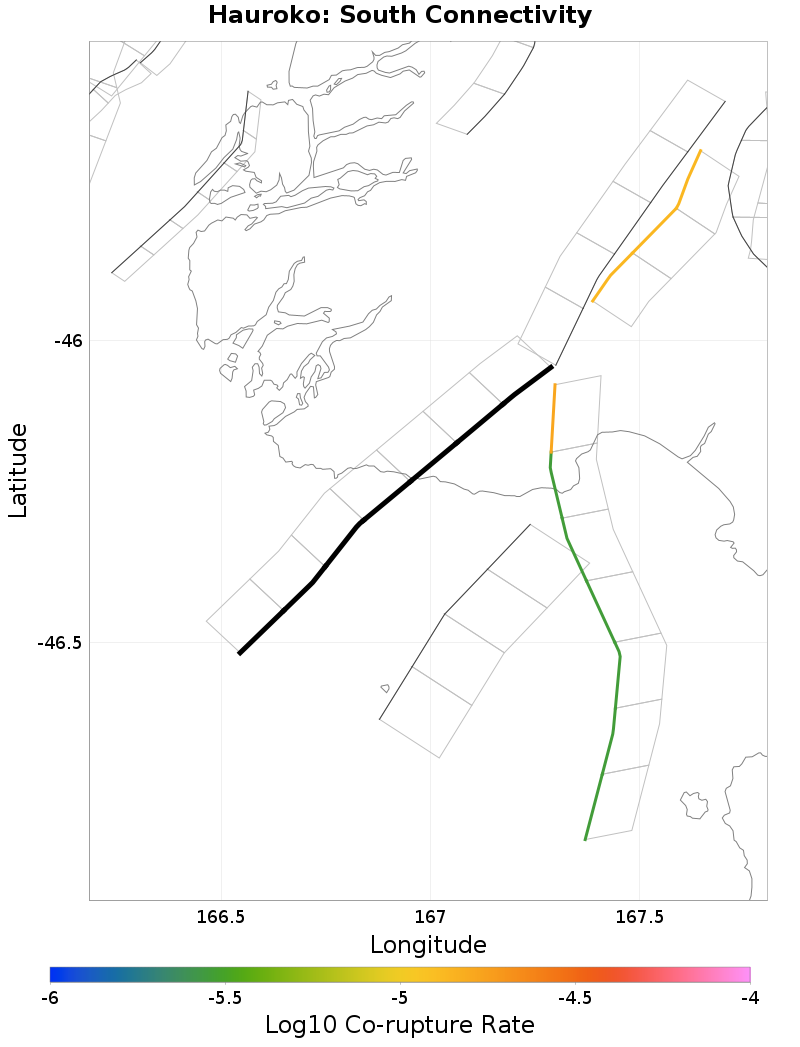

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: North, 0.53 km away |
| Hump Ridge, 3.04 km away |
| Monowai, 14.37 km away |
Hauroko: North, 0.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hump Ridge, 3.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20 |
| Co-rupture Rate | 1.6394255E-5 |
Monowai, 14.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.3557344E-5 |
