Hope: Hanmer SE Details

PropertyValue
Rupture Count61,882
Ruptures Above Sect Min Mag61,882
Ruptures w/ Nonzero Rates92
Magnitude Range[6.87, 8.64]
Length Range[16, 1,156] km
Total Rate0.0013017876 /yr
Multi-Fault Rate0.0013017876 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults134

Table Of Contents

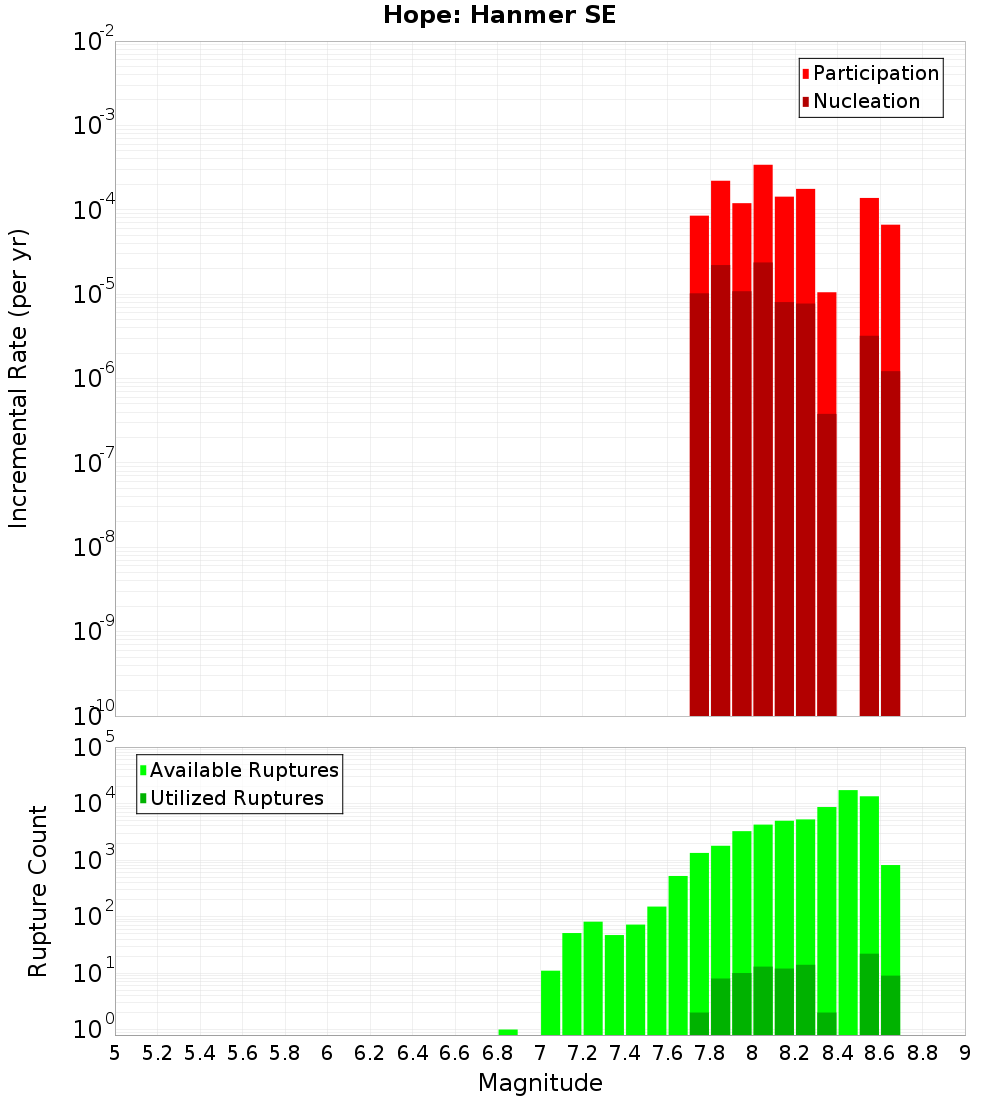

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

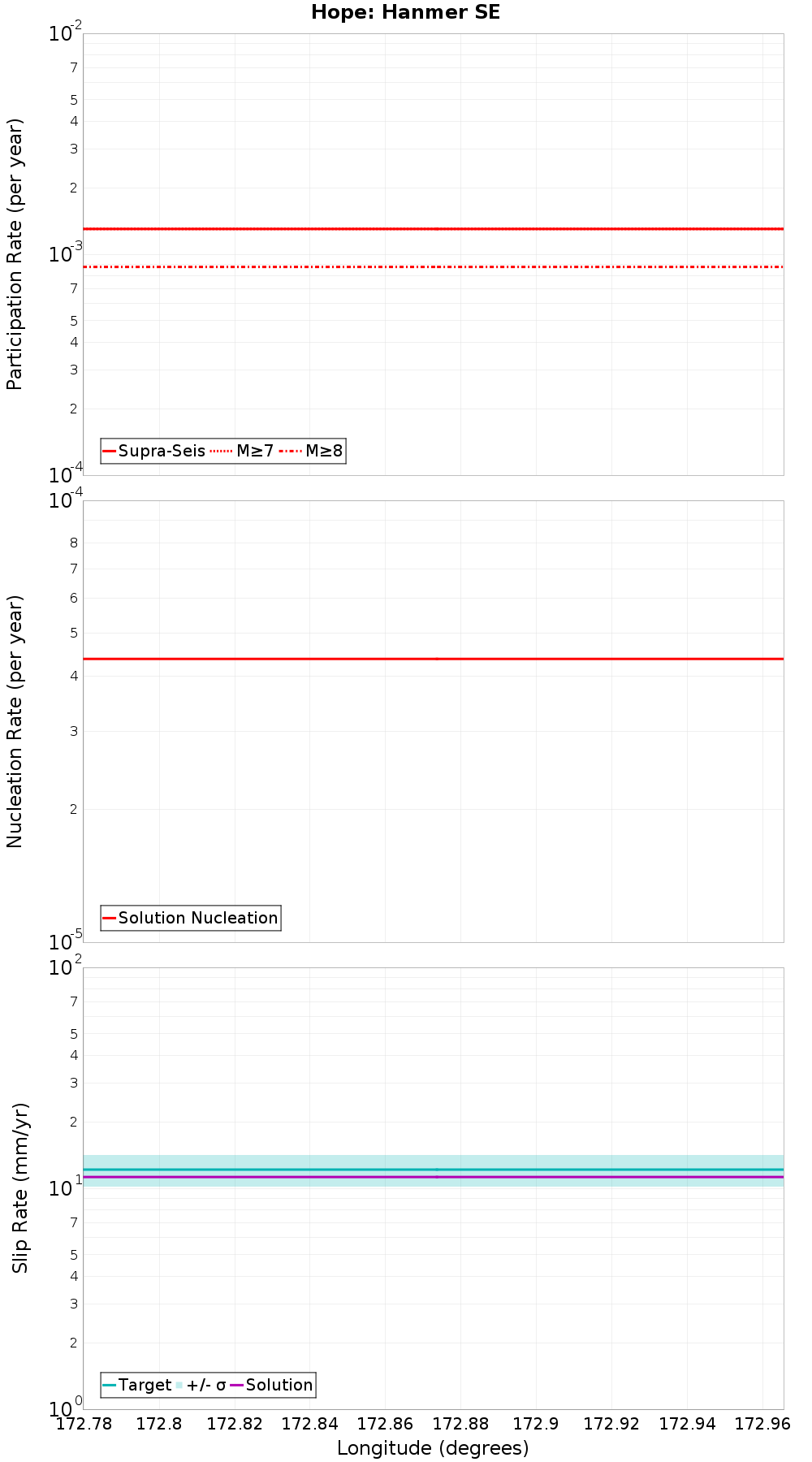

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Hanmer SW, 0 km awayLeader: North, 15.47 km away
Hope: Conway, 0 km awayBalmoral, 15.91 km away
Hanmer, 0 km awayKakapo, 16.57 km away
Hope: Hanmer NW, 3.63 km awayHope: Hope River, 16.82 km away
The Humps, 7.7 km awayHurunui Peak, 17.6 km away
Hope: Kakapo-2-Hamner, 10.43 km awayClarence: Southwest, 17.93 km away
Leader: South, 11.3 km awayClarence: Central, 17.95 km away
Kaiwara North, 11.98 km awayLeader: Central, 18.24 km away
Mt Culverden, 12.56 km awayLeonard Mound, 18.73 km away
Elliott, 14.69 km awayEsk North, 19.96 km away

Hope: Hanmer SW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count60,963
Co-rupture Rate4.923971E-4

Hope: Conway, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count60,069
Co-rupture Rate0.0013017876

Hanmer, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count4,797
Co-rupture Rate2.138343E-6

Hope: Hanmer NW, 3.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count7,136
Co-rupture Rate1.4025804E-4

The Humps, 7.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Hope: Kakapo-2-Hamner, 10.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count59,646
Co-rupture Rate4.5599174E-4

Leader: South, 11.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count787
Co-rupture Rate6.33403E-6

Kaiwara North, 11.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count208
Co-rupture Rate2.8472927E-5

Mt Culverden, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count87
Co-rupture Rate2.3434826E-5

Elliott, 14.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count2,059
Co-rupture Rate1.1820555E-4

Leader: North, 15.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count281
Co-rupture Rate0.0

Balmoral, 15.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kakapo, 16.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count22,799
Co-rupture Rate7.752706E-5

Hope: Hope River, 16.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count37,017
Co-rupture Rate3.784647E-4

Hurunui Peak, 17.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count174
Co-rupture Rate3.426839E-6

Clarence: Central, 17.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Leader: Central, 18.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count891
Co-rupture Rate5.4468705E-6

Leonard Mound, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate3.6891547E-6

Esk North, 19.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
