Leader: North Details

PropertyValue
Rupture Count486
Ruptures Above Sect Min Mag485
Ruptures w/ Nonzero Rates6
Magnitude Range[6.69, 8.49]
Length Range[10, 744] km
Total Rate2.3521876E-5 /yr
Multi-Fault Rate2.3521876E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults60

Table Of Contents

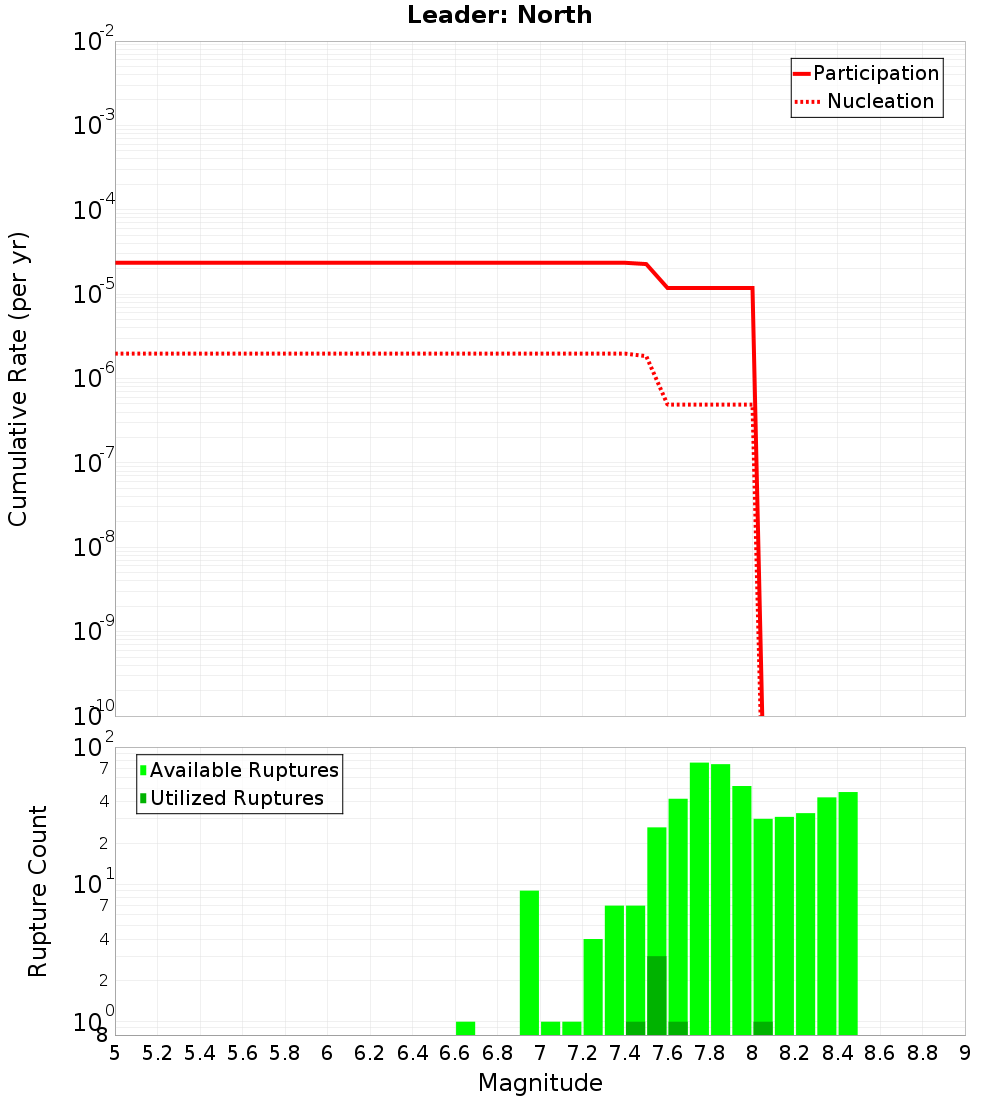

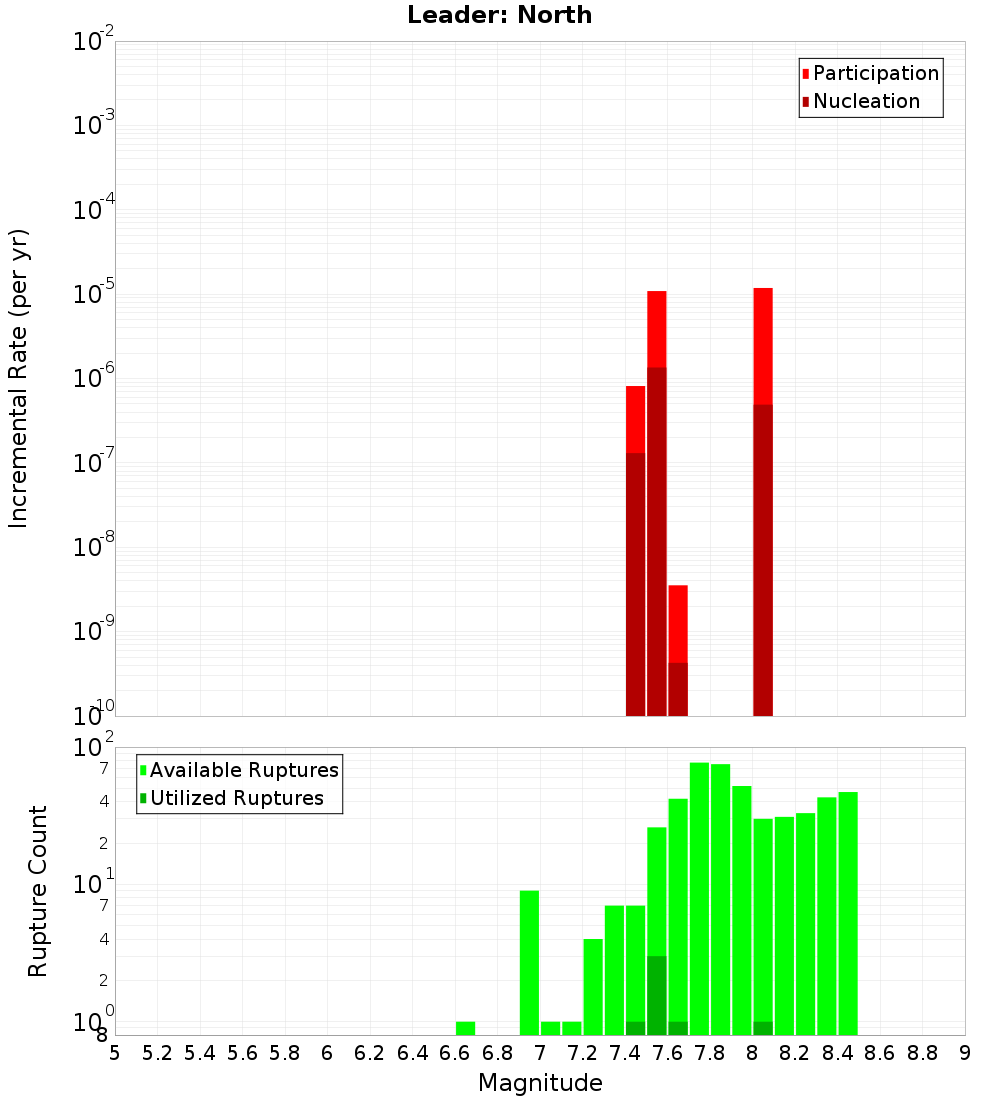

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

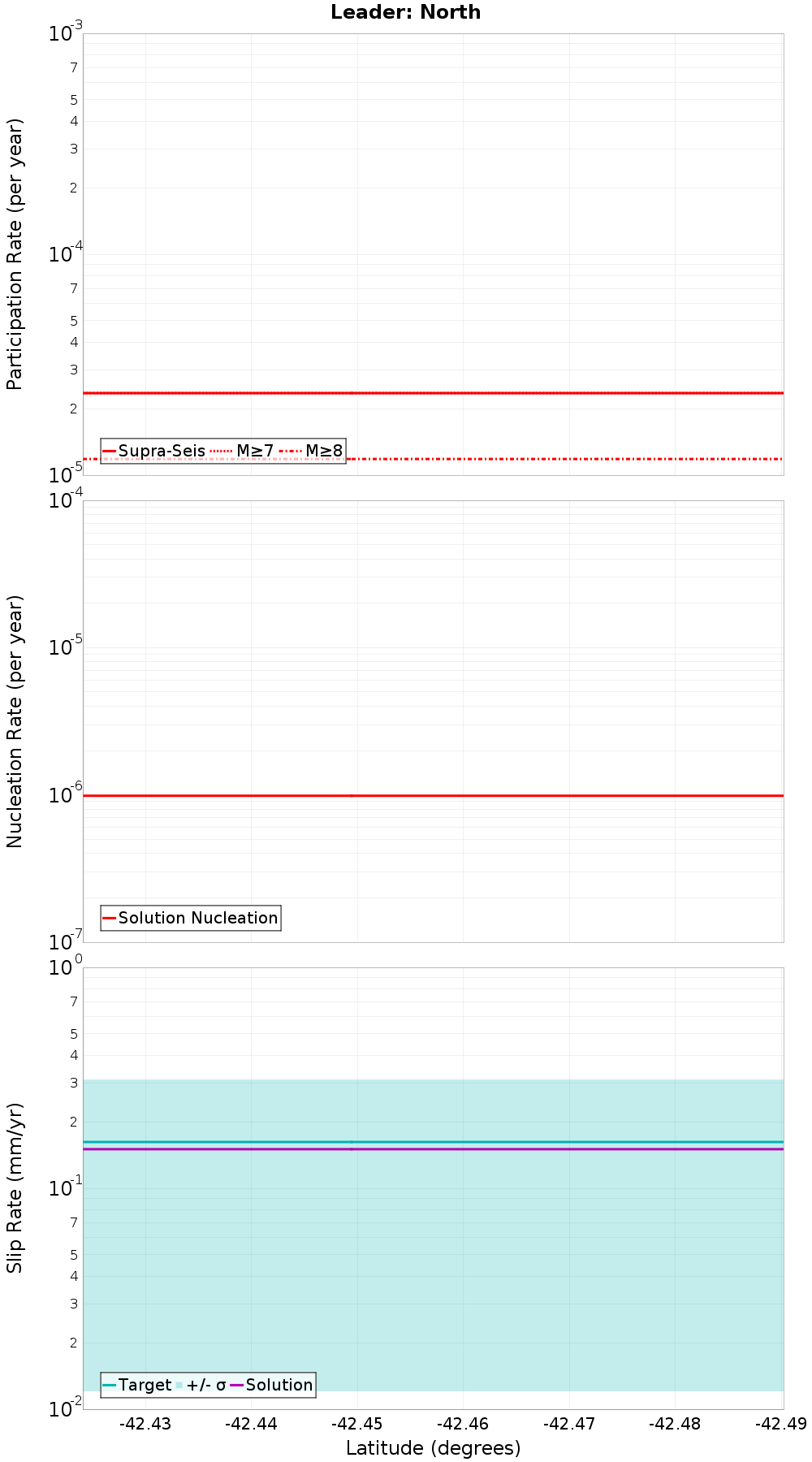

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

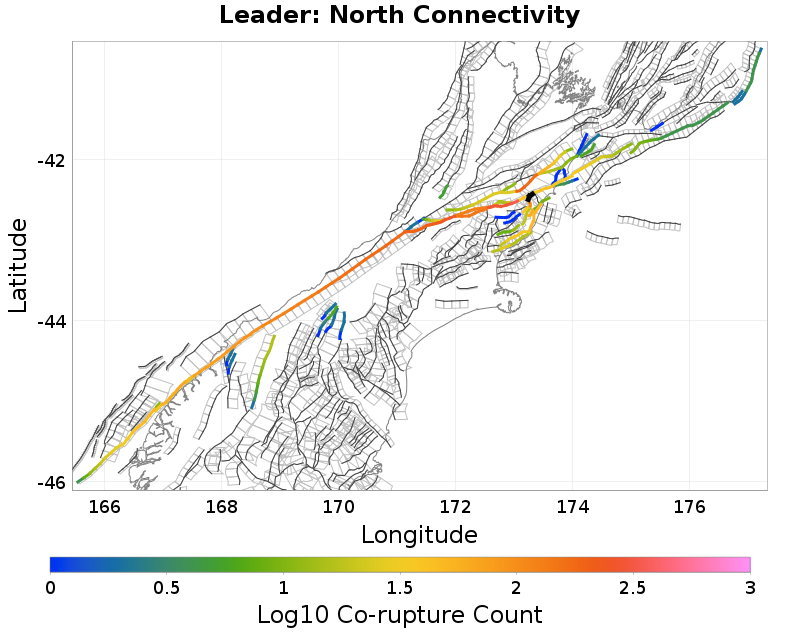

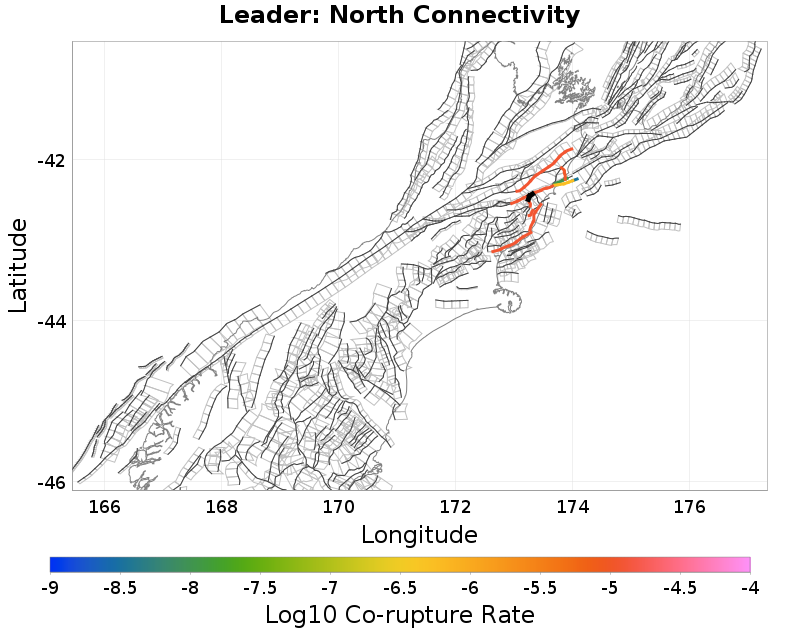

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Leader: Central, 0 km away
Hope: Conway, 0.16 km away
StoneJug, 0.61 km away
Leader: South, 7.15 km away
The Humps, 9.77 km away
Elliott, 10.47 km away
Kaiwara North, 10.78 km away
Hundalee, 12.63 km away
Hope: Hanmer SE, 15.47 km away
Hawkswood, 18.35 km away
Fowlers, 18.42 km away
Clarence: Central, 18.55 km away
Barefell, 19.84 km away

Leader: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count115
Co-rupture Rate1.1830051E-5

Hope: Conway, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count352
Co-rupture Rate1.16918245E-5

StoneJug, 0.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: South, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate0.0

The Humps, 9.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Elliott, 10.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count197
Co-rupture Rate1.1830051E-5

Kaiwara North, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Hundalee, 12.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate1.1830051E-5

Hope: Hanmer SE, 15.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count281
Co-rupture Rate0.0

Hawkswood, 18.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate1.1830051E-5

Fowlers, 18.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Central, 18.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Barefell, 19.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
