Motatapu Details

PropertyValue
Rupture Count77
Ruptures Above Sect Min Mag76
Ruptures w/ Nonzero Rates5
Magnitude Range[7.00, 8.23]
Length Range[19, 254] km
Total Rate6.729116E-5 /yr
Multi-Fault Rate2.6065667E-5 /yr (38.74%)
Directly-Connected Faults3
All Co-Rupturing Faults22

Table Of Contents

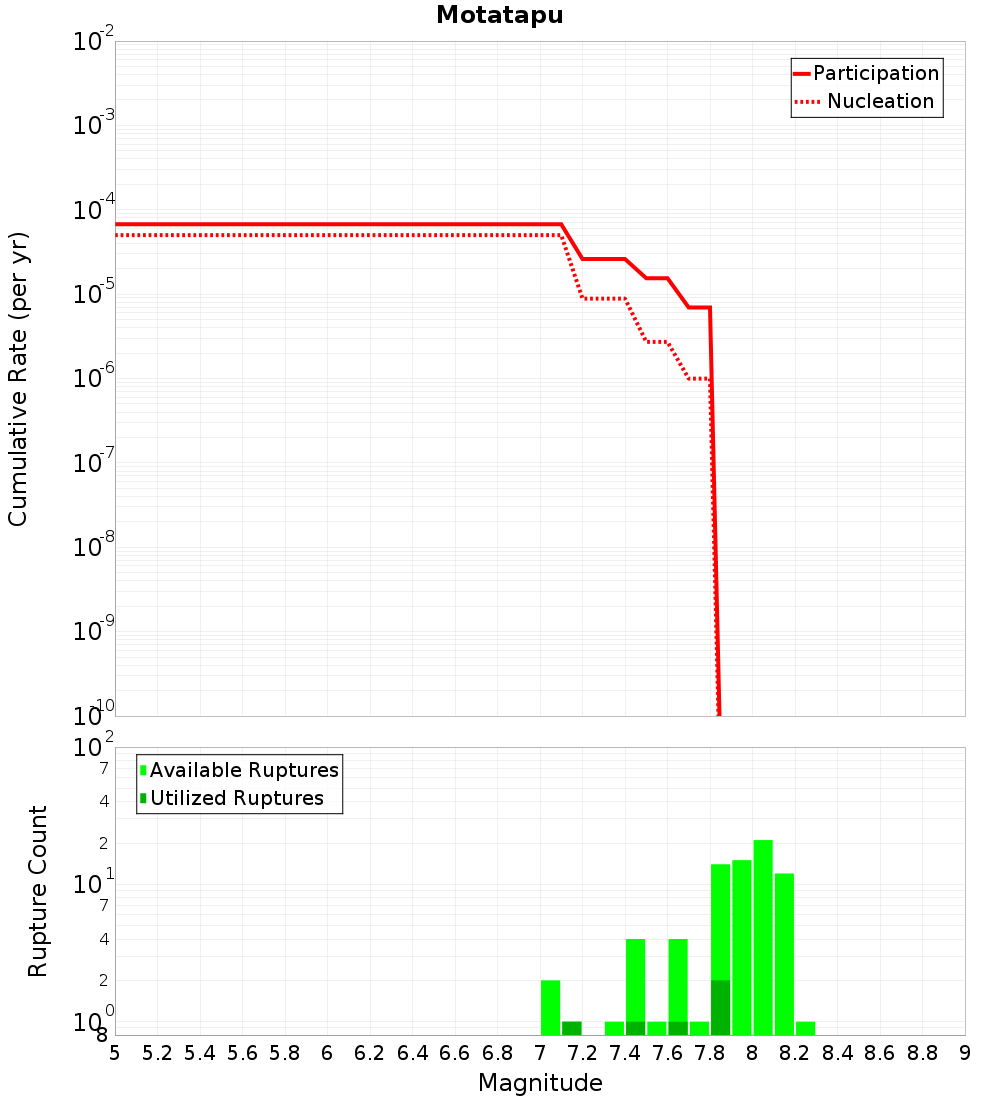

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

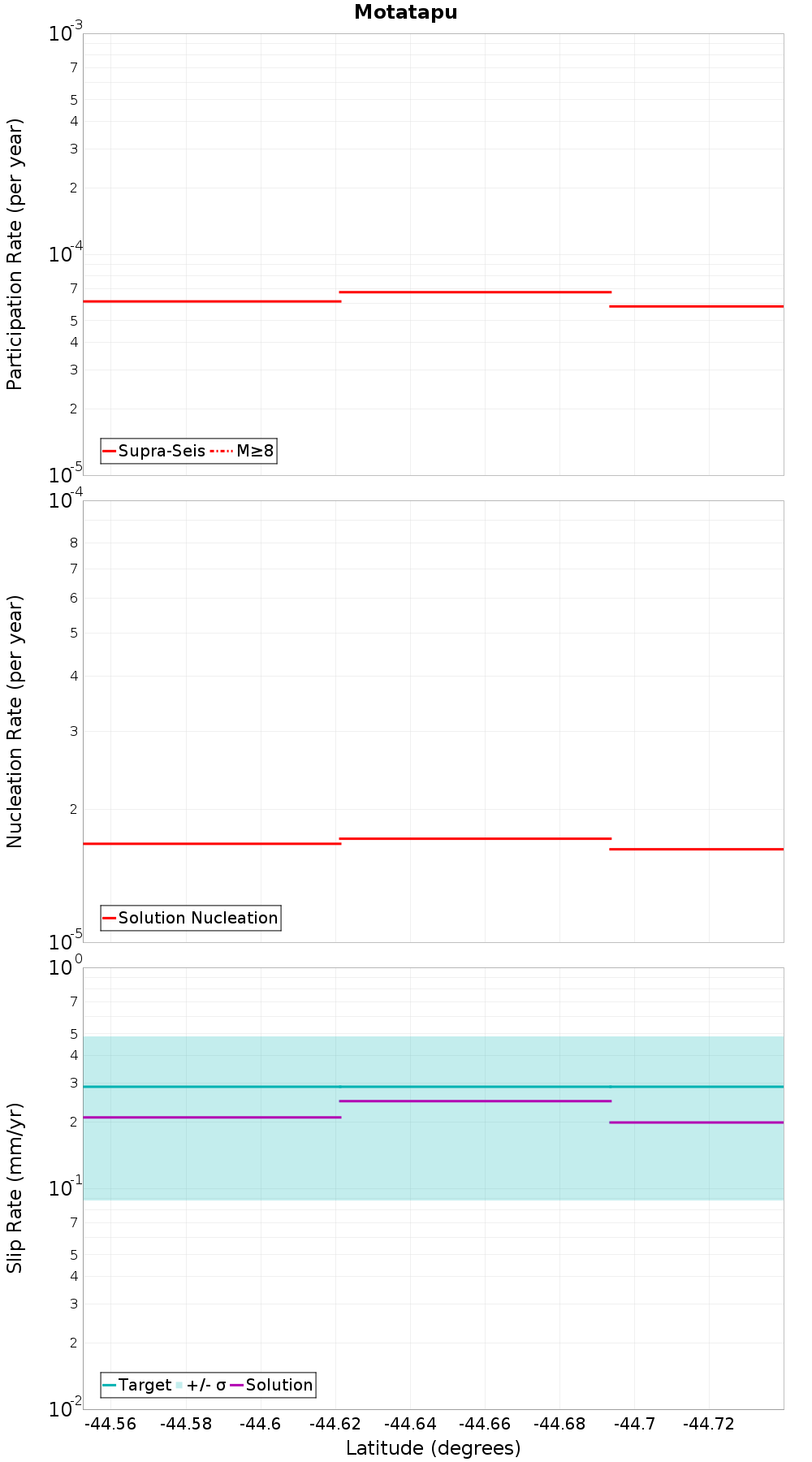

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
NW Cardrona North, 0.14 km away
Pisa, 0.3 km away
Cardrona - Hawea, 0.46 km away
Wanaka, 1.16 km away
Hunter Valley, 6.65 km away
Timaru Creek, 7.01 km away
Cluden, 9.47 km away
Paddys Ridge, 10.99 km away
Grandview, 11.63 km away
NW Cardrona South, 11.74 km away
Roaring Meg, 13.15 km away
Dingle, 17.28 km away
Dromedary, 18.78 km away
Moonlight North, 19.58 km away

NW Cardrona North, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate1.0622939E-5

Pisa, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count70
Co-rupture Rate6.9352045E-6

Cardrona - Hawea, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wanaka, 1.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hunter Valley, 6.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Timaru Creek, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Cluden, 9.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Paddys Ridge, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate8.507524E-6

Grandview, 11.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

NW Cardrona South, 11.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Roaring Meg, 13.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate6.9352045E-6

Dingle, 17.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 18.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Moonlight North, 19.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
