Nevis Details
| Property | Value |
|---|---|
| Rupture Count | 224 |
| Ruptures Above Sect Min Mag | 223 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [7.35, 8.54] |
| Length Range | [33, 728] km |
| Total Rate | 6.267535E-5 /yr |
| Multi-Fault Rate | 6.267535E-5 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 28 |
Table Of Contents

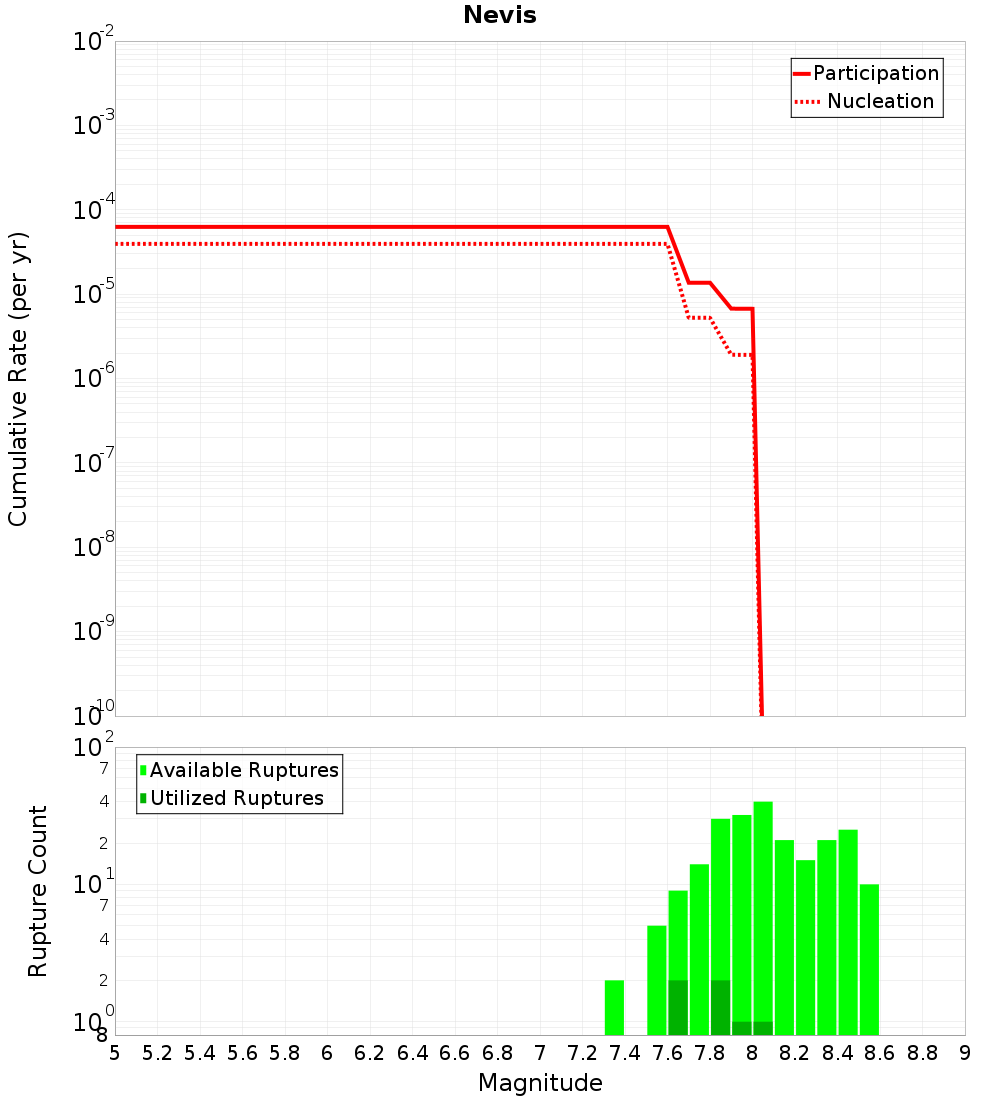

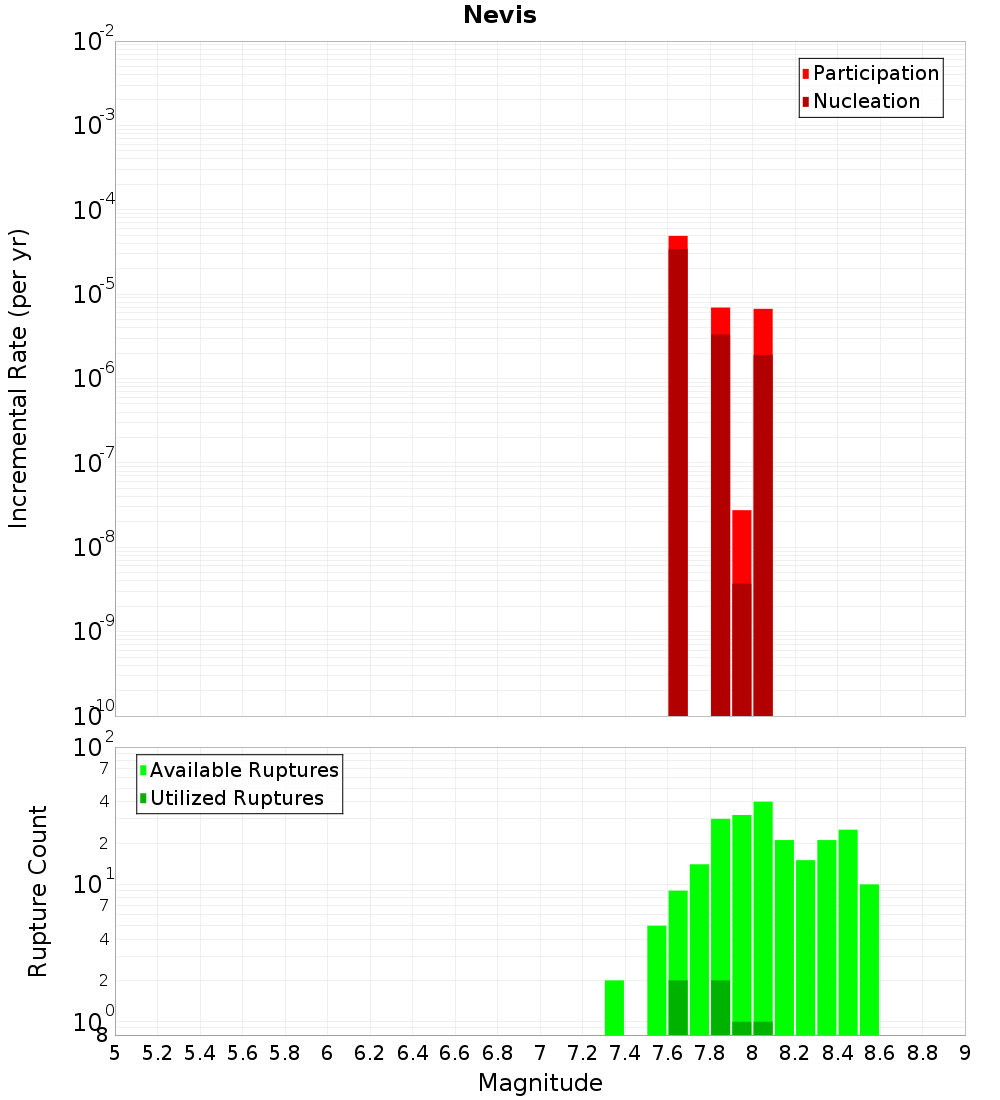

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

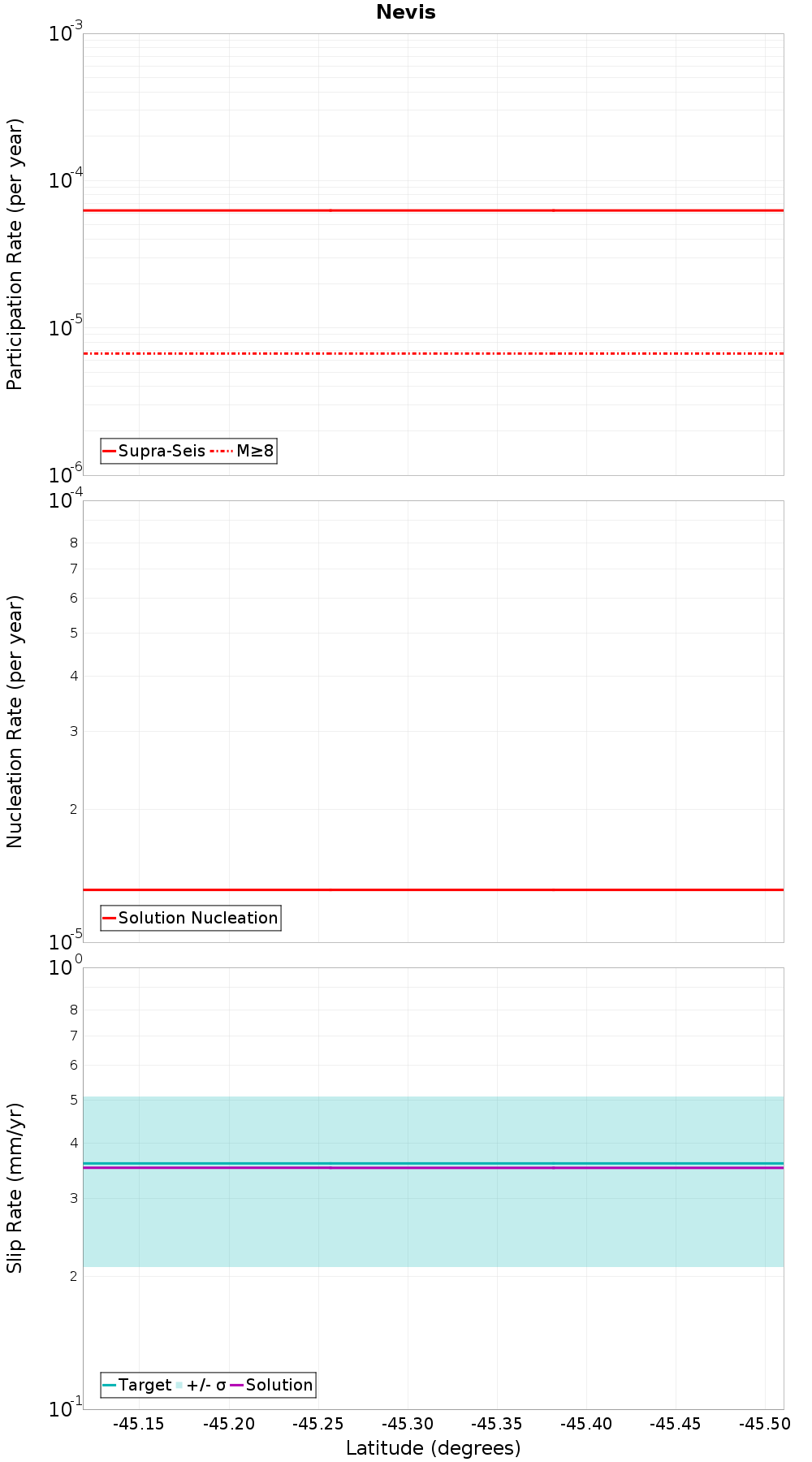

Along-Strike Values
Moment-Rates and b-Values

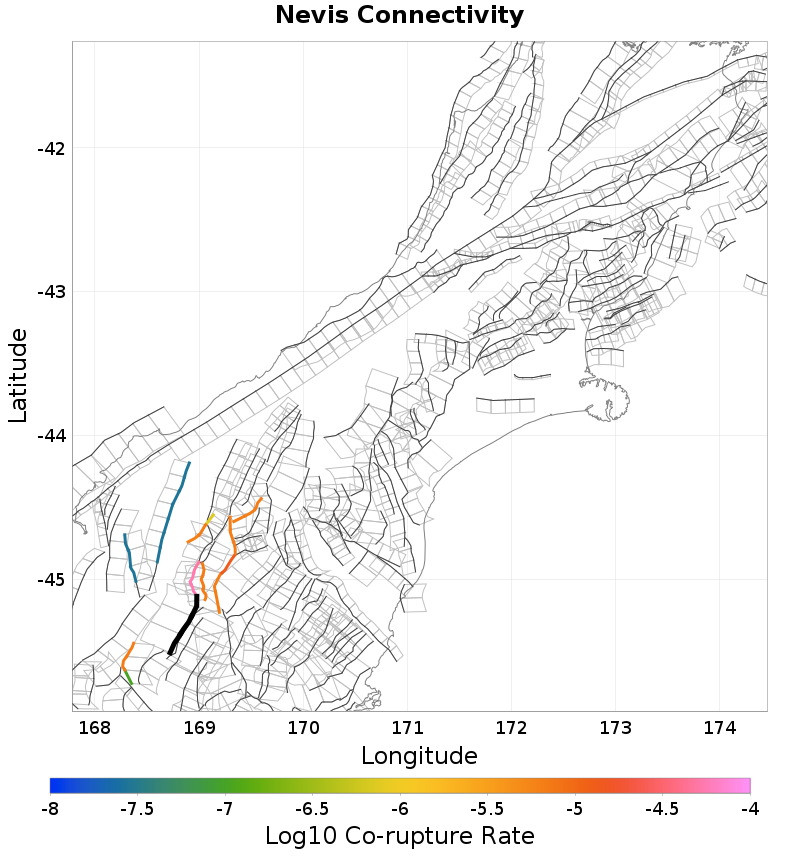

Connectivity
 |  |
|---|
Nearby Sections
Roaring Lion, 0.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
NW Cardrona South, 0.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 51 |
| Co-rupture Rate | 5.5636403E-5 |
Moonlight South, 0.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mid Dome, 0.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Acton, 0.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 6.801591E-6 |
Roaring Meg, 5.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 6.9352045E-6 |
Garvie, 6.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
West Wakatipu, 7.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 119 |
| Co-rupture Rate | 2.7512554E-8 |
Pisa, 9.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 94 |
| Co-rupture Rate | 1.3633053E-5 |
Old Man, 14.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dunstan, 18.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
