Otara West 3 Details
| Property | Value |
|---|---|
| Rupture Count | 1,546 |
| Ruptures Above Sect Min Mag | 1,546 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.96, 8.36] |
| Length Range | [20, 542] km |
| Total Rate | 1.5488884E-4 /yr |
| Multi-Fault Rate | 1.5488884E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 53 |
Table Of Contents

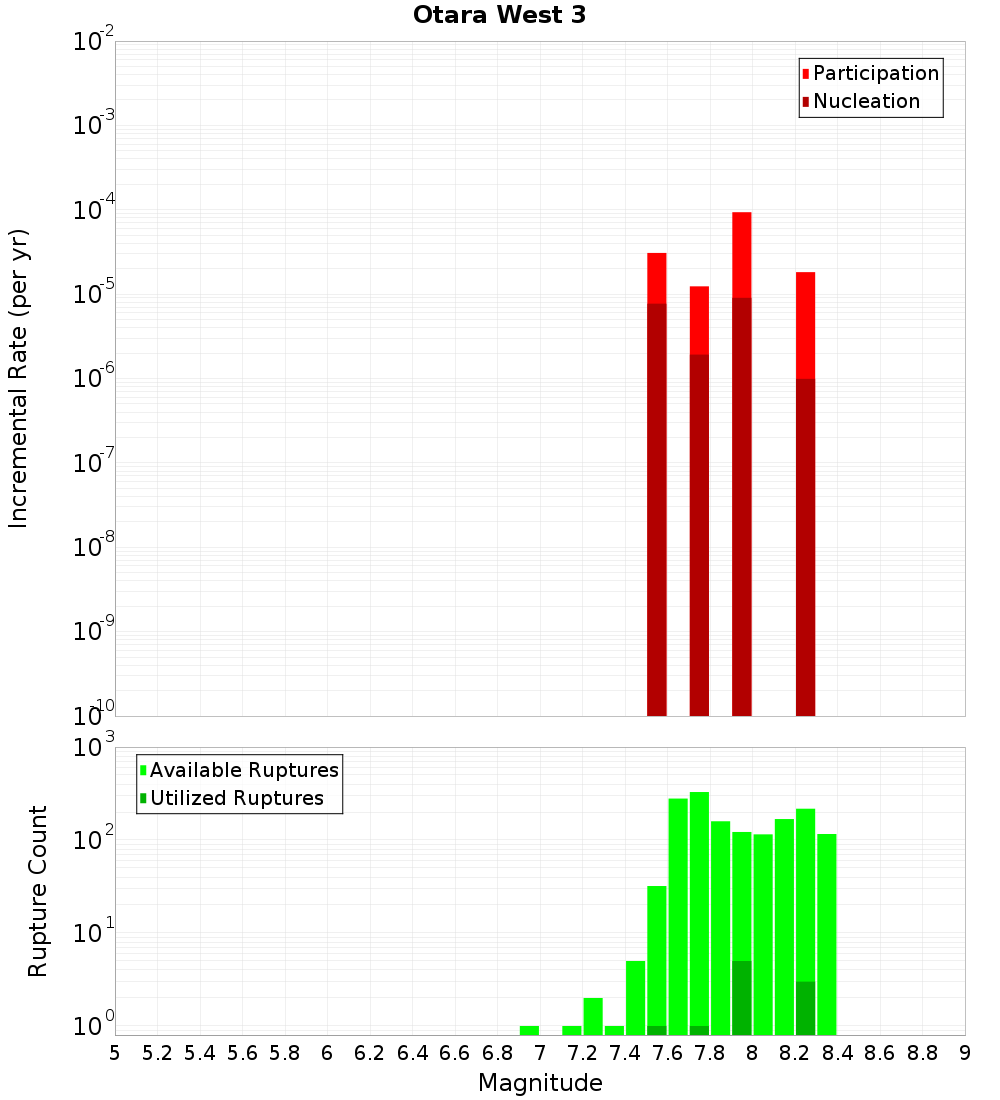

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Otara West 2, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 1, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Volkner 4, 0.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,543 |
| Co-rupture Rate | 1.5488884E-4 |
Otara East 2, 3.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 22 |
| Co-rupture Rate | 0.0 |
Tuatoru 2, 5.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara East 1, 6.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tauranga Trough East 2, 9.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuakana 7, 14.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuakana 6, 14.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Volkner 3, 16.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Te Arawa 3, 16.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Arawa 2, 19.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 507 |
| Co-rupture Rate | 1.2941522E-4 |
