Puketerata Details

Property	Value
Rupture Count	2,575
Ruptures Above Sect Min Mag	2,504
Ruptures w/ Nonzero Rates	70
Magnitude Range	[6.34, 7.72]
Length Range	[10, 181] km
Total Rate	6.26841E-4 /yr
Multi-Fault Rate	6.26841E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	20

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

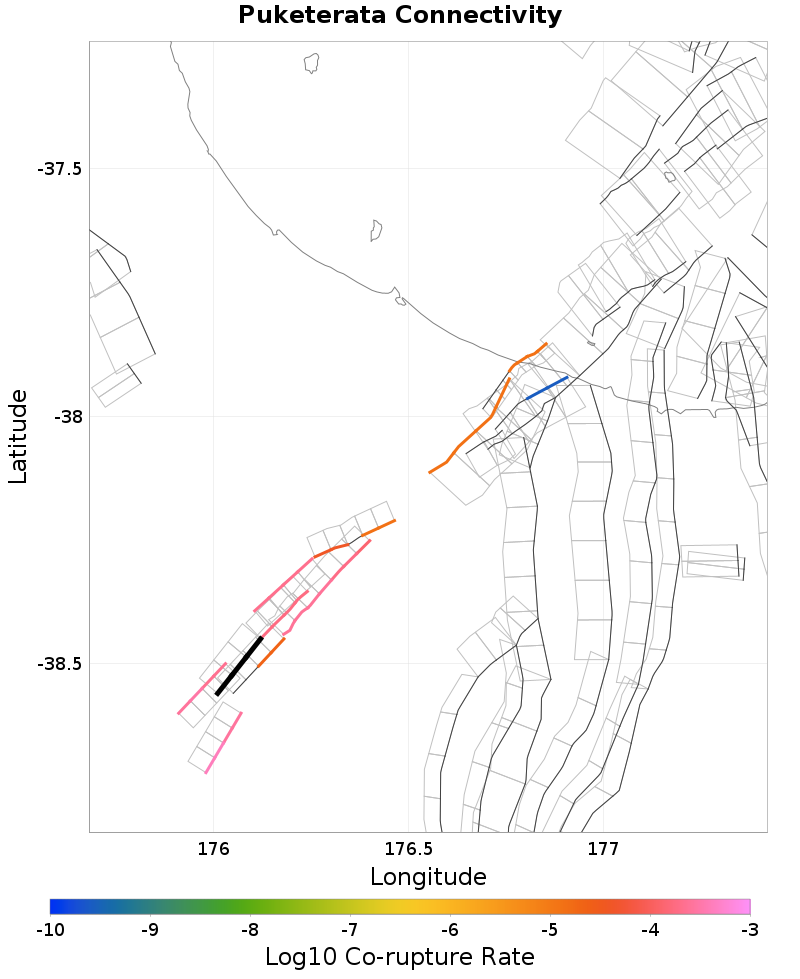

Connectivity
- Nearby Sections

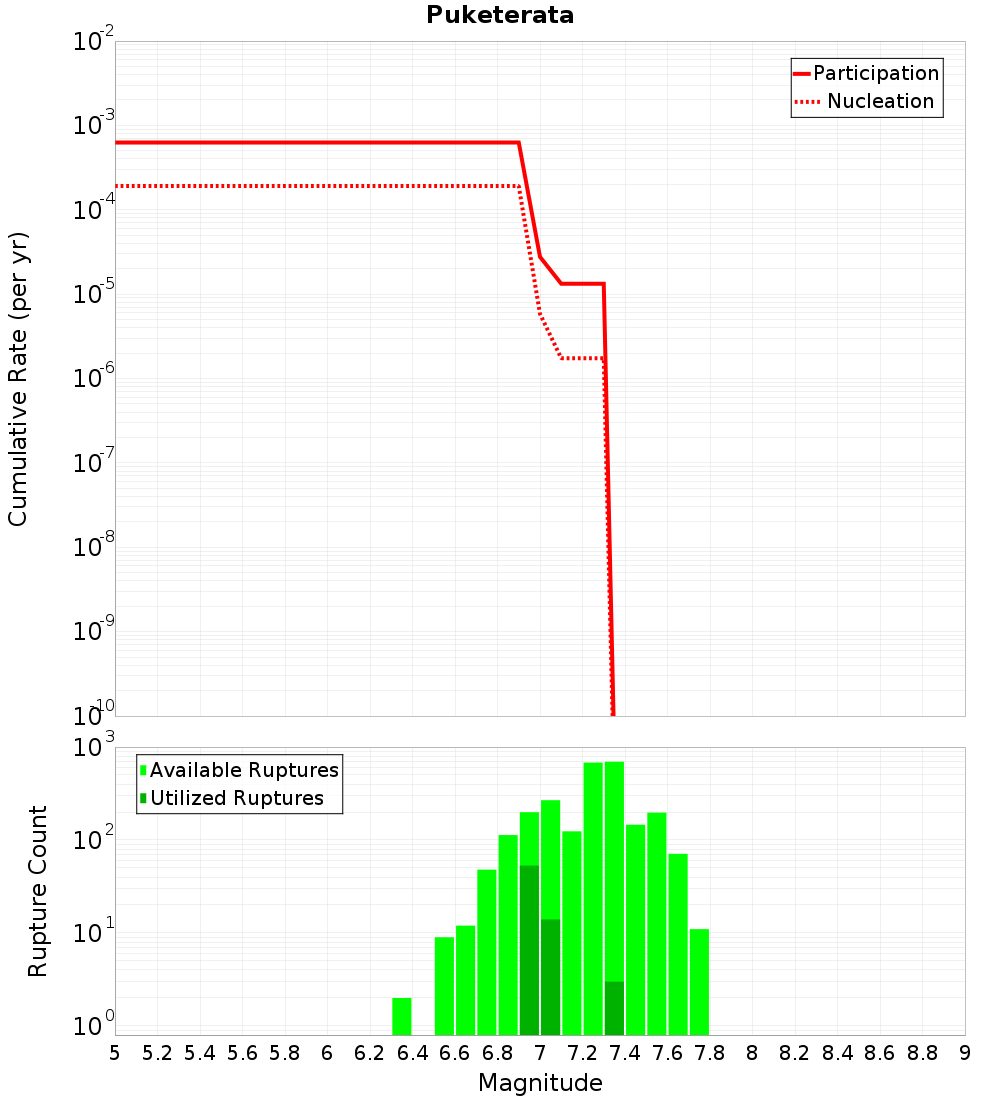

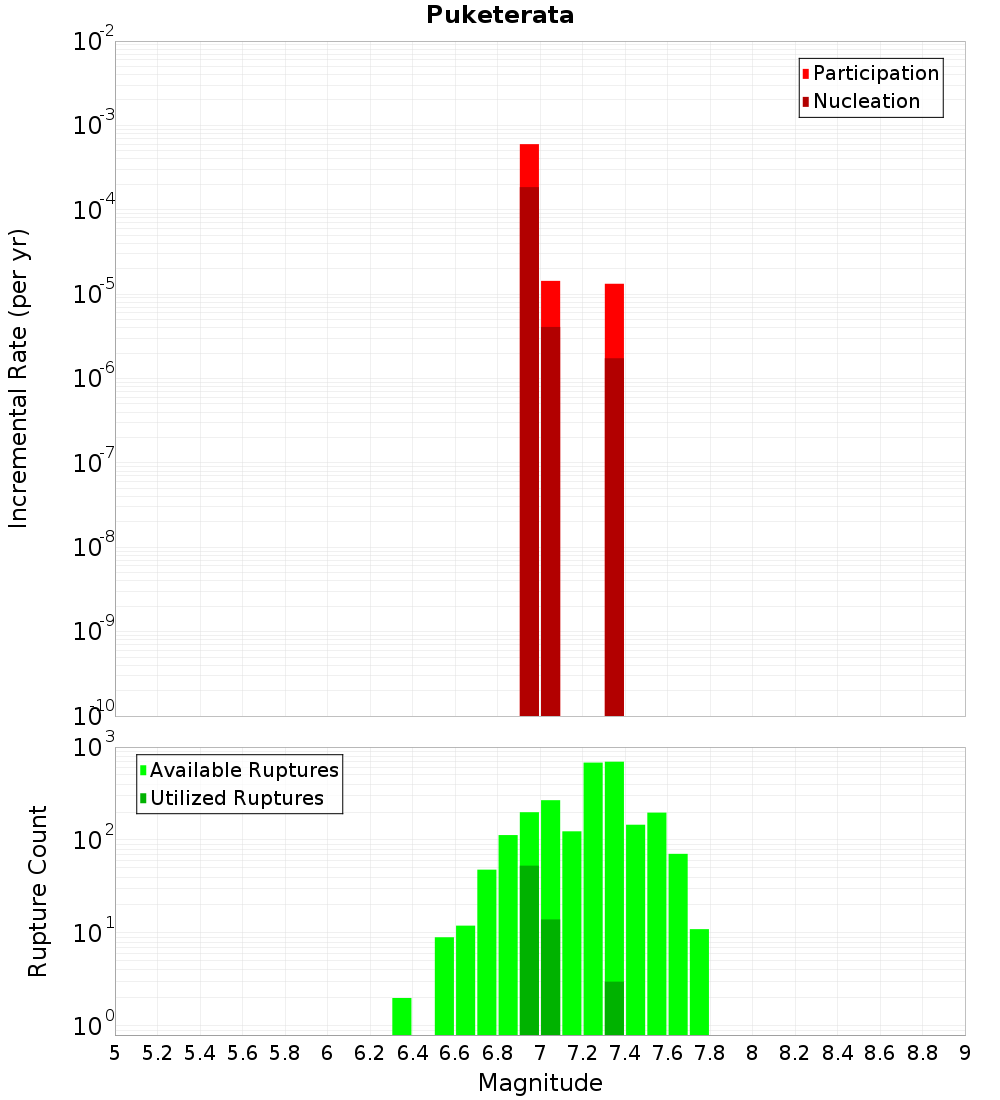

Magnitude-Frequency Distribution

Incremental	Cumulative

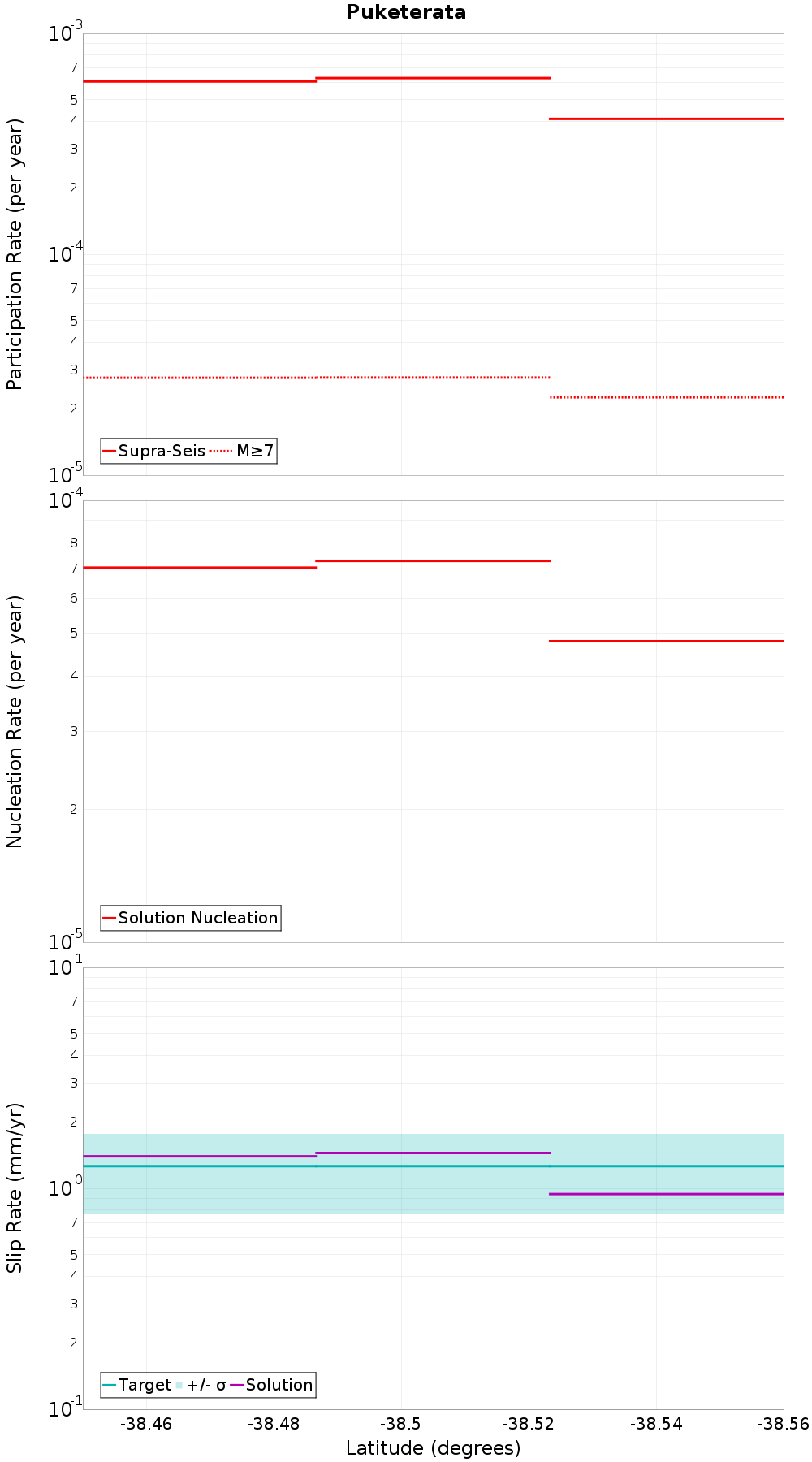

Along-Strike Values

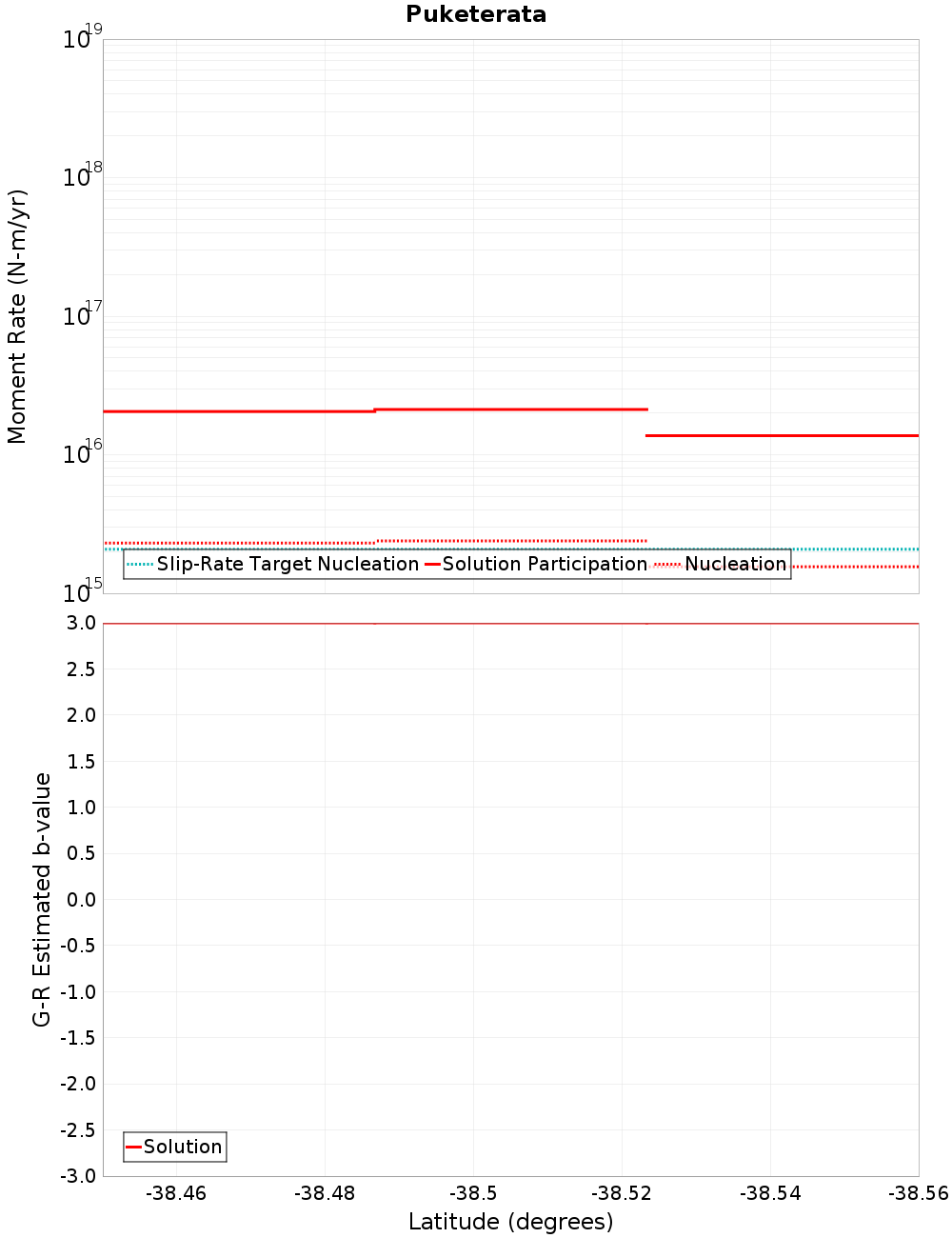

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Puketerata North, 0.1 km away
Whangamata West, 0.11 km away
Orakeikorako, 2.41 km away
Maleme, 3.57 km away
Paeroa, 5.08 km away
Kaiapo, 5.97 km away

Puketerata North, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,317
Co-rupture Rate	1.7695315E-4

Whangamata West, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,737
Co-rupture Rate	4.1216545E-4

Orakeikorako, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	399
Co-rupture Rate	2.1532338E-5

Maleme, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,591
Co-rupture Rate	2.0811688E-4

Paeroa, 5.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,612
Co-rupture Rate	3.699007E-4

Kaiapo, 5.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	710
Co-rupture Rate	4.4669863E-4
