Tokomaru Details

PropertyValue
Rupture Count1,466
Ruptures Above Sect Min Mag1,463
Ruptures w/ Nonzero Rates7
Magnitude Range[6.66, 8.30]
Length Range[14, 471] km
Total Rate6.952767E-5 /yr
Multi-Fault Rate6.952767E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults88

Table Of Contents

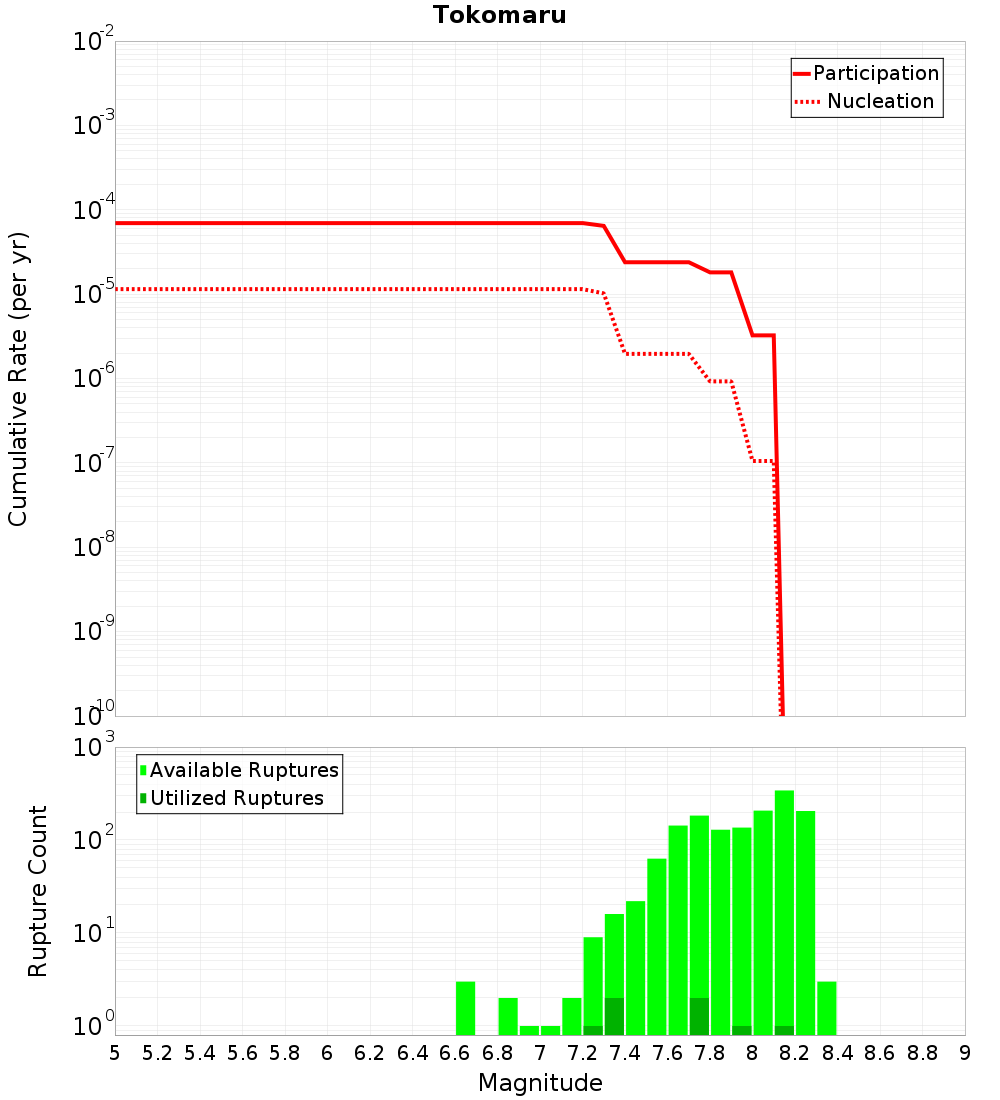

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

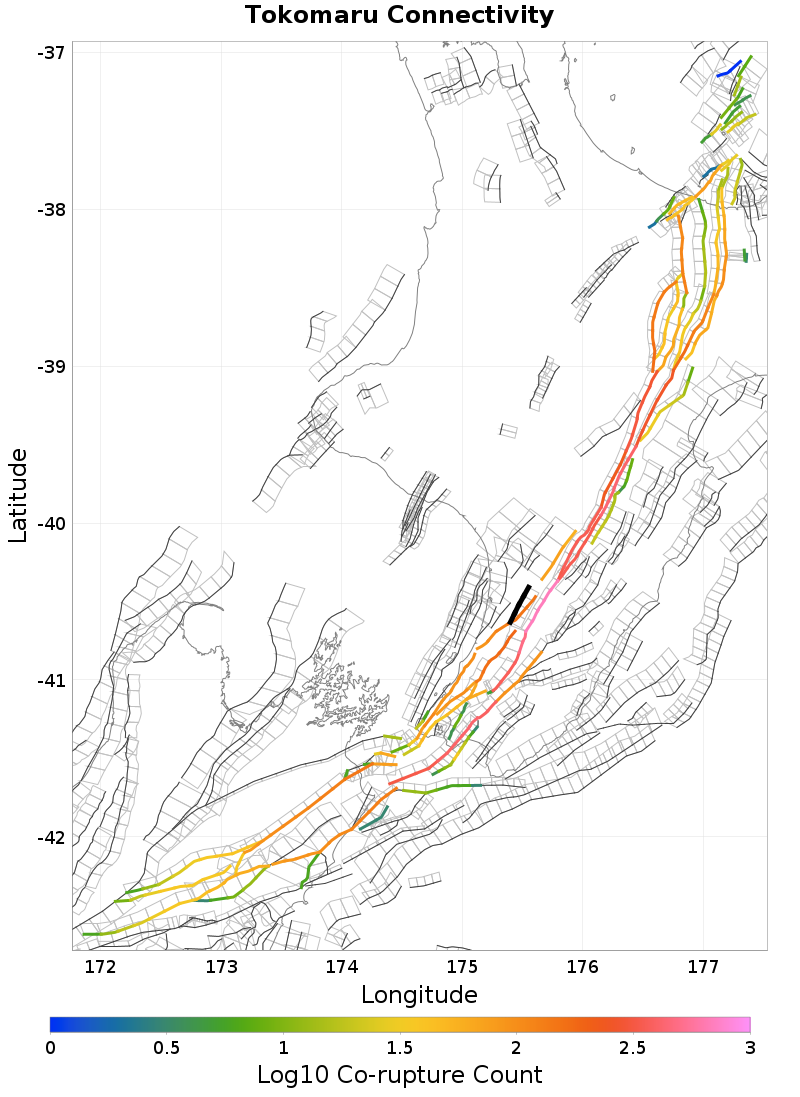

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Northern Ohariu, 0.09 km awayPahiatua, 13.13 km away
Wellington: Tararua 3, 1.28 km awayPoroutawhao, 13.21 km away
Wellington: Pahiatua, 1.83 km awayMt Stewart, 13.54 km away
Otaki Forks: 2, 3.93 km awayRauoterangi, 14.68 km away
Levin Anticline, 5.87 km awayMohaka: South, 15.04 km away
Pohangina, 9.88 km awayRuahine: South, 15.11 km away
Himatangi, 12.23 km awayWairarapa: 3, 15.9 km away
Taonui, 12.27 km awayDreyers Rock, 18.11 km away

Northern Ohariu, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count155
Co-rupture Rate0.0

Wellington: Tararua 3, 1.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count482
Co-rupture Rate2.0644715E-5

Wellington: Pahiatua, 1.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count686
Co-rupture Rate6.050972E-5

Otaki Forks: 2, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count184
Co-rupture Rate0.0

Levin Anticline, 5.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pohangina, 9.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count73
Co-rupture Rate1.811879E-5

Himatangi, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Taonui, 12.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahiatua, 13.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poroutawhao, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Stewart, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rauoterangi, 14.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: South, 15.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count461
Co-rupture Rate0.0

Ruahine: South, 15.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count363
Co-rupture Rate1.811879E-5

Wairarapa: 3, 15.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate0.0

Dreyers Rock, 18.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
