Uruti North Details

Property	Value
Rupture Count	3,764
Ruptures Above Sect Min Mag	3,758
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.53, 8.59]
Length Range	[12, 1,015] km
Total Rate	1.3360822E-4 /yr
Multi-Fault Rate	1.3360822E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	49

Table Of Contents

Magnitude-Frequency Distribution

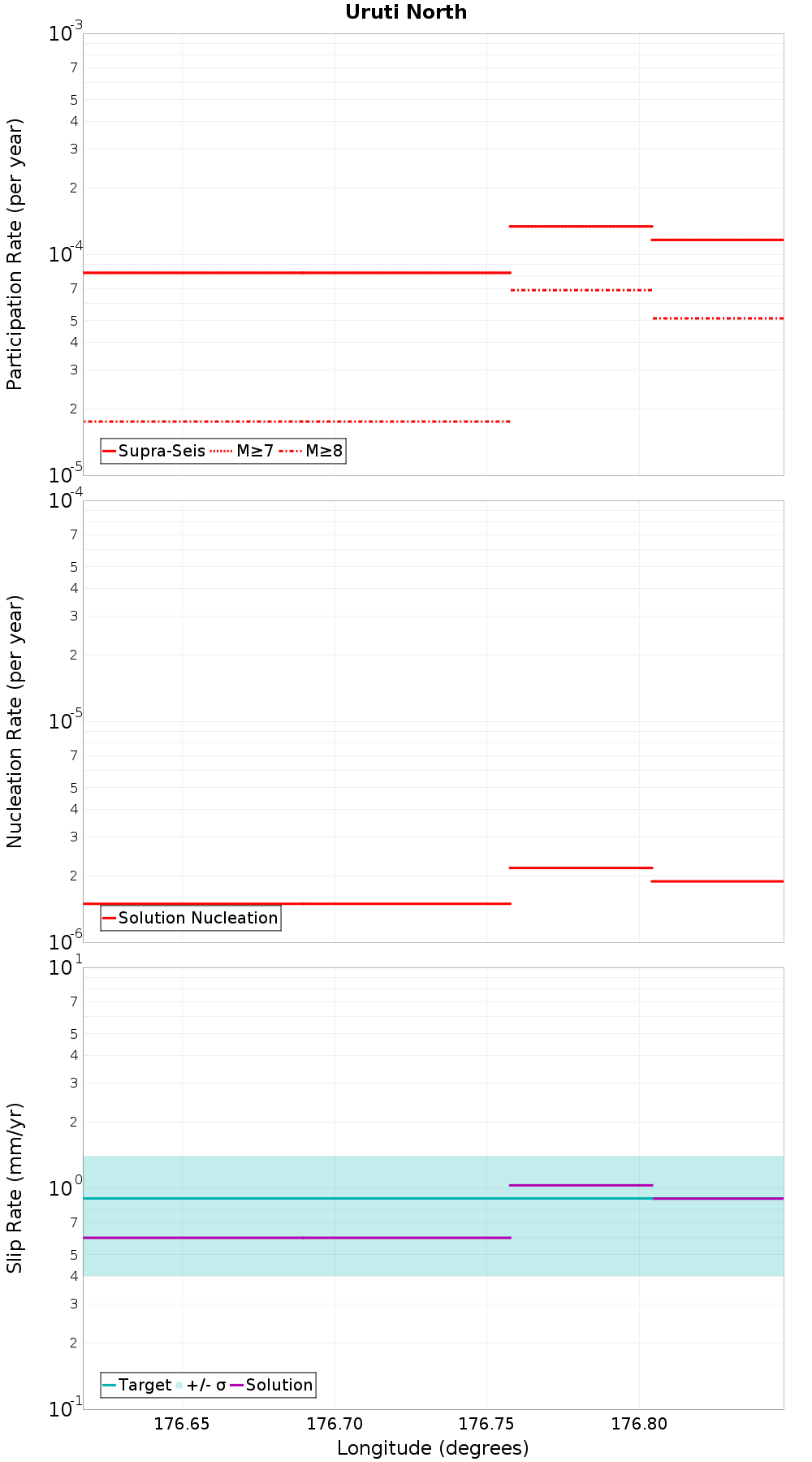

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

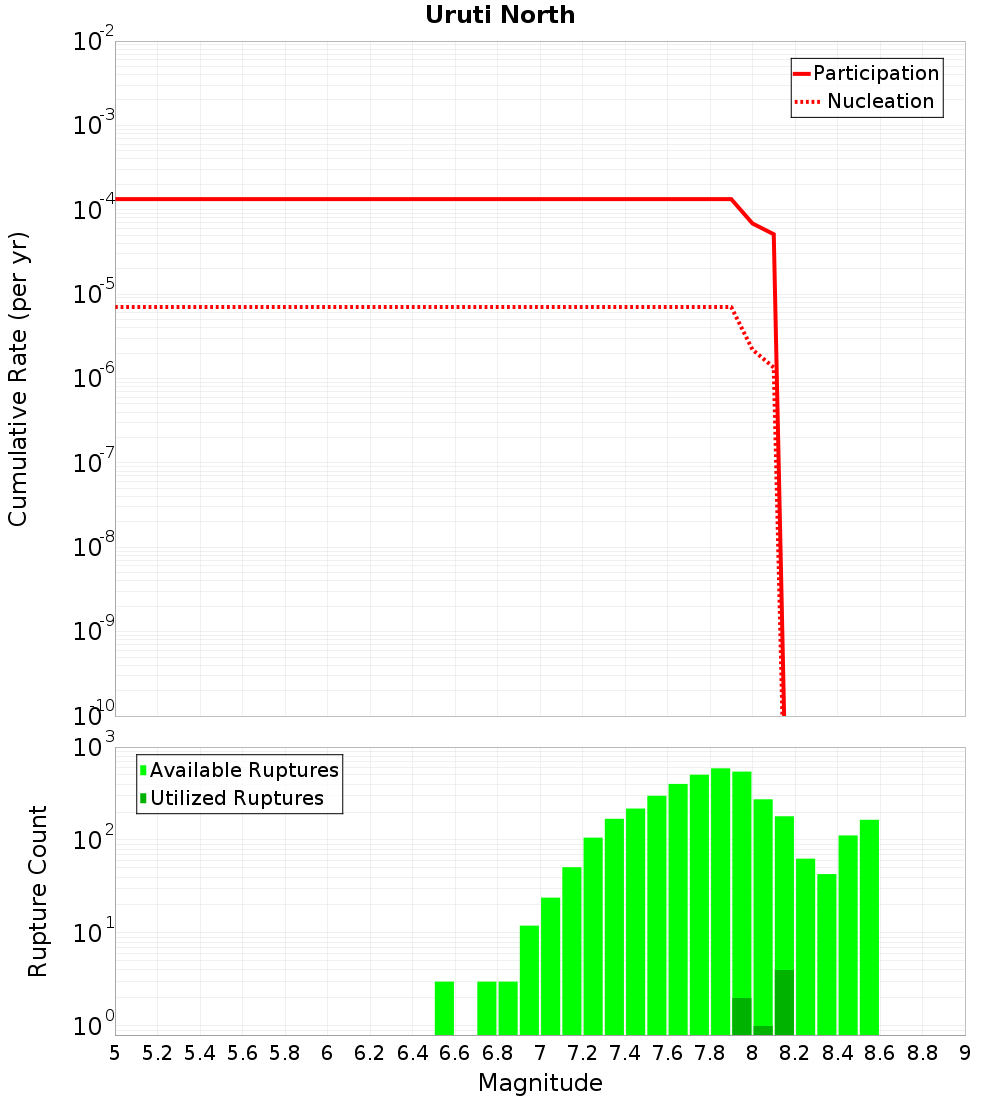

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Whareama Bank, 5.83 km away
Madden Banks, 6.83 km away
Uruti Basin 2, 8.46 km away
Uruti Ridge 2, 8.85 km away
Uruti East - PorWest 1, 11.16 km away
Opouawe - Uruti, 13.55 km away
Uruti Basin, 18.96 km away

Whareama Bank, 5.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Madden Banks, 6.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,853
Co-rupture Rate	1.44901915E-5

Uruti Basin 2, 8.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Uruti Ridge 2, 8.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,798
Co-rupture Rate	6.8741116E-5

Uruti East - PorWest 1, 11.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	99
Co-rupture Rate	0.0

Opouawe - Uruti, 13.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,643
Co-rupture Rate	7.93573E-5

Uruti Basin, 18.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,056
Co-rupture Rate	6.8741116E-5
