Waimana: South Details

PropertyValue
Rupture Count18,891
Ruptures Above Sect Min Mag18,887
Ruptures w/ Nonzero Rates16
Magnitude Range[6.93, 8.52]
Length Range[21, 758] km
Total Rate8.1584486E-4 /yr
Multi-Fault Rate1.7408507E-4 /yr (21.34%)
Directly-Connected Faults6
All Co-Rupturing Faults111

Table Of Contents

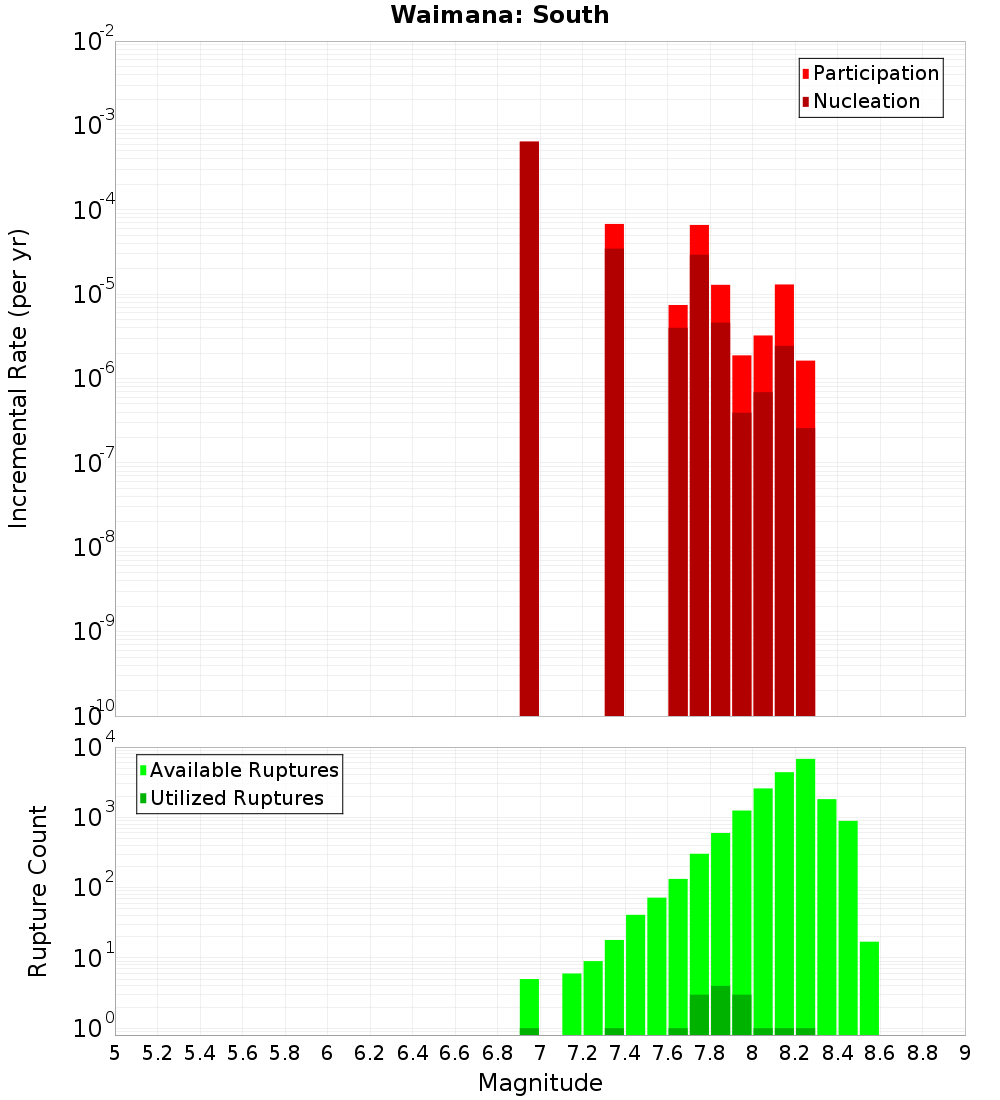

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Whakatane: South, 0 km away
Mohaka: North, 0 km away
Waimana: North, 0 km away
Waiotahi: South, 2.17 km away
Waiotahi: North, 2.4 km away
Waiohau: South, 8.04 km away
Whakatane: North, 8.54 km away
Patoka - Rangiora, 10.75 km away
Ruahine: North, 11.54 km away
Wheao: South, 14.54 km away
Te Whaiti South, 14.59 km away
Awanui, 15.3 km away
Waiohau: North, 17.98 km away

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count619
Co-rupture Rate0.0

Mohaka: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count18,259
Co-rupture Rate1.6944377E-4

Waimana: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count6,260
Co-rupture Rate1.57695E-5

Waiotahi: South, 2.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count1,859
Co-rupture Rate0.0

Waiotahi: North, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count5,000
Co-rupture Rate0.0

Waiohau: South, 8.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakatane: North, 8.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?true
Co-rupture Count4,568
Co-rupture Rate9.0423535E-5

Patoka - Rangiora, 10.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count52
Co-rupture Rate0.0

Ruahine: North, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count121
Co-rupture Rate0.0

Wheao: South, 14.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Whaiti South, 14.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 15.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate1.3024949E-5

Waiohau: North, 17.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
