Waimarama 3 & 4 Details

Property	Value
Rupture Count	97
Ruptures Above Sect Min Mag	97
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.86, 7.73]
Length Range	[18, 144] km
Total Rate	2.1932389E-4 /yr
Multi-Fault Rate	2.1932389E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	6

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

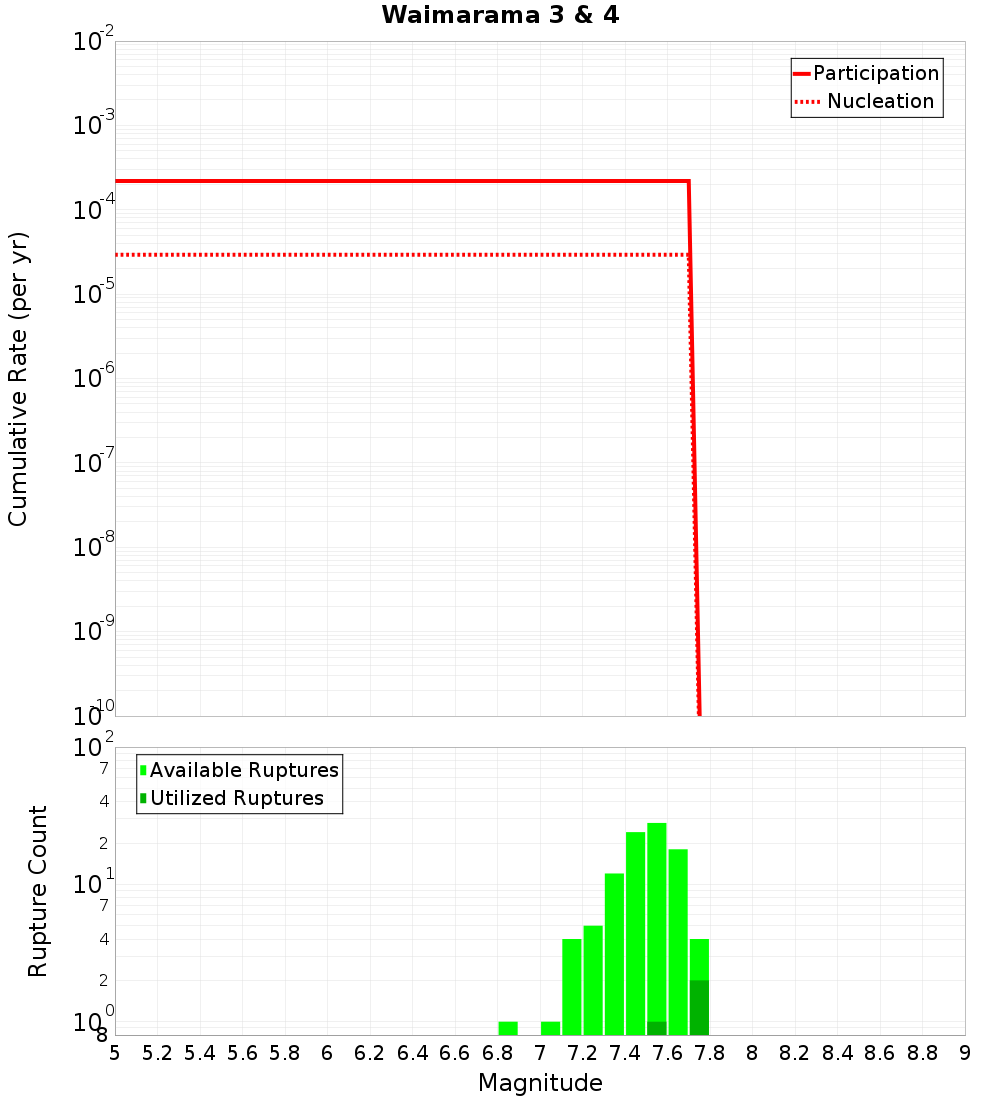

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

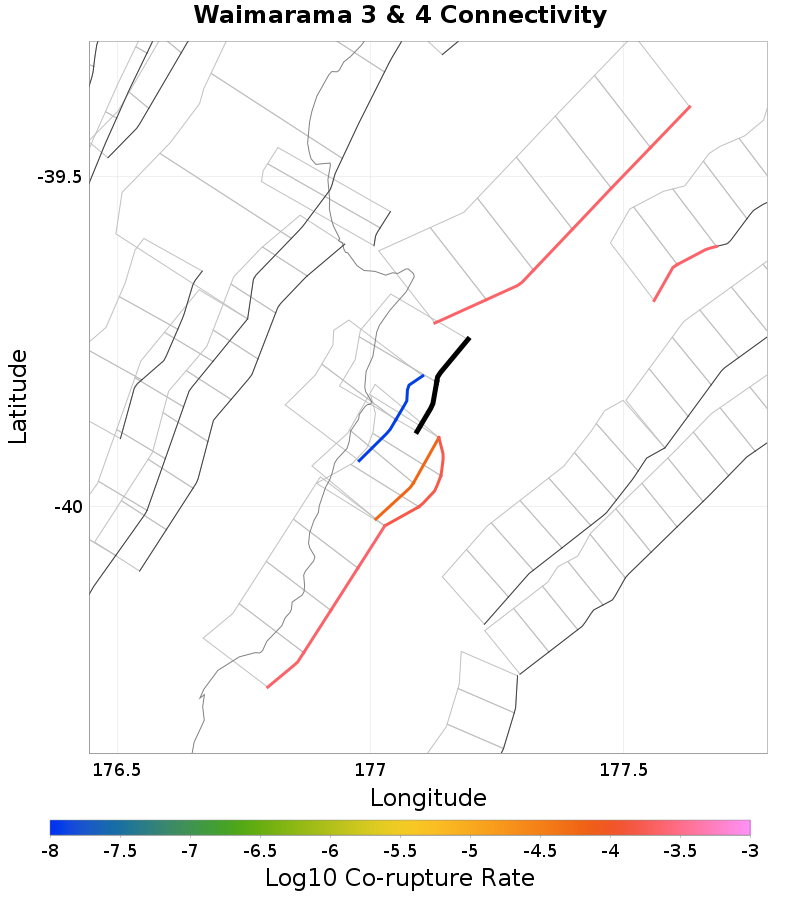

Connectivity

Nearby Sections

Fault Section
Waimarama 1 & 2, 1.47 km away
Kairakau 2, 2.38 km away
Kairakau North, 2.41 km away
Kidnappers Ridge, 3.47 km away
Kairakau South, 15 km away
Hawke Bay 8, 15.03 km away
Tukituki Thrust, 16.21 km away

Waimarama 1 & 2, 1.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	21
Co-rupture Rate	1.2015514E-8

Kairakau 2, 2.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	46
Co-rupture Rate	1.5928653E-4

Kairakau North, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	38
Co-rupture Rate	6.002535E-5

Kidnappers Ridge, 3.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	76
Co-rupture Rate	2.1932389E-4

Kairakau South, 15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	54
Co-rupture Rate	2.1931187E-4

Hawke Bay 8, 15.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tukituki Thrust, 16.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
