Whakatane: North Details

Property	Value
Rupture Count	9,311
Ruptures Above Sect Min Mag	9,308
Ruptures w/ Nonzero Rates	40
Magnitude Range	[6.81, 8.49]
Length Range	[18, 681] km
Total Rate	3.624599E-4 /yr
Multi-Fault Rate	3.624599E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	90

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

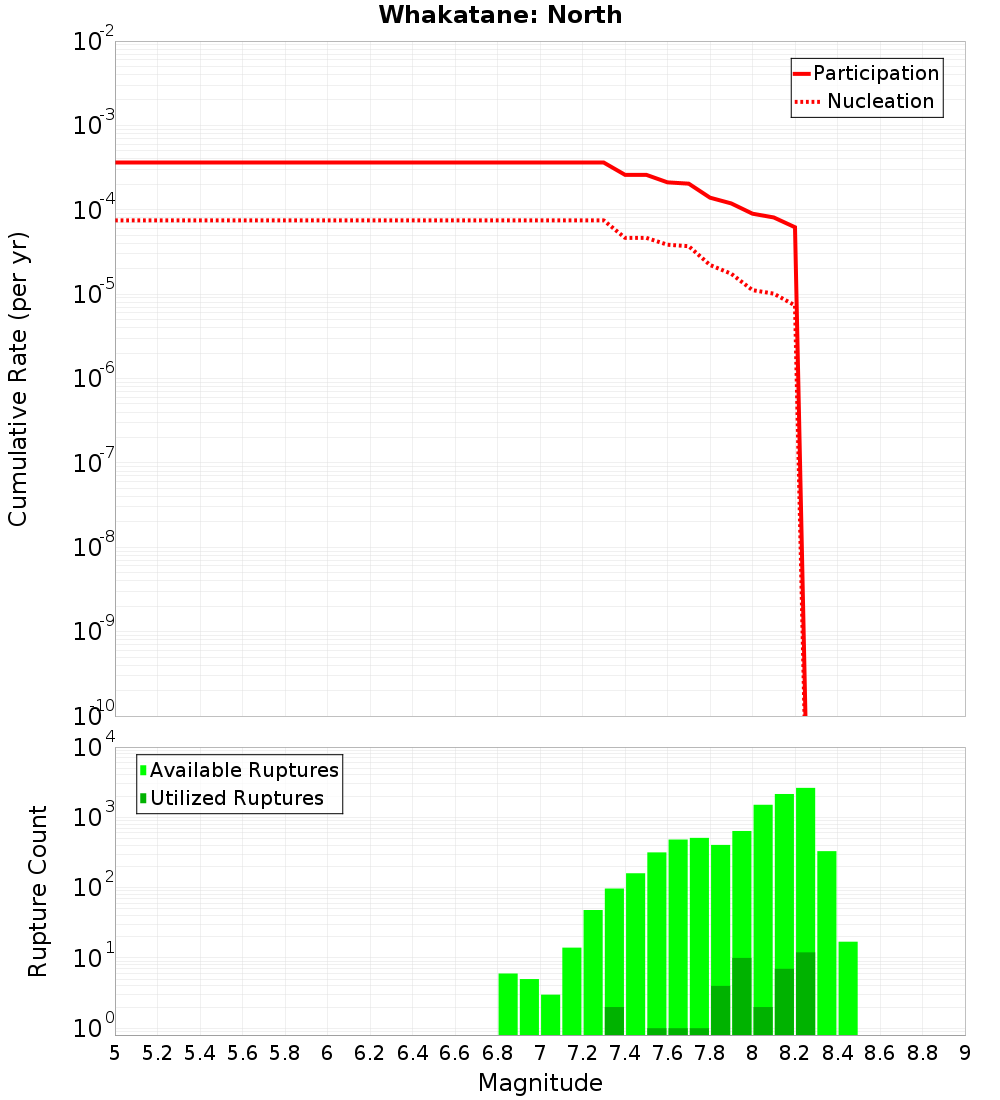

Magnitude-Frequency Distribution

Incremental	Cumulative

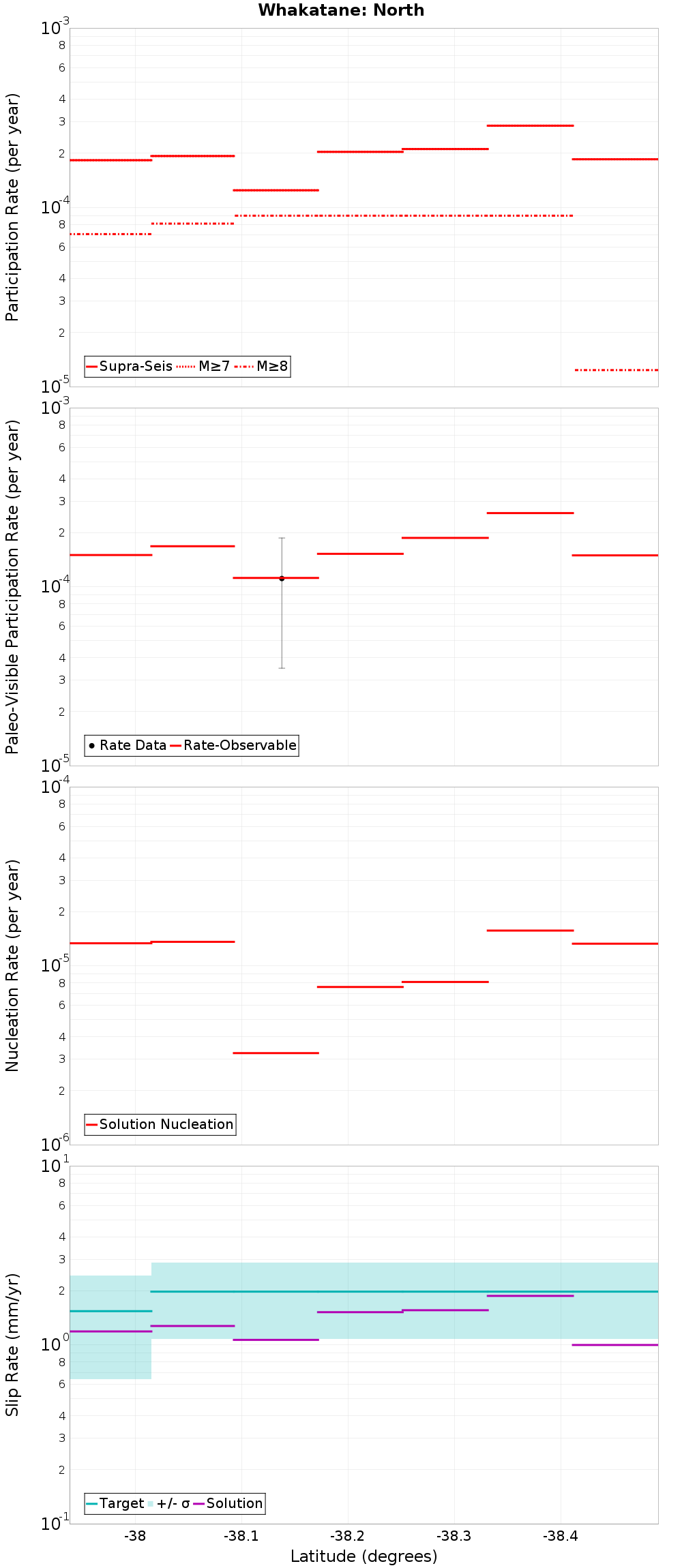

Along-Strike Values

Moment-Rates and b-Values

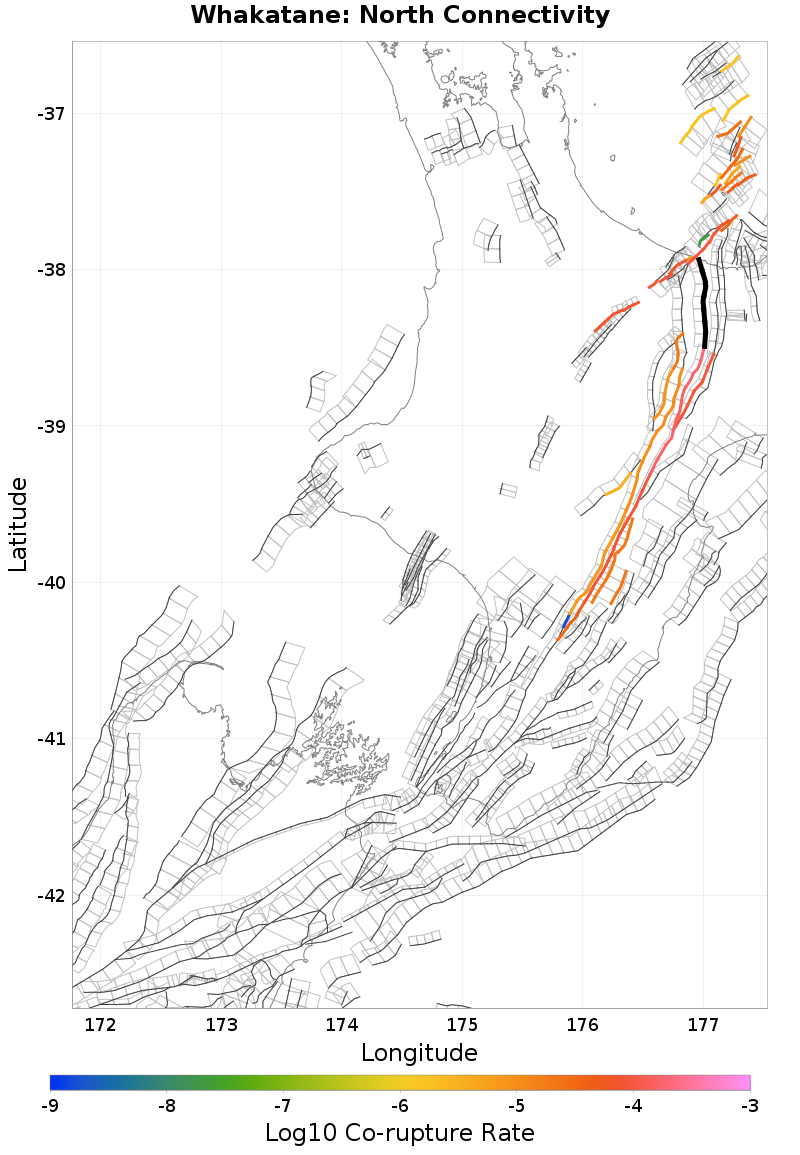

Connectivity

Nearby Sections

Fault Section	Fault Section
Whakatane: South, 0 km away	Waiohau: South, 10.6 km away
Otakiri, 0.26 km away	Waiotahi: South, 10.84 km away
White Island 1, 3.09 km away	Rangitaiki 1, 11.12 km away
Edgecumbe Coastal, 3.09 km away	Waiohau: North, 12.32 km away
Braemar, 6.02 km away	Te Whaiti North, 13.54 km away
Edgecumbe 1987, 7.16 km away	Te Whaiti South, 14.42 km away
Waimana: North, 7.34 km away	Rotoitipakau, 14.47 km away
Awakeri, 7.56 km away	Rangitaiki 2, 16.94 km away
Waimana: South, 8.54 km away	Wheao: North, 17.43 km away
Matata, 8.83 km away	Waimana - Waikaremoana, 18.17 km away
Waiotahi: North, 10.39 km away

Whakatane: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,709
Co-rupture Rate	1.736662E-4

Otakiri, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	563
Co-rupture Rate	8.490494E-5

White Island 1, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	6,026
Co-rupture Rate	9.663471E-5

Edgecumbe Coastal, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	278
Co-rupture Rate	7.744035E-5

Braemar, 6.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	65
Co-rupture Rate	7.7418226E-5

Edgecumbe 1987, 7.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	0.0

Waimana: North, 7.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	11
Co-rupture Rate	0.0

Awakeri, 7.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimana: South, 8.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	4,568
Co-rupture Rate	9.0423535E-5

Matata, 8.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	196
Co-rupture Rate	0.0

Waiotahi: North, 10.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiohau: South, 10.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	628
Co-rupture Rate	1.0637628E-5

Waiotahi: South, 10.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 1, 11.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	187
Co-rupture Rate	2.1521126E-8

Waiohau: North, 12.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	256
Co-rupture Rate	0.0

Te Whaiti North, 13.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	true
Co-rupture Count	664
Co-rupture Rate	1.93396E-5

Te Whaiti South, 14.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	655
Co-rupture Rate	1.93396E-5

Rotoitipakau, 14.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	70
Co-rupture Rate	7.7418226E-5

Rangitaiki 2, 16.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	957
Co-rupture Rate	0.0

Wheao: North, 17.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	103
Co-rupture Rate	0.0

Waimana - Waikaremoana, 18.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMFRjNjR4
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0
