Ariel Bank 2 Details

PropertyValue
Rupture Count238
Ruptures Above Sect Min Mag236
Ruptures w/ Nonzero Rates9
Magnitude Range[6.75, 7.72]
Length Range[17, 157] km
Total Rate0.001372124 /yr
Multi-Fault Rate0.001372124 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults10

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

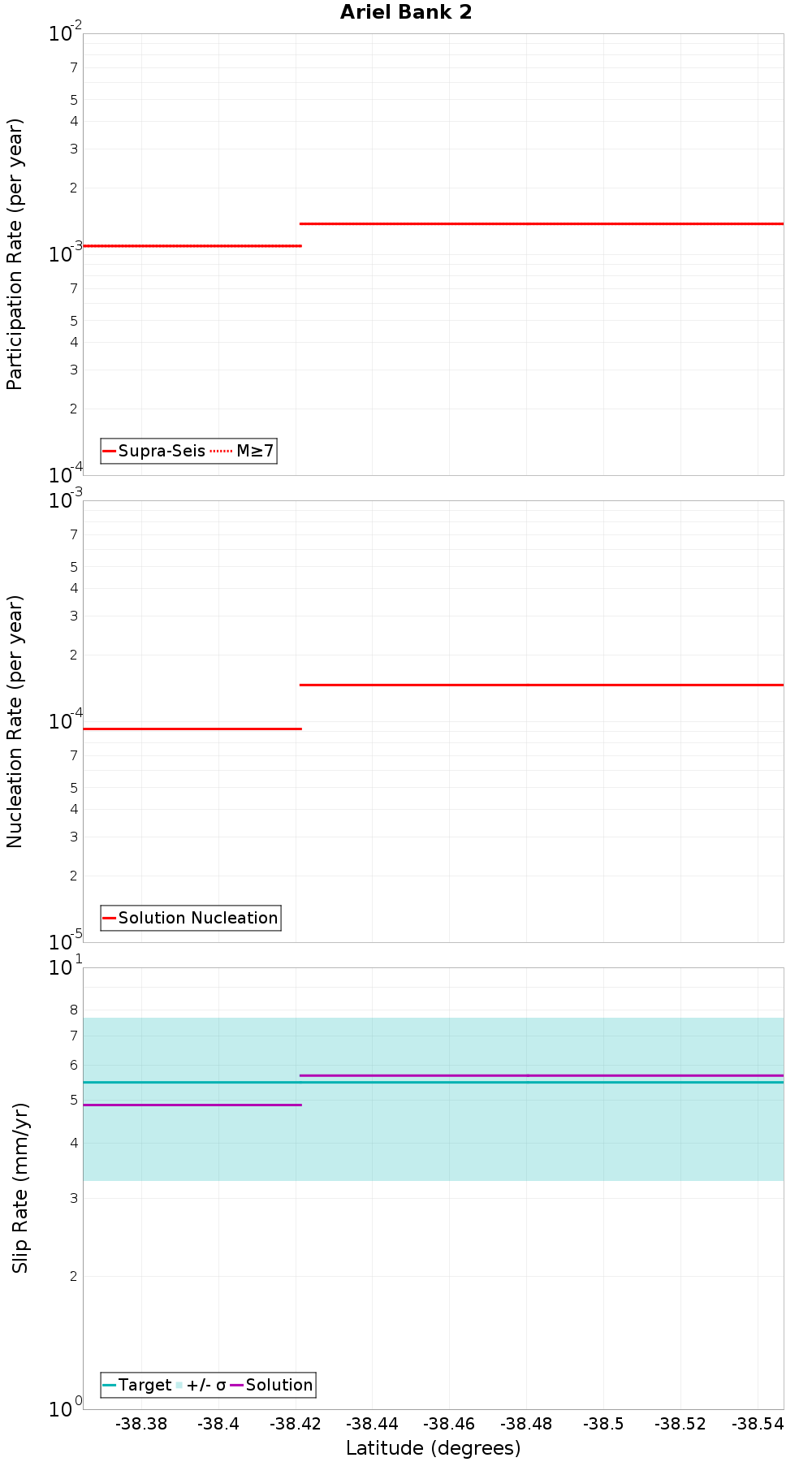

Along-Strike Values

(top)

Along-strike plot

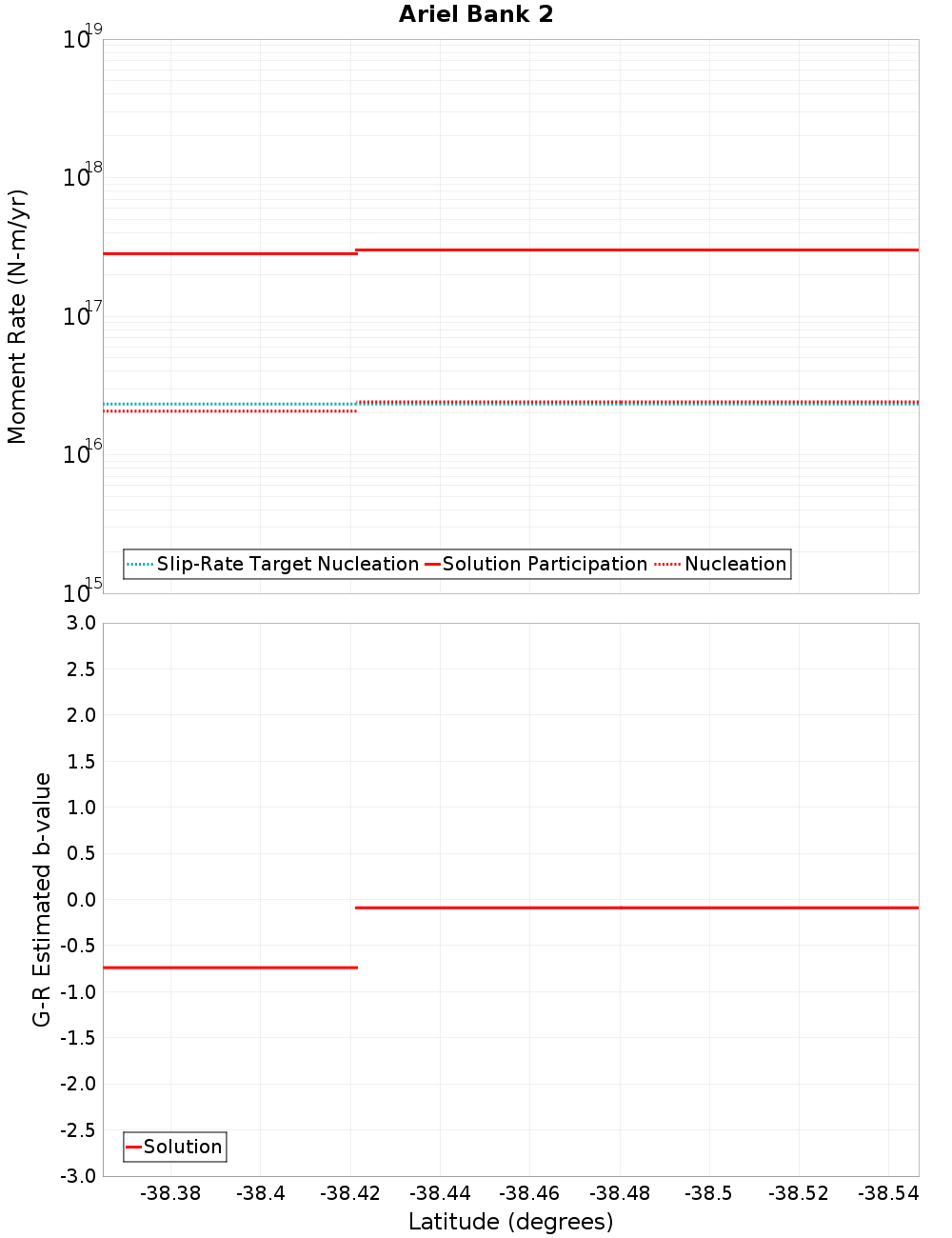

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Gable End North, 0.91 km away
Pakarae, 3.93 km away
Ruatoria South 3, 7.91 km away
Te Ikaarongamai, 11.27 km away
Gable End South, 12.24 km away
Ruatoria South 4, 14.82 km away
Houtunui, 16.51 km away
Ariel Bank, 17.07 km away

Gable End North, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count140
Co-rupture Rate3.8139435E-4

Pakarae, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count26
Co-rupture Rate5.5254954E-5

Ruatoria South 3, 7.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count148
Co-rupture Rate3.8638656E-4

Te Ikaarongamai, 11.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate9.907295E-4

Gable End South, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate3.261394E-4

Ruatoria South 4, 14.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Houtunui, 16.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel Bank, 17.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate6.560352E-4
