Dreyers Rock Details

PropertyValue
Rupture Count1,978
Ruptures Above Sect Min Mag1,975
Ruptures w/ Nonzero Rates11
Magnitude Range[6.37, 8.29]
Length Range[7, 467] km
Total Rate6.7875325E-4 /yr
Multi-Fault Rate6.7875325E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults55

Table Of Contents

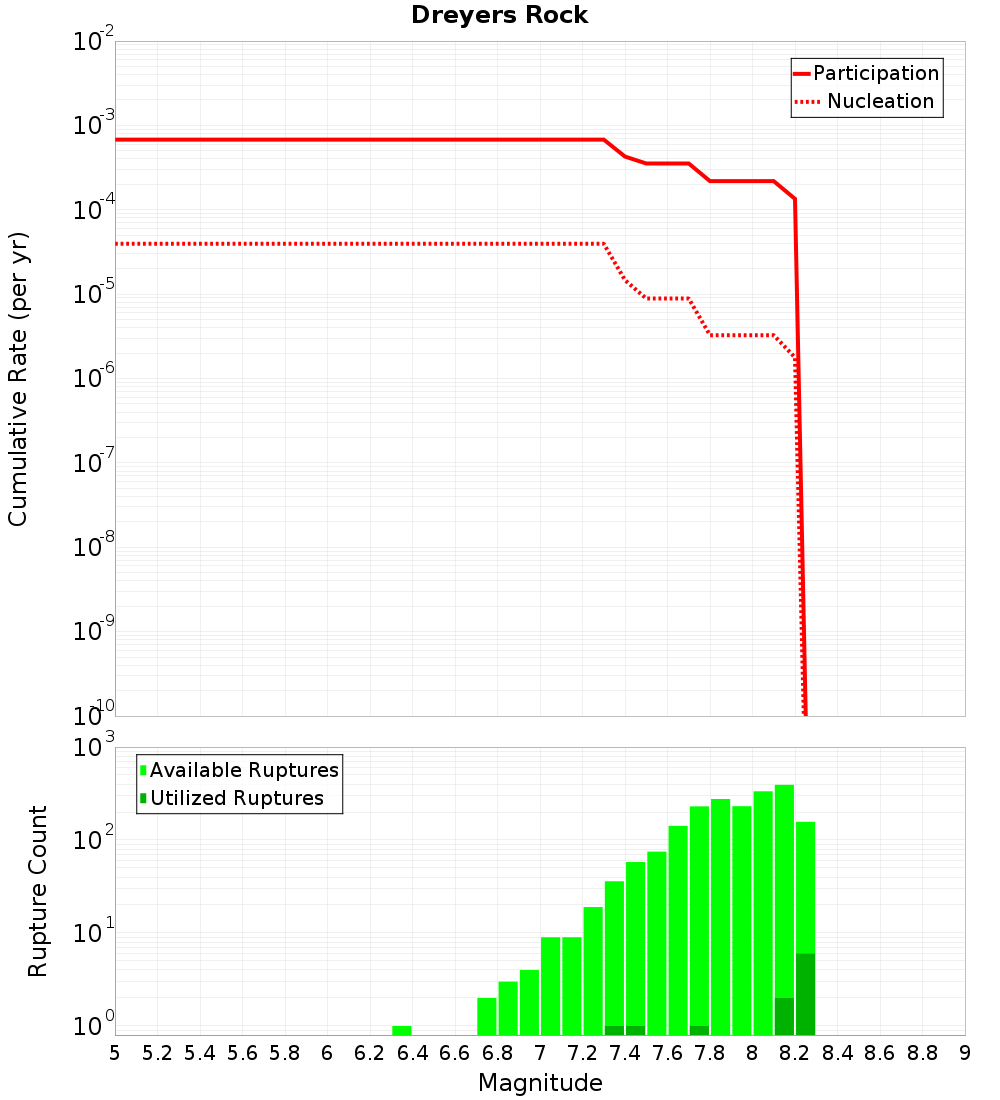

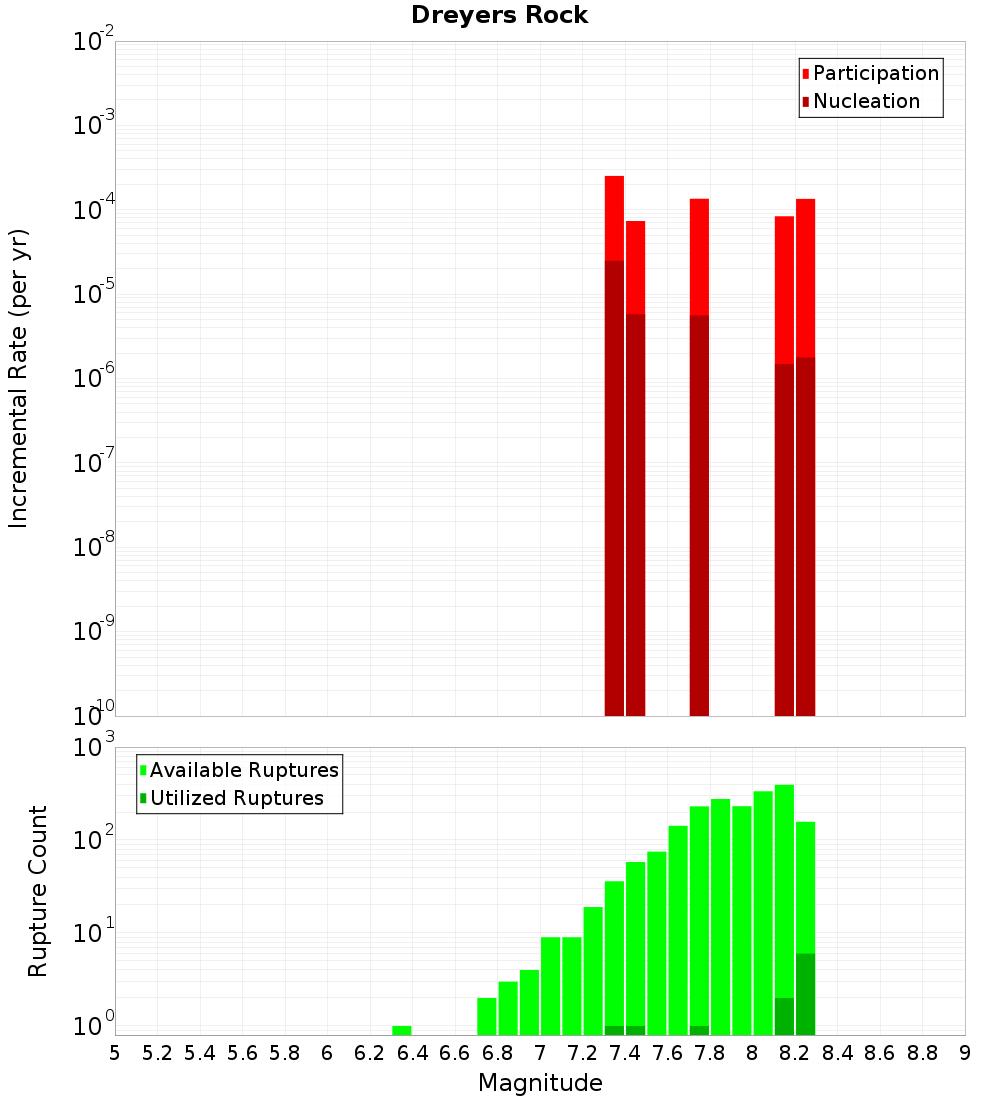

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

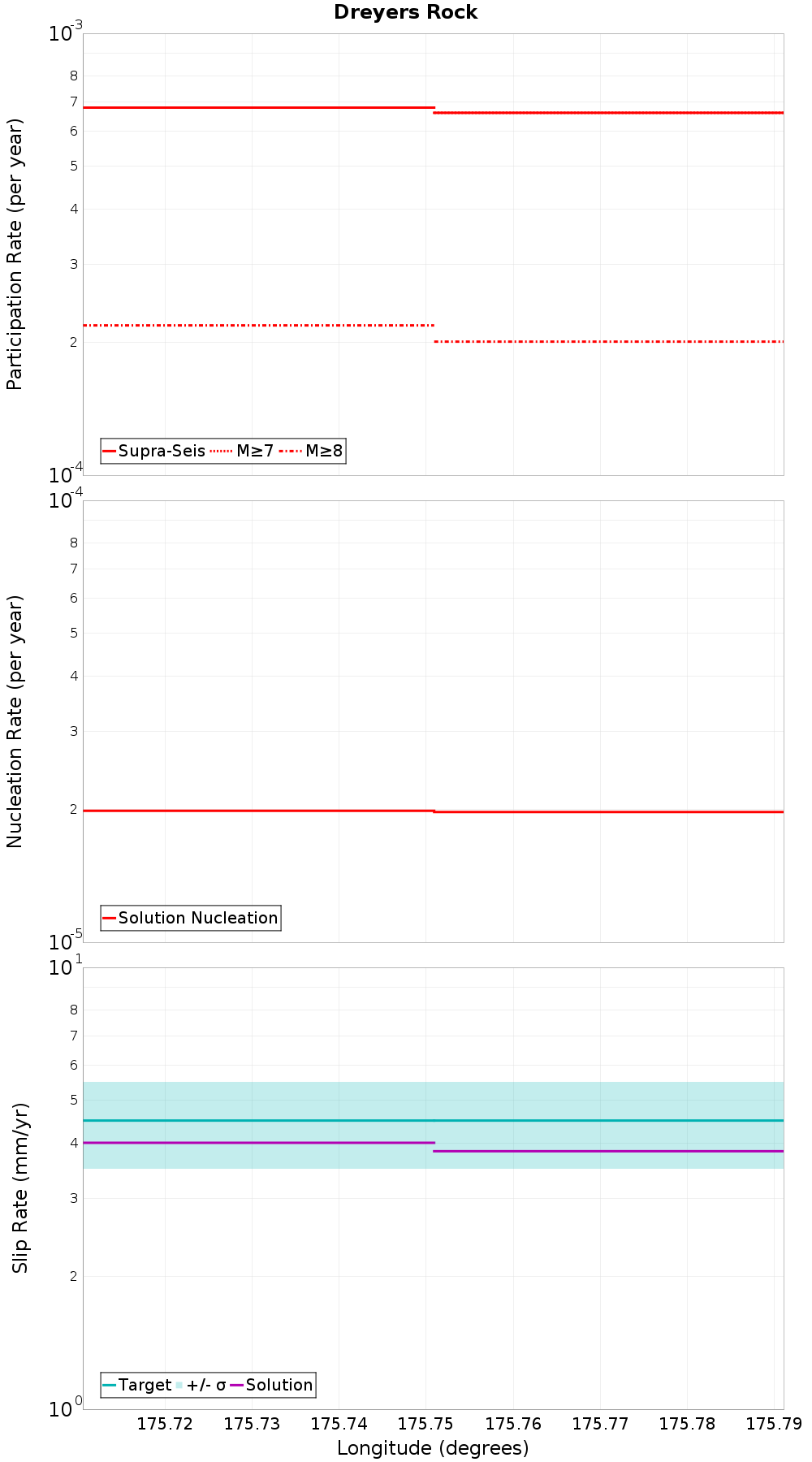

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

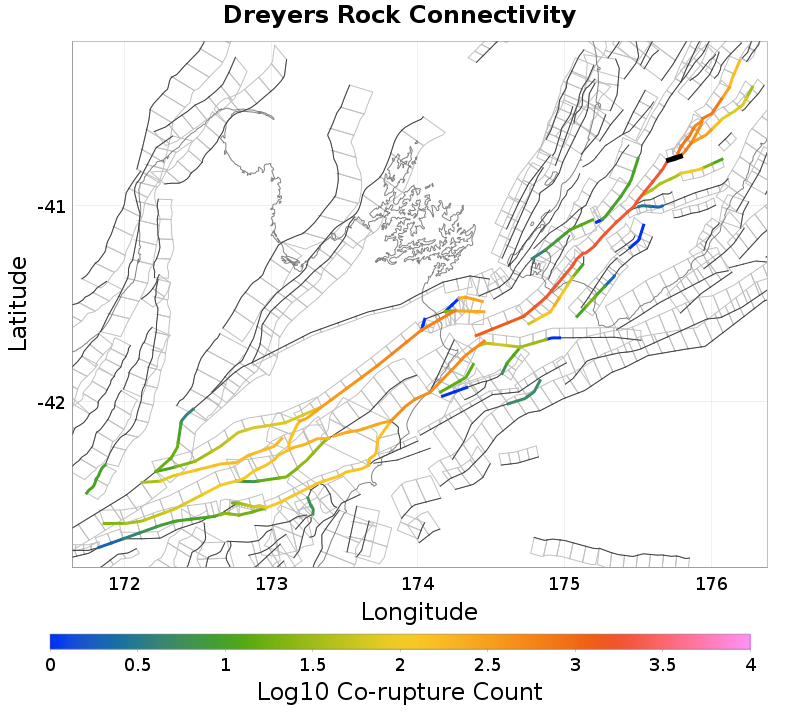

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alfredton South, 0 km away
Pa Valley, 0.19 km away
Wairarapa: 3, 0.46 km away
Alfredton North, 5.52 km away
Saunders Road, 8.04 km away
Mokonui Northeast, 9.25 km away
Mokonui Southwest, 9.25 km away
Wellington: Pahiatua, 15.78 km away
Wellington: Tararua 3, 16.17 km away
Tokomaru, 18.11 km away
Masterton, 18.15 km away

Alfredton South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count697
Co-rupture Rate5.614506E-4

Pa Valley, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count826
Co-rupture Rate9.81944E-5

Wairarapa: 3, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count1,945
Co-rupture Rate6.7875325E-4

Alfredton North, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count467
Co-rupture Rate3.1091535E-4

Saunders Road, 8.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?false
Co-rupture Count313
Co-rupture Rate2.696435E-4

Mokonui Northeast, 9.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count111
Co-rupture Rate0.0

Mokonui Southwest, 9.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate0.0

Wellington: Pahiatua, 15.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 3, 16.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Tokomaru, 18.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Masterton, 18.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
