Edgecumbe 1987 Details

Property	Value
Rupture Count	14,776
Ruptures Above Sect Min Mag	14,766
Ruptures w/ Nonzero Rates	9
Magnitude Range	[6.60, 8.39]
Length Range	[13, 584] km
Total Rate	2.5354975E-4 /yr
Multi-Fault Rate	2.5354975E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	84

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

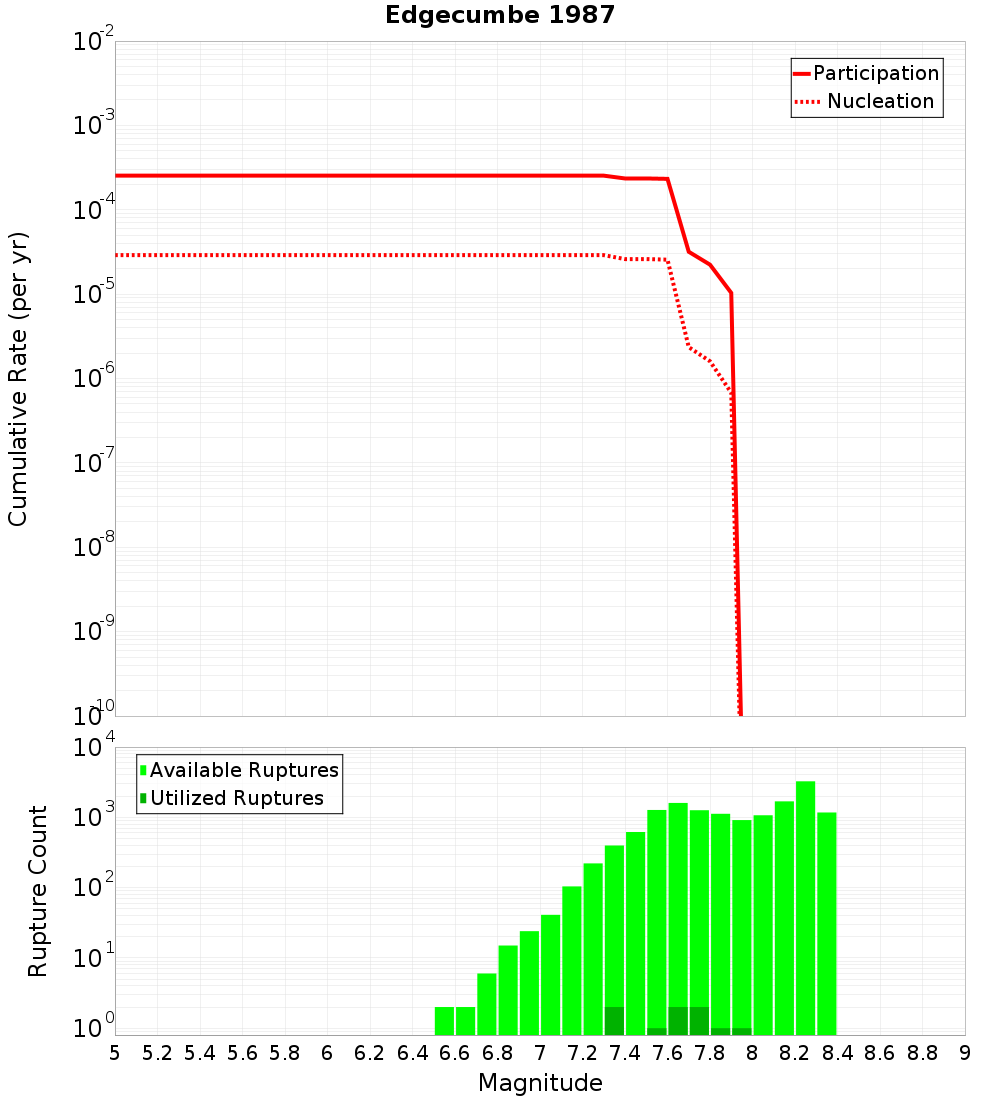

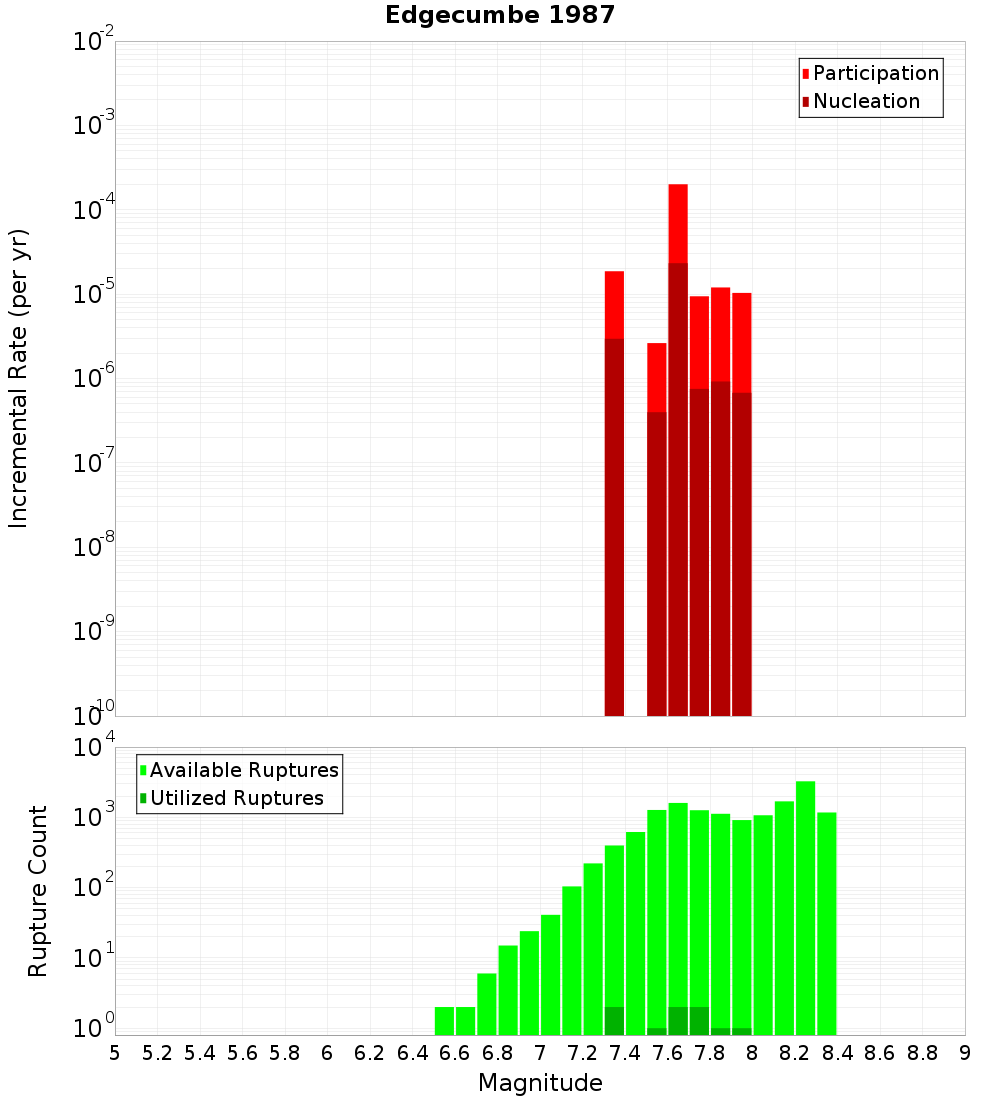

Magnitude-Frequency Distribution

Incremental	Cumulative

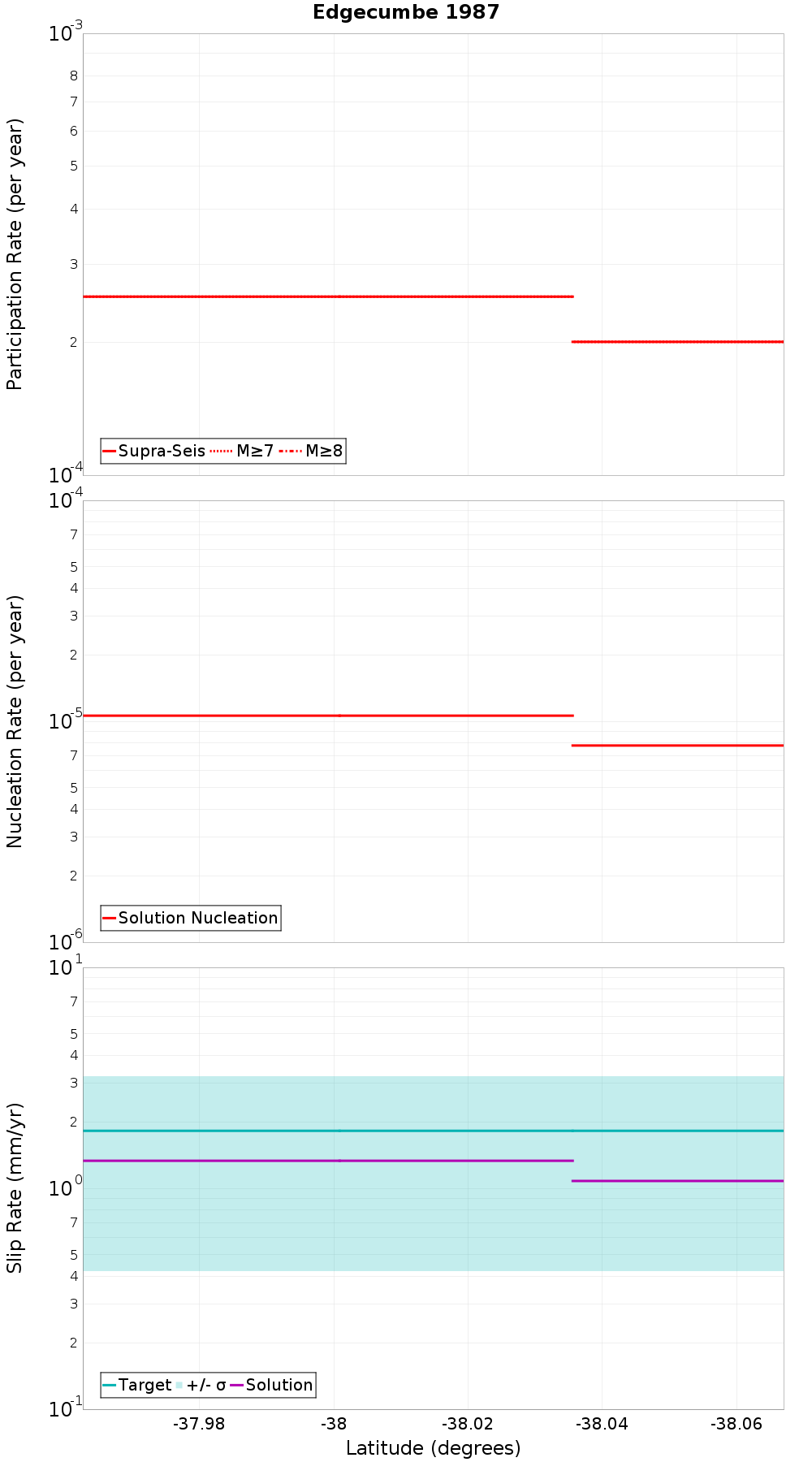

Along-Strike Values

Moment-Rates and b-Values

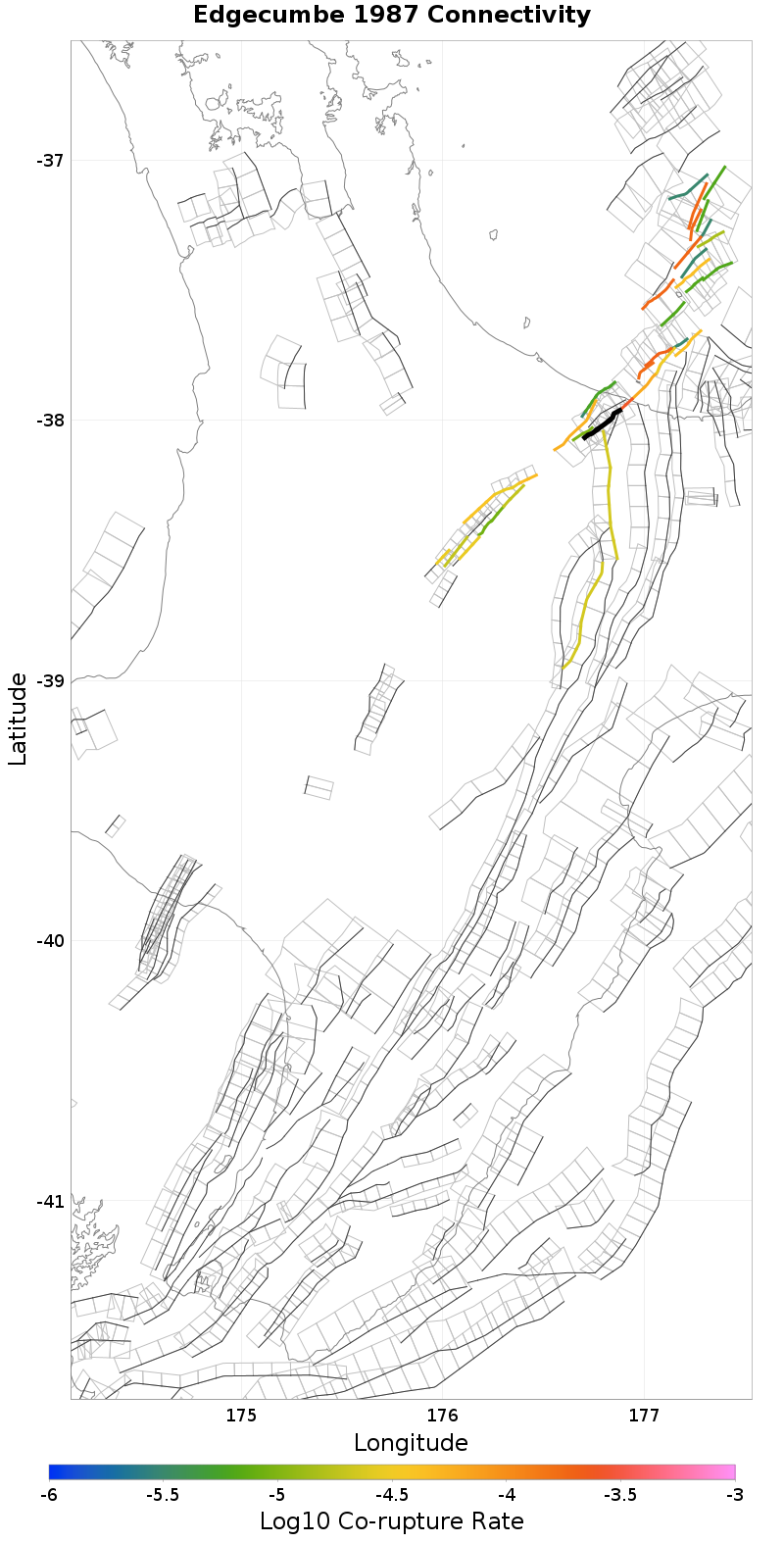

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0 km away
Awakeri, 0 km away
Otakiri, 0.16 km away
Braemar, 0.3 km away
Rotoitipakau, 0.37 km away
Matata, 1.15 km away
Waiohau: North, 2.2 km away
White Island 1, 5.13 km away
Whakatane: North, 7.16 km away
Rangitaiki 1, 15.17 km away

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	11,272
Co-rupture Rate	2.5354975E-4

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	false
Co-rupture Count	391
Co-rupture Rate	0.0

Otakiri, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	285
Co-rupture Rate	0.0

Braemar, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	2,397
Co-rupture Rate	5.6346962E-5

Rotoitipakau, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	659
Co-rupture Rate	9.429751E-6

Matata, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	891
Co-rupture Rate	5.7189636E-6

Waiohau: North, 2.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	11,065
Co-rupture Rate	2.233862E-5

White Island 1, 5.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	12,400
Co-rupture Rate	6.264028E-5

Whakatane: North, 7.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	0.0

Rangitaiki 1, 15.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	false
Co-rupture Count	534
Co-rupture Rate	1.7223613E-4
