Hope: Hurunui Details

Property	Value
Rupture Count	113,694
Ruptures Above Sect Min Mag	113,693
Ruptures w/ Nonzero Rates	80
Magnitude Range	[6.69, 8.64]
Length Range	[14, 1,156] km
Total Rate	0.0017645906 /yr
Multi-Fault Rate	0.0017645906 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	104

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

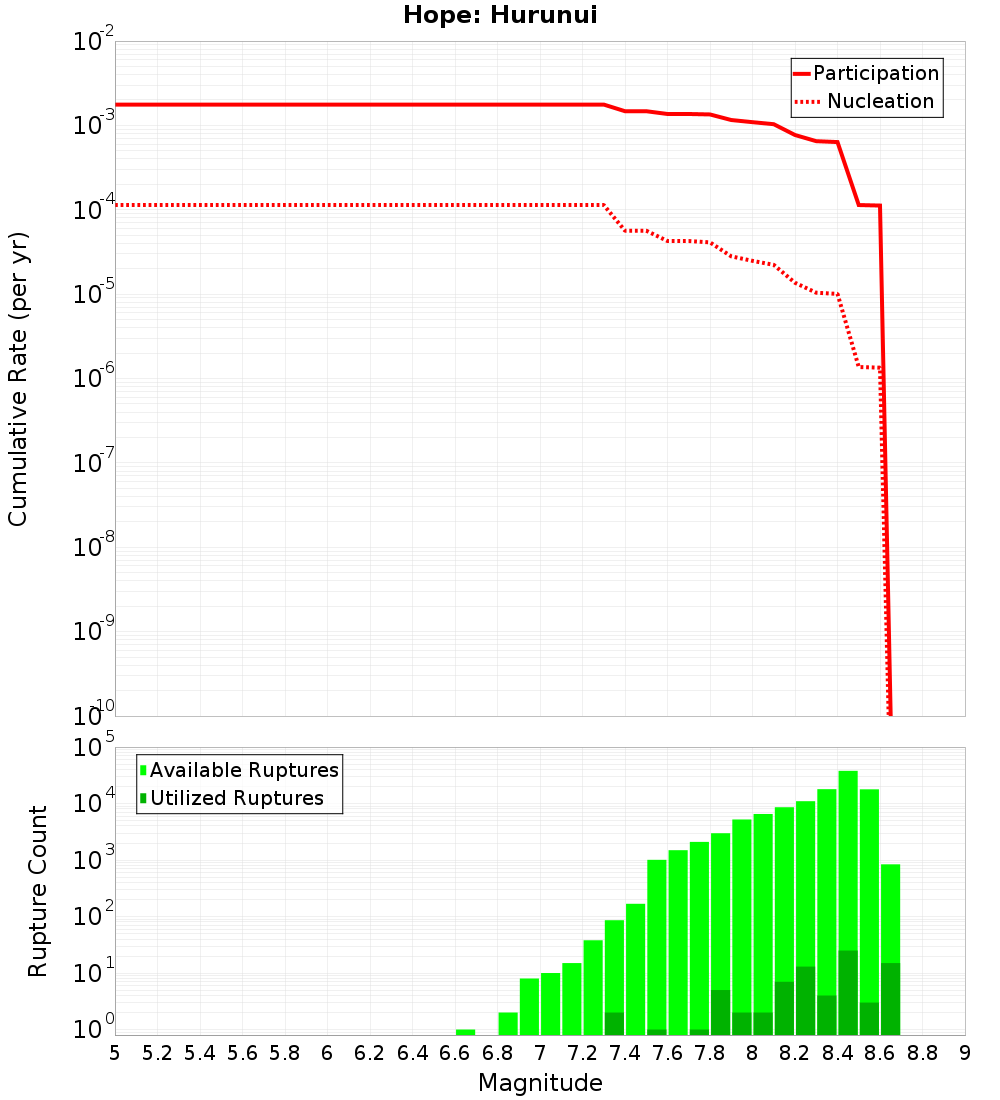

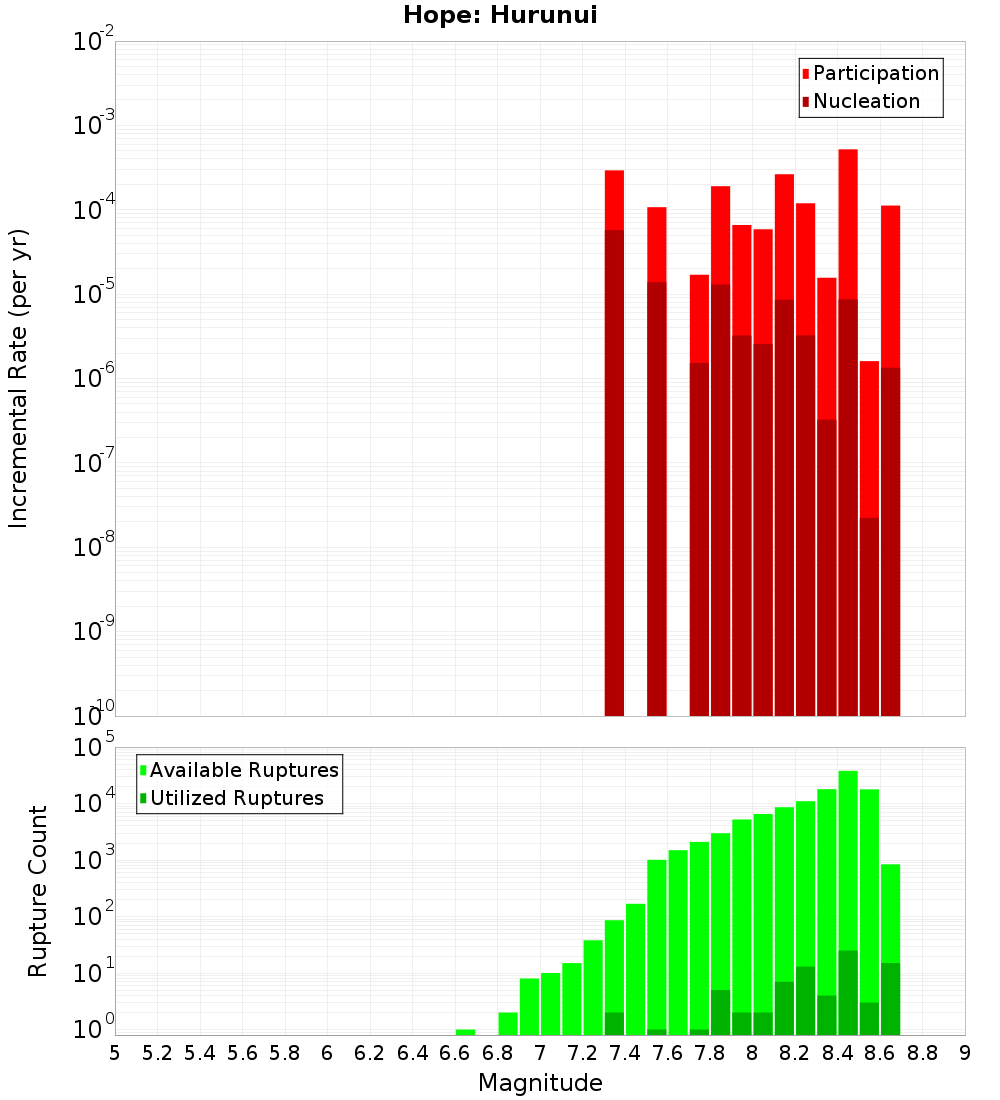

Magnitude-Frequency Distribution

Incremental	Cumulative

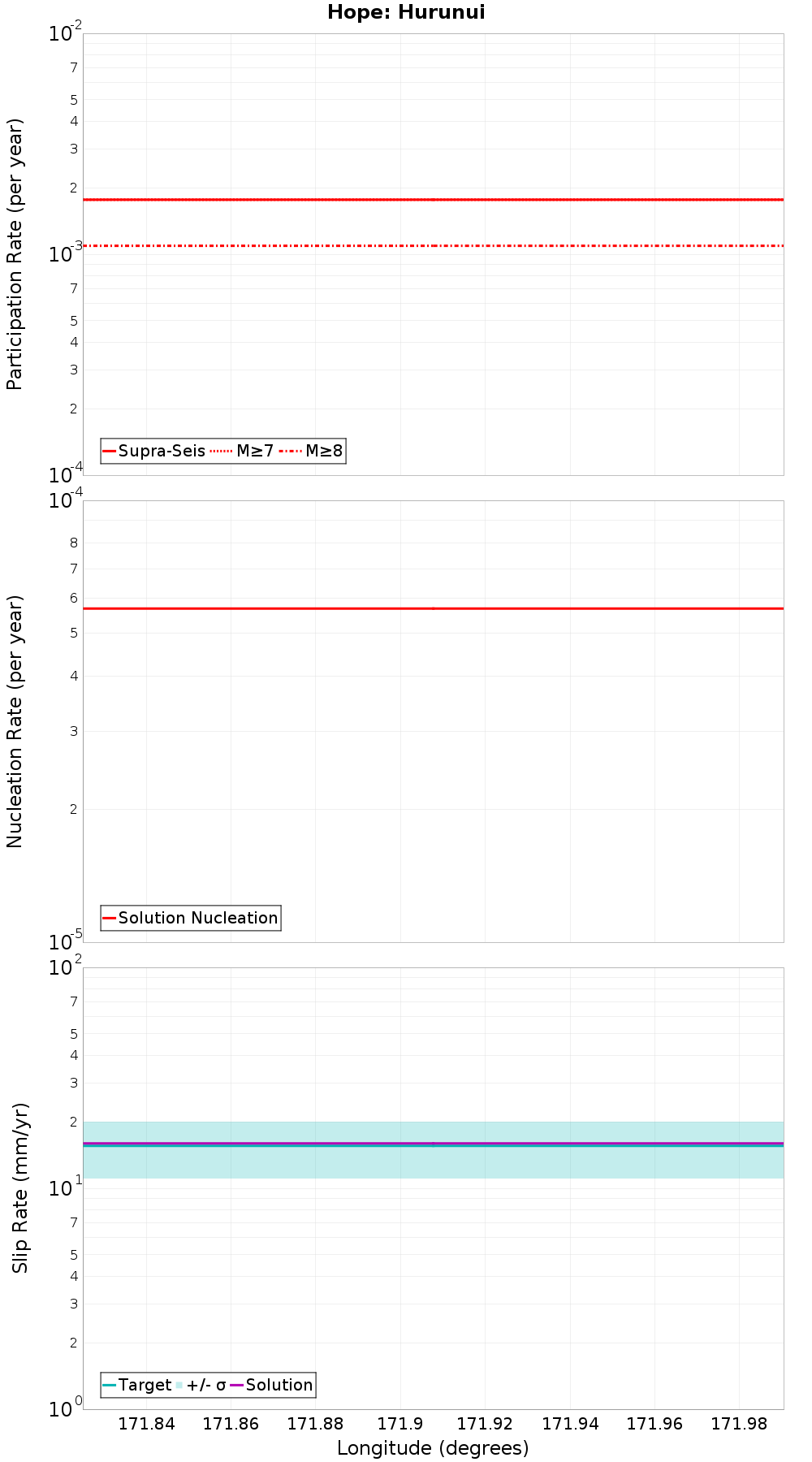

Along-Strike Values

Moment-Rates and b-Values

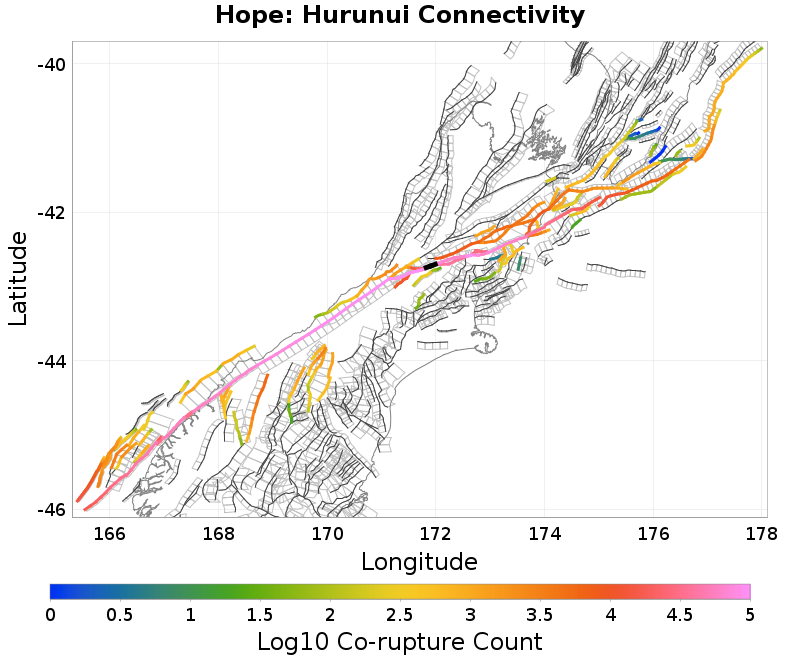

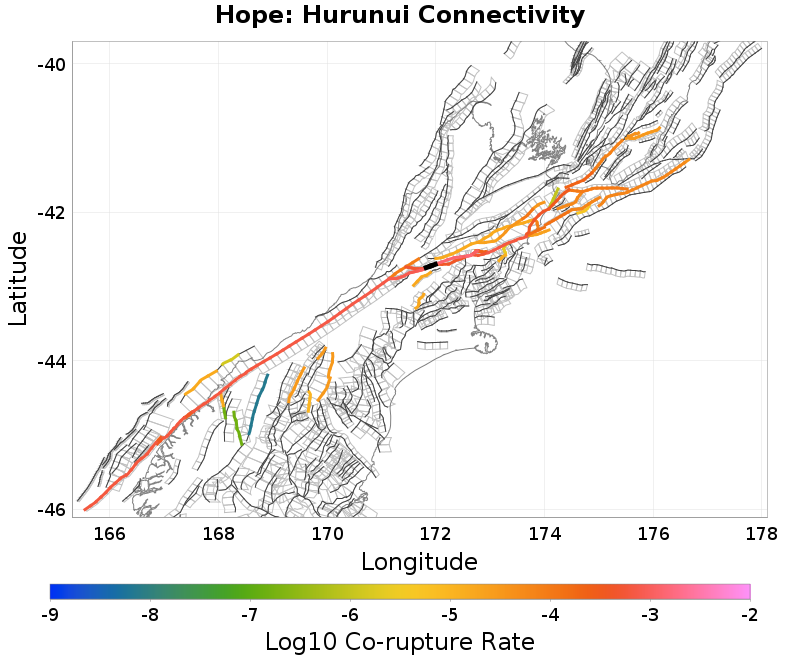

Connectivity

Nearby Sections

Fault Section
Kelly, 0 km away
Kakapo, 0 km away
Hope: Taramakau, 0 km away
Hope: Hope River, 0 km away
Alpine: Kaniere to Springs Junction, 1.98 km away
Poulter, 7.27 km away
Clarence: Southwest, 8.29 km away

Kelly, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	97,453
Co-rupture Rate	0.0010767665

Kakapo, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	40,084
Co-rupture Rate	4.1012332E-4

Hope: Taramakau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	23,559
Co-rupture Rate	6.521343E-4

Hope: Hope River, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	73,073
Co-rupture Rate	0.0013544672

Alpine: Kaniere to Springs Junction, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	false
Co-rupture Count	1,383
Co-rupture Rate	9.100426E-5

Poulter, 7.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	false
Co-rupture Count	325
Co-rupture Rate	1.6978454E-5

Clarence: Southwest, 8.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	false
Co-rupture Count	8,247
Co-rupture Rate	1.5358179E-5
