Kiri Details

Property	Value
Rupture Count	269
Ruptures Above Sect Min Mag	269
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.83, 8.01]
Length Range	[14, 208] km
Total Rate	1.6277164E-4 /yr
Multi-Fault Rate	1.6277164E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	13

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

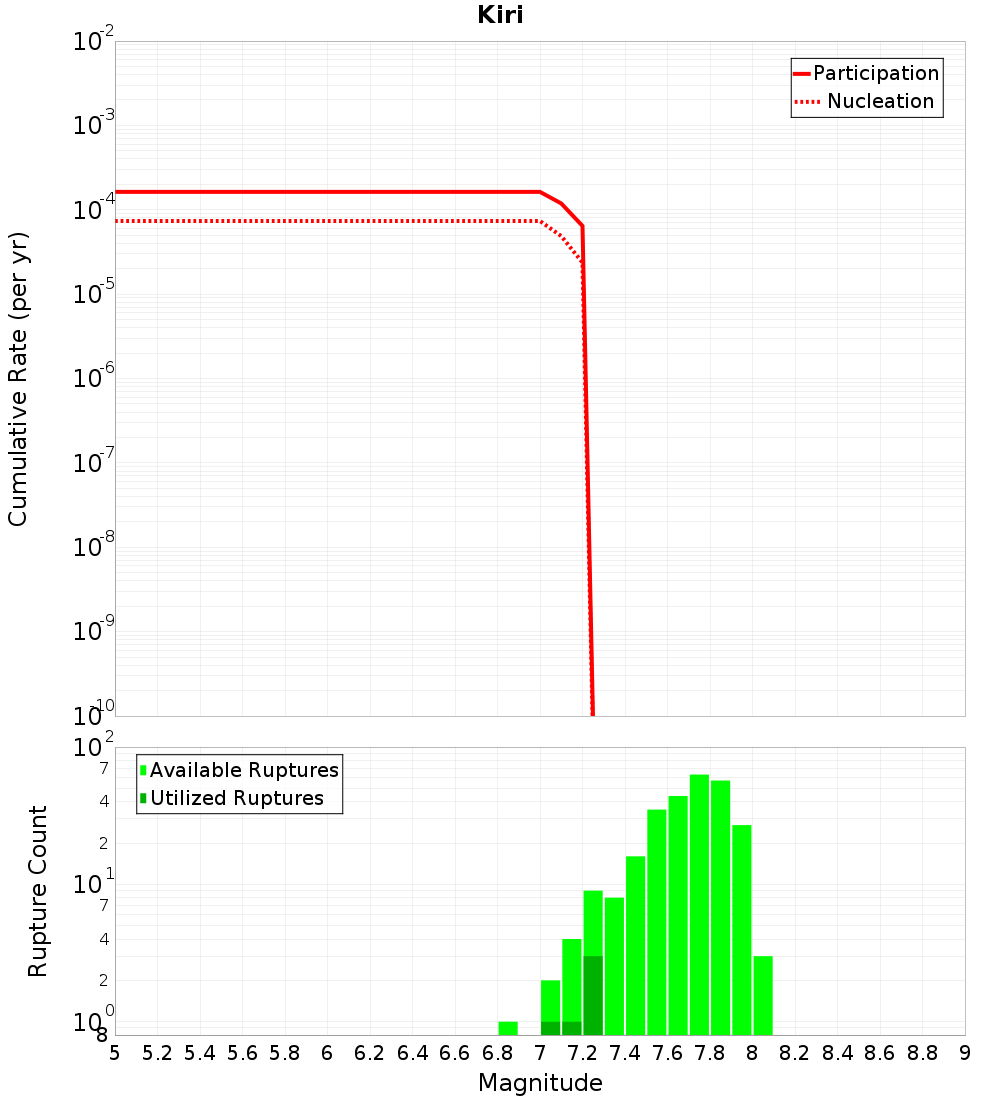

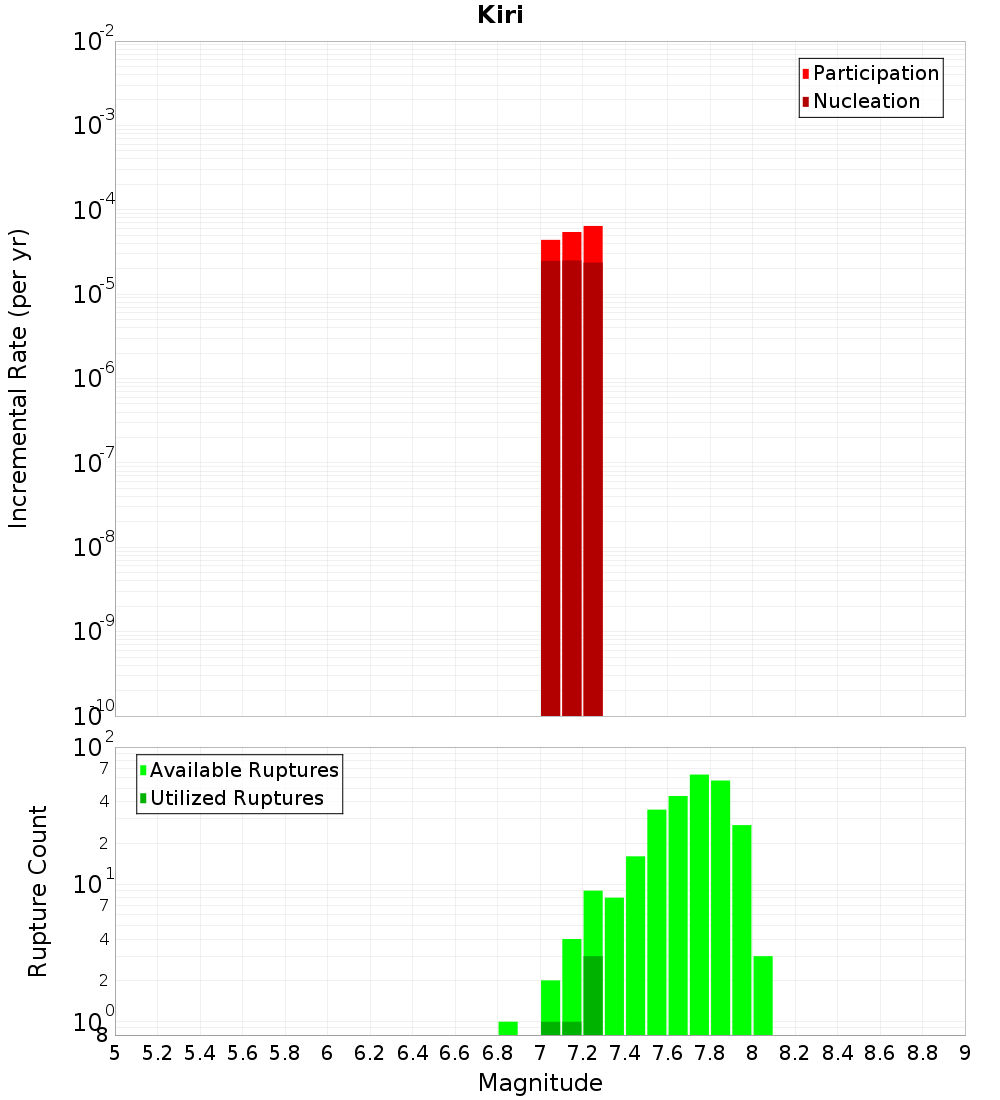

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

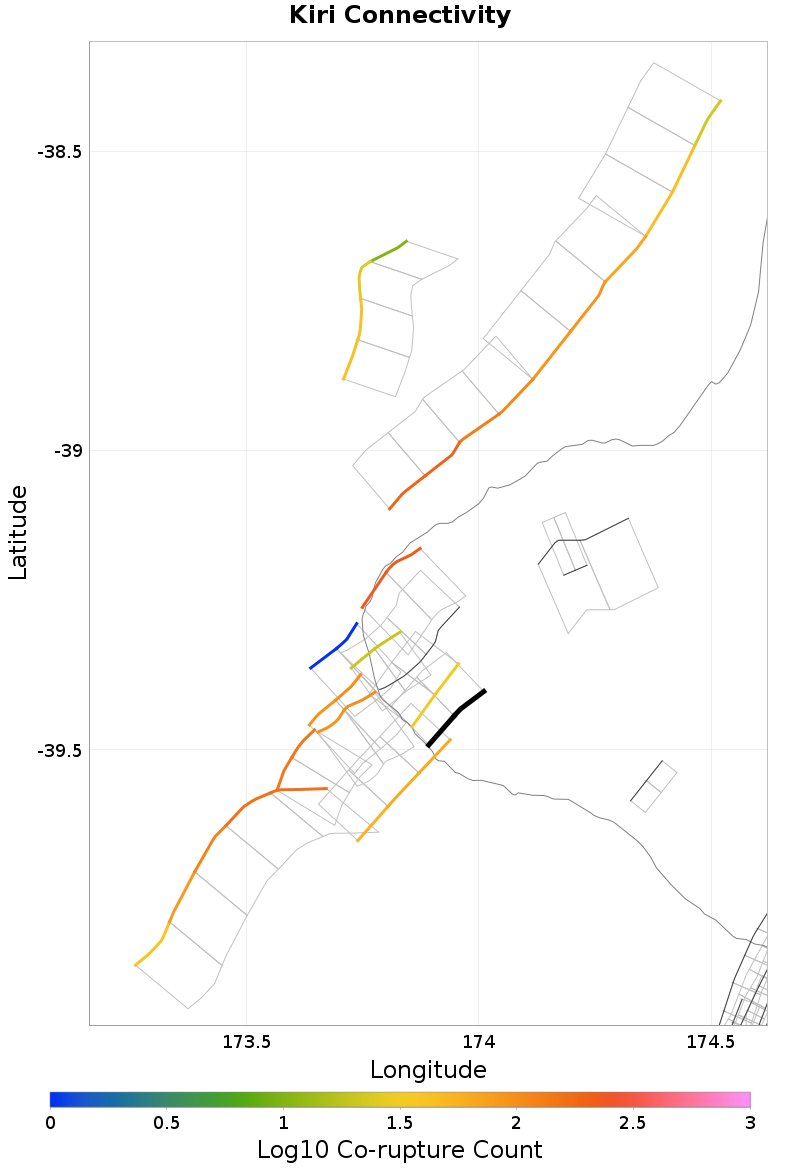

Connectivity

Nearby Sections

Fault Section
Rahotu, 0.35 km away
Cape Egmont: North, 0.47 km away
Manahi 1, 1.59 km away
Pihama, 2.03 km away
Manahi 2, 2.36 km away
Warea, 3.99 km away
Ihaia, 4.13 km away
Oaonui, 10.41 km away
Cape Egmont: Central, 10.8 km away
Cape Egmont: South, 18.8 km away

Rahotu, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	4.398238E-5

Cape Egmont: North, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	101
Co-rupture Rate	9.2263745E-6

Manahi 1, 1.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	101
Co-rupture Rate	2.5632792E-7

Pihama, 2.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	62
Co-rupture Rate	1.09306566E-4

Manahi 2, 2.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Warea, 3.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	true
Co-rupture Count	228
Co-rupture Rate	0.0

Ihaia, 4.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	false
Co-rupture Count	33
Co-rupture Rate	9.482702E-6

Oaonui, 10.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cape Egmont: Central, 10.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	false
Co-rupture Count	142
Co-rupture Rate	0.0

Cape Egmont: South, 18.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?	true
Directly Connected?	false
Co-rupture Count	157
Co-rupture Rate	0.0
