Maungati Details
| Property | Value |
|---|---|
| Rupture Count | 5 |
| Ruptures Above Sect Min Mag | 4 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [7.00, 7.64] |
| Length Range | [21, 88] km |
| Total Rate | 2.1425567E-5 /yr |
| Multi-Fault Rate | 1.4026448E-6 /yr (6.55%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

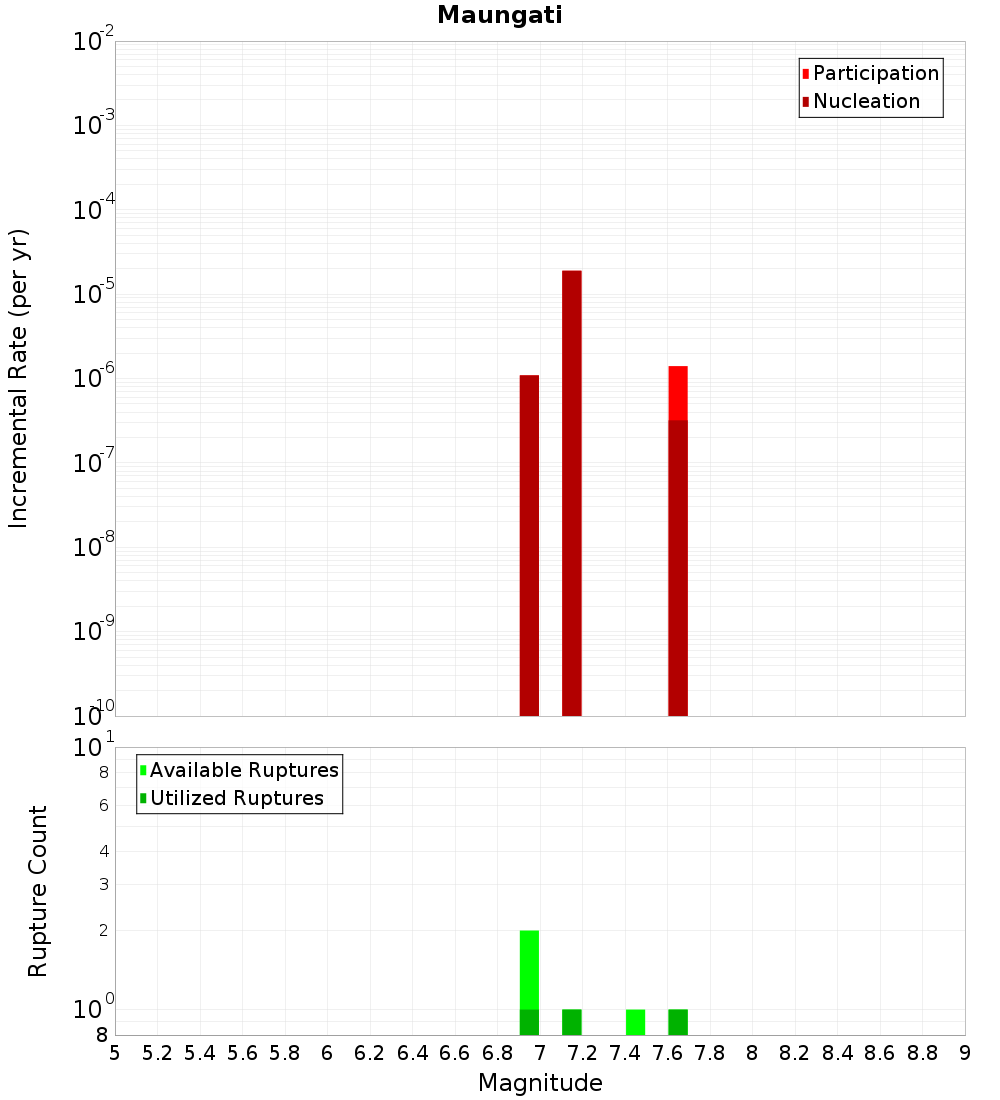

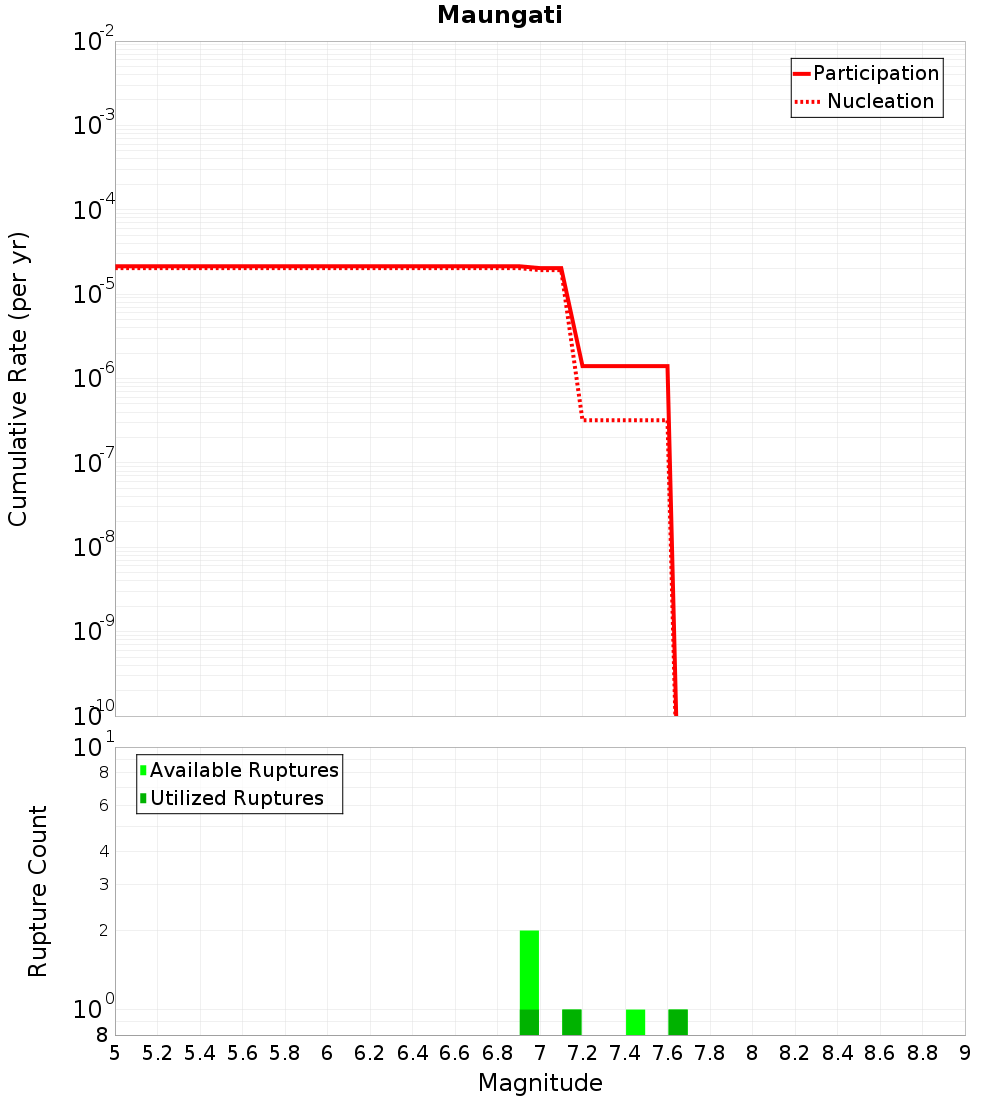

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

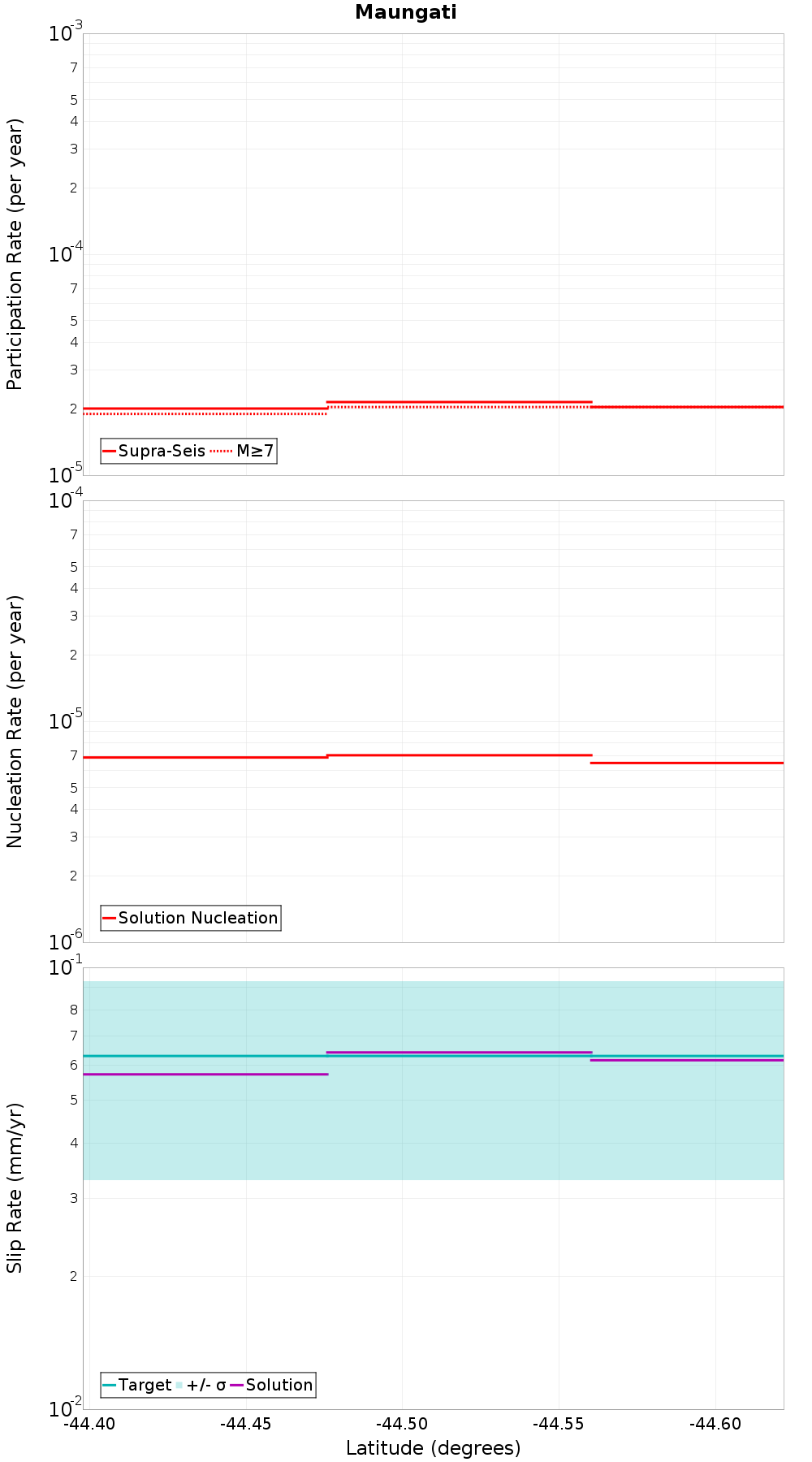

Along-Strike Values

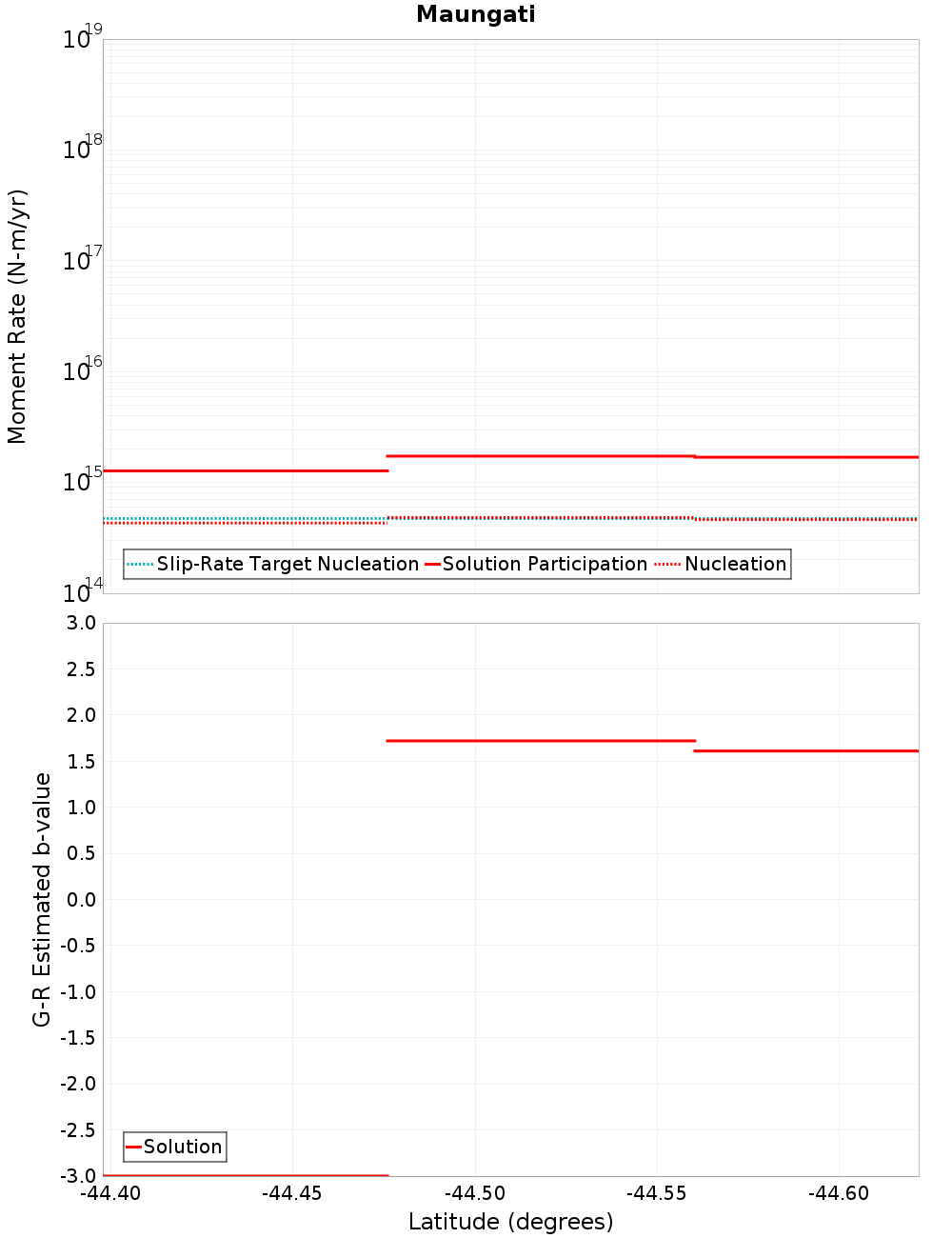

Moment-Rates and b-Values

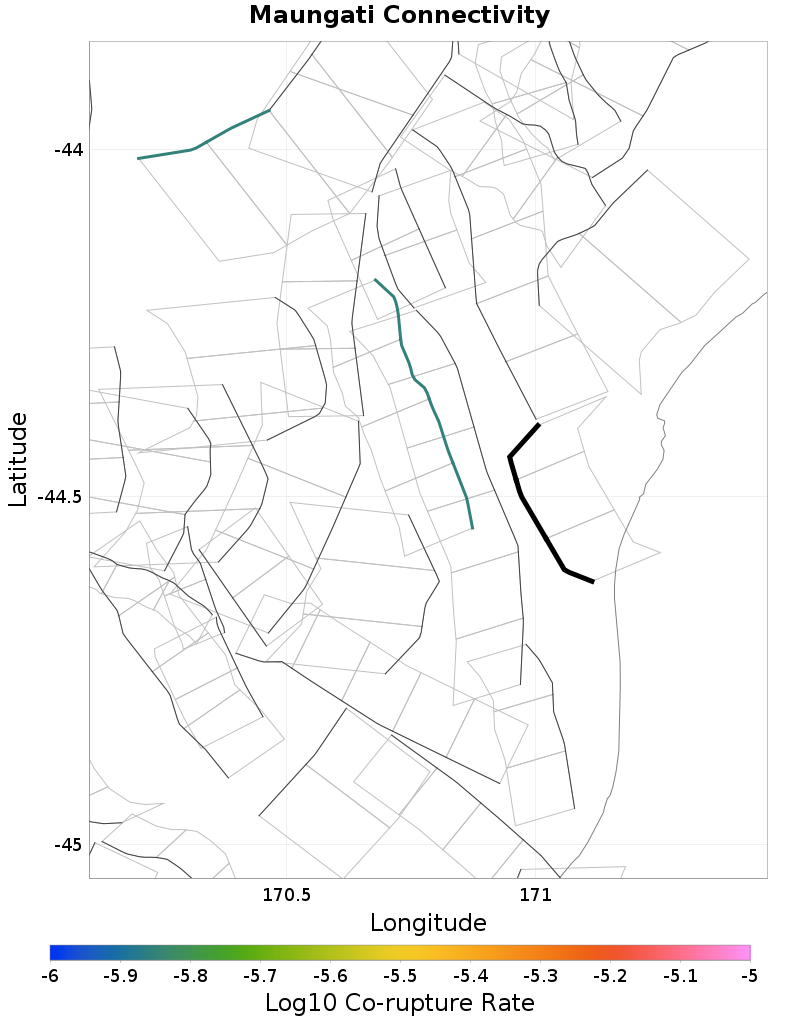

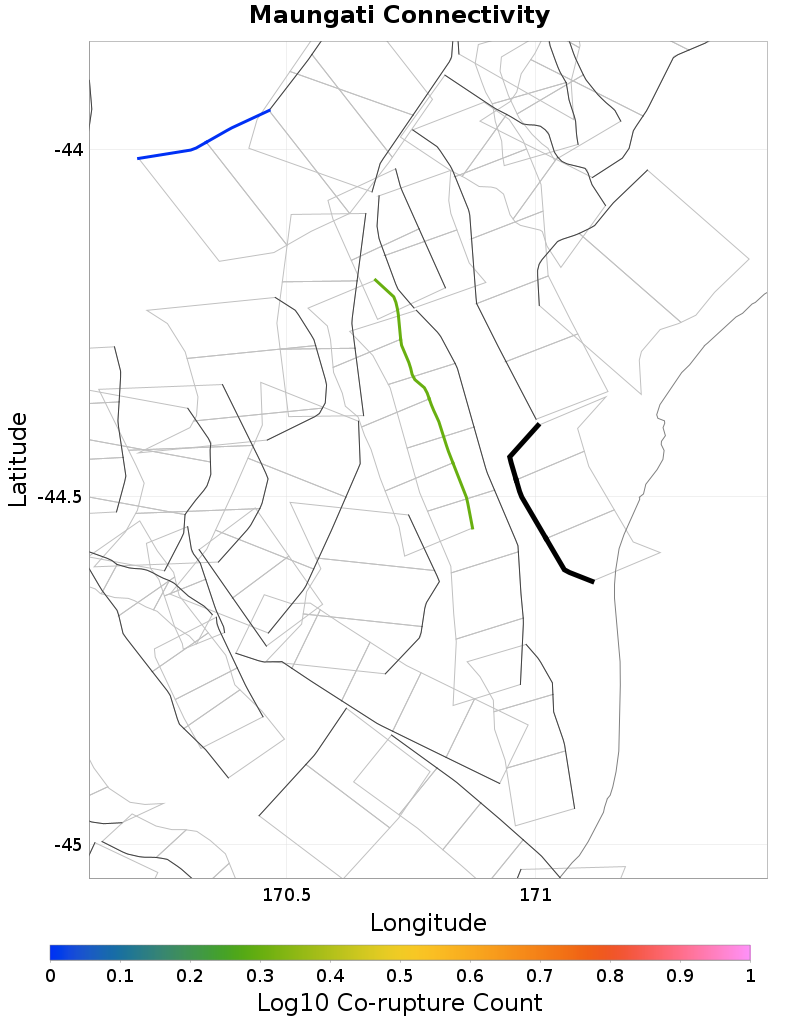

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Brothers, 0.69 km away |
| Hunters, 3.58 km away |
| Rapuwai, 4.49 km away |
| Chamberlain, 8.43 km away |
| Waimate, 13.41 km away |
| Campbell Hills, 17.59 km away |
Brothers, 0.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hunters, 3.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rapuwai, 4.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Chamberlain, 8.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 1.4026448E-6 |
Waimate, 13.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Campbell Hills, 17.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
