Waiohau: North Details

PropertyValue
Rupture Count33,498
Ruptures Above Sect Min Mag33,492
Ruptures w/ Nonzero Rates14
Magnitude Range[6.71, 8.42]
Length Range[16, 602] km
Total Rate1.05701E-4 /yr
Multi-Fault Rate1.05701E-4 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults89

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

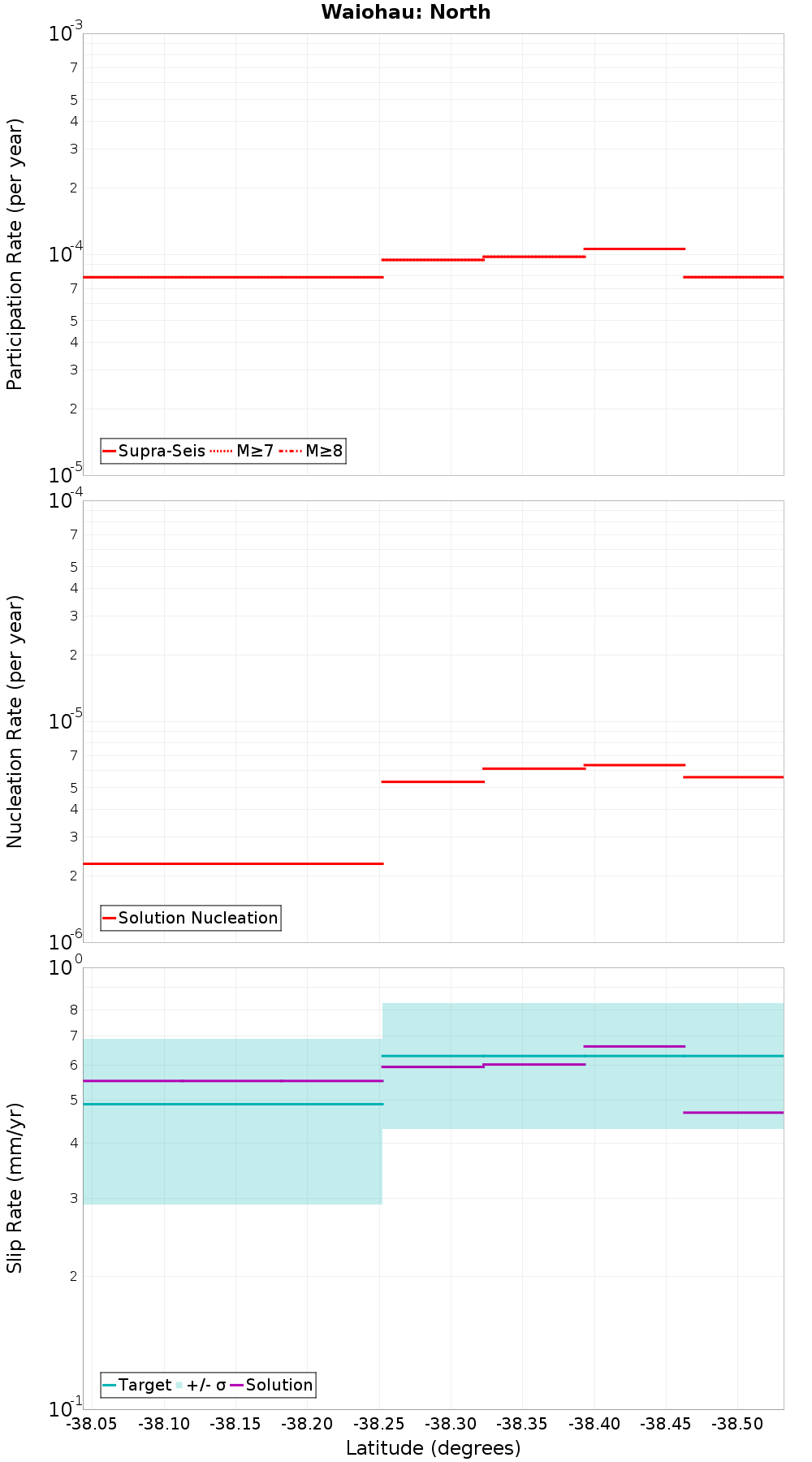

Along-Strike Values

(top)

Along-strike plot

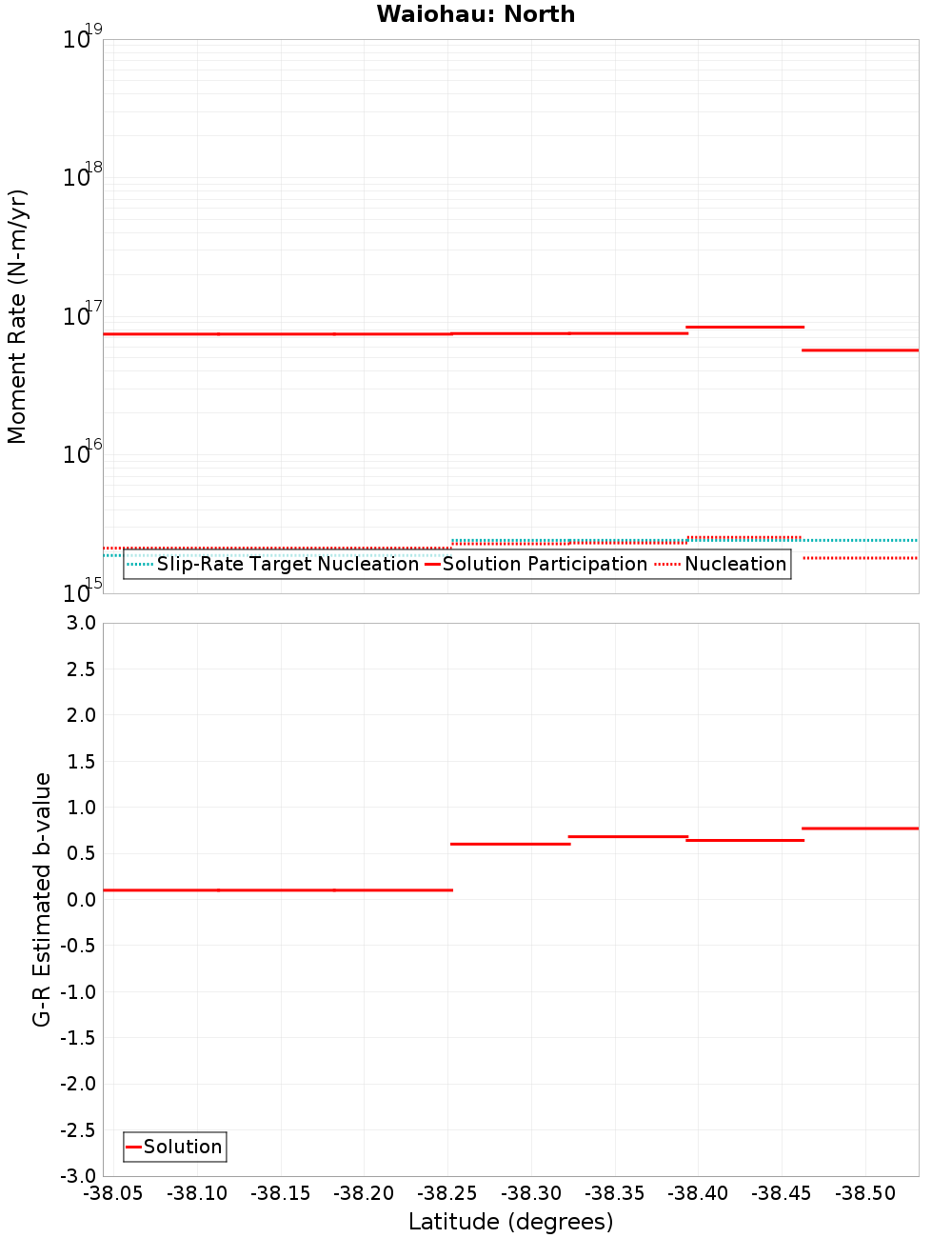

Moment-Rates and b-Values

(top)

Along-strike plot

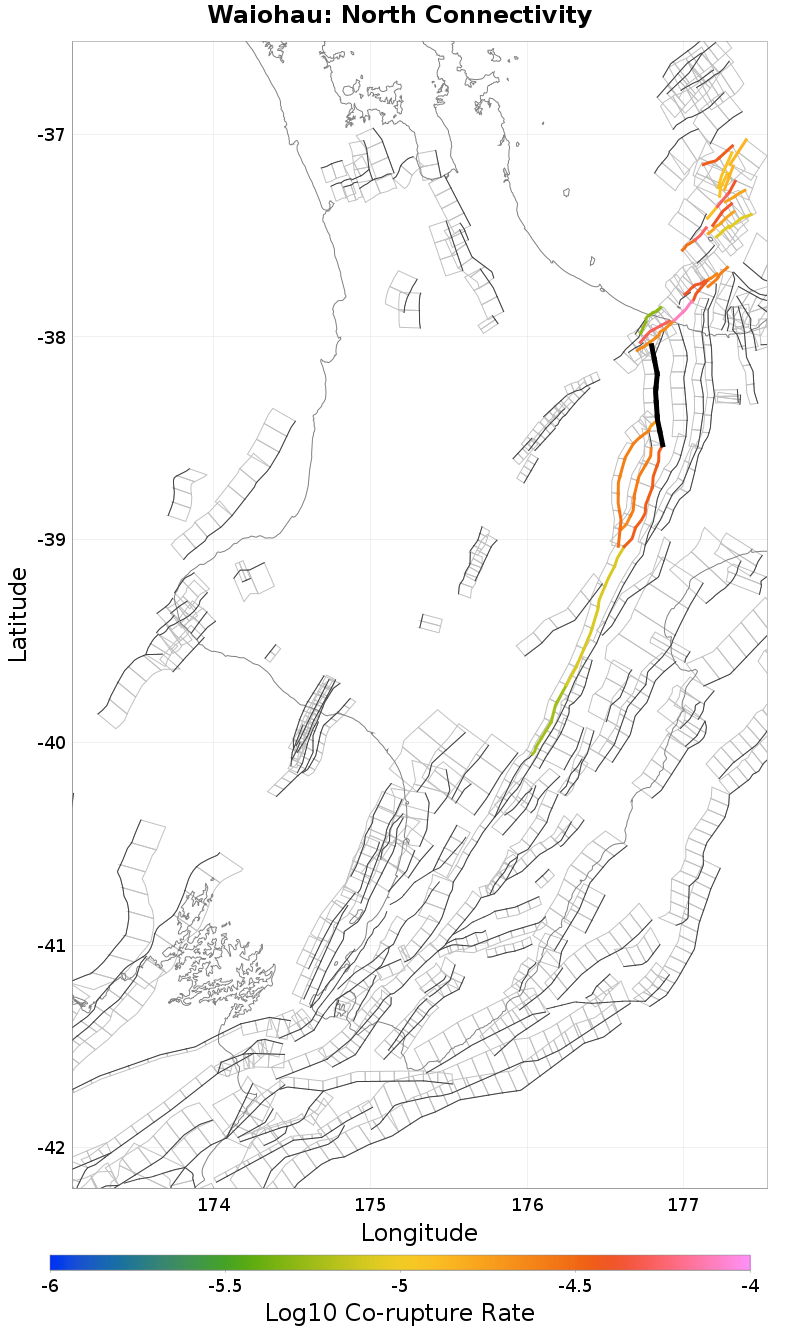

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiohau: South, 0 km awayMatata, 6.37 km away
Awakeri, 0.13 km awayWhakatane: South, 11.09 km away
Braemar, 0.18 km awayWheao: South, 11.29 km away
Te Whaiti North, 0.22 km awayEdgecumbe Coastal, 11.47 km away
Otakiri, 0.35 km awayWhakatane: North, 12.32 km away
Rotoitipakau, 0.38 km awayWaimana: South, 17.98 km away
Te Whaiti South, 1.47 km awayWhite Island 1, 18.73 km away
Wheao: North, 2.09 km awayWaimana: North, 18.89 km away
Edgecumbe 1987, 2.2 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count9,221
Co-rupture Rate3.5266647E-5

Awakeri, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count5,989
Co-rupture Rate0.0

Braemar, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count3,746
Co-rupture Rate5.023058E-6

Te Whaiti North, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count251
Co-rupture Rate1.8768425E-5

Otakiri, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count10,828
Co-rupture Rate5.1305626E-5

Rotoitipakau, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count528
Co-rupture Rate0.0

Te Whaiti South, 1.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count9,291
Co-rupture Rate2.6302938E-5

Wheao: North, 2.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count10,796
Co-rupture Rate2.5362991E-5

Edgecumbe 1987, 2.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count11,065
Co-rupture Rate2.233862E-5

Matata, 6.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?false
Co-rupture Count3,990
Co-rupture Rate5.023058E-6

Whakatane: South, 11.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wheao: South, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?false
Co-rupture Count12,572
Co-rupture Rate2.932731E-5

Edgecumbe Coastal, 11.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?false
Co-rupture Count12,604
Co-rupture Rate2.233862E-5

Whakatane: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?true
Co-rupture Count256
Co-rupture Rate0.0

Waimana: South, 17.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?false
Co-rupture Count22,911
Co-rupture Rate7.8667304E-5

Waimana: North, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMGk3dFVV
Connected?true
Directly Connected?false
Co-rupture Count312
Co-rupture Rate0.0
