Kirkliston Details

Property	Value
Rupture Count	86
Ruptures Above Sect Min Mag	85
Ruptures w/ Nonzero Rates	10
Magnitude Range	[7.12, 7.92]
Length Range	[25, 153] km
Total Rate	3.039411E-5 /yr
Multi-Fault Rate	1.6895372E-5 /yr (55.59%)
Directly-Connected Faults	5
All Co-Rupturing Faults	12

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

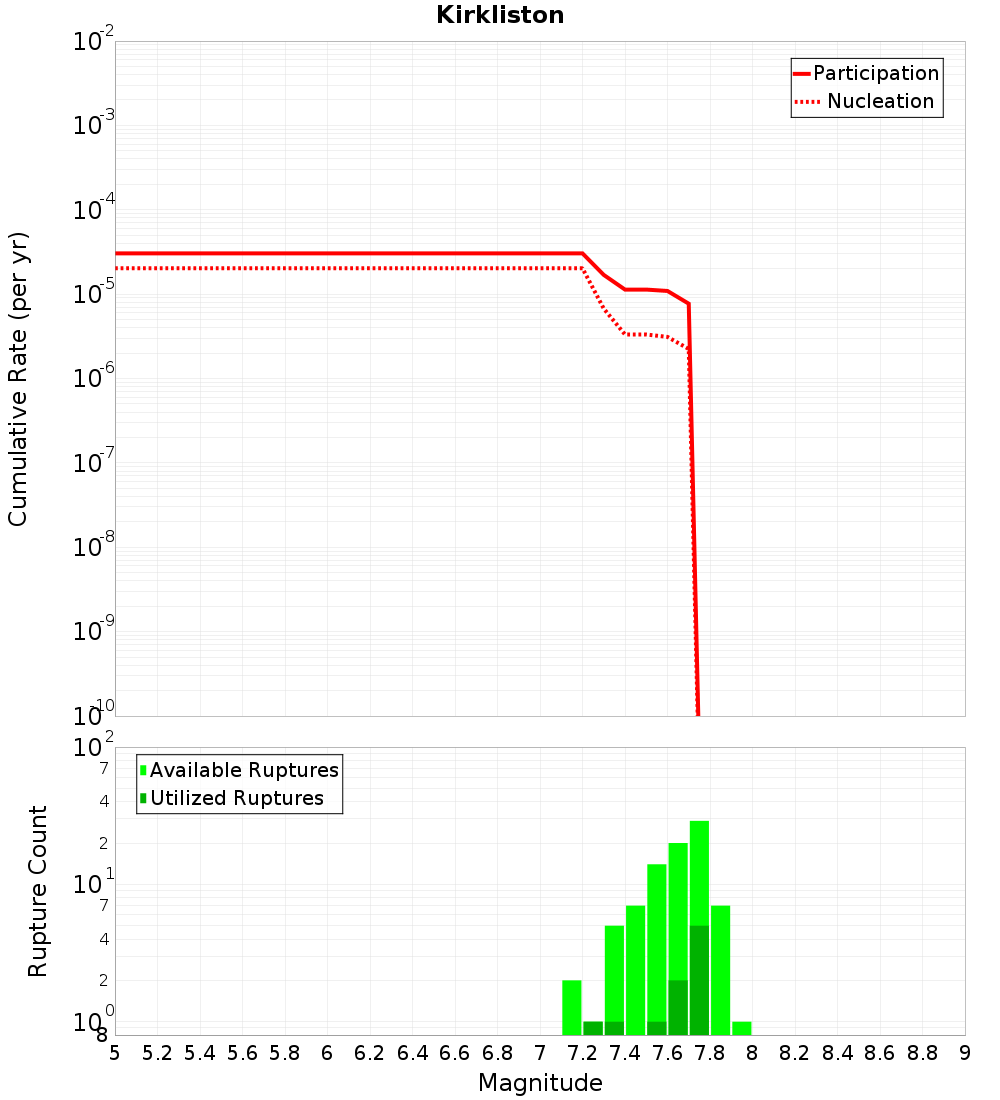

Magnitude-Frequency Distribution

Incremental	Cumulative

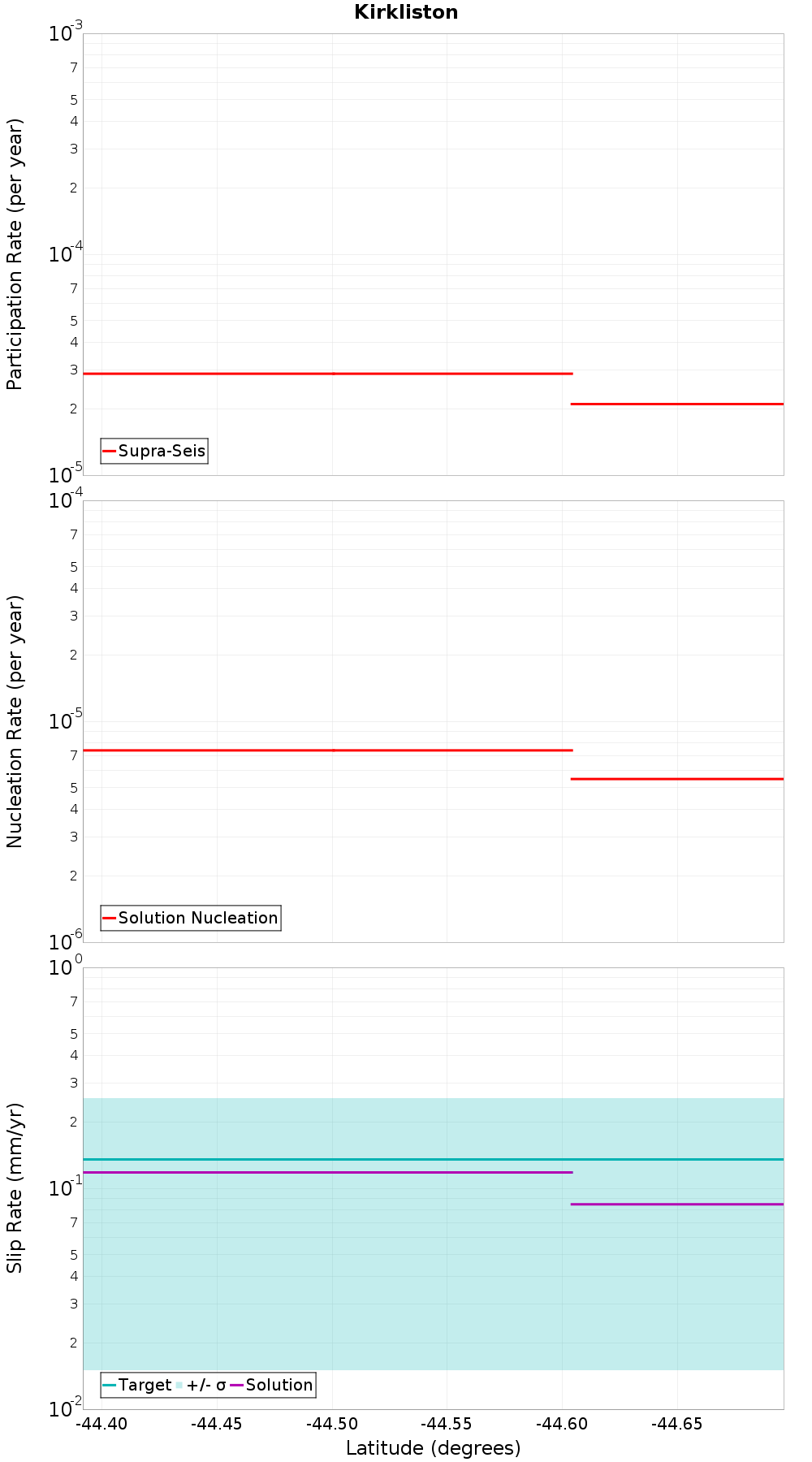

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Dryburgh, 0.2 km away	Campbell Hills, 6.23 km away
Middle Range, 0.5 km away	Mt Sutton, 9.09 km away
Waitangi, 1.11 km away	Chamberlain, 9.49 km away
Dalgety, 1.12 km away	Hunters, 14.84 km away
Stonewall, 1.94 km away	Gibson, 14.93 km away
Fern Gully, 3.19 km away	Black Hill, 17.29 km away
Grampian, 4.67 km away	Albury, 19.63 km away
Awahokomo, 5.59 km away	Omarama Saddle, 19.72 km away

Dryburgh, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	9.424787E-6

Middle Range, 0.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	34
Co-rupture Rate	3.7432392E-6

Waitangi, 1.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dalgety, 1.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Stonewall, 1.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	35
Co-rupture Rate	5.33151E-6

Fern Gully, 3.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grampian, 4.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	53
Co-rupture Rate	6.6722587E-6

Awahokomo, 5.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Campbell Hills, 6.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	0.0

Mt Sutton, 9.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Chamberlain, 9.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hunters, 14.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gibson, 14.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Black Hill, 17.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Albury, 19.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Omarama Saddle, 19.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
