Papatea Details

Property	Value
Rupture Count	964
Ruptures Above Sect Min Mag	964
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.95, 8.53]
Length Range	[18, 809] km
Total Rate	2.16522E-4 /yr
Multi-Fault Rate	2.16522E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	59

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

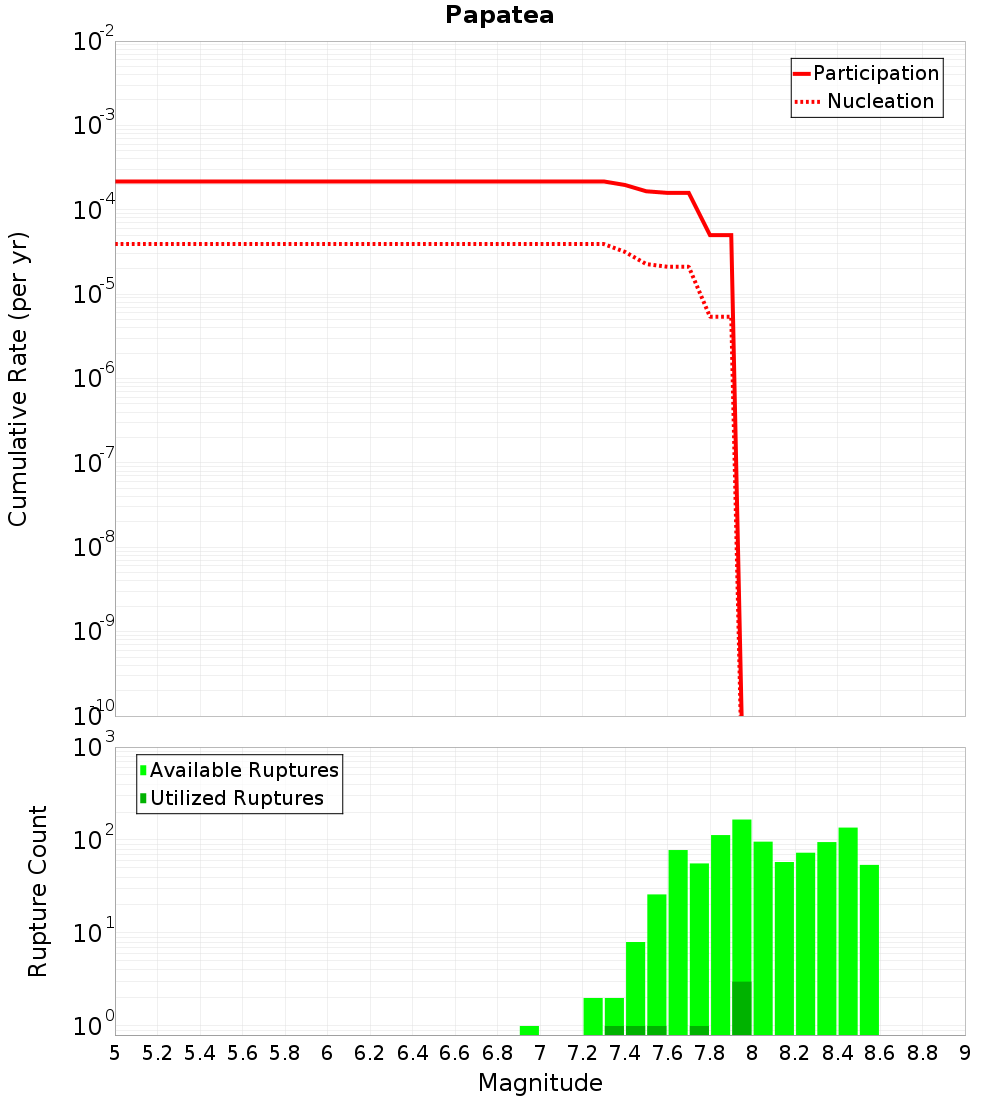

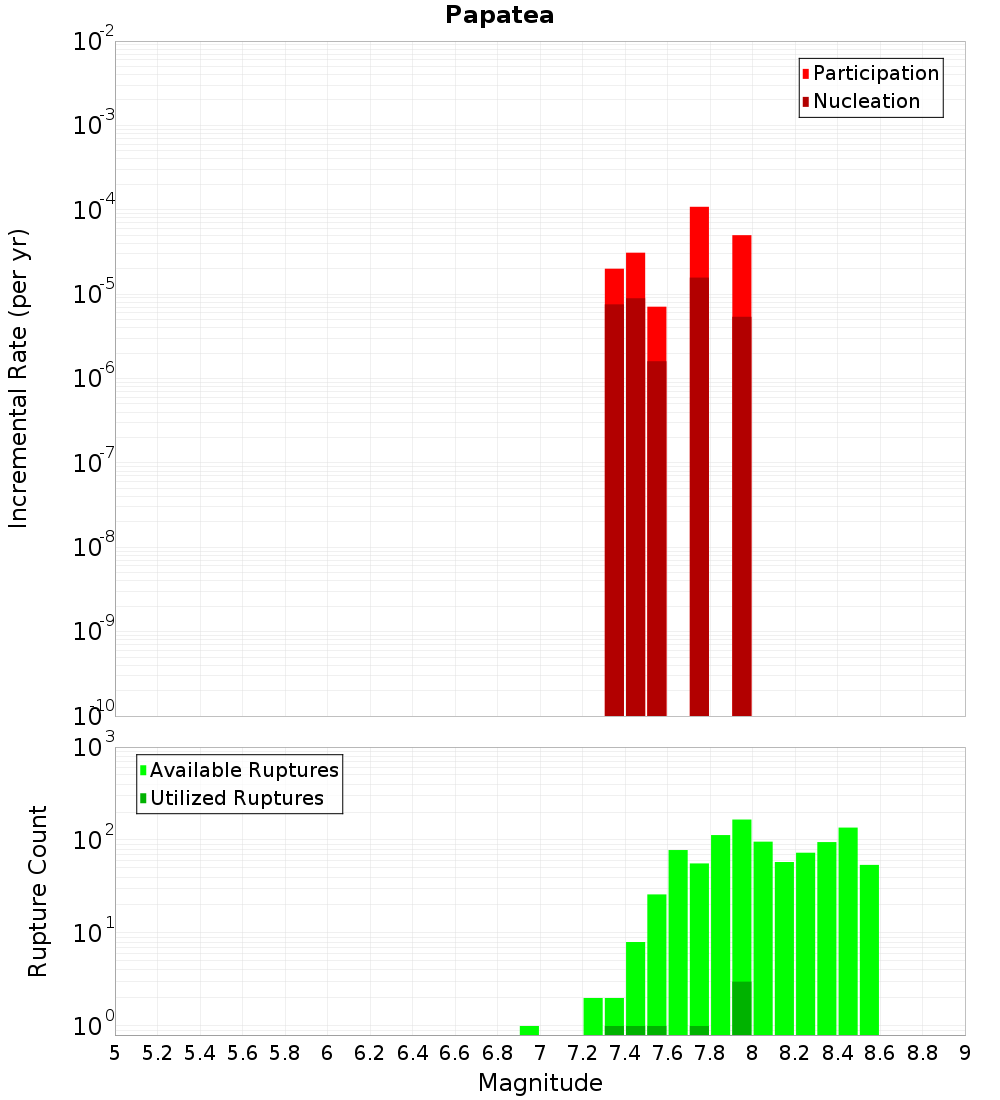

Magnitude-Frequency Distribution

Incremental	Cumulative

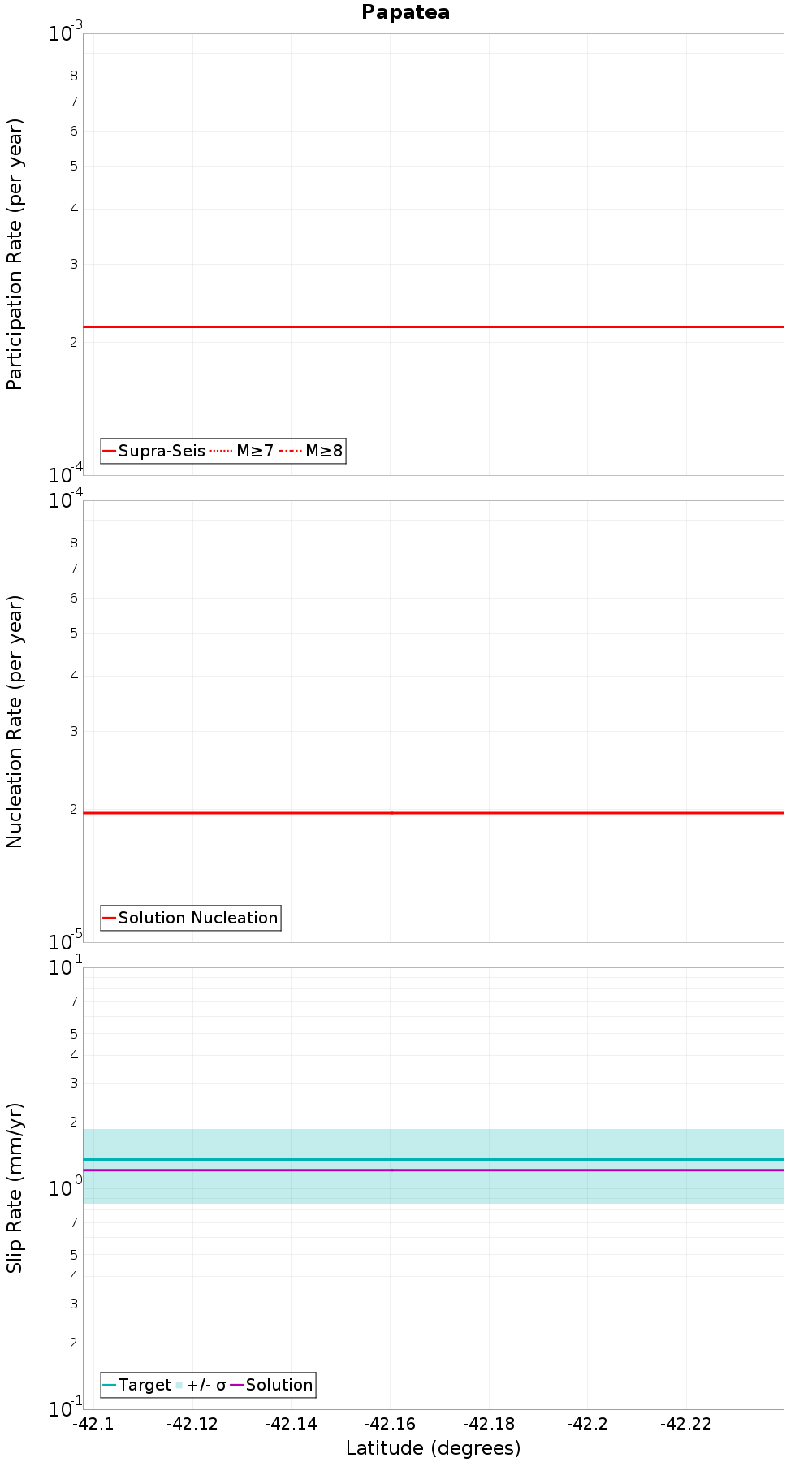

Along-Strike Values

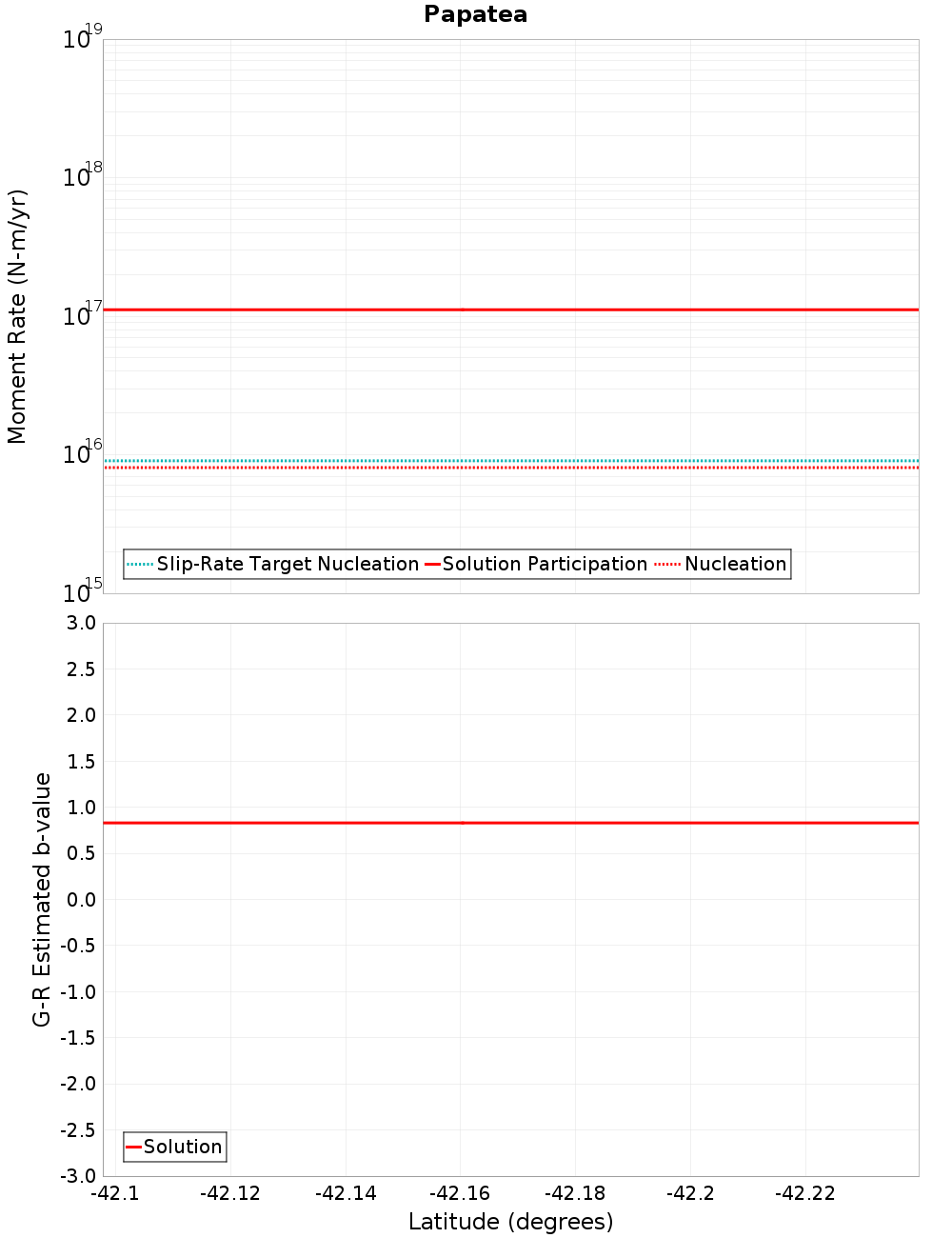

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kekerengu 1, 0 km away
Fidget, 0 km away
Jordan, 0 km away
Hope: Seaward, 0.03 km away
Kaikoura - Mangamaunu, 5.06 km away
Hope: Conway, 7.91 km away
Hope: Te Rapa, 11.56 km away
Clarence: Northeast, 11.87 km away
Marlborough Slope 2, 19.65 km away

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fidget, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Seaward, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	46
Co-rupture Rate	0.0

Kaikoura - Mangamaunu, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Conway, 7.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	943
Co-rupture Rate	2.16522E-4

Hope: Te Rapa, 11.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	0.0

Clarence: Northeast, 11.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	254
Co-rupture Rate	1.5841509E-4

Marlborough Slope 2, 19.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
