Porters Pass Details

PropertyValue
Rupture Count199
Ruptures Above Sect Min Mag195
Ruptures w/ Nonzero Rates11
Magnitude Range[6.66, 8.06]
Length Range[15, 221] km
Total Rate8.933593E-4 /yr
Multi-Fault Rate2.9629303E-4 /yr (33.17%)
Directly-Connected Faults6
All Co-Rupturing Faults11

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

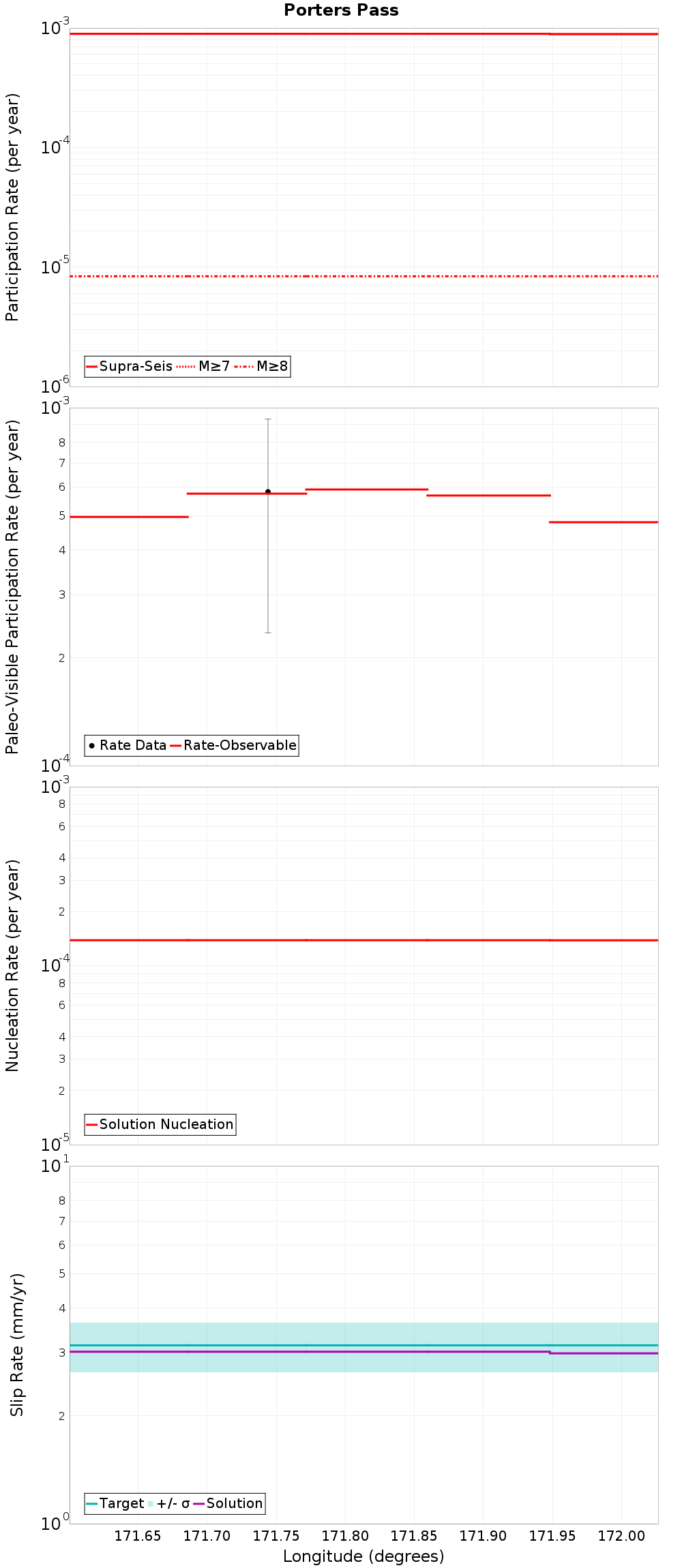

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Esk South, 0.2 km awayKowai - View Hill, 8.69 km away
Torlesse, 0.35 km awayStarvation - Ashley, 10.32 km away
Lees Valley, 0.91 km awayRedcliffe, 11.68 km away
Big Ben, 1.75 km awayHigh Peak - Sheffield, 12.52 km away
Hutt Peel, 1.77 km awayHororata, 14.38 km away
Double Hill, 2.22 km awaySpringbank, 16.56 km away
Cheeseman, 3.58 km awayNorth Branch, 18.46 km away
Knowles Top, 6.27 km awayPancake, 19.52 km away
Sailor, 7.26 km away

Esk South, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Torlesse, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?true
Directly Connected?true
Co-rupture Count88
Co-rupture Rate1.7413923E-4

Lees Valley, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?true
Directly Connected?true
Co-rupture Count81
Co-rupture Rate7.754455E-5

Big Ben, 1.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hutt Peel, 1.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?true
Directly Connected?true
Co-rupture Count153
Co-rupture Rate9.8220364E-5

Double Hill, 2.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate1.340318E-4

Cheeseman, 3.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 6.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sailor, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 8.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 10.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate3.516621E-5

Redcliffe, 11.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate4.0042585E-5

High Peak - Sheffield, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate0.0

Springbank, 16.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate4.459541E-6

North Branch, 18.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pancake, 19.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
