South Wedge 3-6-10 Details

Property	Value
Rupture Count	10,399
Ruptures Above Sect Min Mag	10,396
Ruptures w/ Nonzero Rates	31
Magnitude Range	[6.87, 8.59]
Length Range	[19, 892] km
Total Rate	3.5471463E-4 /yr
Multi-Fault Rate	3.5471463E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	61

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

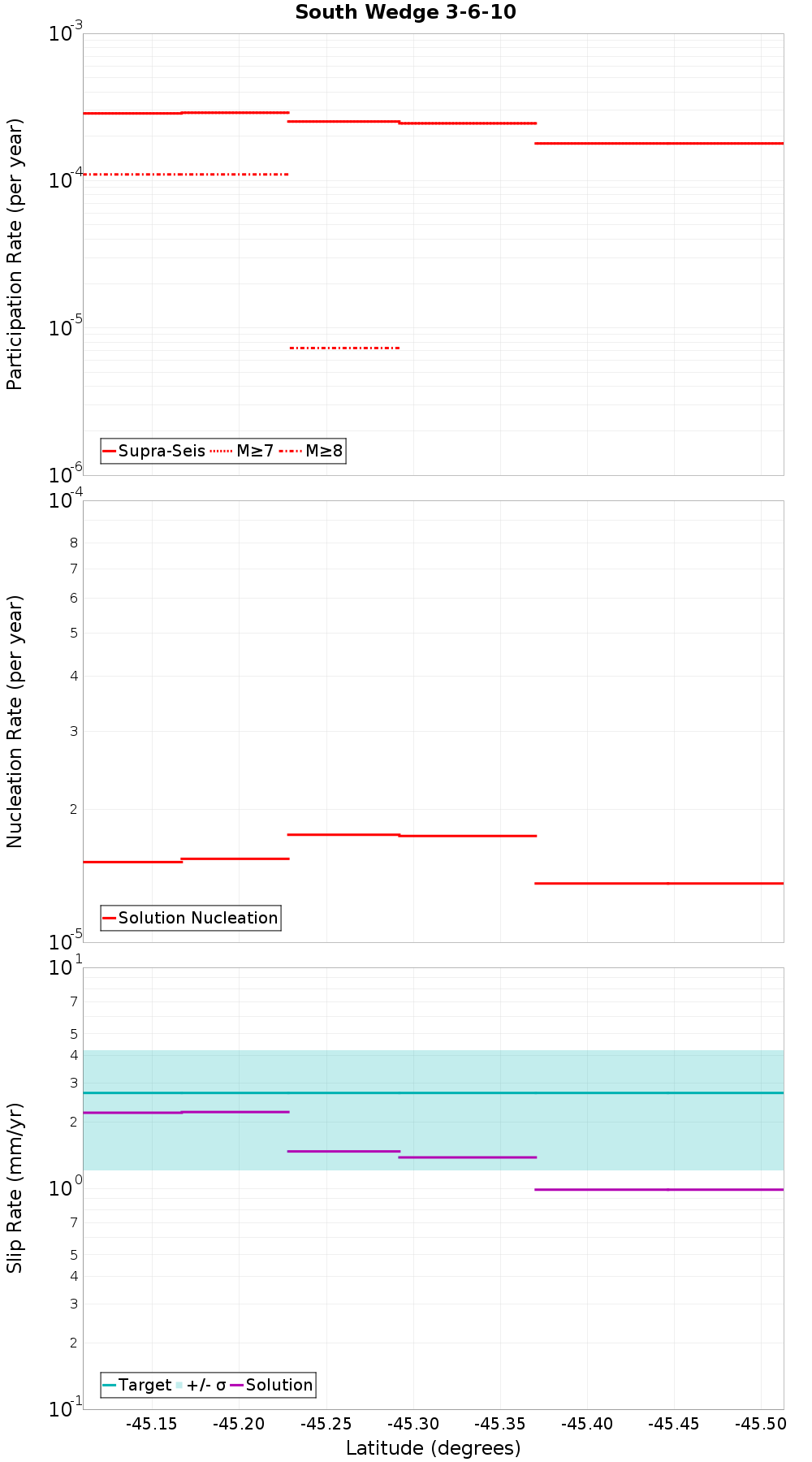

Along-Strike Values

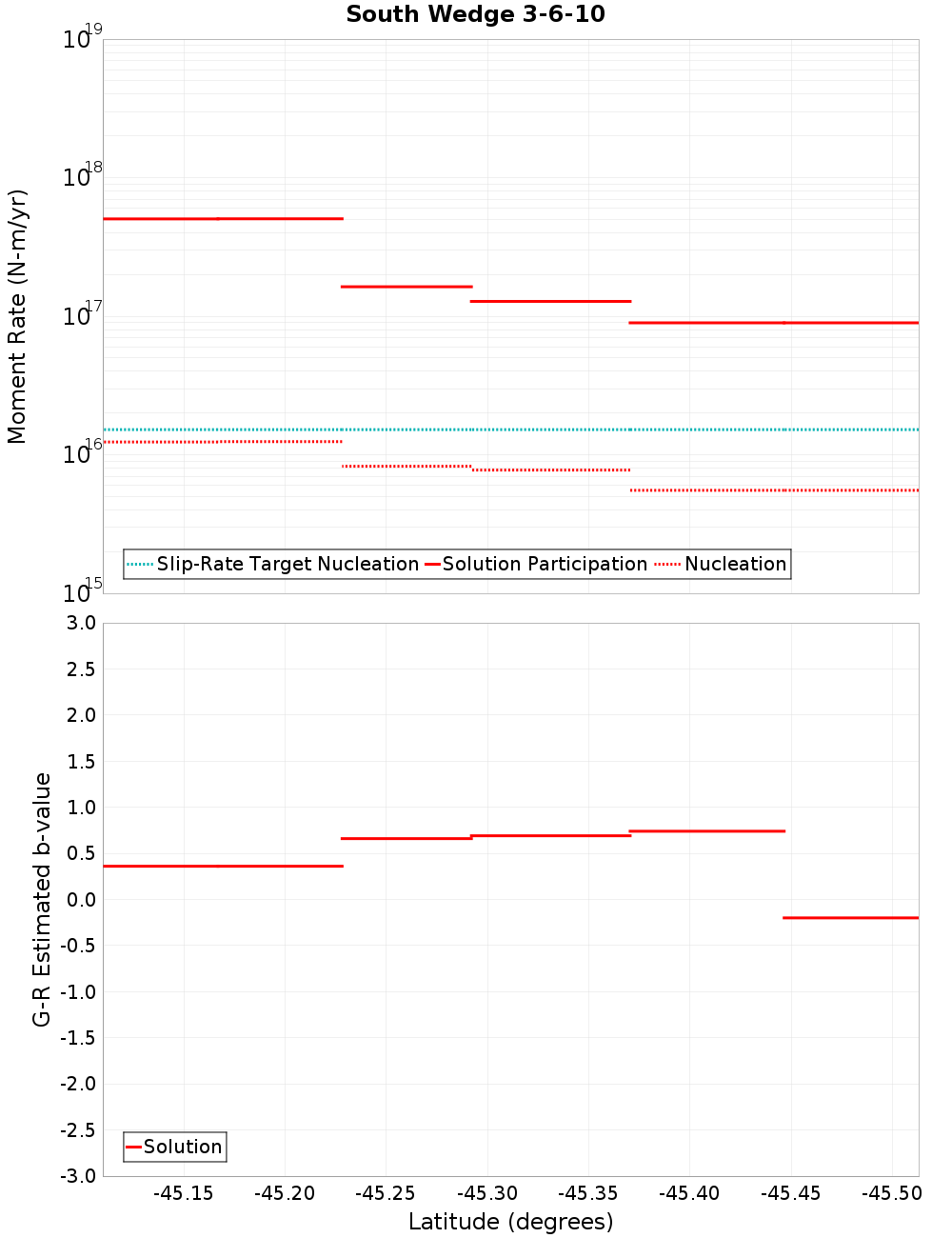

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Resolution - Five Fingers, 0.3 km away
South Wedge 5, 0.46 km away
Alpine: Resolution - Dagg, 1.76 km away
Central Wedge 4 - South Wedge 411, 1.81 km away
South Wedge 2, 2.13 km away
South Wedge 1, 4.1 km away
Caswell 211, 12.71 km away
Caswell High 5, 12.89 km away
Caswell High 3, 13.11 km away
Caswell High 4, 15.34 km away
Caswell High 67, 16.91 km away
Caswell High 1, 18.06 km away
Alpine: Nancy, 18.23 km away
Alpine: Resolution - Charles, 18.31 km away

Alpine: Resolution - Five Fingers, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	67
Co-rupture Rate	6.5853565E-5

South Wedge 5, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	2,519
Co-rupture Rate	3.5038273E-4

Alpine: Resolution - Dagg, 1.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	6,579
Co-rupture Rate	1.760476E-4

Central Wedge 4 - South Wedge 411, 1.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	2,375
Co-rupture Rate	9.35986E-5

South Wedge 2, 2.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	3,154
Co-rupture Rate	1.0289898E-4

South Wedge 1, 4.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	600
Co-rupture Rate	8.9396985E-5

Caswell 211, 12.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	751
Co-rupture Rate	1.877569E-5

Caswell High 5, 12.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	1,416
Co-rupture Rate	2.3390228E-6

Caswell High 3, 13.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	342
Co-rupture Rate	1.0831056E-5

Caswell High 4, 15.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	619
Co-rupture Rate	2.9665086E-6

Caswell High 67, 16.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	1,348
Co-rupture Rate	4.6780456E-6

Caswell High 1, 18.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	175
Co-rupture Rate	2.9665086E-6

Alpine: Nancy, 18.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	2,560
Co-rupture Rate	2.5066872E-6

Alpine: Resolution - Charles, 18.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	3,997
Co-rupture Rate	1.07687345E-4
