Waitotara 8 & 9 Details
| Property | Value |
|---|---|
| Rupture Count | 858 |
| Ruptures Above Sect Min Mag | 799 |
| Ruptures w/ Nonzero Rates | 29 |
| Magnitude Range | [6.38, 7.43] |
| Length Range | [11, 123] km |
| Total Rate | 1.9453079E-4 /yr |
| Multi-Fault Rate | 1.7573146E-4 /yr (90.34%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

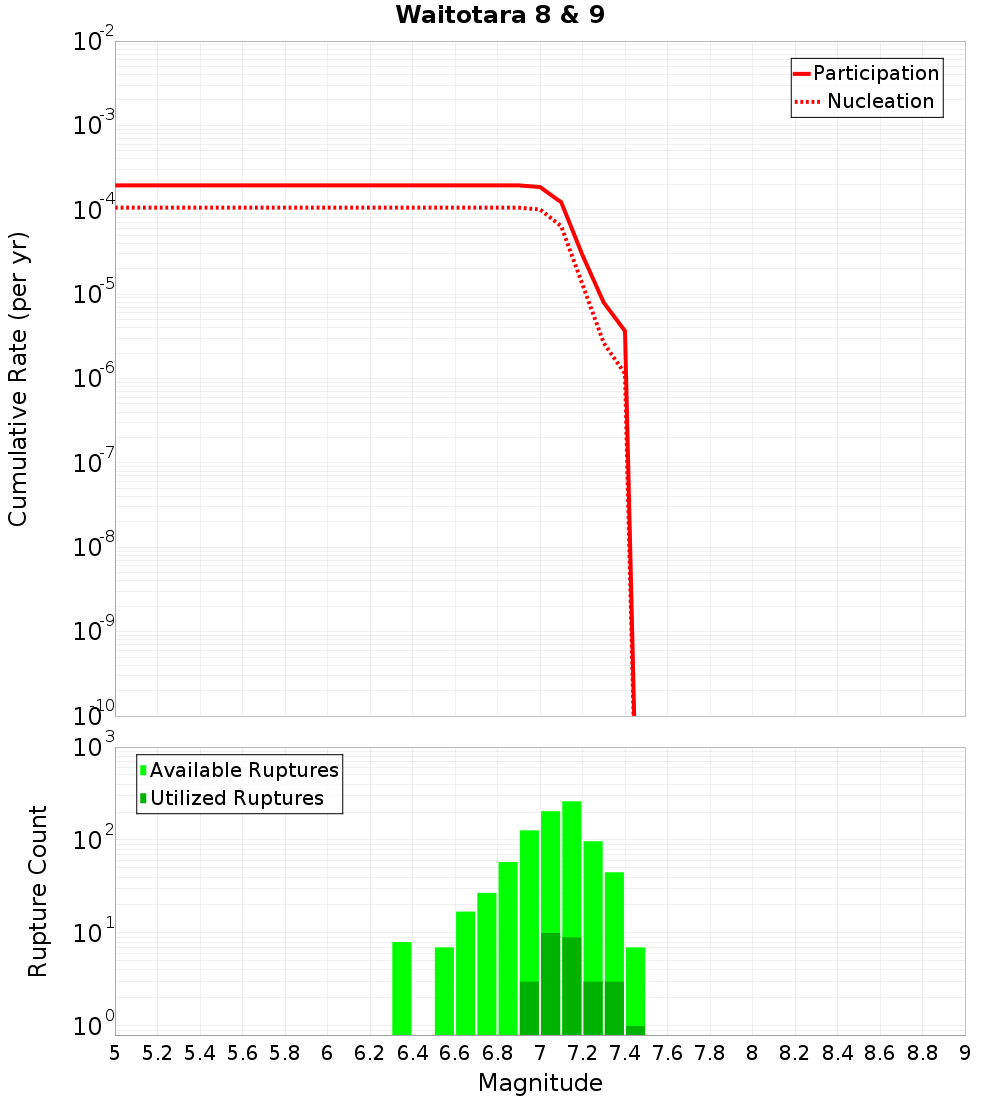

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

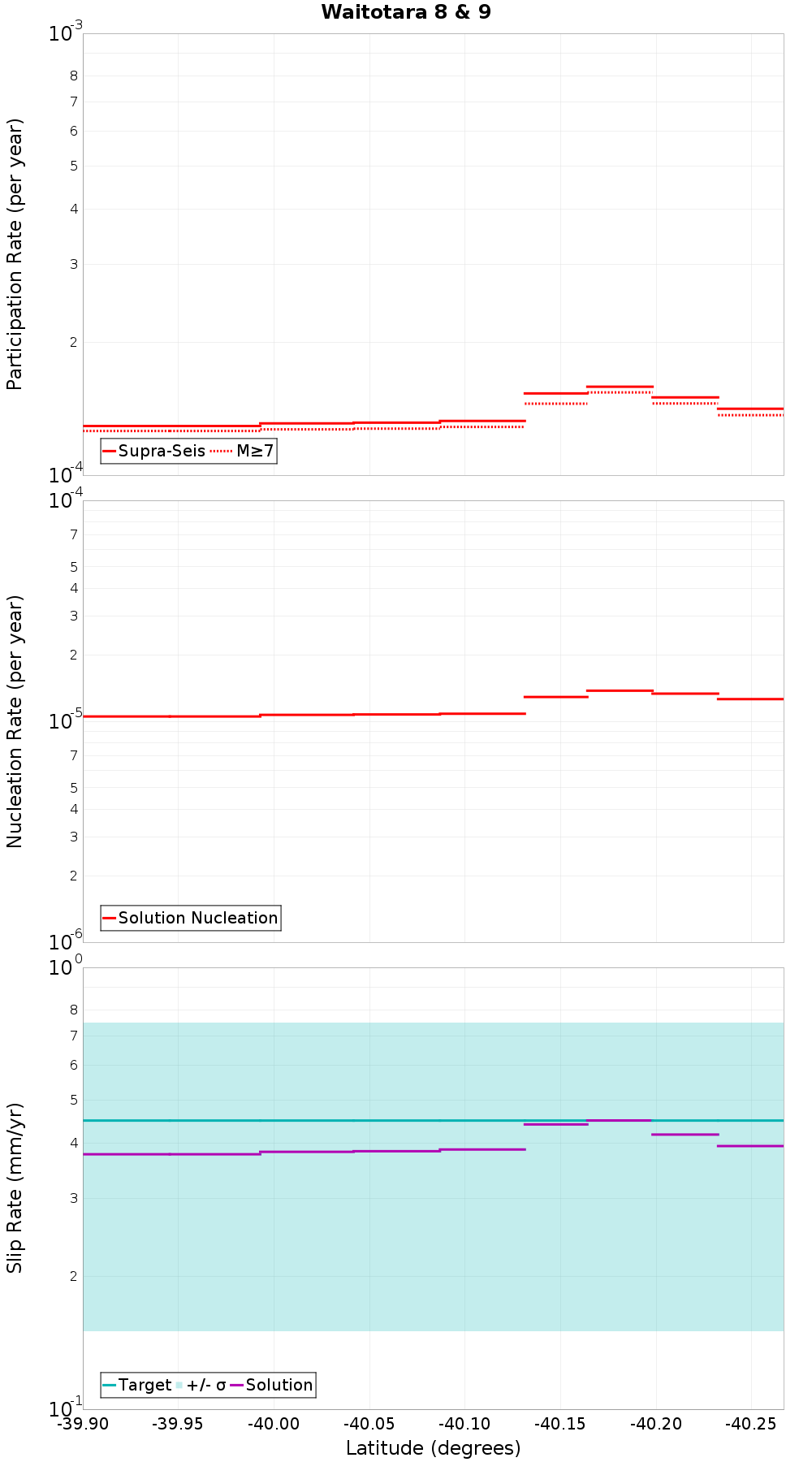

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Okaia 5, 0.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 134 |
| Co-rupture Rate | 6.395651E-7 |
Okaia 3, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 171 |
| Co-rupture Rate | 1.3953899E-5 |
Waverley - Okaia 1, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 196 |
| Co-rupture Rate | 1.2933995E-5 |
Moumahaki - Okaia 4, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 273 |
| Co-rupture Rate | 5.6071516E-5 |
Nukumuru - Waitotara 1-6, 0.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 182 |
| Co-rupture Rate | 2.7565915E-5 |
Waitotara 10 & 11, 0.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 410 |
| Co-rupture Rate | 8.002549E-5 |
Ridge Road - Okaia 2, 2.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 270 |
| Co-rupture Rate | 2.7667977E-5 |
