Warea Details

Property	Value
Rupture Count	498
Ruptures Above Sect Min Mag	498
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.88, 8.01]
Length Range	[16, 208] km
Total Rate	2.0380674E-5 /yr
Multi-Fault Rate	2.0380674E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	13

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

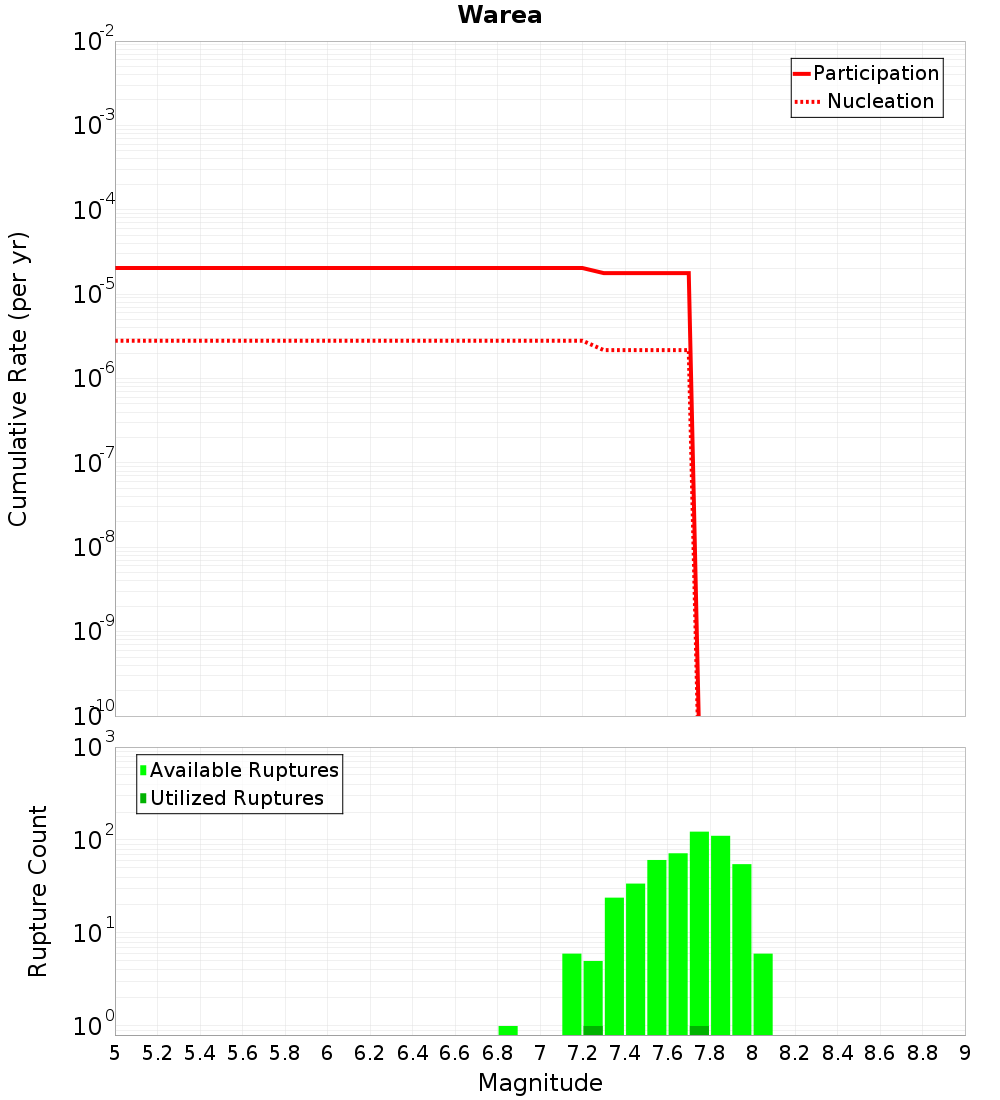

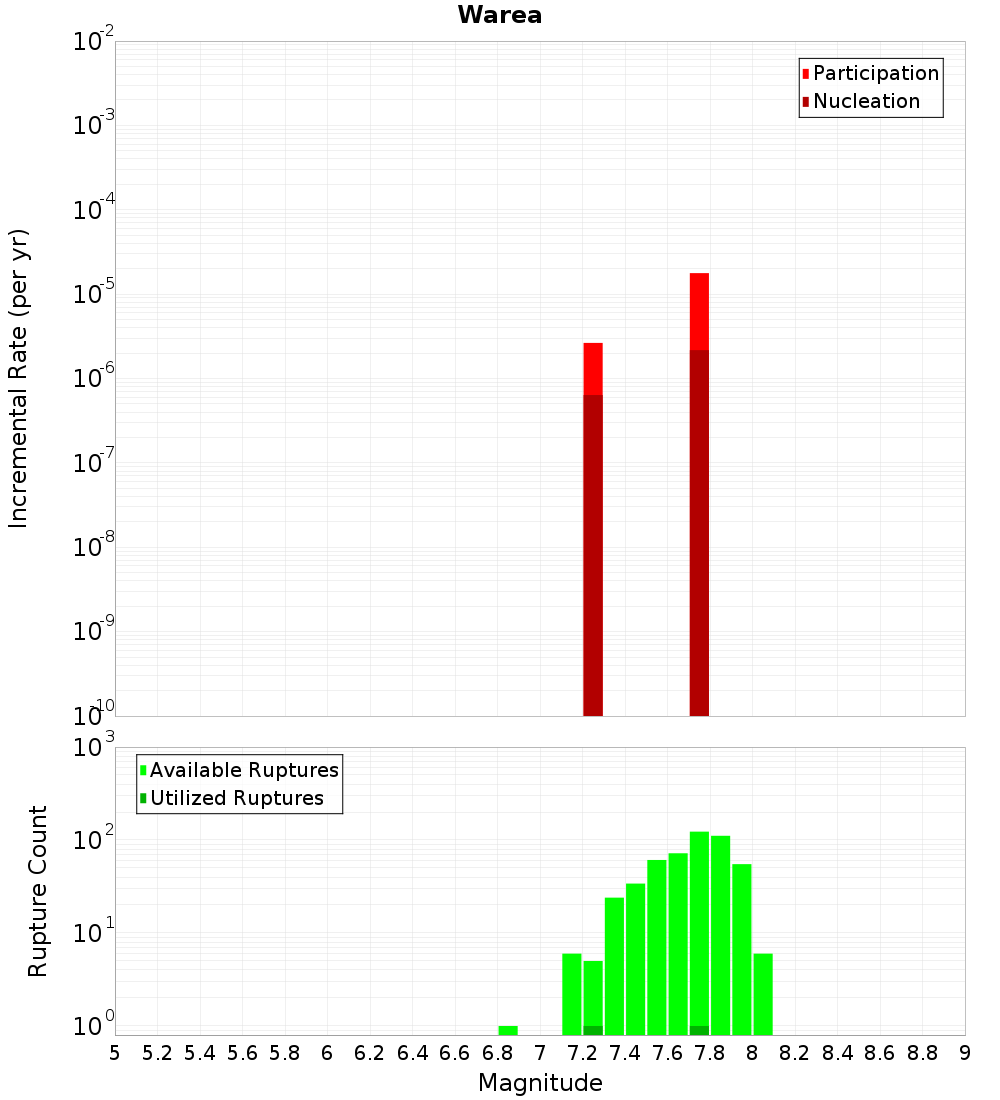

Magnitude-Frequency Distribution

Incremental	Cumulative

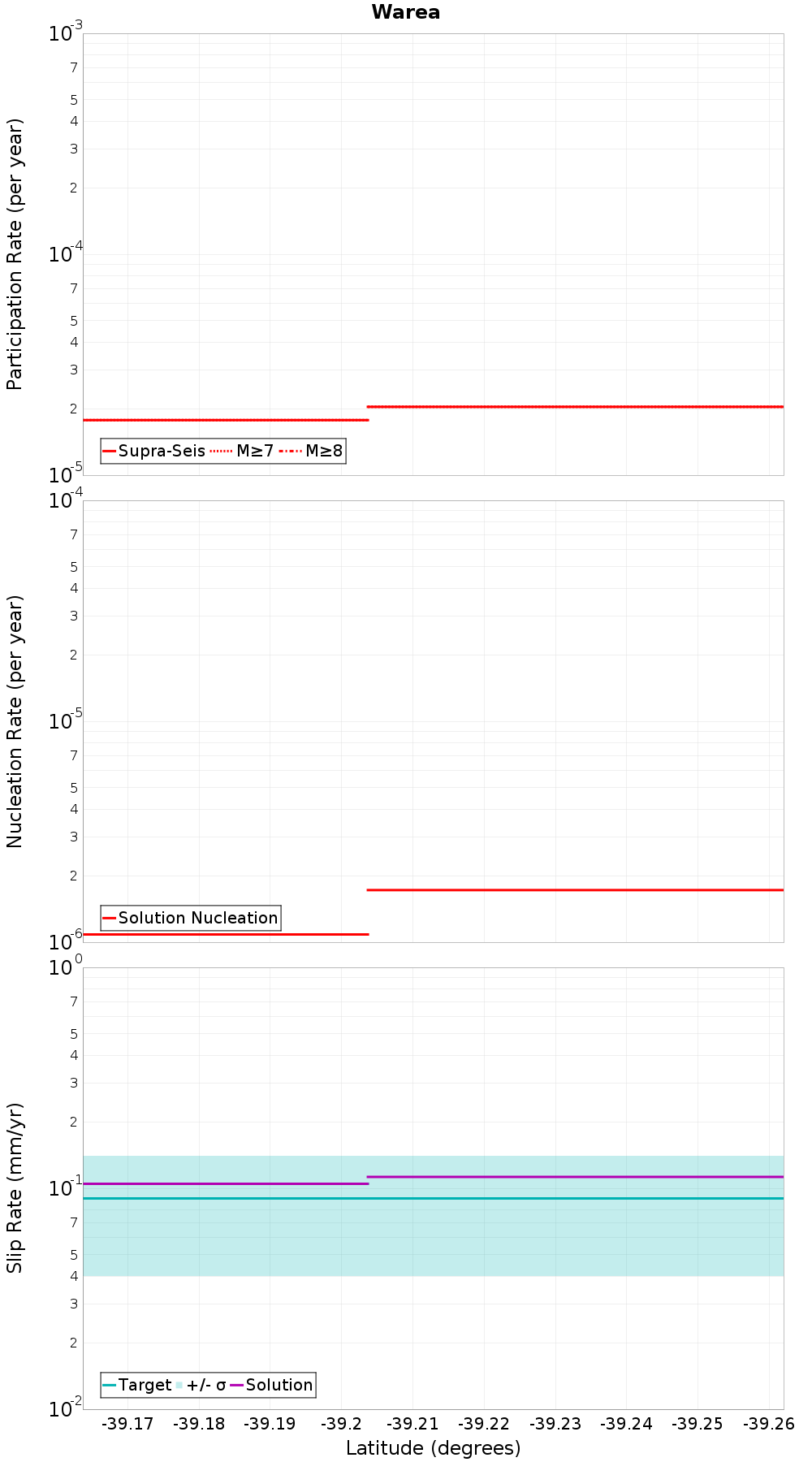

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Oaonui, 0.29 km away
Ihaia, 0.49 km away
Manahi 2, 3.12 km away
Kiri, 3.99 km away
Rahotu, 5.02 km away
Pihama, 9.04 km away
Turi: South, 9.28 km away
Cape Egmont: North, 11.71 km away
Manahi 1, 14.58 km away
Inglewood, 18.04 km away
Norfolk, 19.53 km away

Oaonui, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ihaia, 0.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	198
Co-rupture Rate	2.0380674E-5

Manahi 2, 3.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	77
Co-rupture Rate	0.0

Kiri, 3.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	228
Co-rupture Rate	0.0

Rahotu, 5.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	57
Co-rupture Rate	2.641814E-6

Pihama, 9.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	56
Co-rupture Rate	0.0

Turi: South, 9.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	true
Co-rupture Count	420
Co-rupture Rate	1.773886E-5

Cape Egmont: North, 11.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	224
Co-rupture Rate	0.0

Manahi 1, 14.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	true
Directly Connected?	false
Co-rupture Count	158
Co-rupture Rate	0.0

Inglewood, 18.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Norfolk, 19.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjQuMHY5RnVN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
