Cloudy 1 Details

PropertyValue
Rupture Count394
Ruptures Above Sect Min Mag393
Ruptures w/ Nonzero Rates1
Magnitude Range[6.60, 8.07]
Length Range[11, 335] km
Total Rate5.103531E-4 /yr
Multi-Fault Rate5.103531E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults26

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

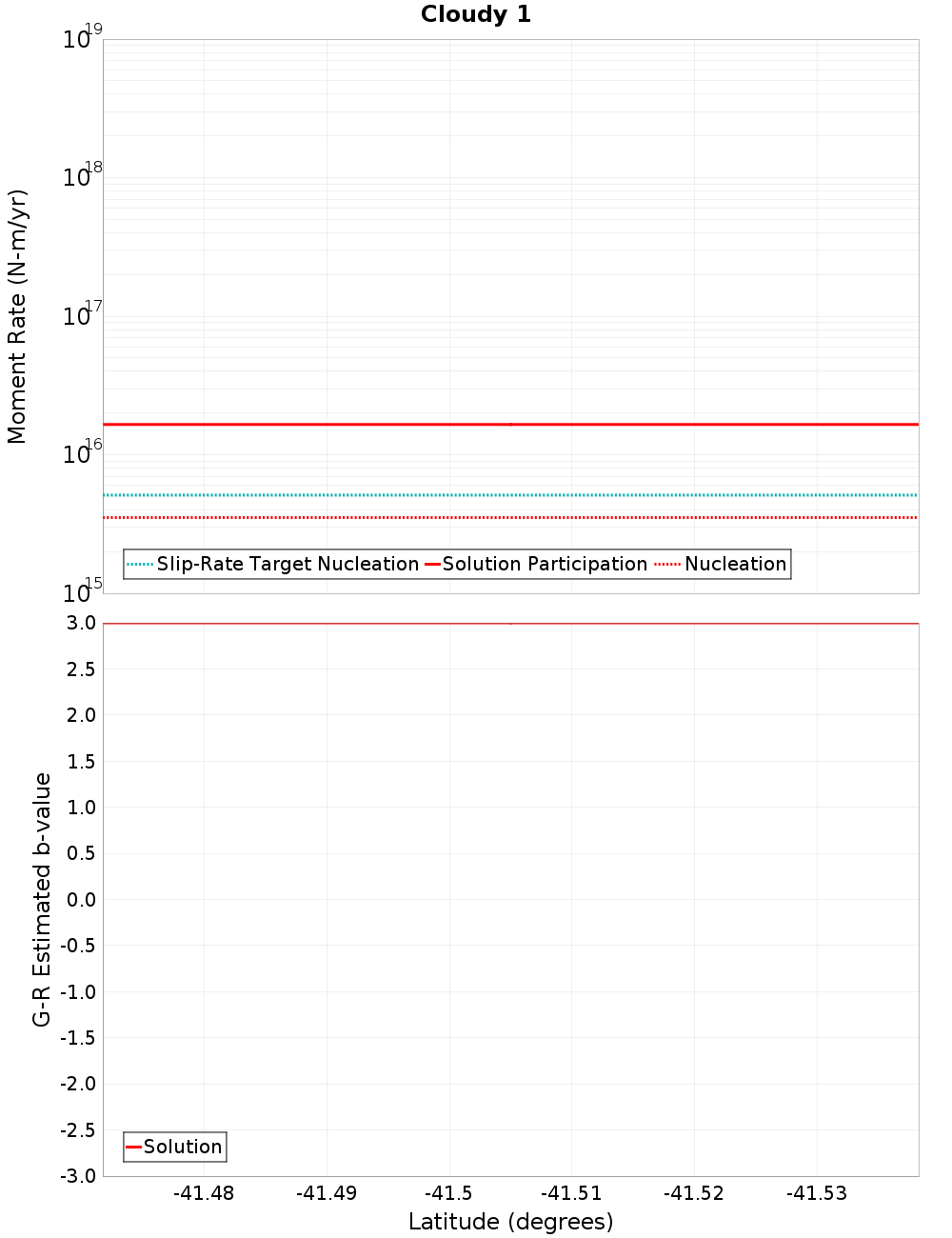

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Vernon 3, 0 km awayOhariu South 1, 10.5 km away
Cloudy 2, 0 km awayWairau 2, 10.61 km away
Vernon 2, 0 km awayVernon 1, 11.29 km away
Awatere: Northeast 2, 0.25 km awayWairau, 12.85 km away
Cloudy 3, 0.35 km awayNeedles, 15.68 km away
Vernon 4, 1.47 km awayWellington Hutt Valley: 1, 15.73 km away
Needles East 2, 7.07 km awayLondon Hill, 16.07 km away
Wairarapa: Needles, 7.89 km awayBooBoo, 16.86 km away
Wairau 3, 7.96 km awayAwatere: Northeast 1, 17.19 km away

Vernon 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Awatere: Northeast 2, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?true
Co-rupture Count376
Co-rupture Rate0.0

Cloudy 3, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Vernon 4, 1.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles East 2, 7.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: Needles, 7.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Wairau 3, 7.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 1, 10.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?true
Co-rupture Count351
Co-rupture Rate5.103531E-4

Wairau 2, 10.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Wairau, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles, 15.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 15.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate0.0

London Hill, 16.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

BooBoo, 16.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Northeast 1, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count343
Co-rupture Rate0.0
