Hope: Conway Details

Property	Value
Rupture Count	89,019
Ruptures Above Sect Min Mag	89,010
Ruptures w/ Nonzero Rates	98
Magnitude Range	[6.76, 8.54]
Length Range	[18, 1,156] km
Total Rate	0.0025539023 /yr
Multi-Fault Rate	0.002471112 /yr (96.76%)
Directly-Connected Faults	13
All Co-Rupturing Faults	143

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

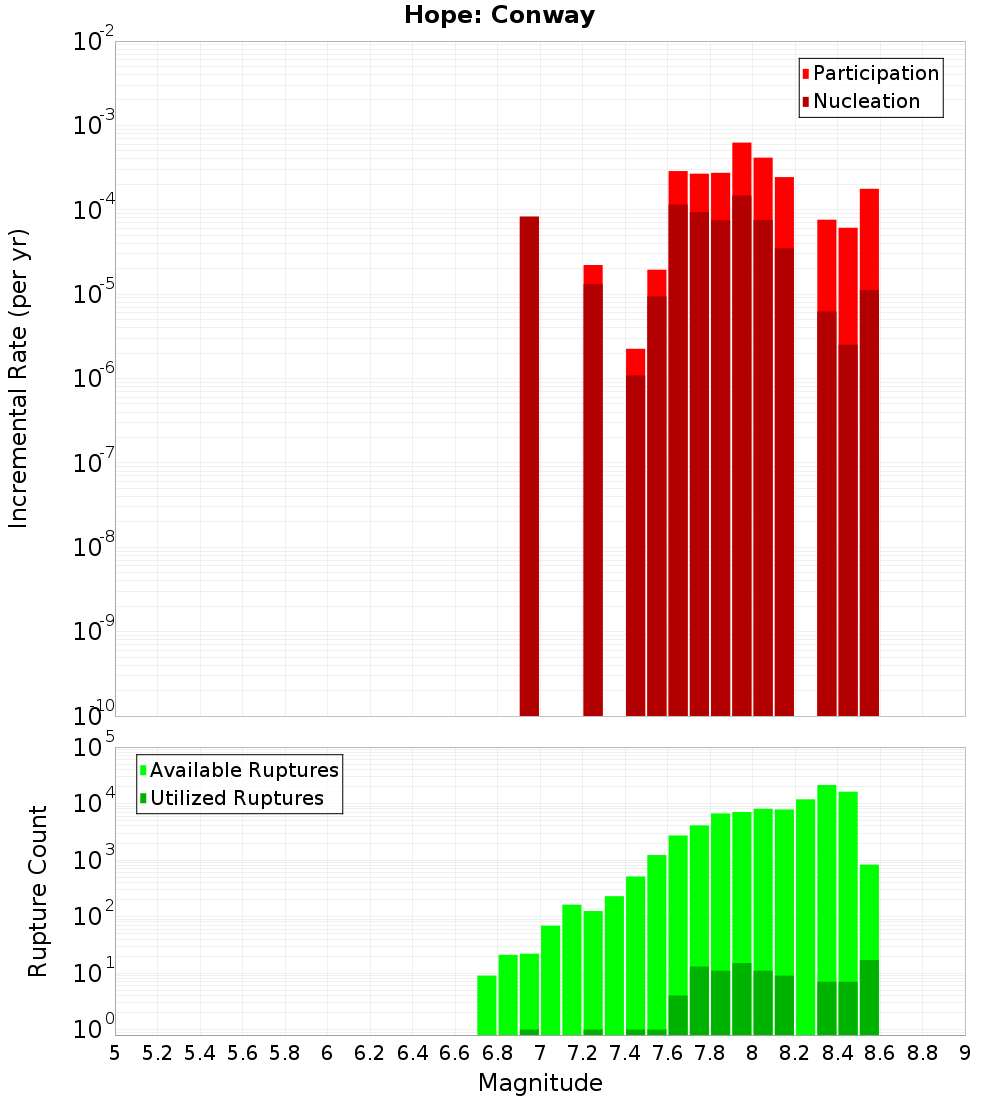

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

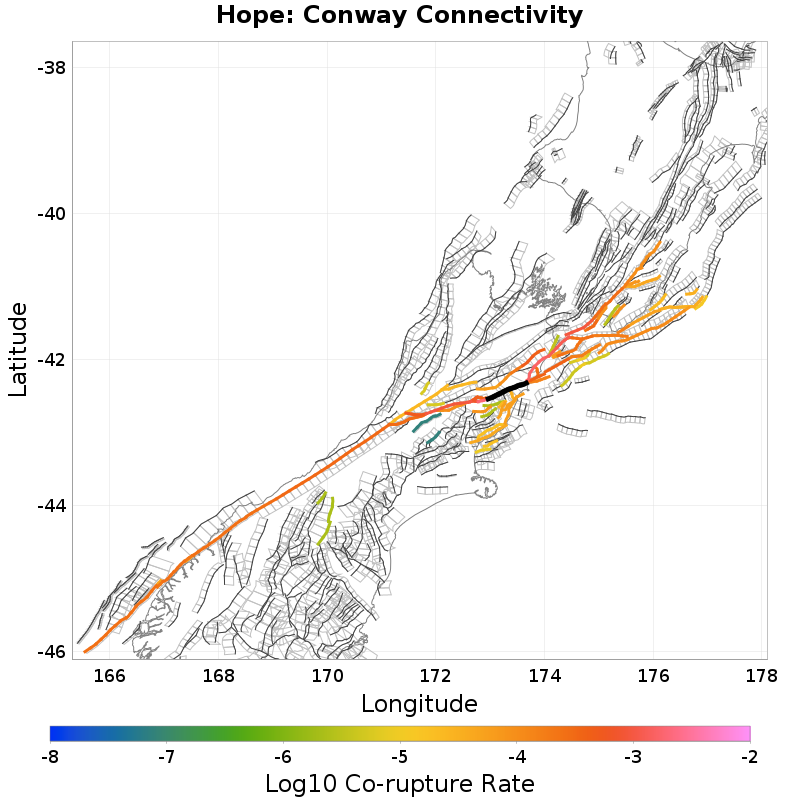

Connectivity

Nearby Sections

Fault Section	Fault Section
Jordan, 0 km away	Papatea, 7.91 km away
Hanmer, 0 km away	The Humps, 10.44 km away
Hope: Hanmer SE, 0 km away	Elliott, 11.08 km away
Hope: Seaward, 0 km away	Mt Culverden, 12.62 km away
Leader: North, 0.16 km away	Hope: Hanmer SW, 13.51 km away
StoneJug, 0.28 km away	Hope: Hanmer NW, 15.41 km away
Kaikoura - Mangamaunu, 3.18 km away	Fidget, 17.08 km away
Leader: South, 3.52 km away	Leonard Mound, 18.07 km away
Hundalee, 4.6 km away	Hawkswood, 18.44 km away
Leader: Central, 4.87 km away	Conway Trough West, 19.66 km away
Kaiwara North, 5.81 km away

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	10,789
Co-rupture Rate	0.0015876443

Hanmer, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	29,443
Co-rupture Rate	3.6174338E-4

Hope: Hanmer SE, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	60,069
Co-rupture Rate	0.0018634015

Hope: Seaward, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	46,246
Co-rupture Rate	3.8971807E-4

Leader: North, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	352
Co-rupture Rate	0.0

StoneJug, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	353
Co-rupture Rate	3.187312E-5

Kaikoura - Mangamaunu, 3.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	4,716
Co-rupture Rate	1.4847863E-4

Leader: South, 3.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,214
Co-rupture Rate	2.4077166E-5

Hundalee, 4.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,461
Co-rupture Rate	5.7517515E-5

Leader: Central, 4.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,378
Co-rupture Rate	0.0

Kaiwara North, 5.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	546
Co-rupture Rate	5.4102988E-5

Papatea, 7.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	943
Co-rupture Rate	2.723803E-4

The Humps, 10.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	false
Co-rupture Count	63
Co-rupture Rate	2.2509987E-6

Elliott, 11.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	3,609
Co-rupture Rate	1.21592326E-4

Mt Culverden, 12.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	false
Co-rupture Count	151
Co-rupture Rate	8.418116E-5

Hope: Hanmer SW, 13.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	false
Co-rupture Count	69,422
Co-rupture Rate	7.1382767E-4

Hope: Hanmer NW, 15.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	false
Co-rupture Count	18,641
Co-rupture Rate	4.5628744E-4

Fidget, 17.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	false
Co-rupture Count	520
Co-rupture Rate	0.0

Leonard Mound, 18.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	false
Co-rupture Count	54
Co-rupture Rate	2.346641E-6

Hawkswood, 18.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	false
Co-rupture Count	549
Co-rupture Rate	5.7517515E-5

Conway Trough West, 19.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	0.0
