Hope: Hope River Details

PropertyValue
Rupture Count75,555
Ruptures Above Sect Min Mag75,552
Ruptures w/ Nonzero Rates66
Magnitude Range[6.86, 8.54]
Length Range[20, 1,156] km
Total Rate0.003126988 /yr
Multi-Fault Rate0.0023181362 /yr (74.13%)
Directly-Connected Faults5
All Co-Rupturing Faults109

Table Of Contents

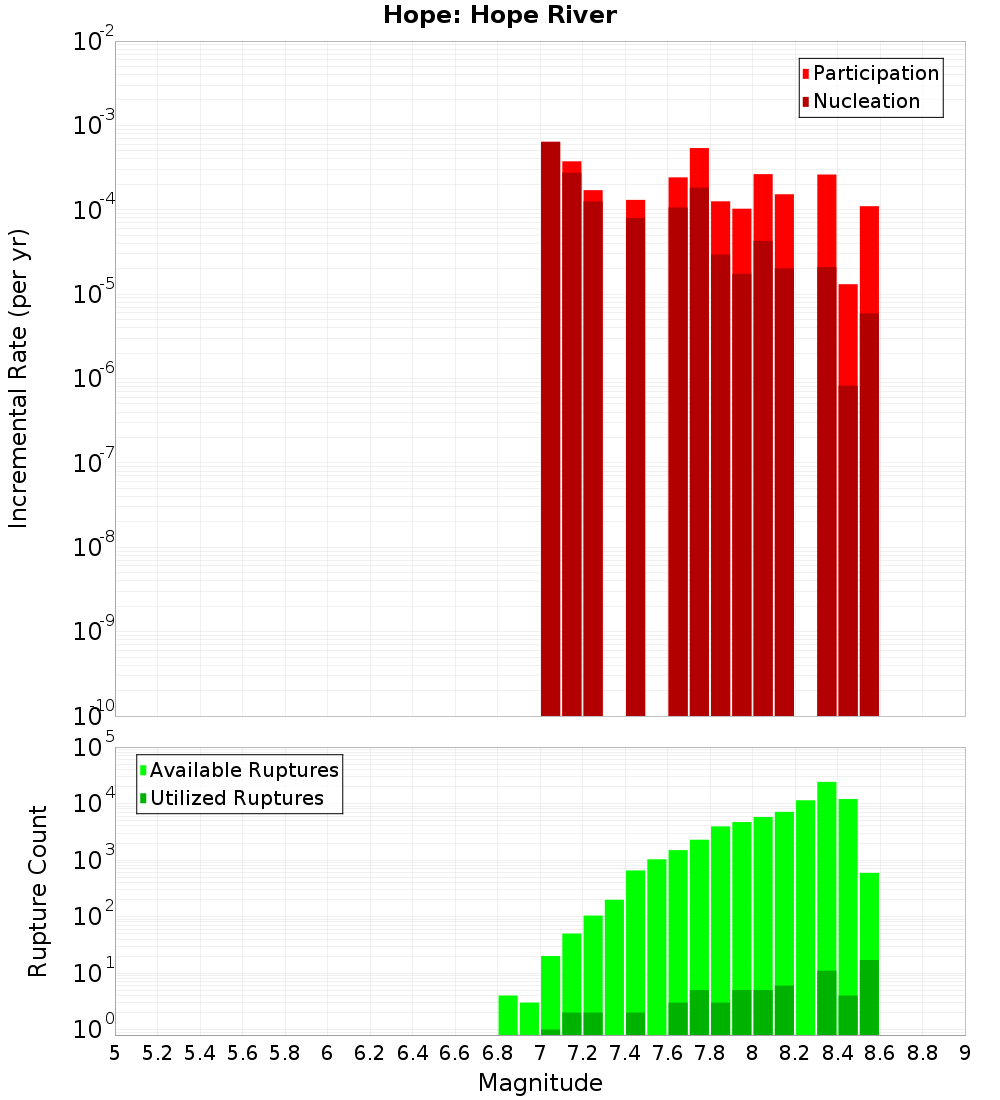

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Kakapo-2-Hamner, 0 km awayHope: Taramakau, 13.46 km away
Kakapo, 0 km awayAlpine: Springs Junction to Tophouse, 14.11 km away
Hope: Hurunui, 0 km awayHanmer, 14.35 km away
Esk North, 1.25 km awayKelly, 14.38 km away
Alpine: Kaniere to Springs Junction, 2.78 km awayFowlers, 16.27 km away
Clarence: Southwest, 5.56 km awayHope: Hanmer SE, 16.82 km away
Hope: Hanmer NW, 6.3 km awayMt Culverden, 17.08 km away
Hope: Hanmer SW, 6.3 km awayBalmoral, 17.33 km away
Poulter, 7.81 km awayWhite Creek - buried, 19.11 km away
Hurunui Peak, 11.81 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?true
Co-rupture Count63,517
Co-rupture Rate0.0019352626

Kakapo, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?true
Co-rupture Count612
Co-rupture Rate2.0466033E-4

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?true
Co-rupture Count73,073
Co-rupture Rate0.002077717

Esk North, 1.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Kaniere to Springs Junction, 2.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count894
Co-rupture Rate6.378592E-4

Clarence: Southwest, 5.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?true
Co-rupture Count8,498
Co-rupture Rate1.283362E-5

Hope: Hanmer NW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count21,680
Co-rupture Rate0.0014133607

Hope: Hanmer SW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count48,199
Co-rupture Rate5.5801775E-4

Poulter, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count226
Co-rupture Rate2.8357284E-5

Hurunui Peak, 11.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Taramakau, 13.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count14,099
Co-rupture Rate7.52282E-4

Alpine: Springs Junction to Tophouse, 14.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?true
Co-rupture Count342
Co-rupture Rate3.0424015E-5

Hanmer, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count23,807
Co-rupture Rate5.803207E-4

Kelly, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count62,680
Co-rupture Rate0.001200748

Fowlers, 16.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count1,129
Co-rupture Rate0.0

Hope: Hanmer SE, 16.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count37,017
Co-rupture Rate5.5801775E-4

Mt Culverden, 17.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 17.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Creek - buried, 19.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count86
Co-rupture Rate5.3346175E-6
