Needles Details

PropertyValue
Rupture Count21,721
Ruptures Above Sect Min Mag21,717
Ruptures w/ Nonzero Rates60
Magnitude Range[6.72, 8.52]
Length Range[17, 977] km
Total Rate0.0023217378 /yr
Multi-Fault Rate0.0023217378 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults121

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

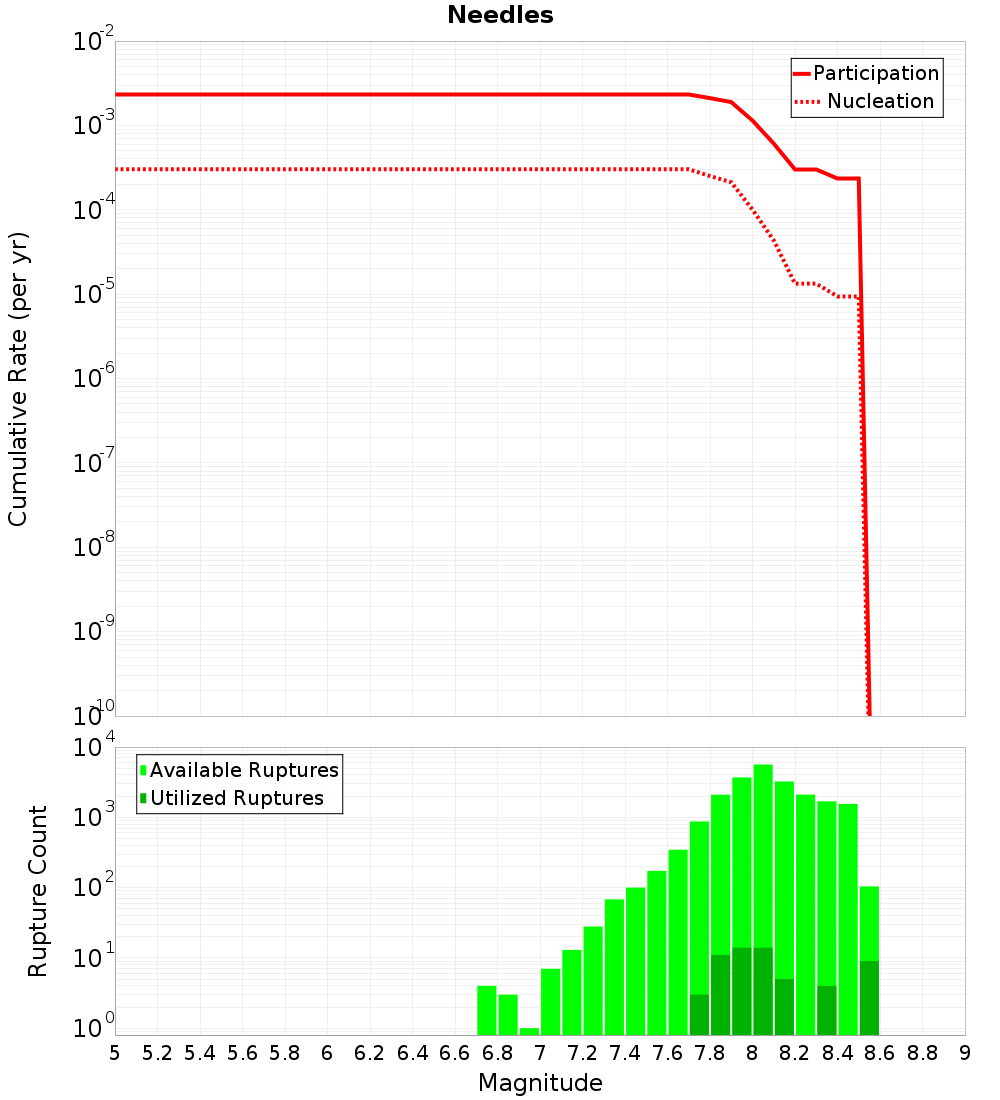

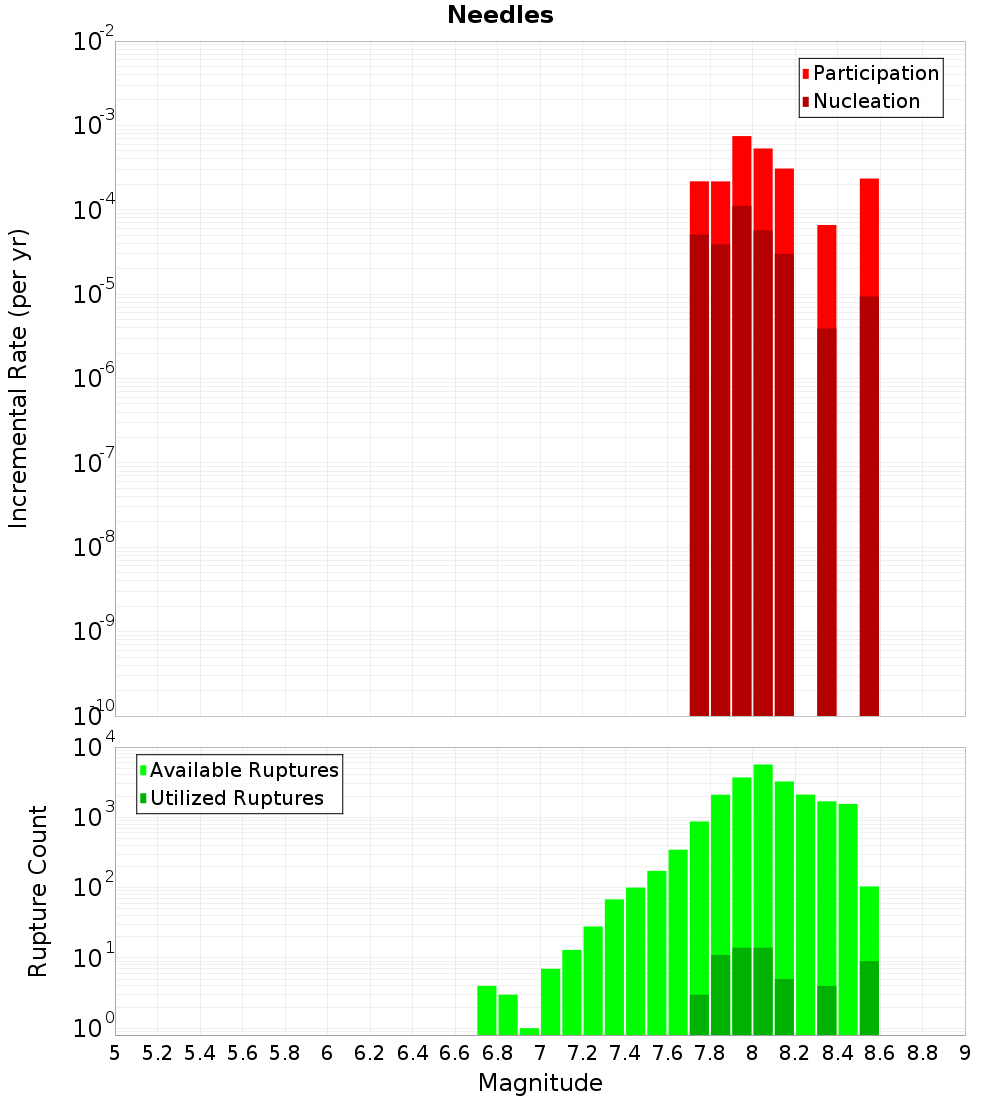

Incremental PlotCumulative Plot

Along-Strike Values

(top)

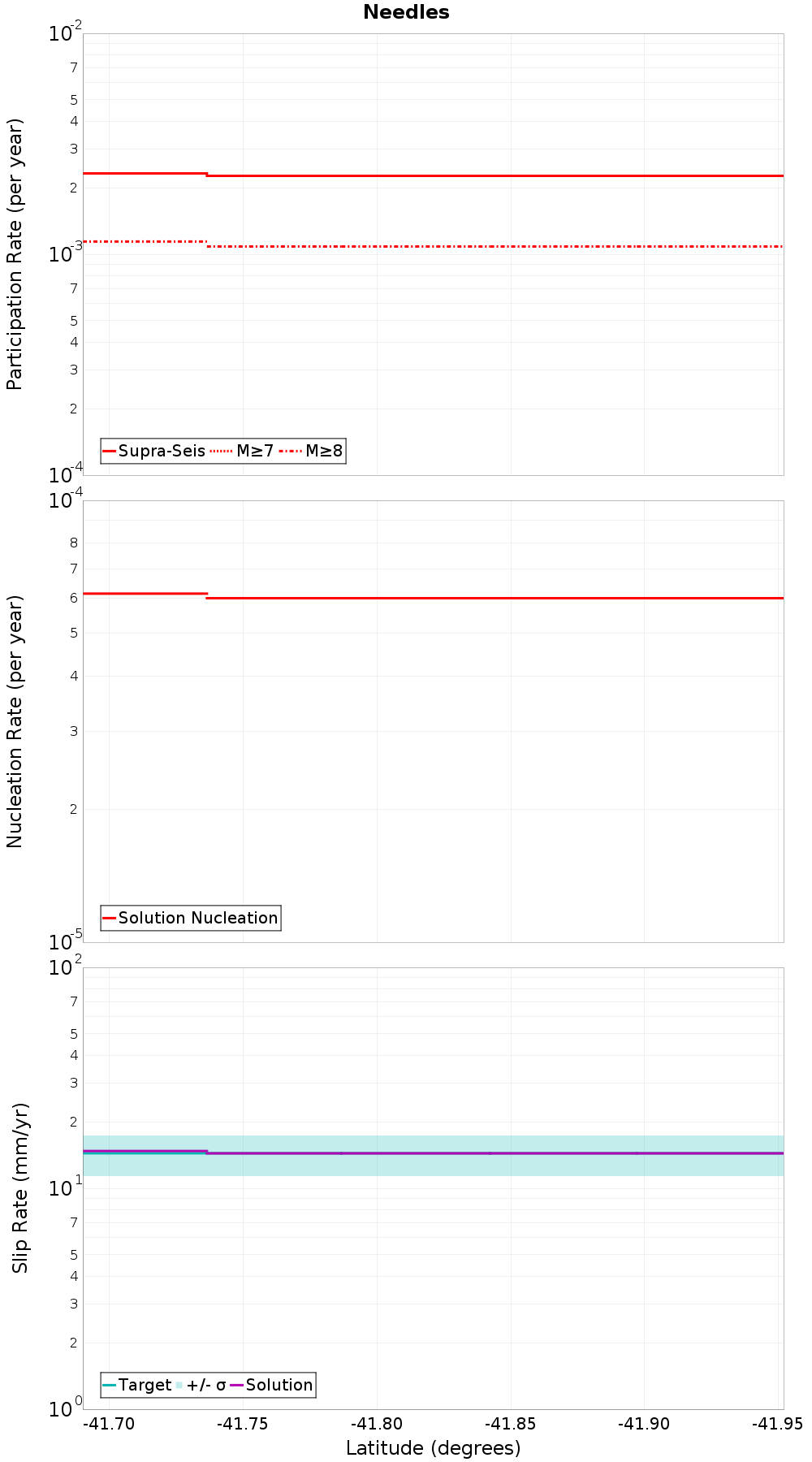

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

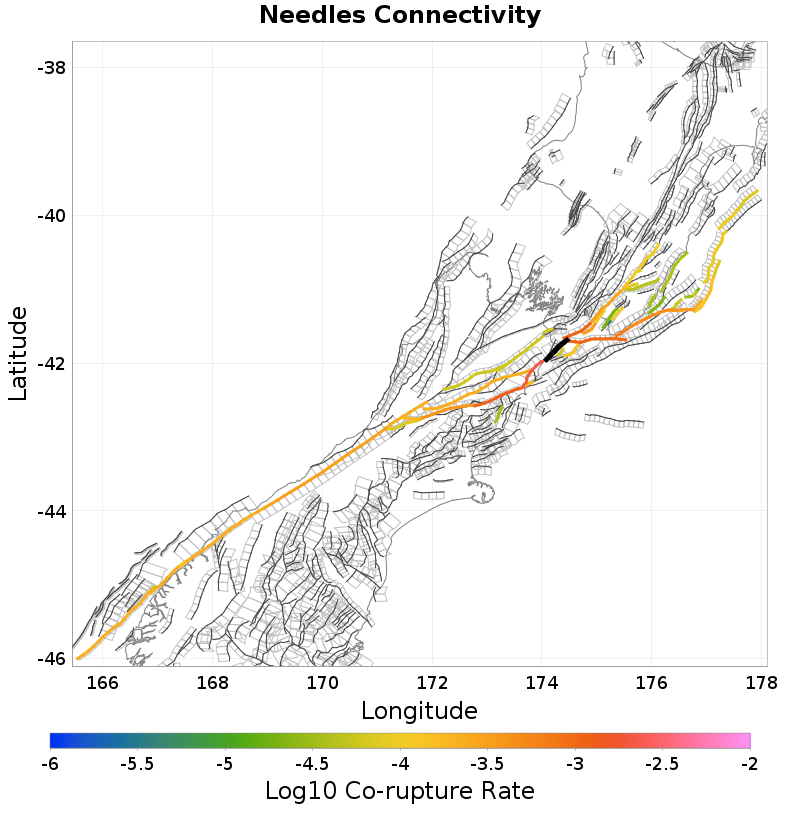

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Kekerengu 1, 0 km awayCloudy 3, 12.89 km away
London Hill, 0 km awayUpper Slope, 13.53 km away
Needles East 2, 0.13 km awayVernon 3, 14.11 km away
BooBoo, 0.24 km awayCloudy 1, 15.68 km away
Wairarapa: Needles, 4.57 km awayVernon 2, 15.92 km away
Chancet, 6.52 km awayCloudy 2, 16.43 km away
Vernon 4, 7.01 km awayCampbell Bank, 17.87 km away
Wharanui, 10.37 km awayHope: Te Rapa, 18.14 km away
Clarence: Northeast, 11.97 km awayVernon 1, 19.52 km away

Kekerengu 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?true
Co-rupture Count19,730
Co-rupture Rate0.002264156

London Hill, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?true
Co-rupture Count100
Co-rupture Rate0.0

Needles East 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?true
Co-rupture Count949
Co-rupture Rate5.7581667E-5

BooBoo, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?true
Co-rupture Count13,670
Co-rupture Rate0.0011916648

Wairarapa: Needles, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?true
Co-rupture Count5,923
Co-rupture Rate0.0011300729

Chancet, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count292
Co-rupture Rate1.12074595E-4

Vernon 4, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharanui, 10.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Northeast, 11.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 12.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Upper Slope, 13.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count122
Co-rupture Rate0.0

Vernon 3, 14.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 1, 15.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 2, 15.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count132
Co-rupture Rate5.7581667E-5

Cloudy 2, 16.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Bank, 17.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count375
Co-rupture Rate1.3553214E-4

Hope: Te Rapa, 18.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Vernon 1, 19.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
