Otakiri Details

Property	Value
Rupture Count	15,854
Ruptures Above Sect Min Mag	15,826
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.29, 8.27]
Length Range	[10, 564] km
Total Rate	3.3502423E-4 /yr
Multi-Fault Rate	3.3502423E-4 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	93

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

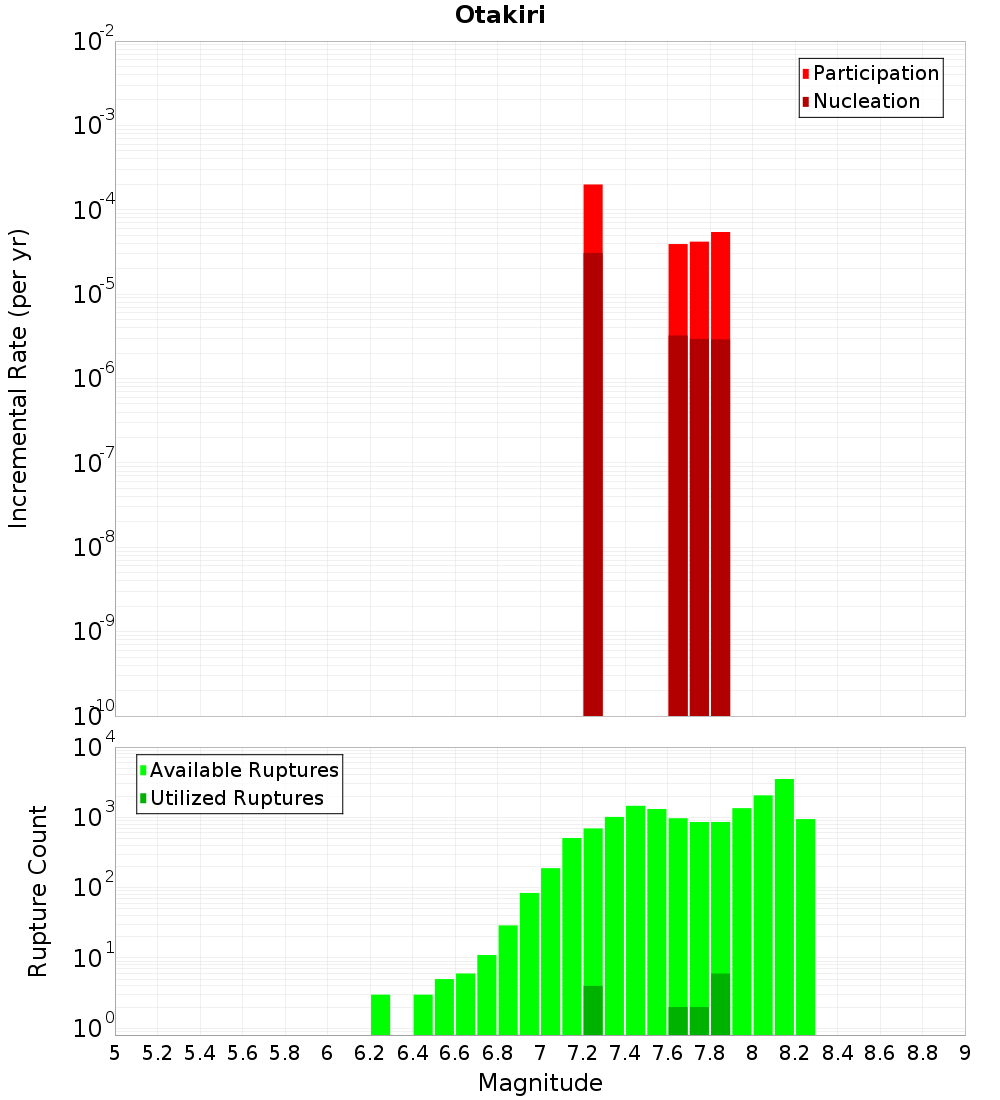

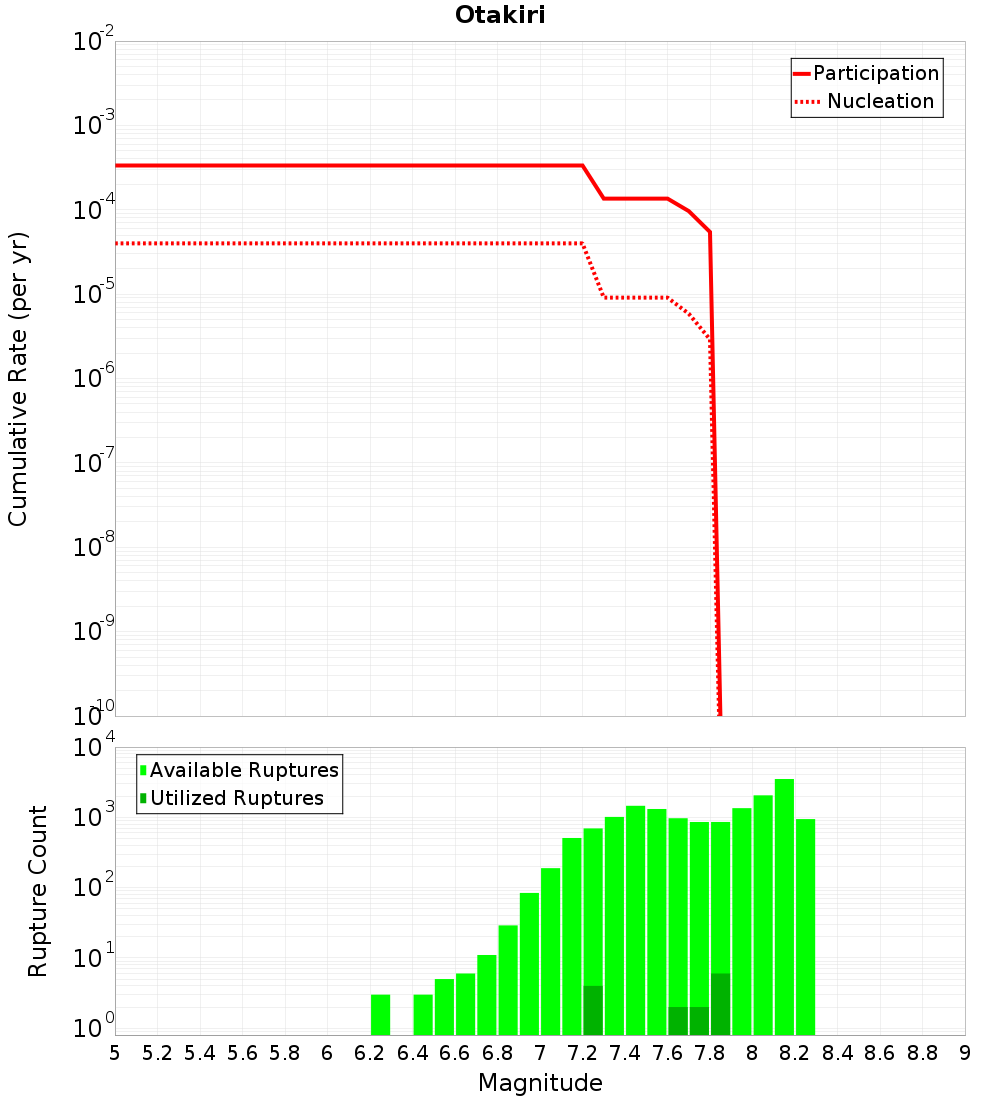

Magnitude-Frequency Distribution

Incremental	Cumulative

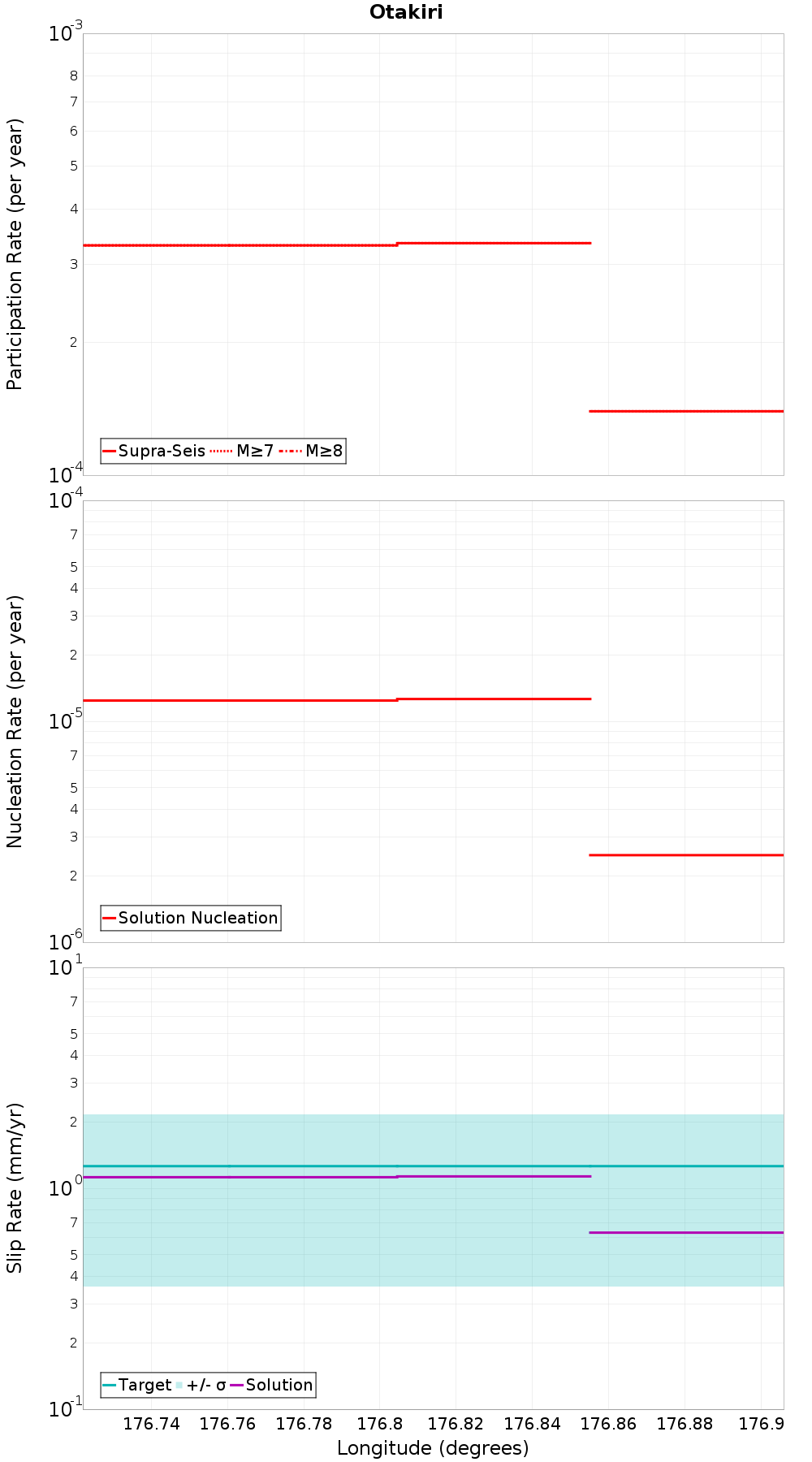

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awakeri, 0.06 km away
Edgecumbe 1987, 0.16 km away
Rotoitipakau, 0.23 km away
Whakatane: North, 0.26 km away
Waiohau: North, 0.35 km away
Edgecumbe Coastal, 0.38 km away
Braemar, 0.57 km away
White Island 1, 2.46 km away
Matata, 4.47 km away
Rangitaiki 1, 10.94 km away
Waimana: North, 11.33 km away
Waiotahi: North, 16.29 km away
Rangitaiki 2, 17.19 km away

Awakeri, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,283
Co-rupture Rate	0.0

Edgecumbe 1987, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	285
Co-rupture Rate	0.0

Rotoitipakau, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	2,387
Co-rupture Rate	2.6454395E-4

Whakatane: North, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	563
Co-rupture Rate	1.9553603E-4

Waiohau: North, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	10,828
Co-rupture Rate	6.660195E-5

Edgecumbe Coastal, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	2,572
Co-rupture Rate	1.9356504E-4

Braemar, 0.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	3,038
Co-rupture Rate	2.3863776E-4

White Island 1, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	12,429
Co-rupture Rate	1.3560985E-4

Matata, 4.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,064
Co-rupture Rate	3.922339E-5

Rangitaiki 1, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	false
Co-rupture Count	153
Co-rupture Rate	0.0

Waimana: North, 11.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	false
Co-rupture Count	152
Co-rupture Rate	0.0

Waiotahi: North, 16.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 2, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjUuNXh2QXJC
Connected?	true
Directly Connected?	false
Co-rupture Count	2,250
Co-rupture Rate	4.6007568E-5
