High Peak - Sheffield Details

PropertyValue
Rupture Count111
Ruptures Above Sect Min Mag107
Ruptures w/ Nonzero Rates4
Magnitude Range[6.66, 7.63]
Length Range[16, 121] km
Total Rate6.088972E-5 /yr
Multi-Fault Rate6.088972E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults8

Table Of Contents

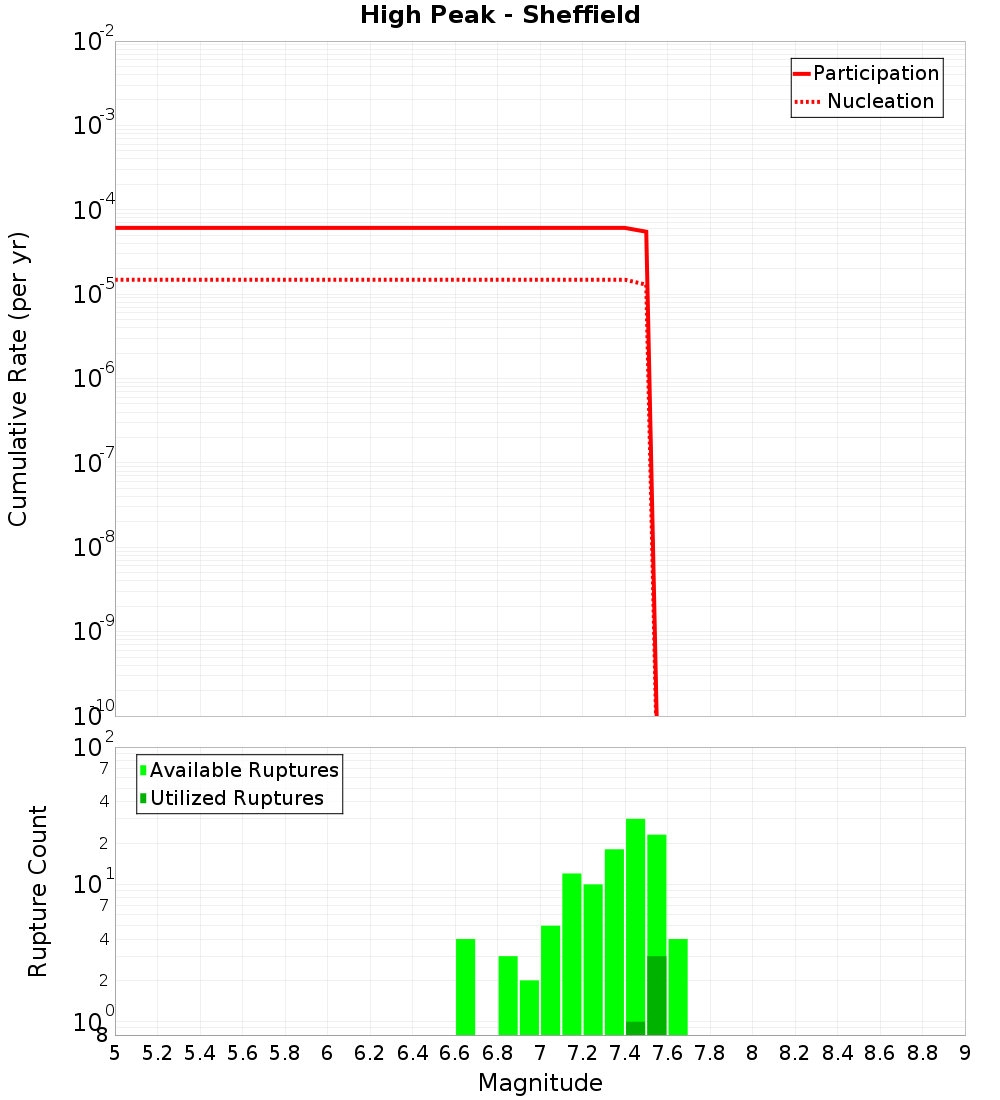

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

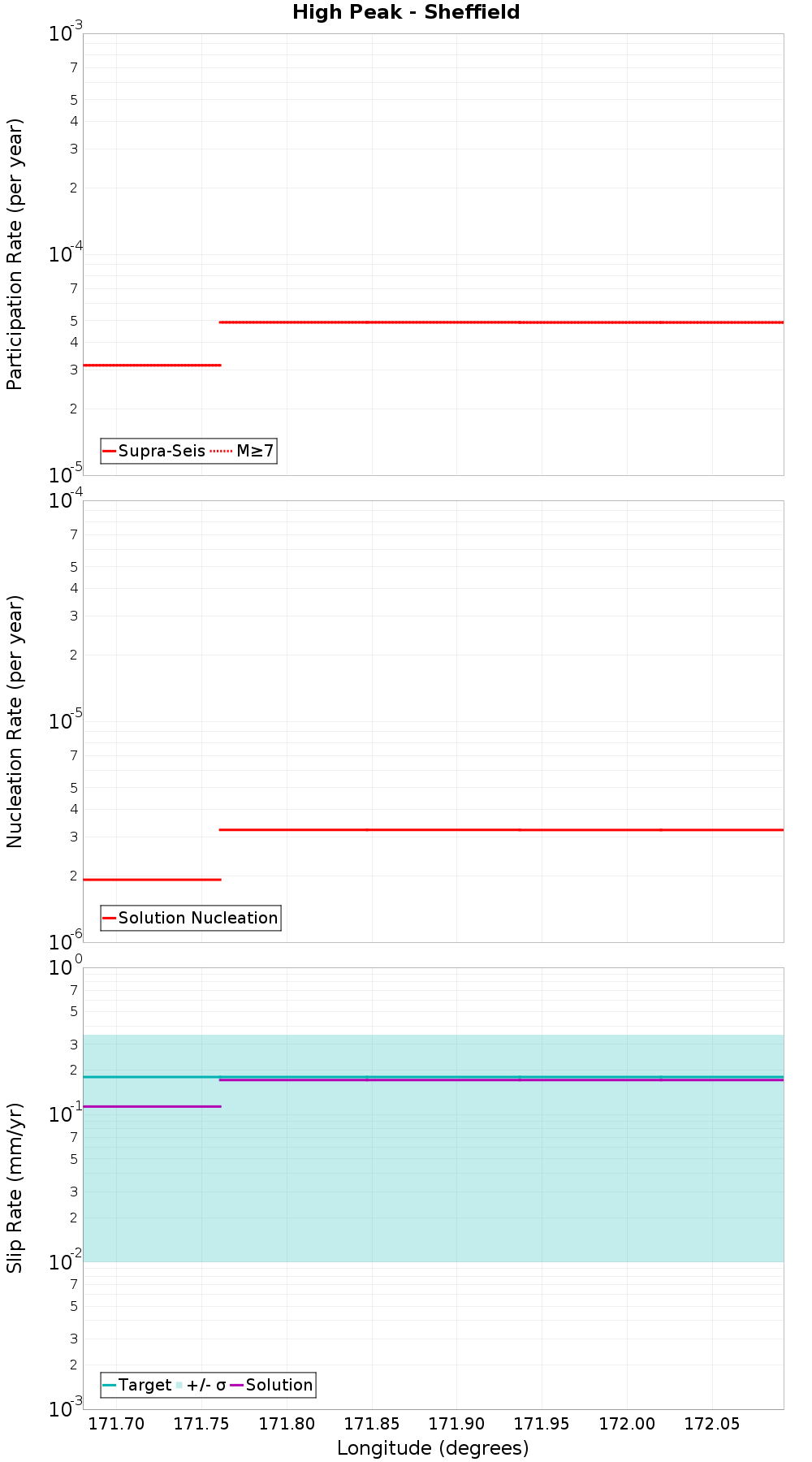

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

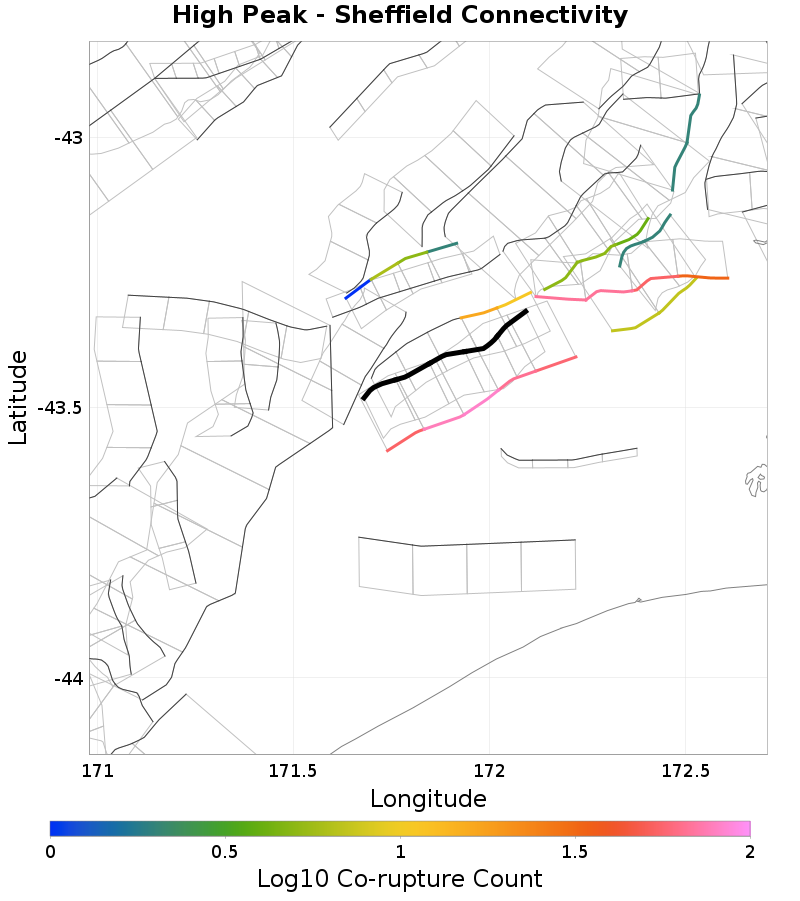

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hororata, 0.11 km away
Big Ben, 1.57 km away
Kowai - View Hill, 1.73 km away
Starvation - Ashley, 3.73 km away
Knowles Top, 6 km away
Hutt Peel, 6.61 km away
Lees Valley, 11.61 km away
Esk South, 12.47 km away
Porters Pass, 12.52 km away
Springbank, 13.42 km away
Greendale, 13.43 km away
Double Hill, 15.46 km away
Torlesse, 17.33 km away
Redcliffe, 18.32 km away

Hororata, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?true
Co-rupture Count92
Co-rupture Rate6.088972E-5

Big Ben, 1.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 1.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate5.9645045E-6

Starvation - Ashley, 3.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?true
Co-rupture Count67
Co-rupture Rate5.4925218E-5

Knowles Top, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate5.9645045E-6

Hutt Peel, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 12.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Porters Pass, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 13.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Greendale, 13.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Double Hill, 15.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Torlesse, 17.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Redcliffe, 18.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
