Kekerengu Bank Details

Property	Value
Rupture Count	5,509
Ruptures Above Sect Min Mag	5,497
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.63, 8.13]
Length Range	[16, 443] km
Total Rate	3.4523633E-4 /yr
Multi-Fault Rate	3.4523633E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	43

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

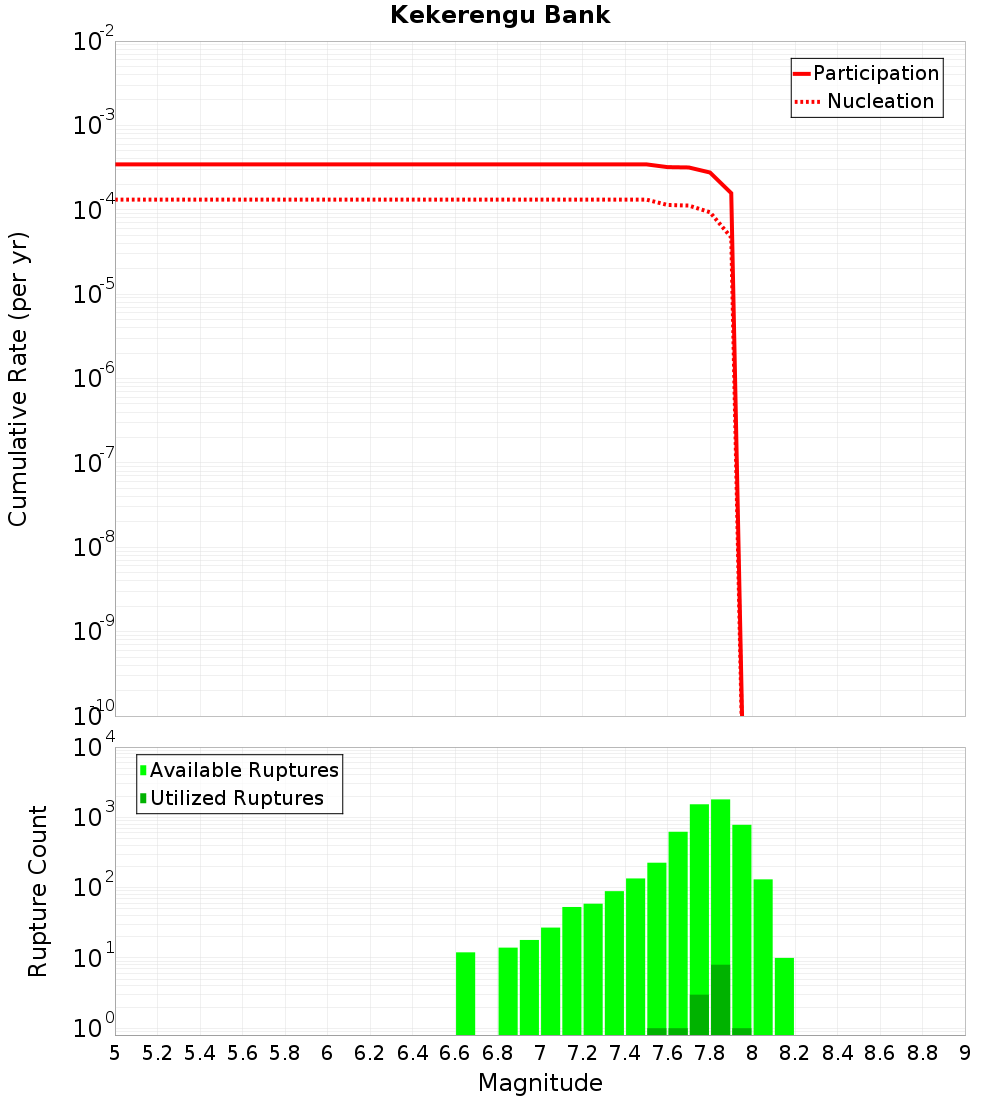

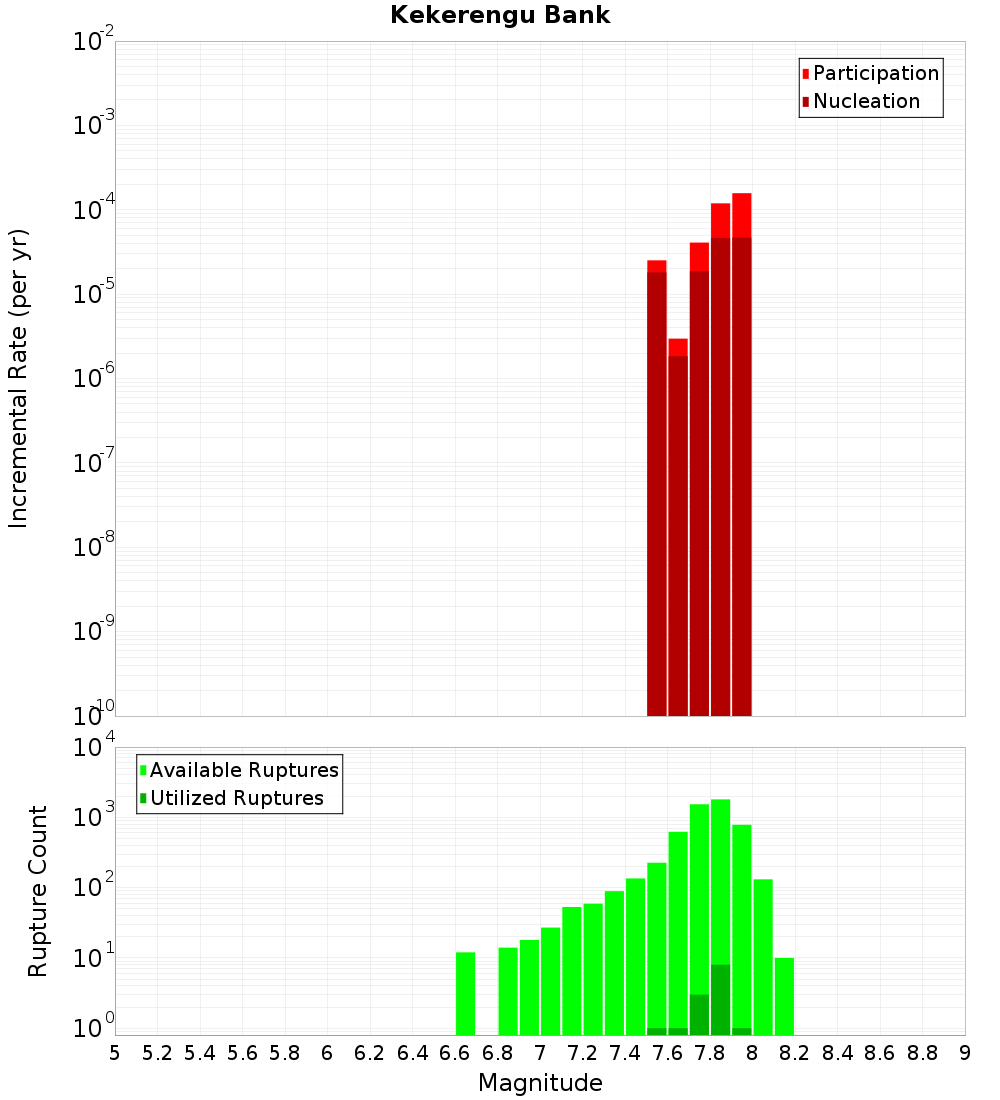

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

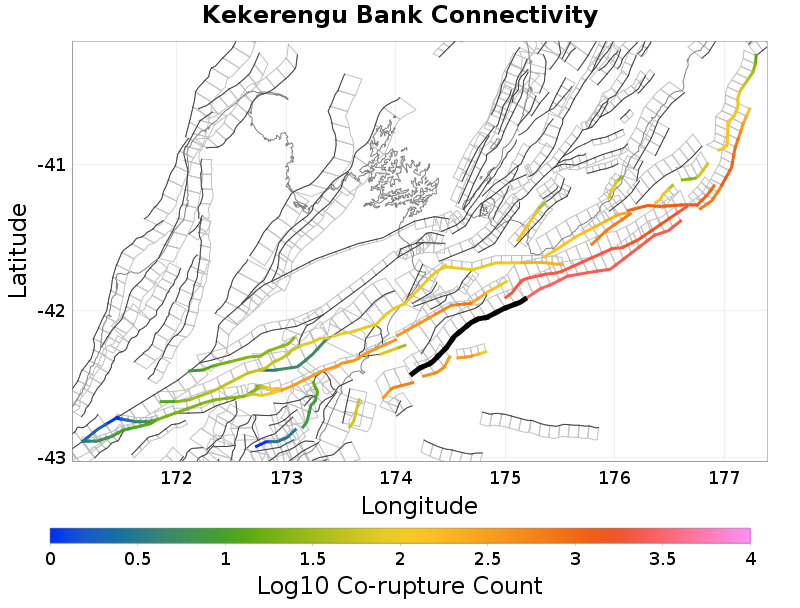

Connectivity

Nearby Sections

Fault Section
Pahaua, 0 km away
Te Rapa 1, 3.66 km away
Marlborough Slope 2, 4.43 km away
Marlborough Slope 4, 4.71 km away
Opouawe - Uruti, 5.24 km away
Te Rapa 2, 5.36 km away
Upper Slope, 5.99 km away
Kaikoura - Mangamaunu, 8.56 km away
Campbell Bank, 9.26 km away
Hope: Te Rapa, 9.62 km away
Marlborough Slope 3, 10.31 km away
Chancet, 16 km away
Wharanui, 17.67 km away
Hope: Seaward, 17.79 km away

Pahaua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	true
Co-rupture Count	3,154
Co-rupture Rate	2.814613E-4

Te Rapa 1, 3.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	true
Co-rupture Count	719
Co-rupture Rate	9.866506E-6

Marlborough Slope 2, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	true
Co-rupture Count	646
Co-rupture Rate	1.5730632E-4

Marlborough Slope 4, 4.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	true
Co-rupture Count	485
Co-rupture Rate	9.294964E-5

Opouawe - Uruti, 5.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	true
Co-rupture Count	3,192
Co-rupture Rate	8.807929E-5

Te Rapa 2, 5.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	true
Co-rupture Count	267
Co-rupture Rate	0.0

Upper Slope, 5.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaikoura - Mangamaunu, 8.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	false
Co-rupture Count	68
Co-rupture Rate	1.4686448E-7

Campbell Bank, 9.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Te Rapa, 9.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	true
Co-rupture Count	563
Co-rupture Rate	9.866506E-6

Marlborough Slope 3, 10.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	true
Co-rupture Count	360
Co-rupture Rate	5.90108E-5

Chancet, 16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wharanui, 17.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Seaward, 17.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	false
Co-rupture Count	376
Co-rupture Rate	9.866506E-6
