Motu o Kura Ridge Details

Property	Value
Rupture Count	2,403
Ruptures Above Sect Min Mag	2,387
Ruptures w/ Nonzero Rates	10
Magnitude Range	[6.43, 8.28]
Length Range	[12, 691] km
Total Rate	2.8171728E-4 /yr
Multi-Fault Rate	2.8171728E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	26

Table Of Contents

Magnitude-Frequency Distribution

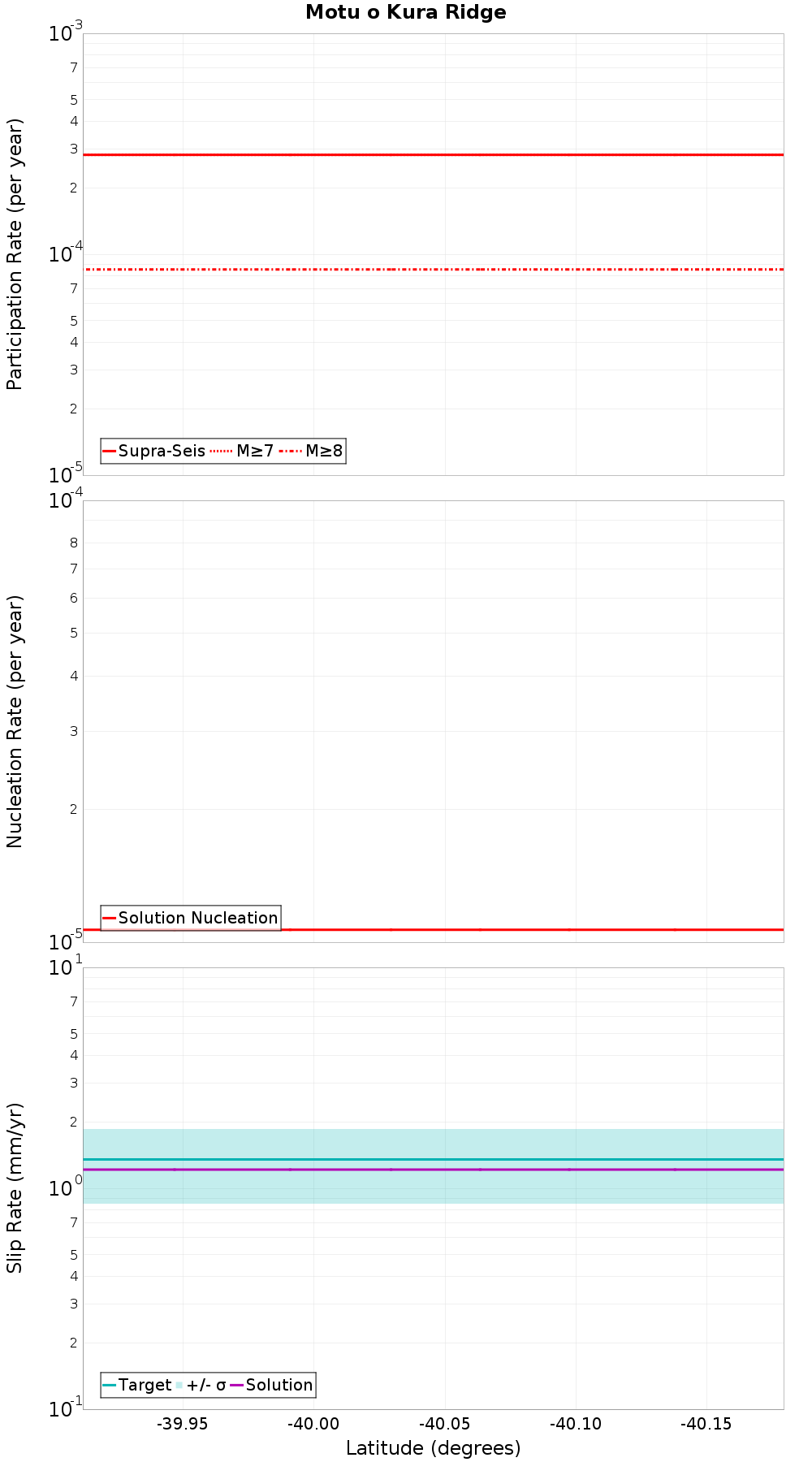

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Motu o Kura North, 0 km away
Motu o Kura East, 6.47 km away
Madden Banks, 7.97 km away
Kairakau 2, 13.84 km away
Kairakau South, 15.61 km away
Kairakau North, 16.63 km away
Lachlan 1 & 2, 19.8 km away

Motu o Kura North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,266
Co-rupture Rate	2.1013904E-4

Motu o Kura East, 6.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,324
Co-rupture Rate	1.8987416E-4

Madden Banks, 7.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	false
Co-rupture Count	2,199
Co-rupture Rate	1.415139E-4

Kairakau 2, 13.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kairakau South, 15.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kairakau North, 16.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lachlan 1 & 2, 19.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?	true
Directly Connected?	false
Co-rupture Count	94
Co-rupture Rate	1.0648773E-4
