Puketerata North Details
| Property | Value |
|---|---|
| Rupture Count | 2,052 |
| Ruptures Above Sect Min Mag | 1,878 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.05, 7.62] |
| Length Range | [7, 181] km |
| Total Rate | 6.3478353E-4 /yr |
| Multi-Fault Rate | 6.3478353E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 24 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

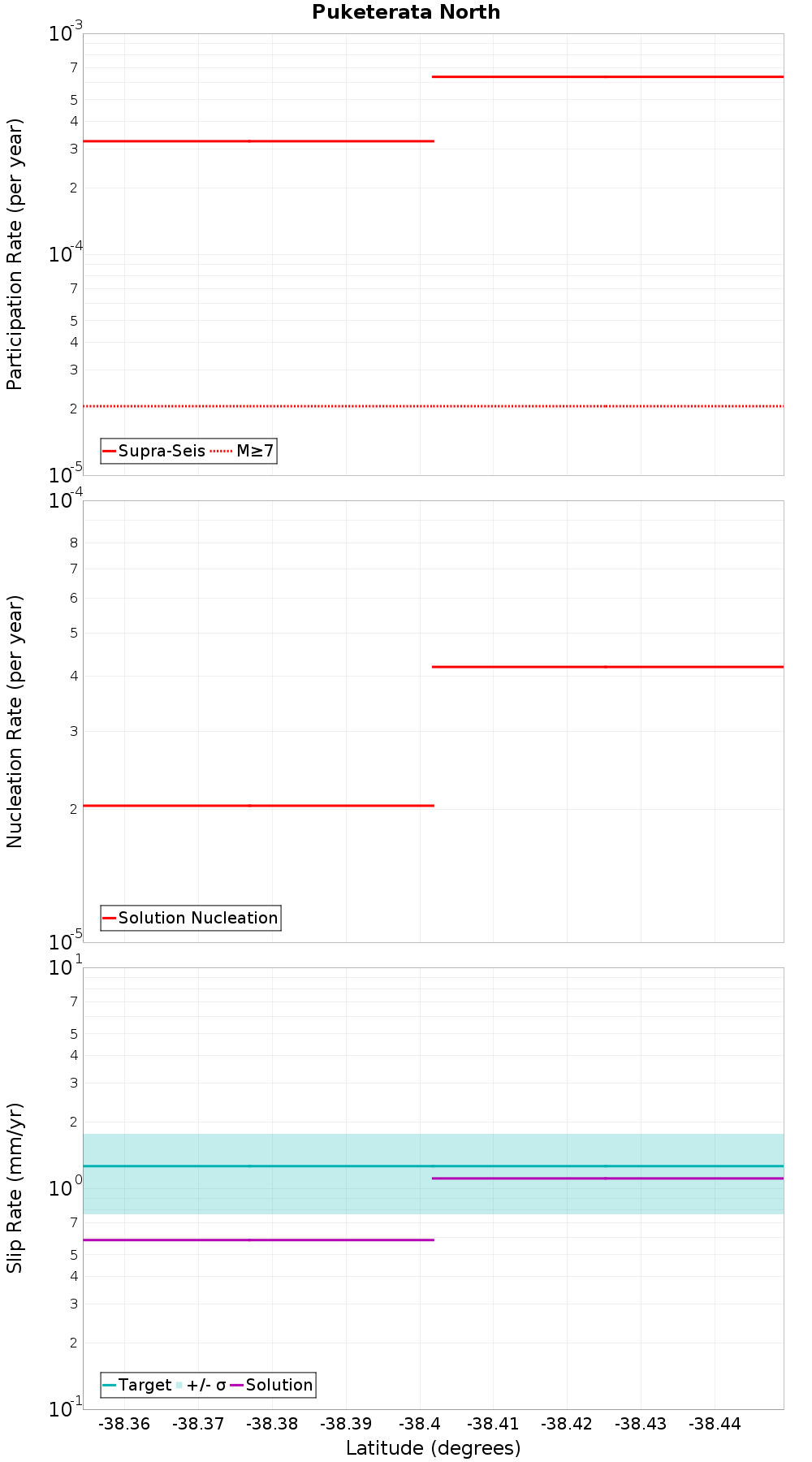

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Puketerata, 0.1 km away |
| Maleme, 0.17 km away |
| Paeroa, 2.15 km away |
| Orakeikorako, 3.28 km away |
| EarthquakeFlat - Tumunui, 7.65 km away |
| Whangamata West, 9.6 km away |
| Kaiapo, 17.13 km away |
Puketerata, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,317 |
| Co-rupture Rate | 5.8707007E-4 |
Maleme, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,062 |
| Co-rupture Rate | 3.1022367E-4 |
Paeroa, 2.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,366 |
| Co-rupture Rate | 3.245599E-4 |
Orakeikorako, 3.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 469 |
| Co-rupture Rate | 4.7713456E-5 |
EarthquakeFlat - Tumunui, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,672 |
| Co-rupture Rate | 2.0502768E-5 |
Whangamata West, 9.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,151 |
| Co-rupture Rate | 5.026815E-4 |
Kaiapo, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 540 |
| Co-rupture Rate | 5.0870323E-4 |
