Ridge Road - Okaia 2 Details
| Property | Value |
|---|---|
| Rupture Count | 618 |
| Ruptures Above Sect Min Mag | 506 |
| Ruptures w/ Nonzero Rates | 23 |
| Magnitude Range | [6.25, 7.33] |
| Length Range | [10, 123] km |
| Total Rate | 1.3472636E-4 /yr |
| Multi-Fault Rate | 1.3472636E-4 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

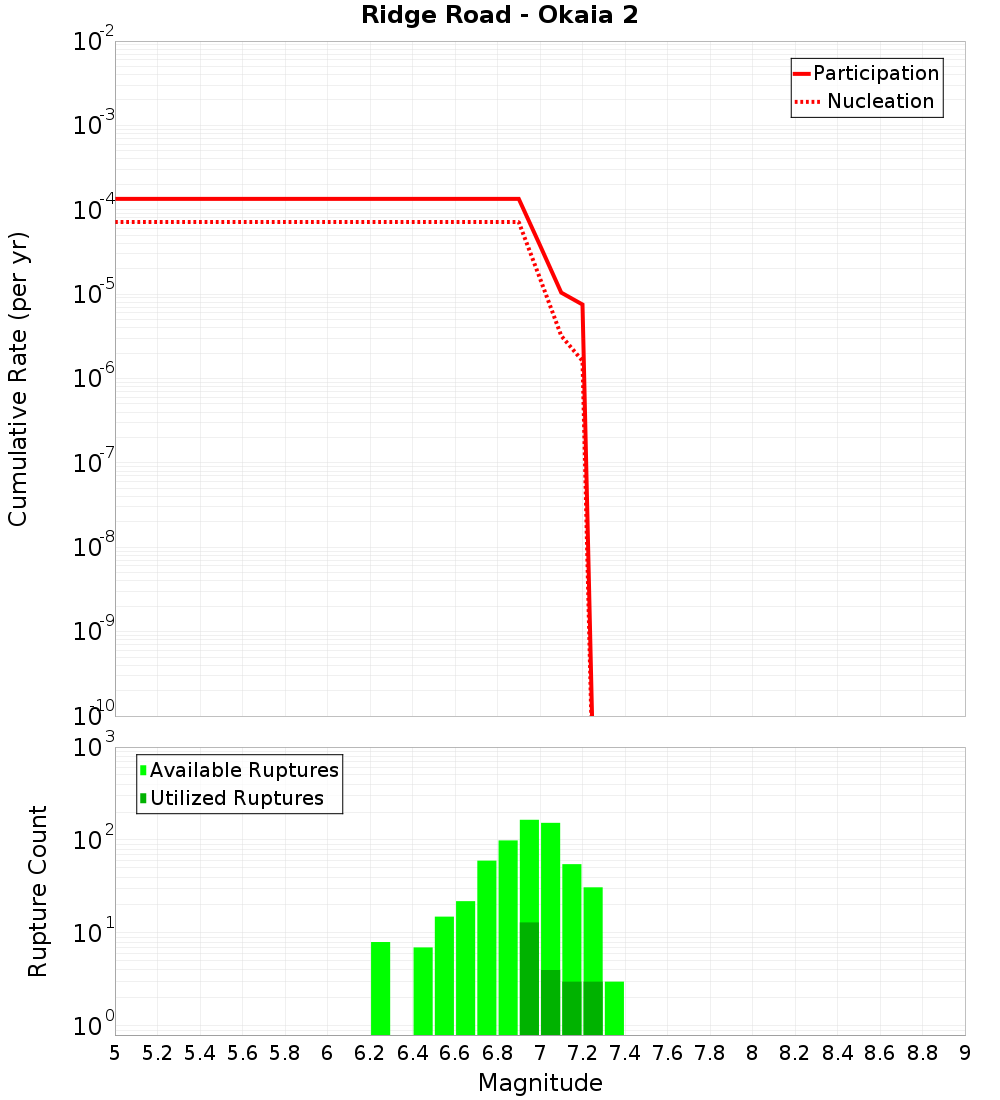

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

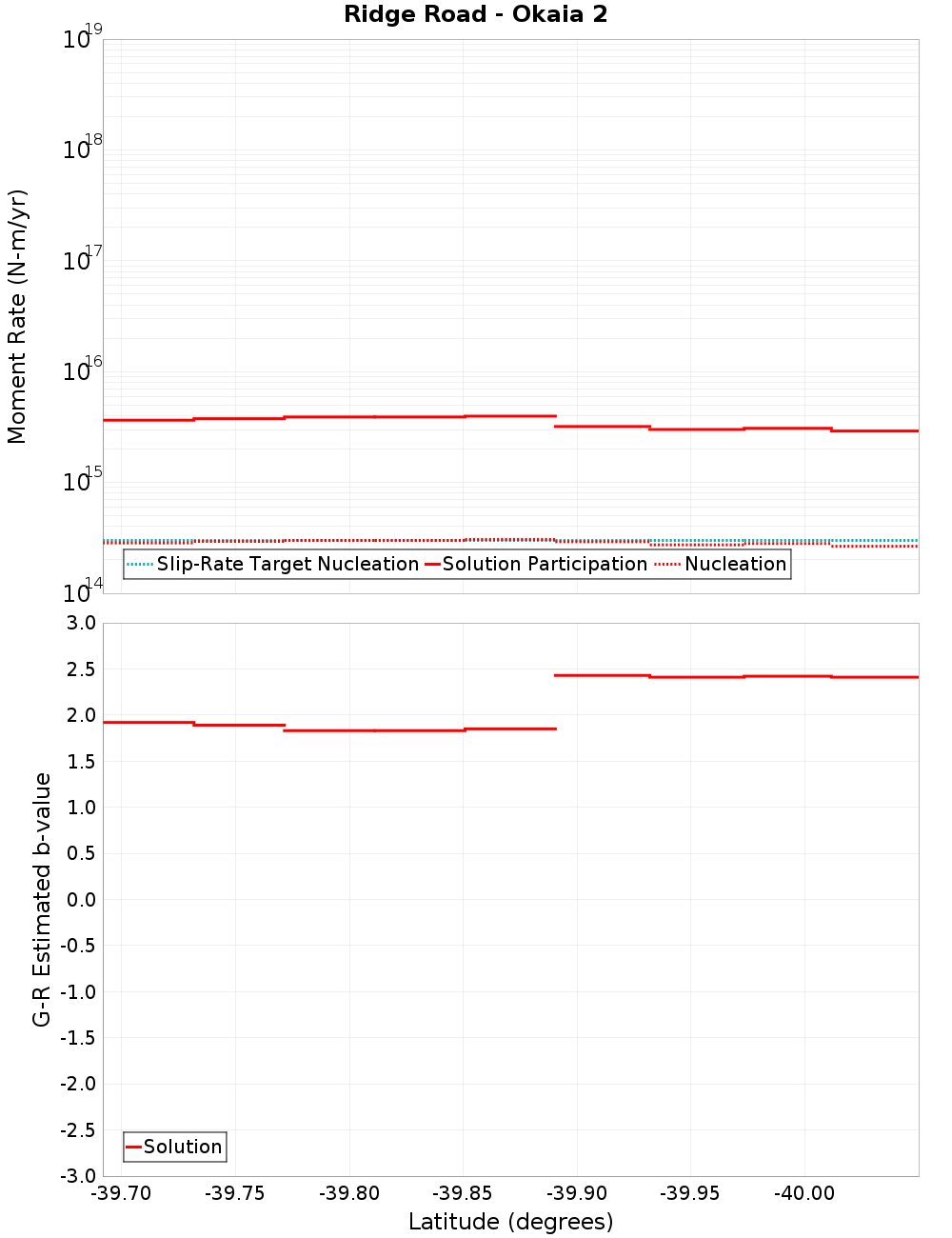

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Waverley - Okaia 1, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 101 |
| Co-rupture Rate | 1.4620509E-5 |
Okaia 3, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 84 |
| Co-rupture Rate | 1.2608893E-5 |
Moumahaki - Okaia 4, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 245 |
| Co-rupture Rate | 2.4613033E-5 |
Okaia 5, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 230 |
| Co-rupture Rate | 2.1042444E-5 |
Waitotara 10 & 11, 0.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 157 |
| Co-rupture Rate | 2.967912E-5 |
Waitotara 8 & 9, 2.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 270 |
| Co-rupture Rate | 6.0941336E-5 |
Nukumuru - Waitotara 1-6, 5.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 39 |
| Co-rupture Rate | 3.9980358E-5 |
