Wakamarama Offshore Details

PropertyValue
Rupture Count79
Ruptures Above Sect Min Mag77
Ruptures w/ Nonzero Rates4
Magnitude Range[6.86, 7.85]
Length Range[21, 194] km
Total Rate4.828155E-5 /yr
Multi-Fault Rate4.828155E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults4

Table Of Contents

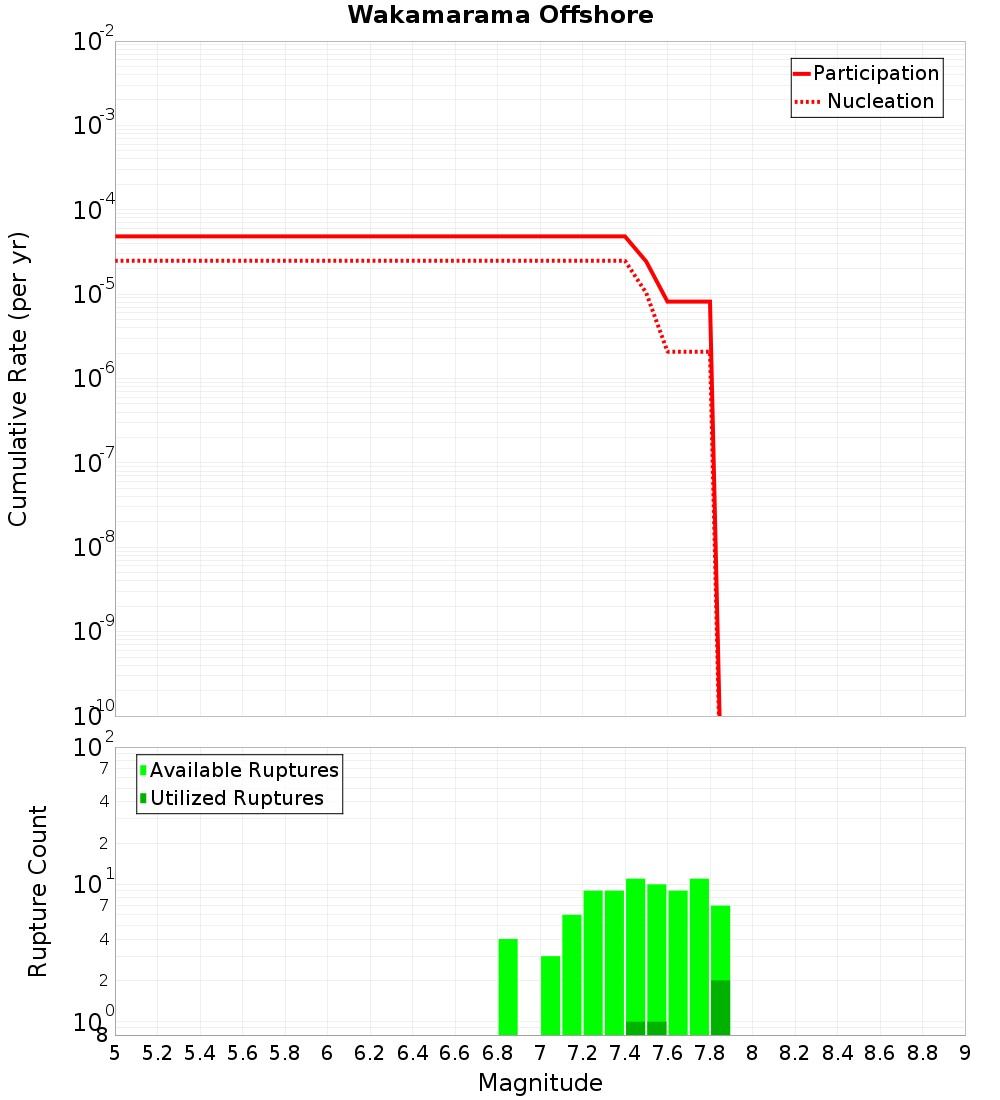

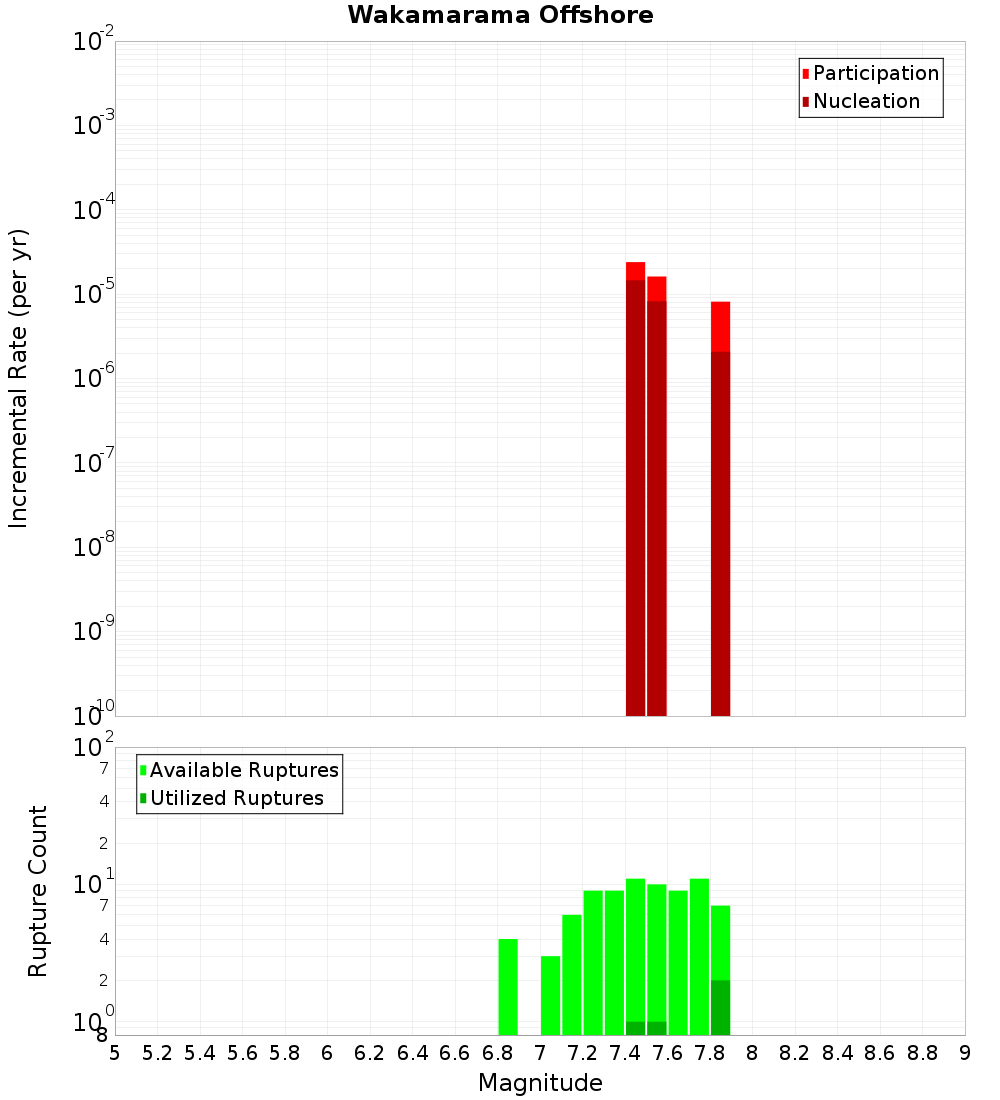

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

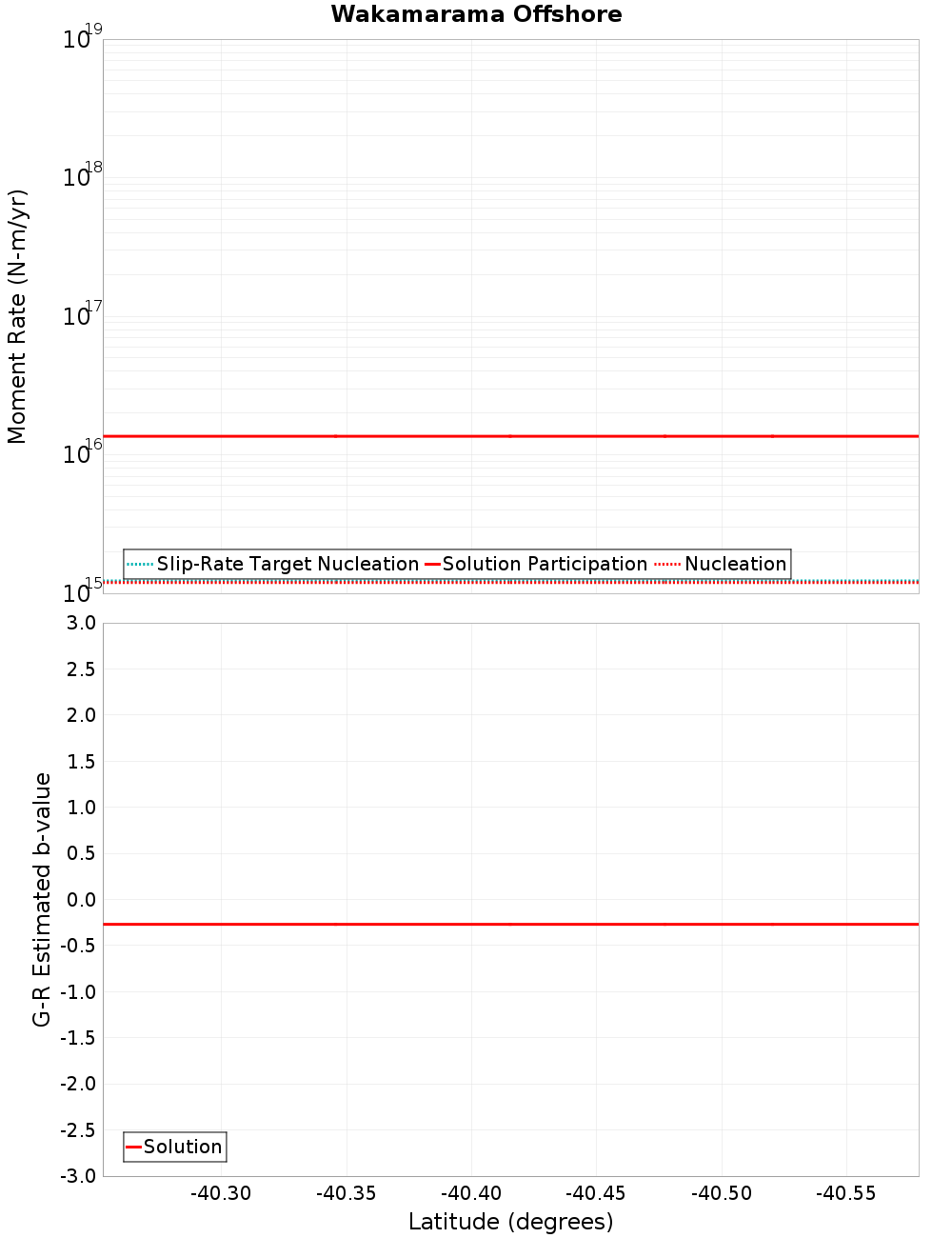

Moment-Rates and b-Values

(top)

Along-strike plot

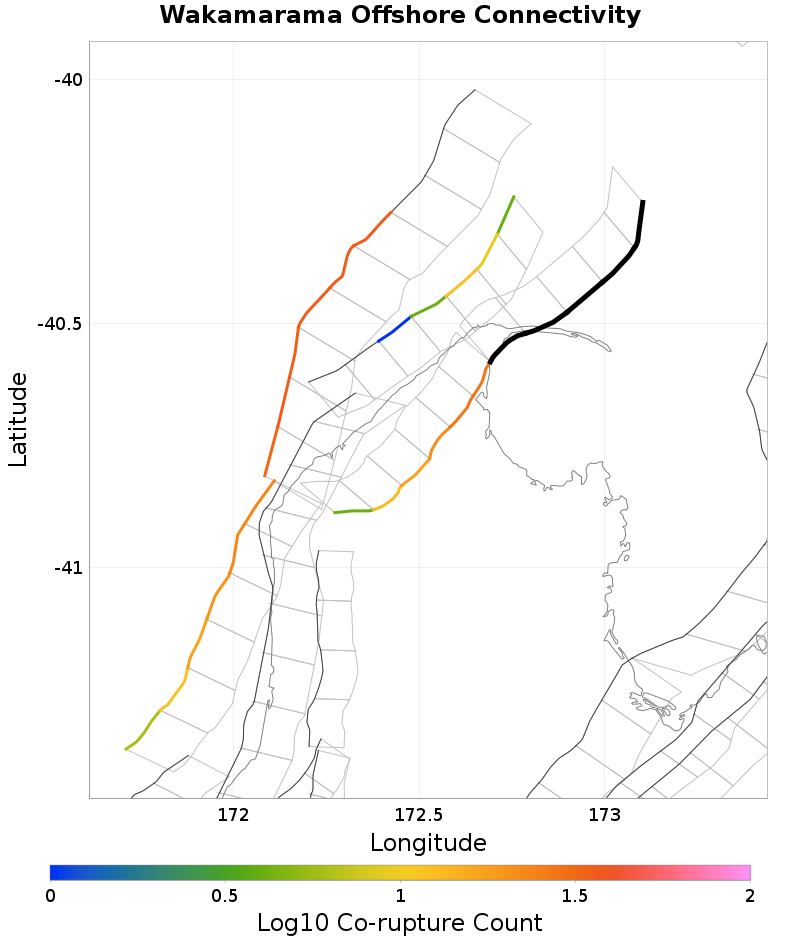

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wakamarama, 0 km away
Farewell, 0.4 km away
Kahurangi, 14.24 km away

Wakamarama, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate4.0138508E-5

Farewell, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate3.2422374E-9

Kahurangi, 14.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate8.143041E-6
