Whakatane: South Details

PropertyValue
Rupture Count6,342
Ruptures Above Sect Min Mag6,339
Ruptures w/ Nonzero Rates21
Magnitude Range[6.94, 8.39]
Length Range[21, 681] km
Total Rate4.3539226E-4 /yr
Multi-Fault Rate4.3539226E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults102

Table Of Contents

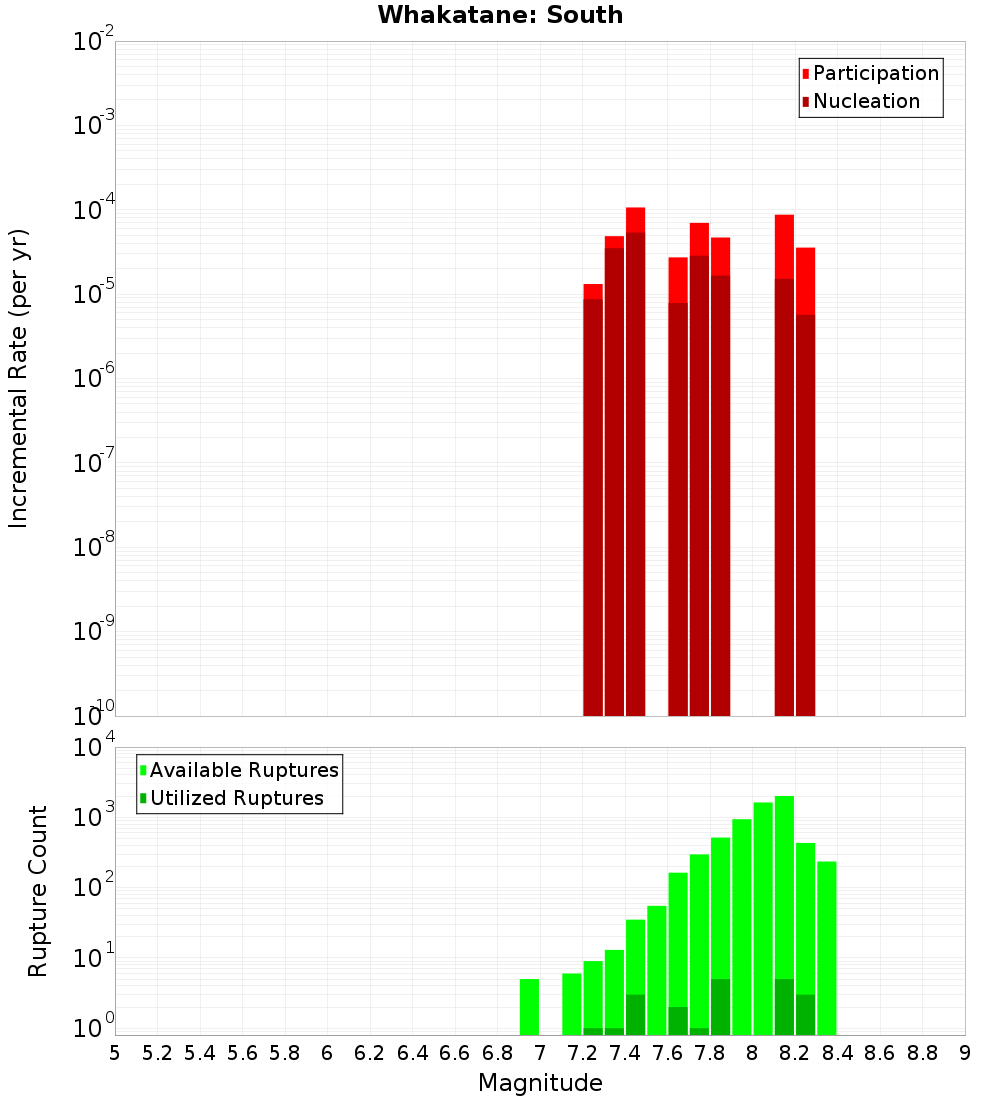

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

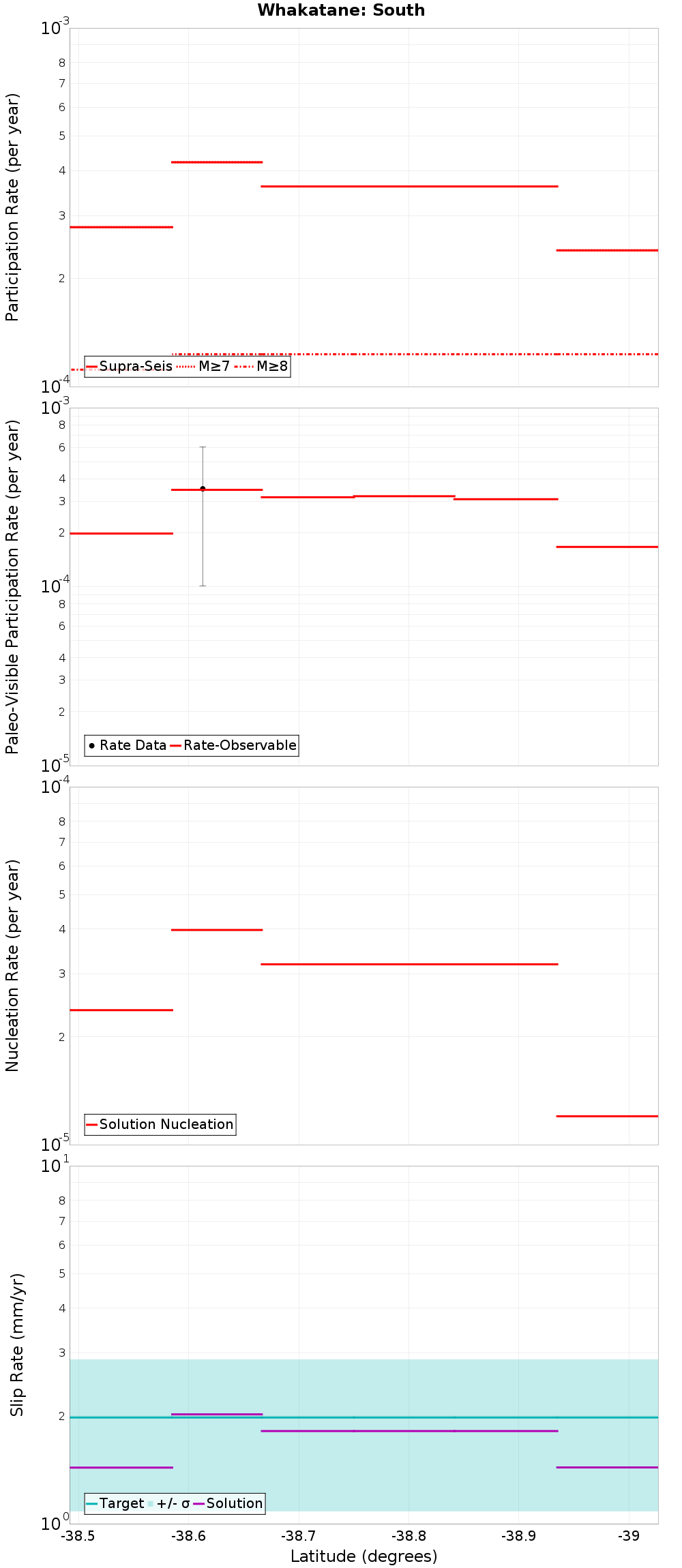

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

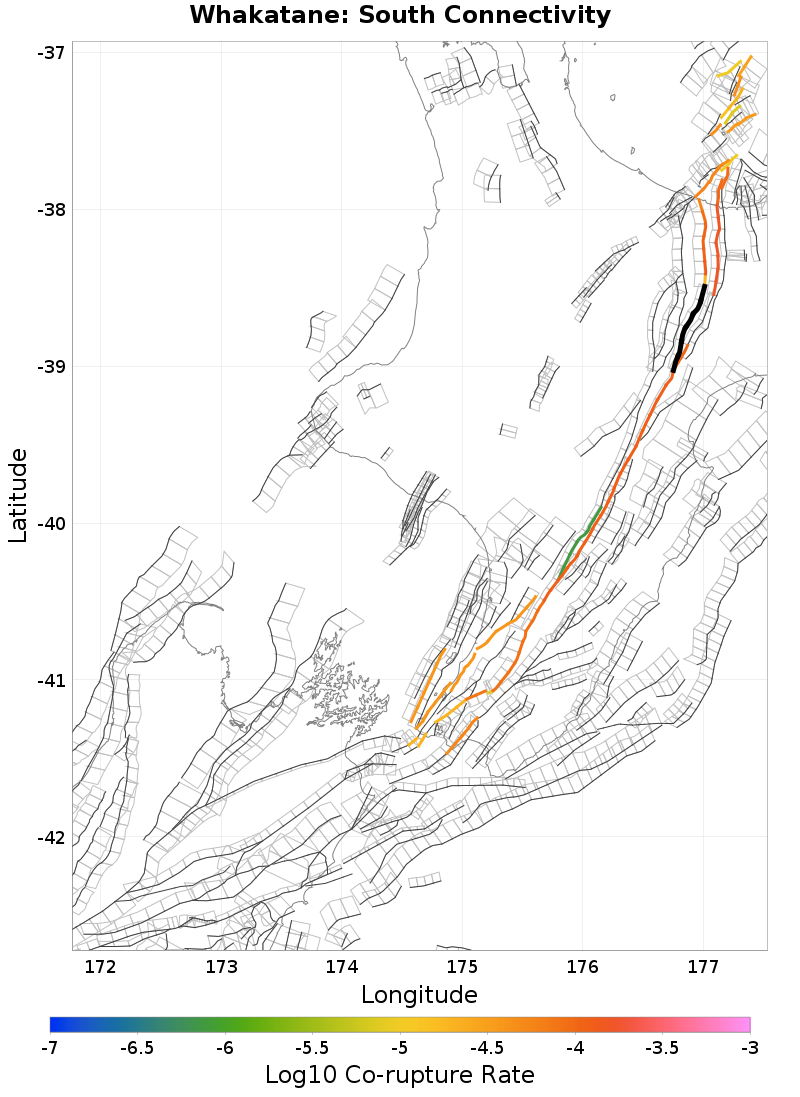

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimana: South, 0 km away
Whakatane: North, 0 km away
Mohaka: North, 0 km away
Waiohau: South, 4.66 km away
Waimana: North, 5.74 km away
Waiotahi: South, 5.94 km away
Waiotahi: North, 10.09 km away
Waiohau: North, 11.09 km away
Ruahine: North, 11.52 km away
Te Whaiti South, 11.9 km away
Patoka - Rangiora, 12.36 km away
Wheao: South, 14.53 km away
Awanui, 15.26 km away
Te Whaiti North, 18 km away

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?true
Co-rupture Count619
Co-rupture Rate1.07607186E-4

Whakatane: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?true
Co-rupture Count2,709
Co-rupture Rate1.3098412E-4

Mohaka: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?true
Co-rupture Count5,741
Co-rupture Rate1.2302364E-4

Waiohau: South, 4.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?true
Co-rupture Count299
Co-rupture Rate0.0

Waimana: North, 5.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?true
Co-rupture Count286
Co-rupture Rate1.578612E-4

Waiotahi: South, 5.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate0.0

Waiotahi: North, 10.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Waiohau: North, 11.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruahine: North, 11.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?false
Co-rupture Count327
Co-rupture Rate0.0

Te Whaiti South, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Patoka - Rangiora, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Wheao: South, 14.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 15.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Whaiti North, 18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNzcuMEFMRlB5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
