Darran Details

Property	Value
Rupture Count	2,366
Ruptures Above Sect Min Mag	2,365
Ruptures w/ Nonzero Rates	22
Magnitude Range	[6.83, 8.42]
Length Range	[18, 735] km
Total Rate	7.648327E-5 /yr
Multi-Fault Rate	7.648327E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	53

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

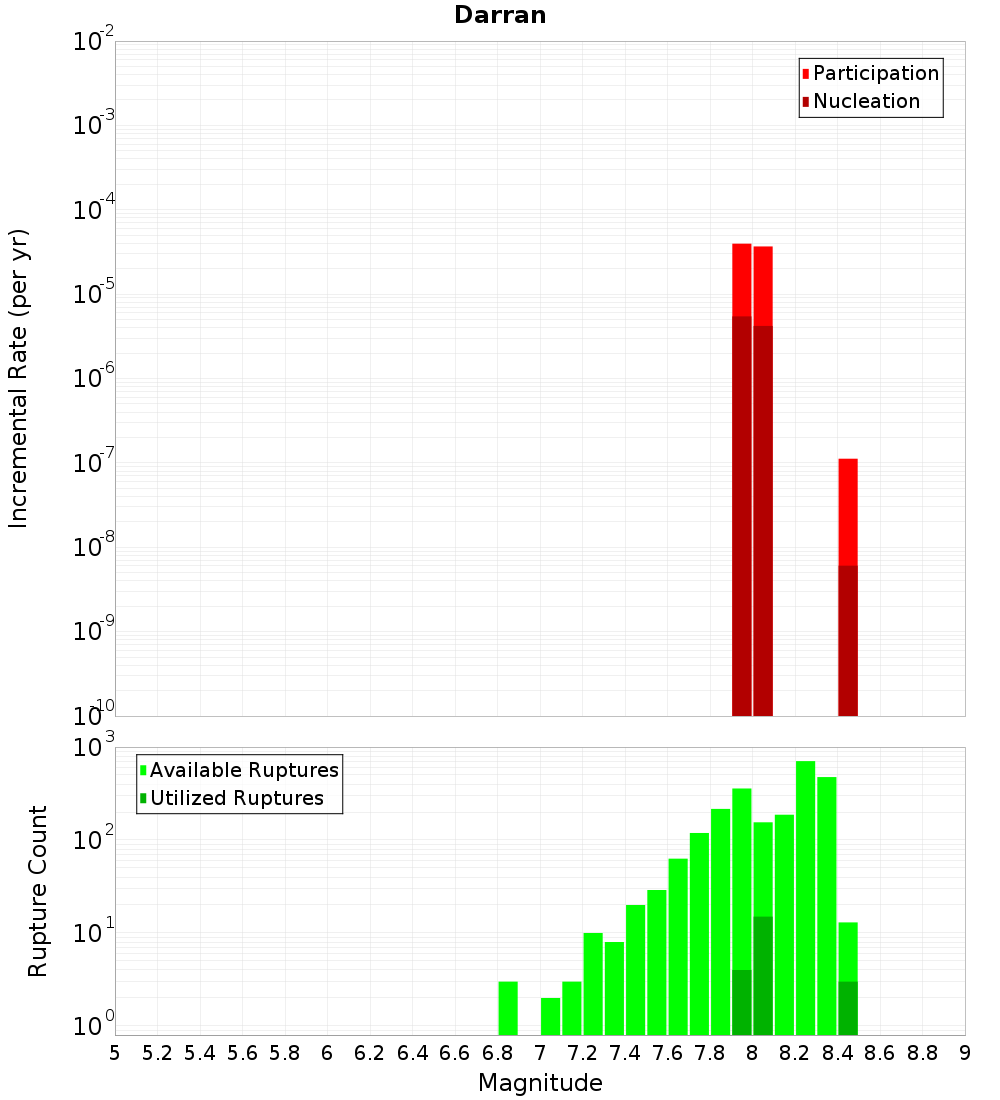

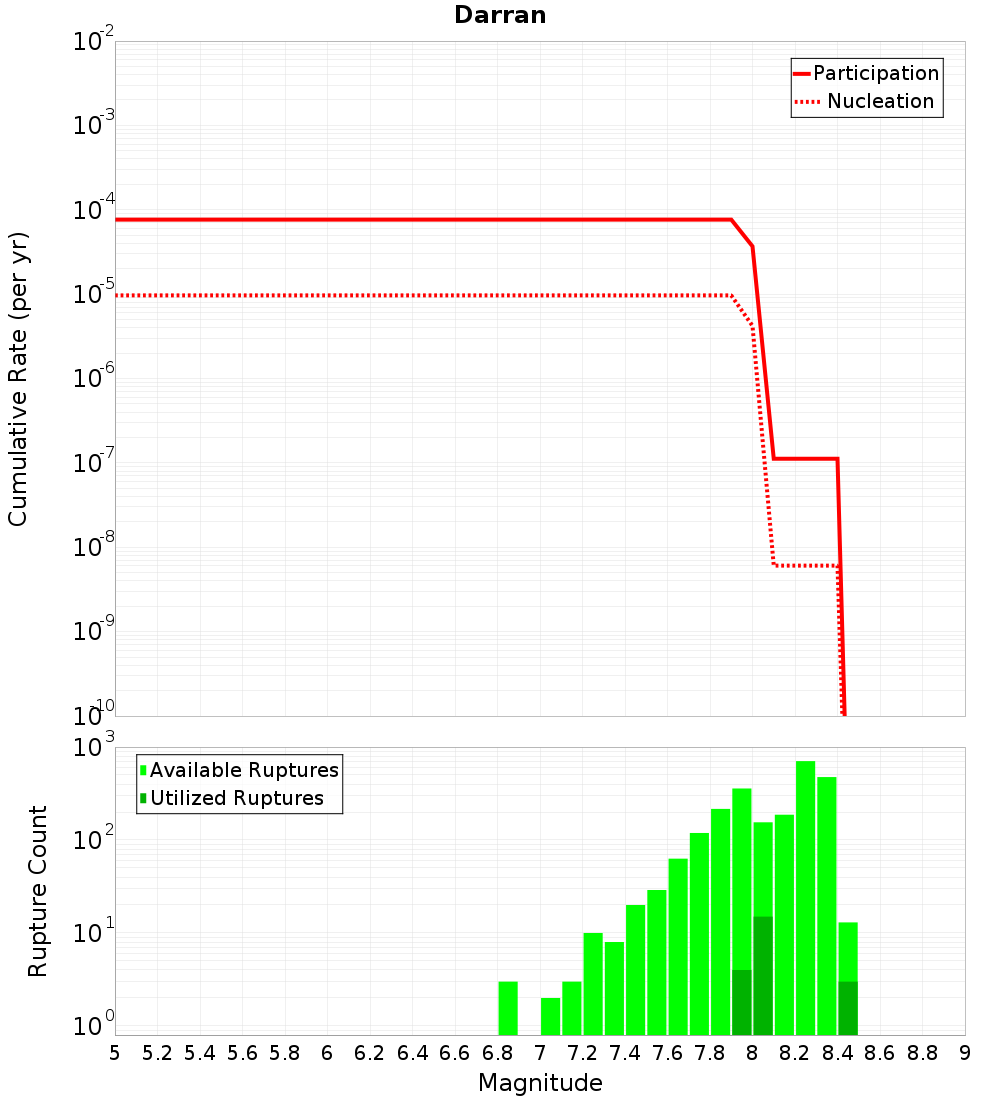

Magnitude-Frequency Distribution

Incremental	Cumulative

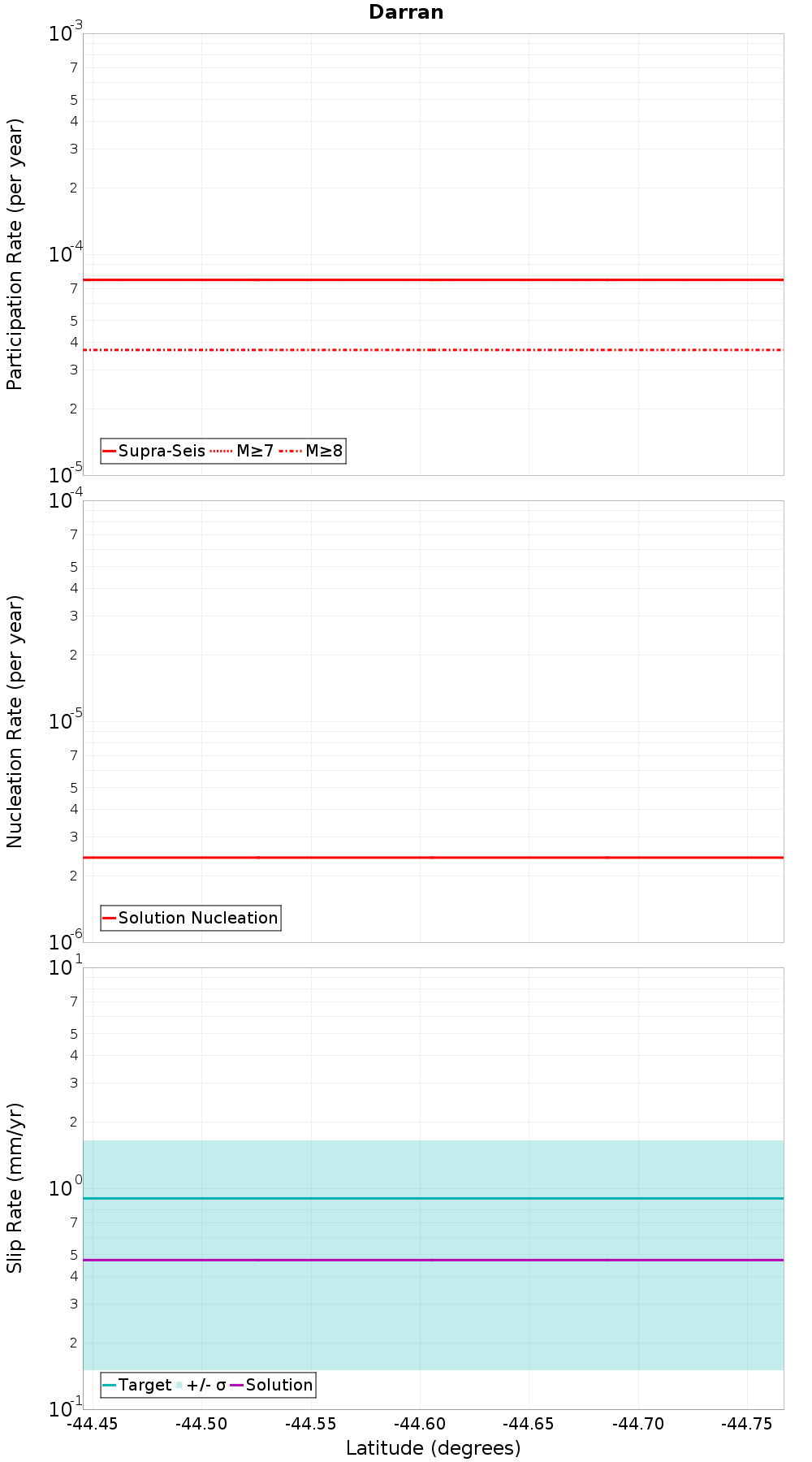

Along-Strike Values

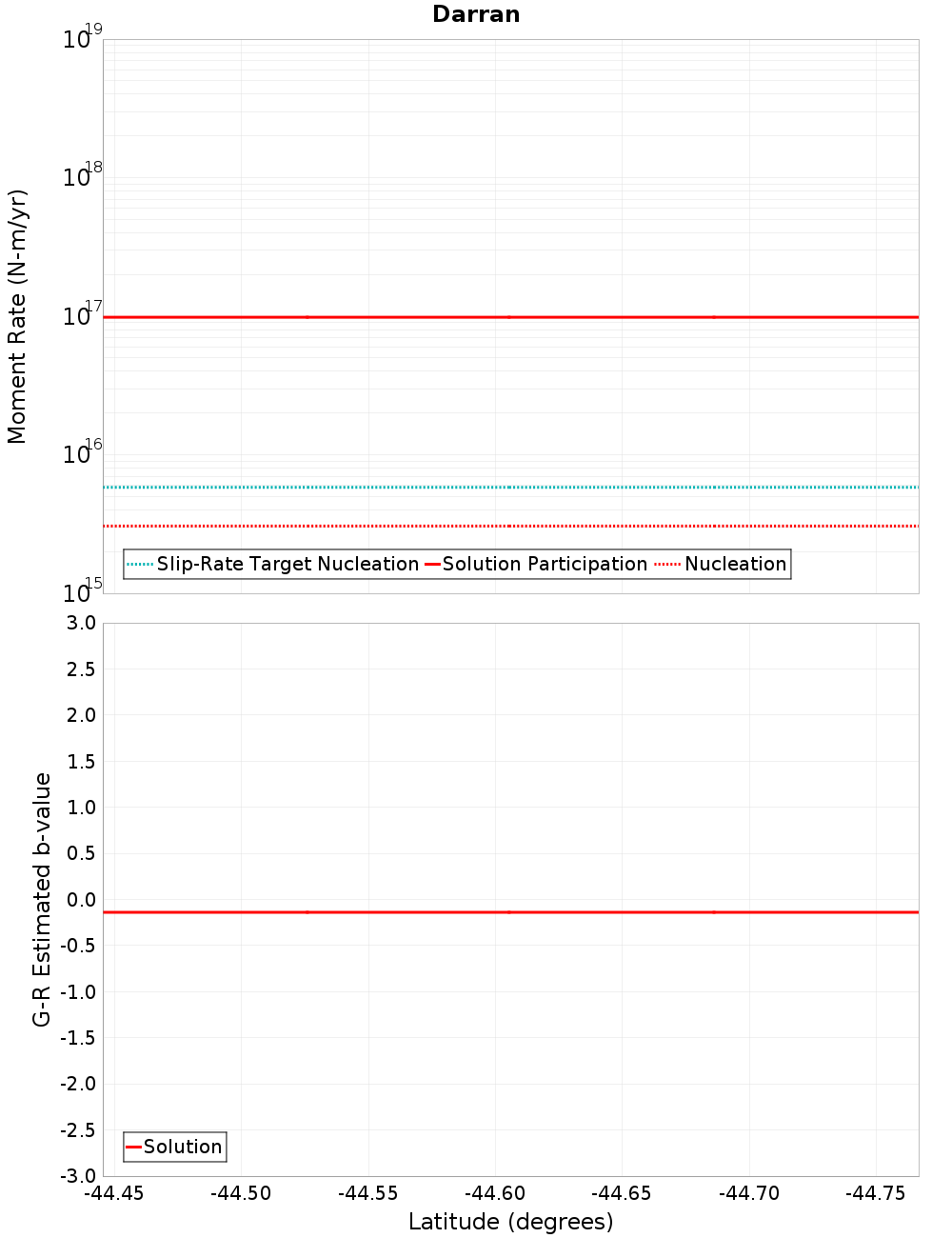

Moment-Rates and b-Values

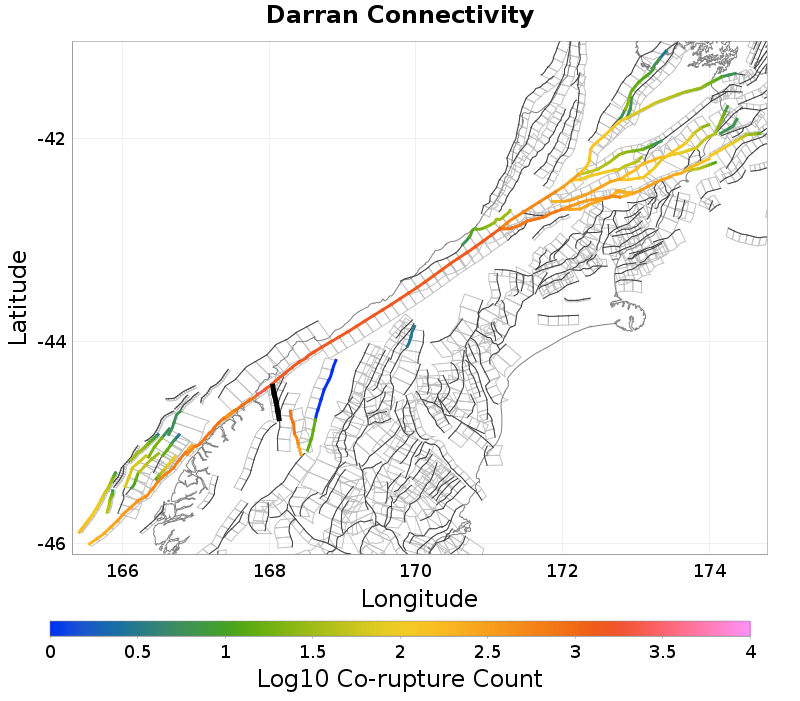

Connectivity

Nearby Sections

Fault Section
Alpine: George to Jacksons, 0.14 km away
Hollyford, 0.37 km away
Livingstone, 0.78 km away
Skippers, 0.88 km away
Te Anau, 4.52 km away
Madagascar, 7.33 km away
West Wakatipu, 12.9 km away
Barn, 18.51 km away

Alpine: George to Jacksons, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	true
Directly Connected?	true
Co-rupture Count	2,355
Co-rupture Rate	7.648327E-5

Hollyford, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Livingstone, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Skippers, 0.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Anau, 4.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Madagascar, 7.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

West Wakatipu, 12.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	true
Directly Connected?	true
Co-rupture Count	777
Co-rupture Rate	2.7384438E-6

Barn, 18.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
