Gable End North Details

PropertyValue
Rupture Count222
Ruptures Above Sect Min Mag217
Ruptures w/ Nonzero Rates11
Magnitude Range[6.57, 7.62]
Length Range[15, 157] km
Total Rate0.0015857448 /yr
Multi-Fault Rate0.0015857448 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults10

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

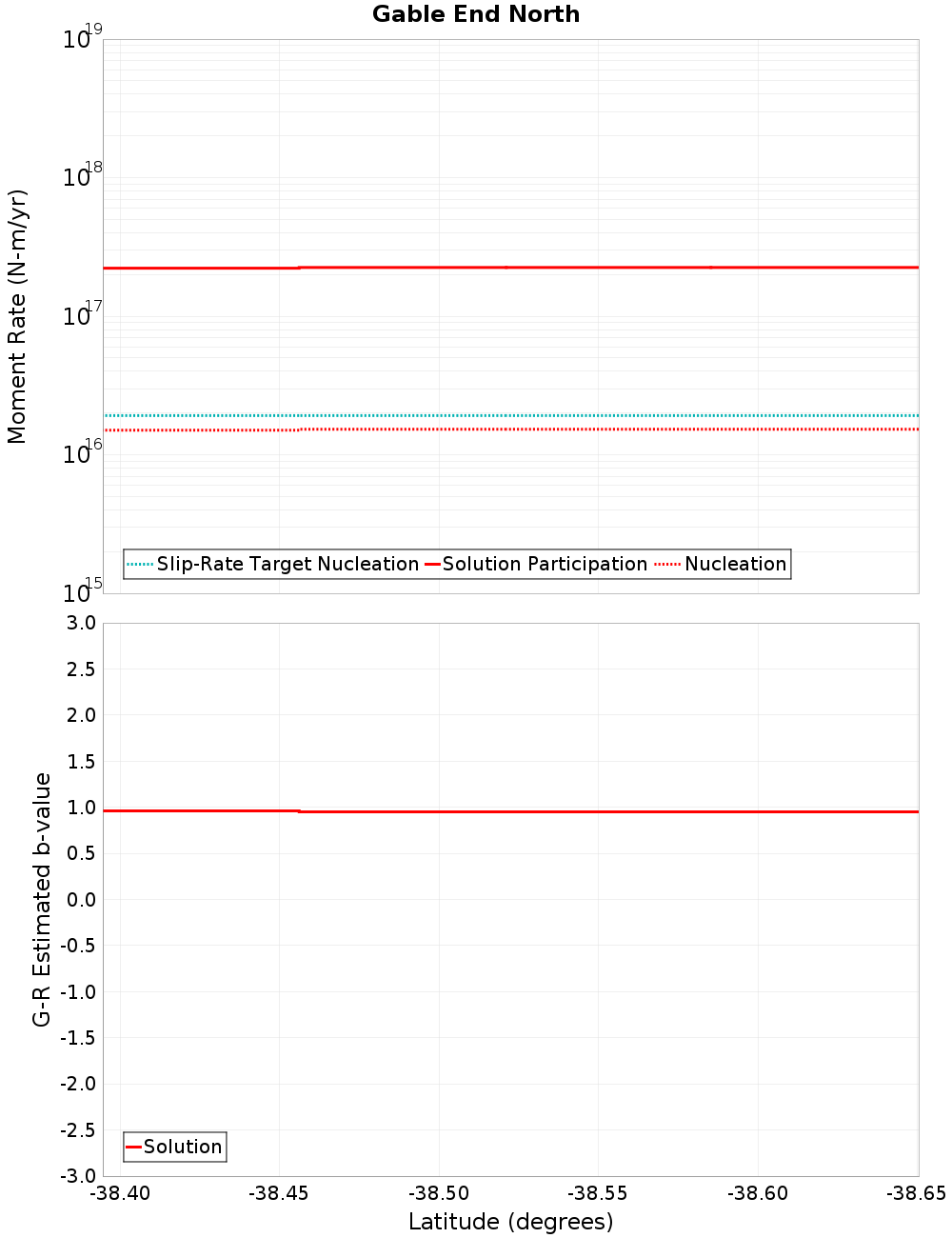

Moment-Rates and b-Values

(top)

Along-strike plot

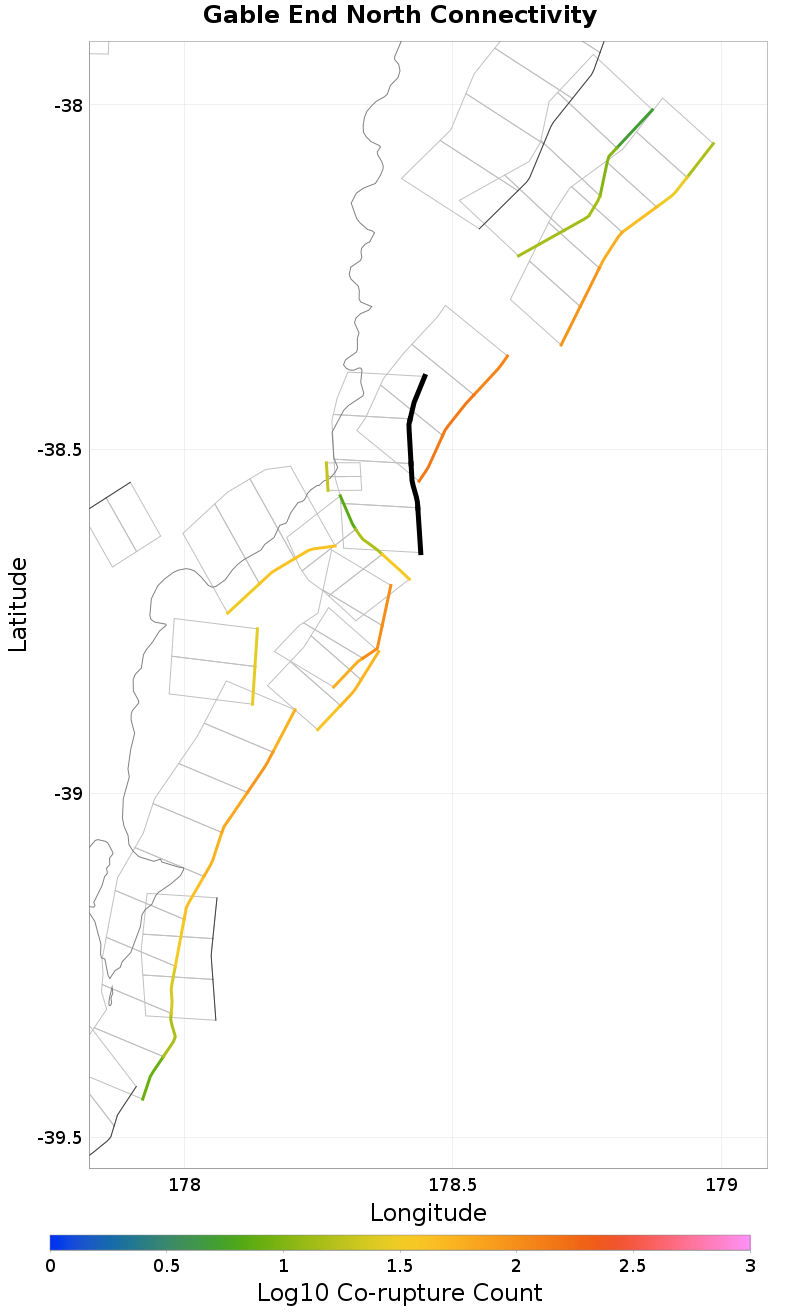

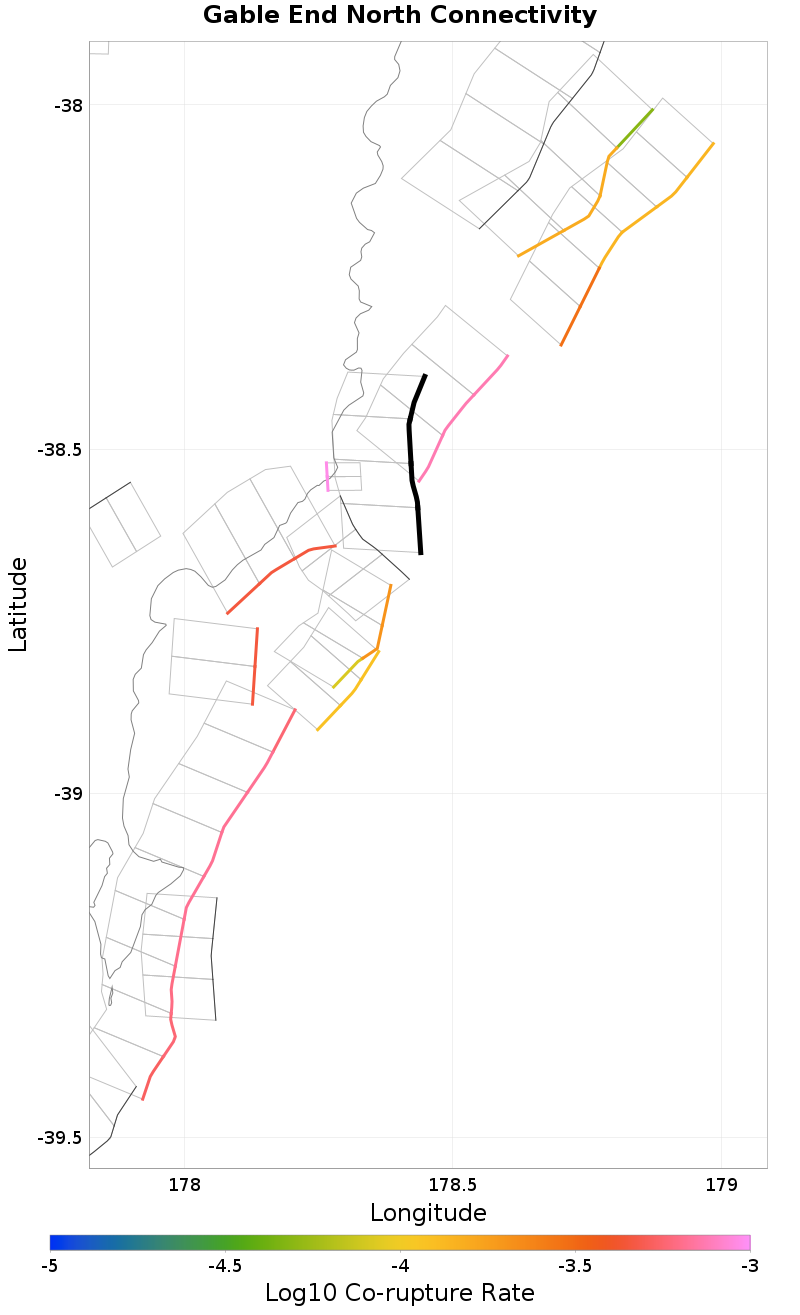

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pakarae, 0.38 km away
Ariel Bank 2, 0.91 km away
Ariel Bank, 2.26 km away
Te Ikaarongamai, 3.53 km away
Gable End South, 5.71 km away
Ariel East, 9.99 km away

Pakarae, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count19
Co-rupture Rate9.320023E-4

Ariel Bank 2, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count140
Co-rupture Rate7.443417E-4

Ariel Bank, 2.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count102
Co-rupture Rate2.0252672E-4

Te Ikaarongamai, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate0.0

Gable End South, 5.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count40
Co-rupture Rate4.5121575E-4

Ariel East, 9.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count51
Co-rupture Rate1.20063E-4
